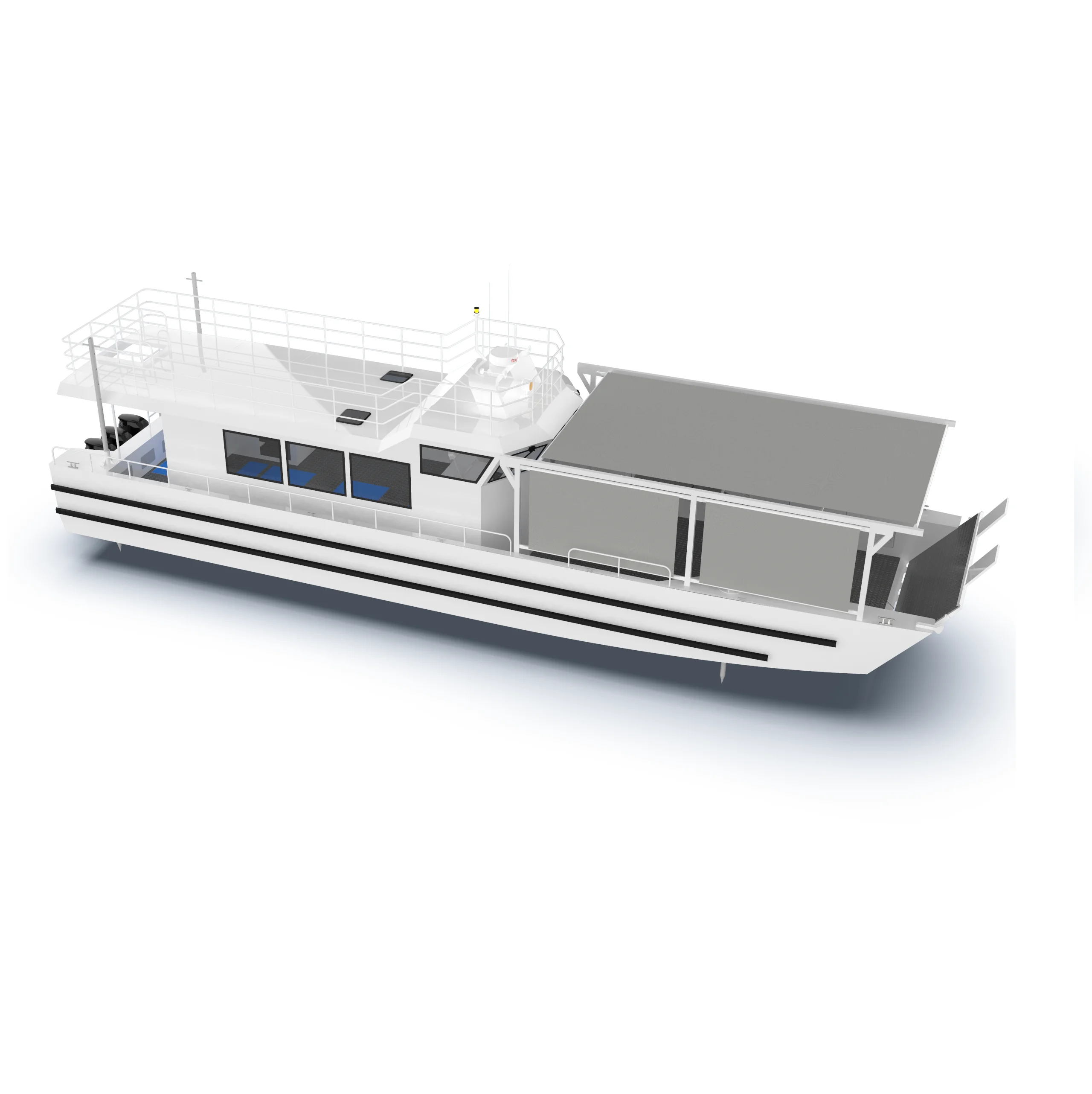

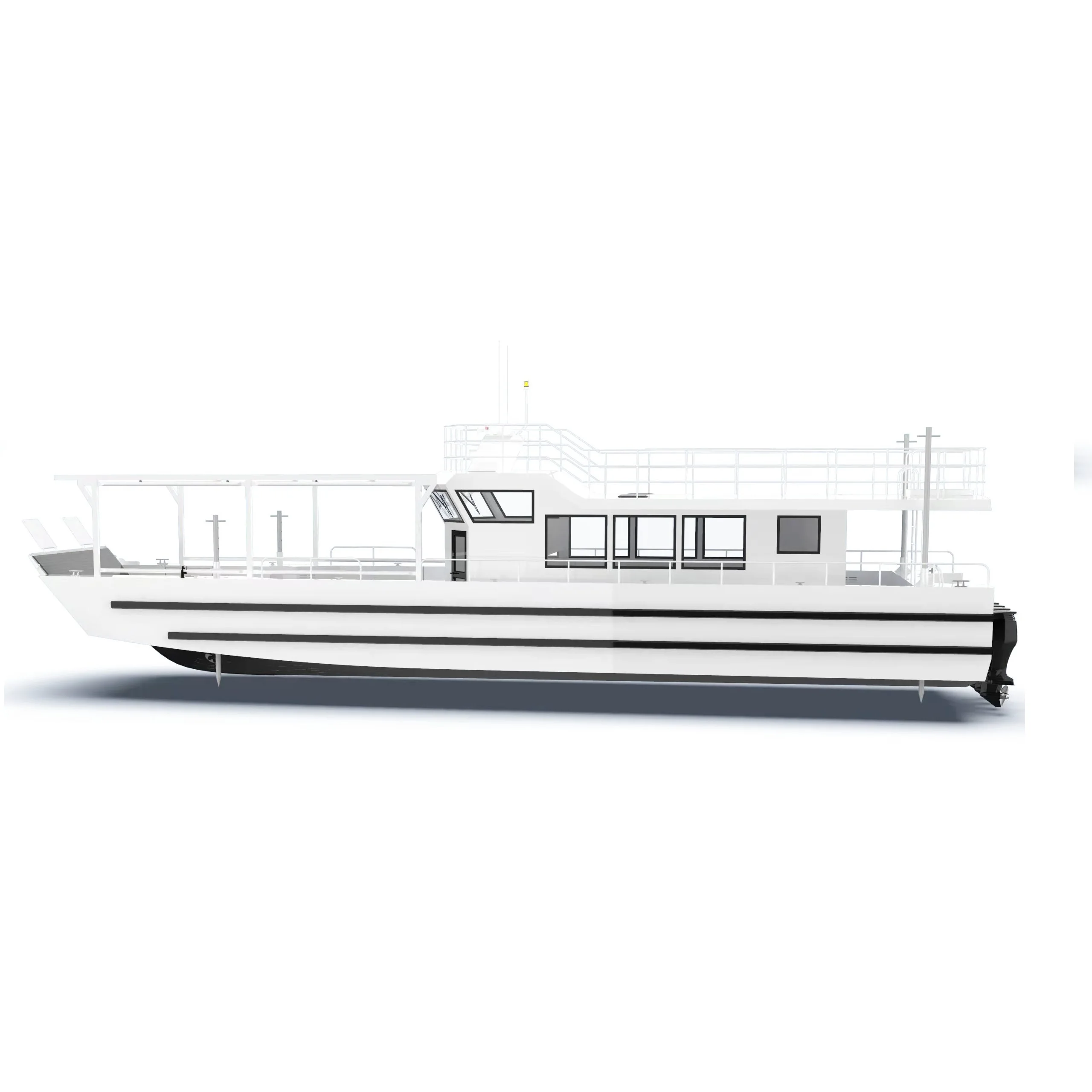

16 tons loading capacity 18m 60ft ferry cargo speed fishing yacht sport work boat barge landing craft for sale
16 tons loading capacity 18m 60ft ferry cargo speed fishing yacht sport work boat barge landing craft for sale
16 tons loading capacity 18m 60ft ferry cargo speed fishing yacht sport work boat barge landing craft for sale
16 tons loading capacity 18m 60ft ferry cargo speed fishing yacht sport work boat barge landing craft for sale
16 tons loading capacity 18m 60ft ferry cargo speed fishing yacht sport work boat barge landing craft for sale
16 tons loading capacity 18m 60ft ferry cargo speed fishing yacht sport work boat barge landing craft for sale
16 tons loading capacity 18m 60ft ferry cargo speed fishing yacht sport work boat barge landing craft for sale

16 tons loading capacity 18m 60ft ferry cargo speed fishing yacht sport work boat barge landing craft for sale

Share on:


Price:$200,000.00 - $230,000.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Length
18m/60ft
Beam
5m
Depth
1.42m
Number of people
15-20
Engine Power
600-2400HP
Warranty
3 years


TYPE
landing craft 580
landing craft 790
landing craft 900
landing craft 1000
Landing craft1100
Length
5.8m
7.9m
9m
10m
11m
Beam(m)
2.2
2.55
3
3
4
Depth(m)
1.42
1.42
1.42
1.49
1.4
Draft(m)
0.35
0.35
0.35
0.35
0.3
Bottom Sides(mm)
5
5
6
6
6
Top Sides(mm)
4
4
5
5
5
Transom(mm)
5
5
5
6
6
Loading capacity
1t
2.5t
4t
5t
8.5t
Rec.HP
115-150
175
200
250-300
200-300


              Standard Accessories
Fuel Tank Gauge
√
Bollard
√
Fuel Tank Cleaning Opening
√
Hinge
√
Outboard Protection Rails
√
Control Panel
√
Storage Gasket Cover
√
Hardtop
√
Fuel Tank
3000L
Fuel Hose
√
Lifebuoy Bracket
√
Control Panel
√
Fire Extinguisher Bracket
√
Zinc
√
Deck Self Drain Holes
√
Safety Door Hinge
√
Exhaust Vent Hose
√
Bottom
Shallow V
Acrylic Windscreen
√
Hand Rail
√
Options Accessories
Painting (Two Tone)
Hydraulic Steering
Compass
Navigation Light
Marine Seat
Anchor Light
Boat Trailer
Pump of Washing Deck




Manufacturing Technique


1.All of our fishing & working boat are made of Marine-grade aluminum 5083-h116 with China Ship Classification society ( CCS )

2.Welding Specification :
1) TIG and MIG are to be adopted for this ship .
2) The ultrasonic inspection to be carried out for the
cross joint of seam and other important place .
3) From 5083-H116 material to welding wires to welding use gas & experienced
qualified welders .
4) The bottom is double bottom system and constructed on the longitudinal system of framing .
5) Solid floors
will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm ."

3.The Core Features Of Our safe Design
1) The Whole hull structure Manual bilge pump system
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with
heavy duty fuel hoses .
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe


Company Introduction


We are a very professional boat manufacturer with advcanced technology and rich experience.Our products including fishing boat, landing craft,patrol boat,diving boat,passenger boat,rescue boat,fire fighting boating and so on.It is not about lucky in sailing but we believe that the performance when it matters.
