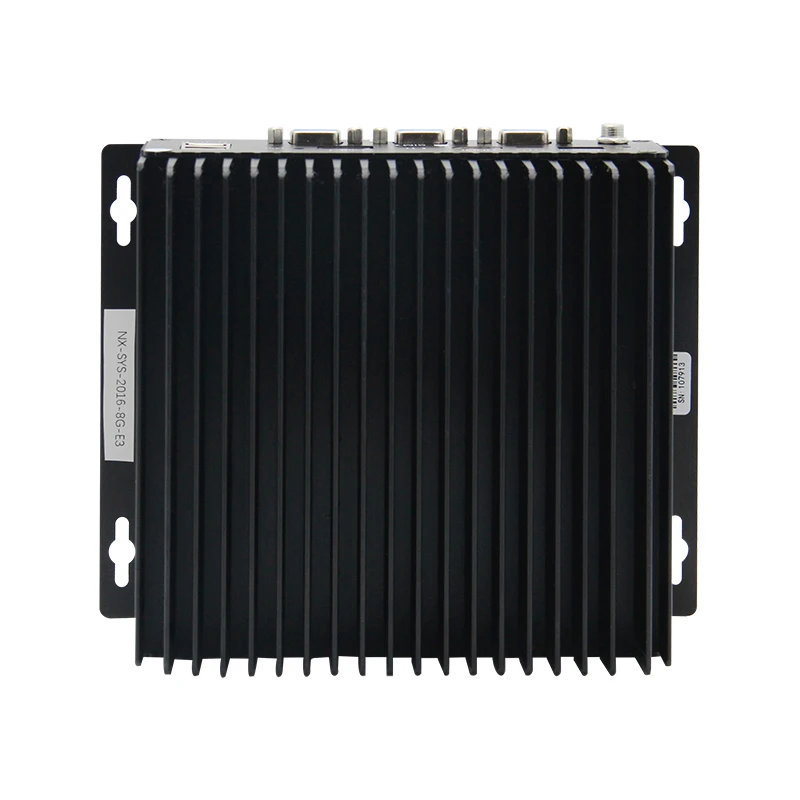

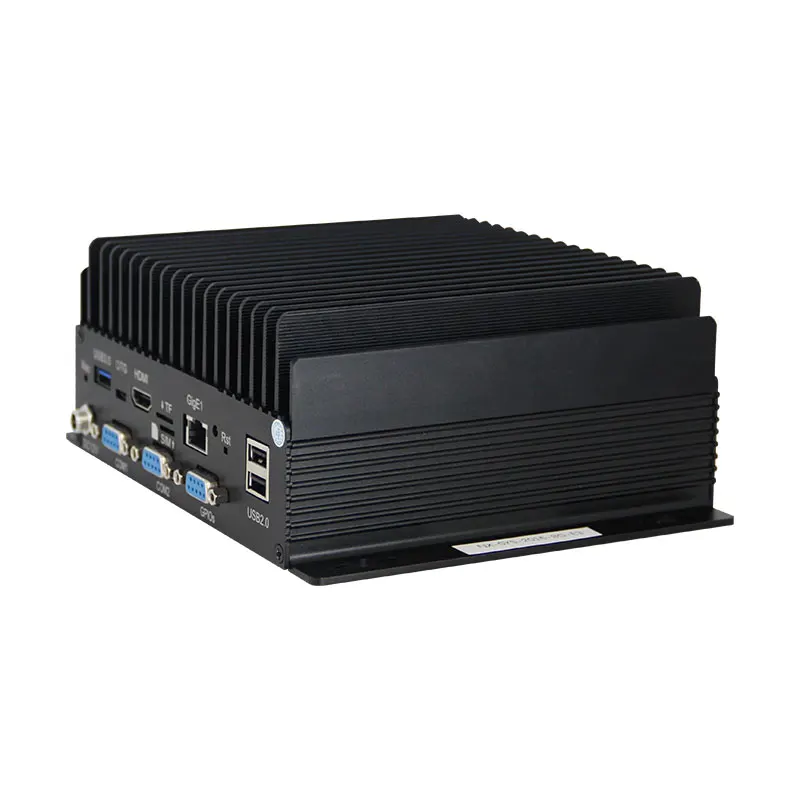

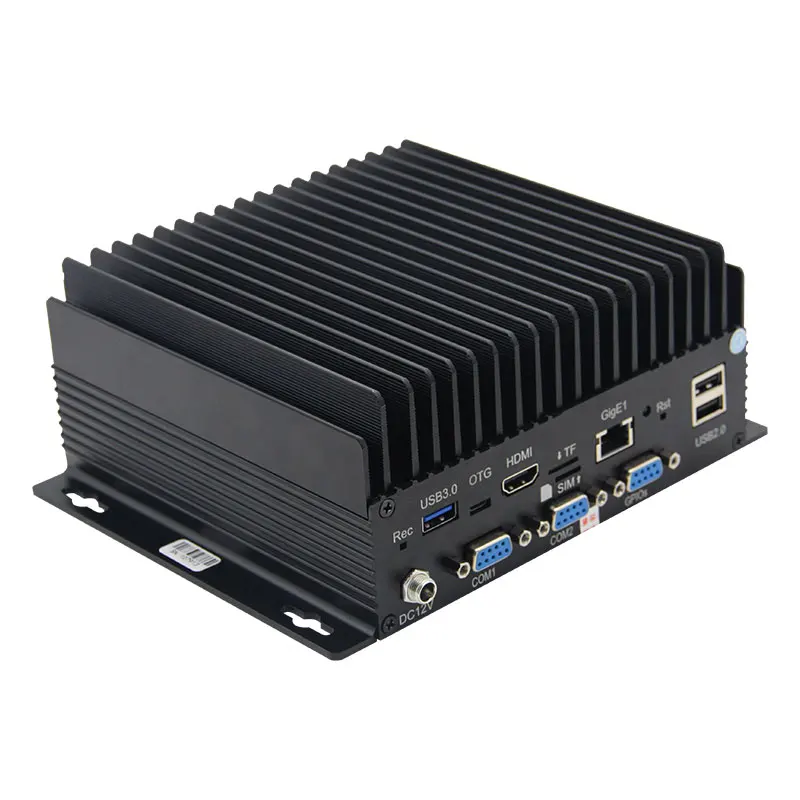

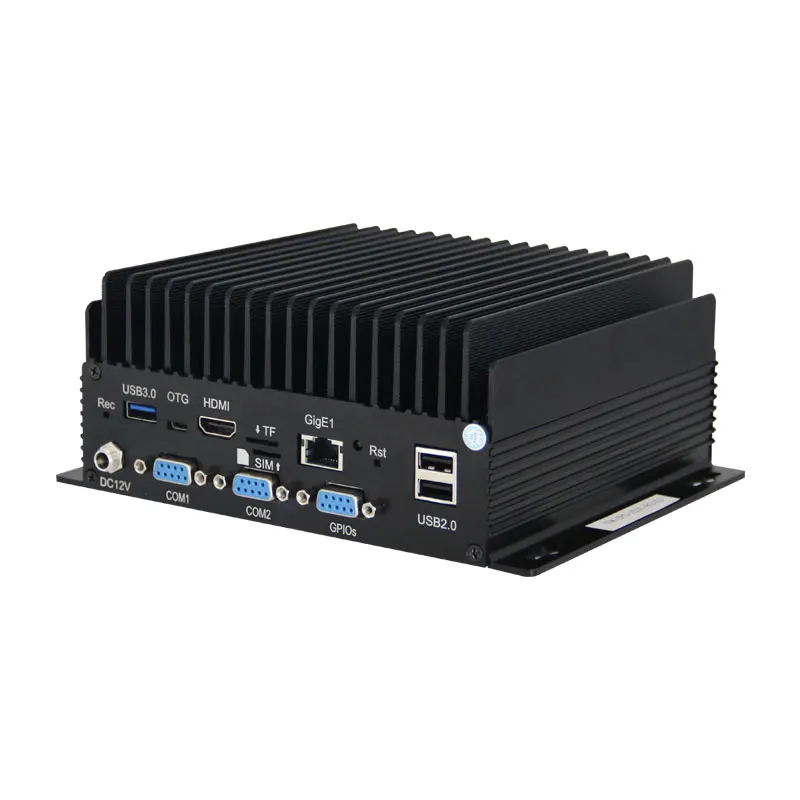

NVIDIA JETSON Orin NX(8G) SYS 2016 Embedded Computer Development KIT Industrial Computer
- Category: >>>
- Supplier: Beijing Plink AI Technology Co. Ltd
Share on (1600700146246):
Product Overview
Description
SYS-2016 is an AI industrial computer with NVIDIA Jetson Orin NX series core modules.
SYS-2016 standard model can support 1/3/5 full speed Gigabit Ethernet. If you need to expand USB3.0 signal, SSD memory card, SATA signal, 4G communication module, all kinds of video capture/output card, AD capture card, multi-serial card, audio capture/output card, multi-function IO card, etc, please contact our sales staff.
SYS-2016 standard model can support 1/3/5 full speed Gigabit Ethernet. If you need to expand USB3.0 signal, SSD memory card, SATA signal, 4G communication module, all kinds of video capture/output card, AD capture card, multi-serial card, audio capture/output card, multi-function IO card, etc, please contact our sales staff.
Adapt to higher ambient temperatures

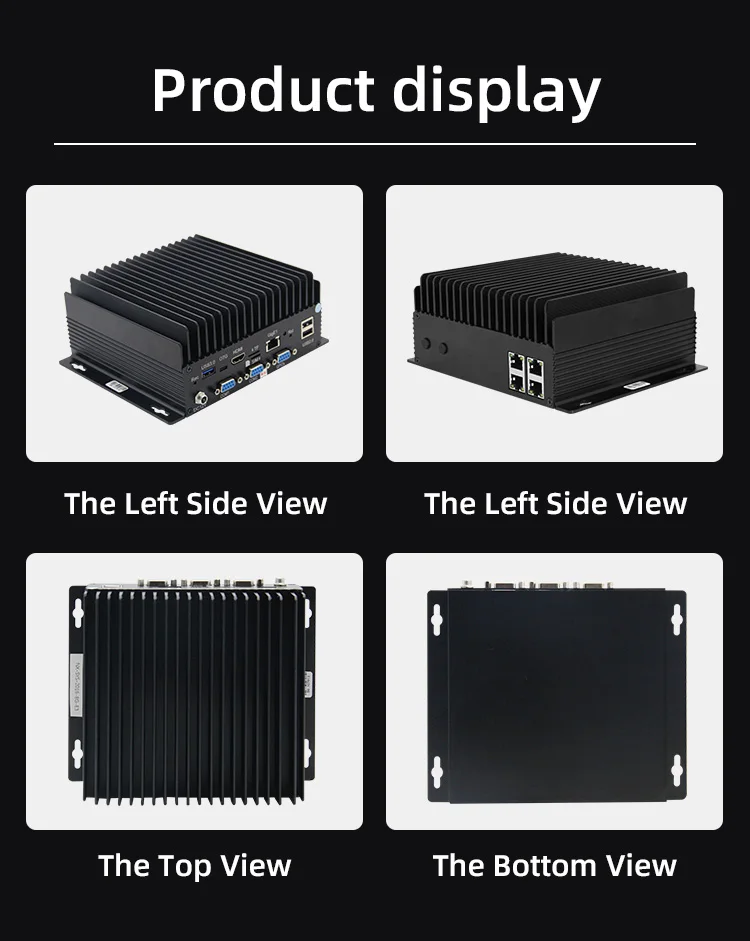

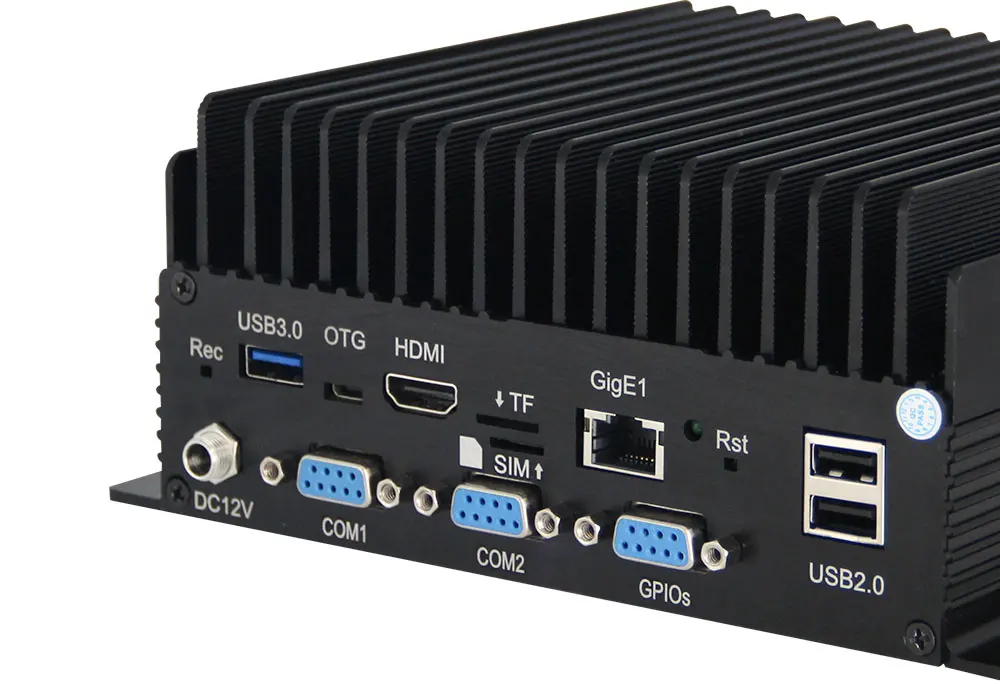

SYS-2016 adopts large heat fin outside, copper bosses and high-performance heat pipe to make heat balance design inside. It has good heat transfer and heat dissipation performance, so that the whole machine can adapt to higher ambient temperature scenarios.
Product Feature
NAME：SYS-2016
Module：NVIDIA Jetson Orin NX 8GB / 16GB
NVIDIA Jetson Xavier NX 8GB / 16GB
Power：DC +9V~+24V
Working temperature：-25~+65°C
Networking：1*RJ45
Color：Black
Size：190mm*160mm*76.3mm
Weight：1499g

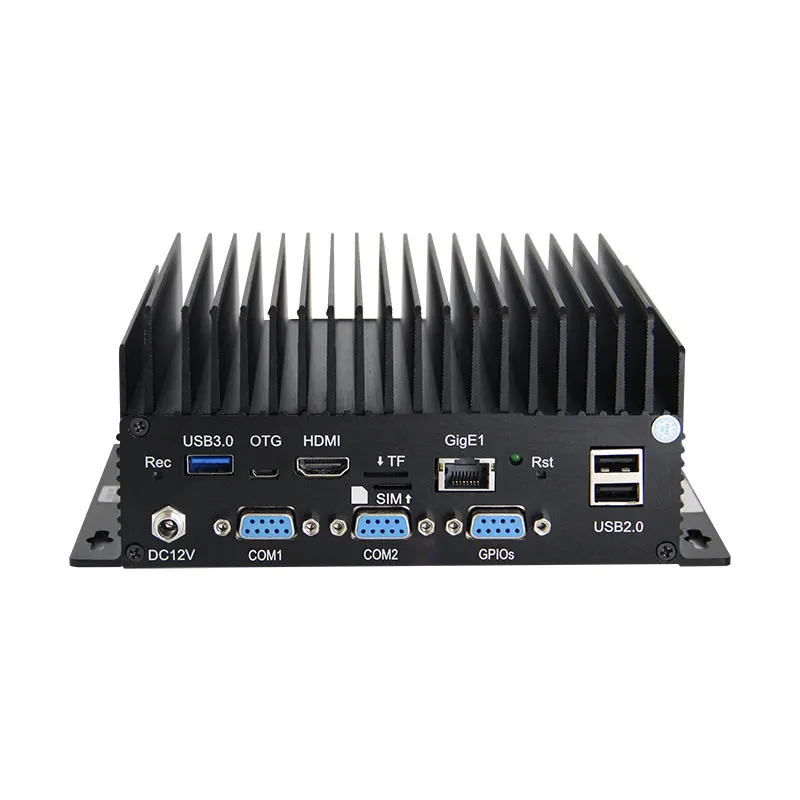

USB：Type-A；Type-B
Other I/O：3*GPIO；2*RS232；1*CAN；1*GPO

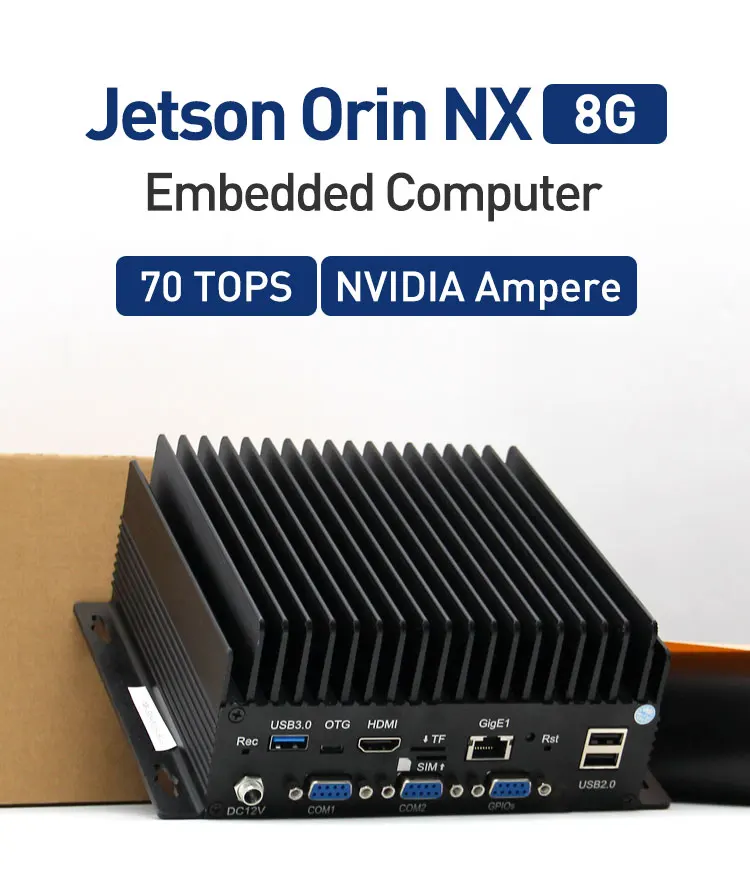

NVIDIA Jetson Orin NX Module (8G) Technical Specifications
AI Performance | 70 TOPS |
GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
GPU Max Frequency | 765 MHz |
CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
CPU Max Frequency | 2 GHz |
DLA Max Frequency | 614 MHz |
Memory | 8GB 128-bit LPDDR5 102.4GB/s |
Storage | - (Supports external NVMe) |
CSI Camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
PCIe | 1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) |
USB | 3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
Networking | 1x GbE |
Display | 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
Other I/O | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs |
Power | 10W - 20W |
Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
Smart Cities
Traffic management, parking management, transportation hub operation, public safety, and more
Healthcare
Patient monitoring, social distancing, mask detection, contact tracing, and more
Agriculture
Autonomous planting and harvesting, precision farming, yield management, and more
Construction
Mapping/planning, autonomous operation, preventive maintenance, work safety, and more
Industrial
Optical Inspection for quality control, predictive maintenance, robotic arms, and more
Retail
Asset protection, automated checkout, intelligent store analytics, digital signage, and more
Energy & Mining
Optical inspection, autonomous operation, preventive maintenance, safety, and more
Robotics & Logistics
Robots for warehouse & factory, first/last mile delivery, collaboration, service, and more
Founded in 2009, Plink-AI technology focuses on GPU solutions. It is the general agent in North China of Leadtek technology, a world-famous brand. It has been invited to become a NVIDIA partner with a full stack of NVIDIA products solutions.
Plink-AI technology takes the game graphics card, professional graphics card, GPU server, embedded AI integrated machine scheme as the main product line, serves the data center, cloud service, independent machine, medical instrument, intelligent agriculture, intelligent logistics, intelligent city, security, vehicle road coordination, industrial automation, education and scientific research and other industries, and has accumulated a large number of implementable programs, while in-depth learning DLI training On the basis of that, we will export AI professionals for the society.
Plink-AI technology adheres to the tenet of serving customers, strives for survival with quality, and provides GPU one-stop solution for customers.
Plink-AI technology takes the game graphics card, professional graphics card, GPU server, embedded AI integrated machine scheme as the main product line, serves the data center, cloud service, independent machine, medical instrument, intelligent agriculture, intelligent logistics, intelligent city, security, vehicle road coordination, industrial automation, education and scientific research and other industries, and has accumulated a large number of implementable programs, while in-depth learning DLI training On the basis of that, we will export AI professionals for the society.
Plink-AI technology adheres to the tenet of serving customers, strives for survival with quality, and provides GPU one-stop solution for customers.
How can I get the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are very anxious to get the price, please email us (dlj@plink-ai.com, lyl@plink-ai.com, zjy@plink-ai.com) or contact us by other means so that we can help you provide pricing.
Can I place an order for samples?
Yes. Please feel free to contact us.
What is your delivery time?
It depends on the number of orders and the season in which you placed your order. Usually we can ship within 7-15 days, small quantity shipment, about 30 days.
What is your payment term?
T/T, Western Union, MoneyGram and PayPal. This is negotiable.
What is the mode of transportation?
It can be transported by sea, air or express (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
Can the product be customized?
Our company has a professional R&D team and factory, which can meet the needs of customers to customize products, please email us for specific matters.
