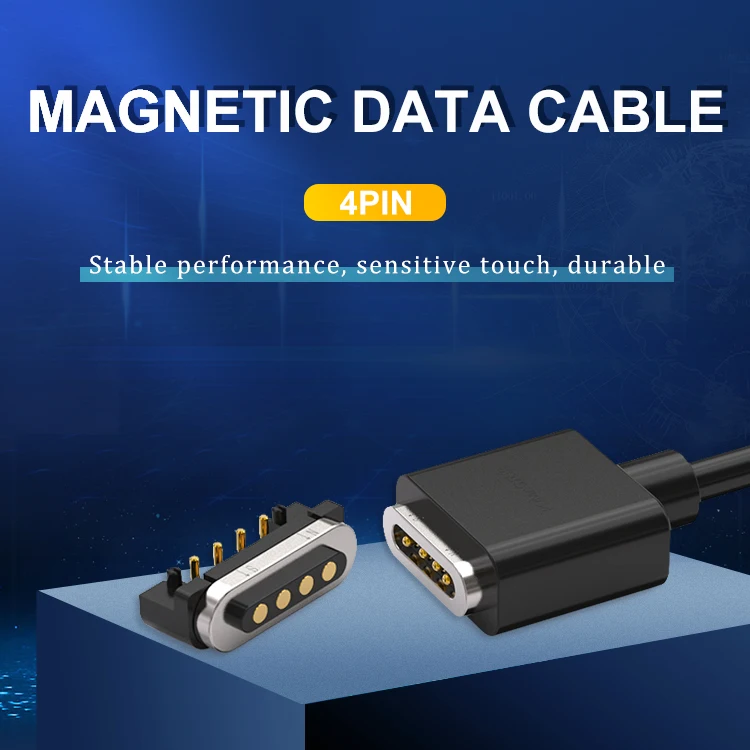

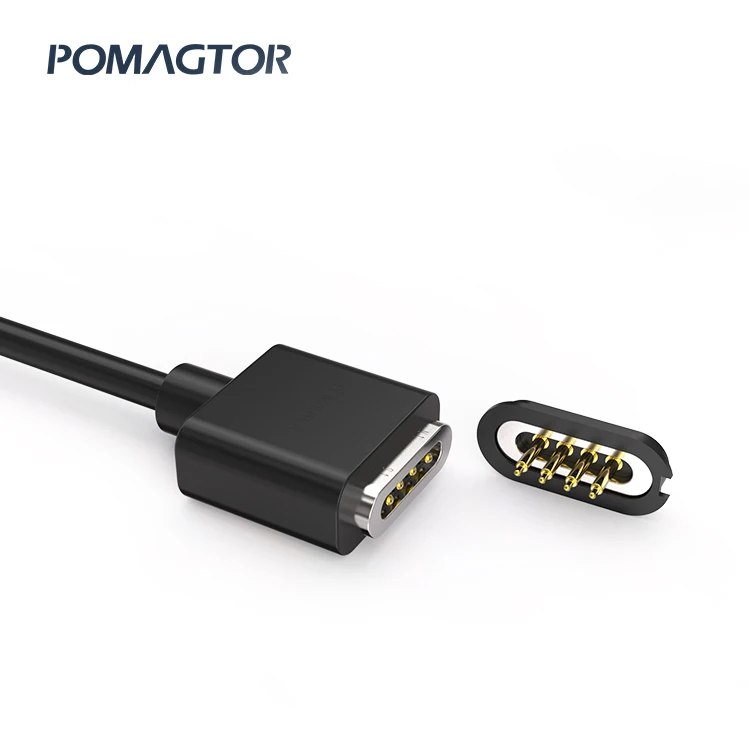

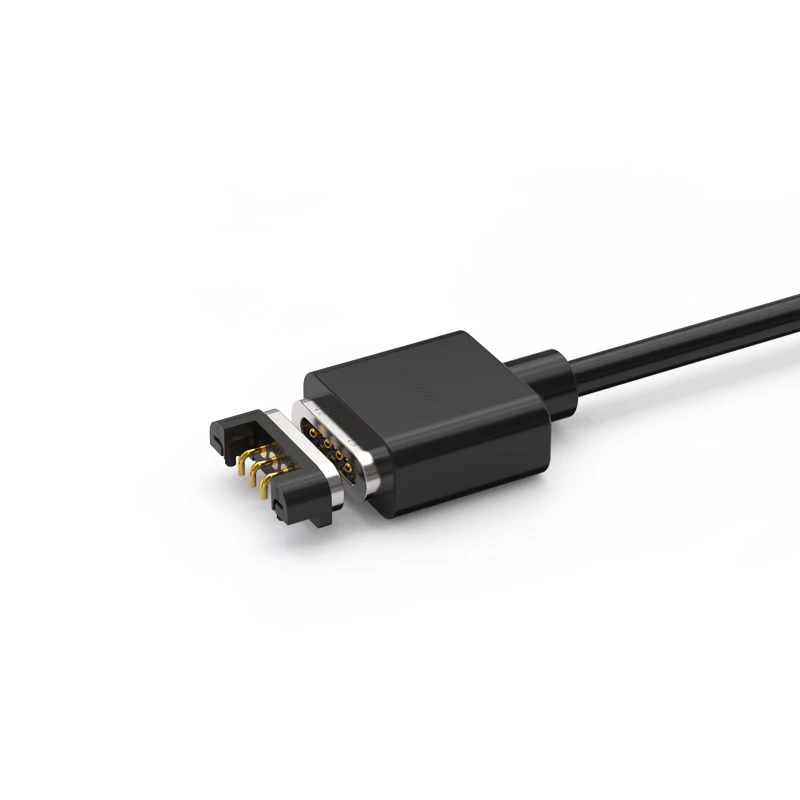

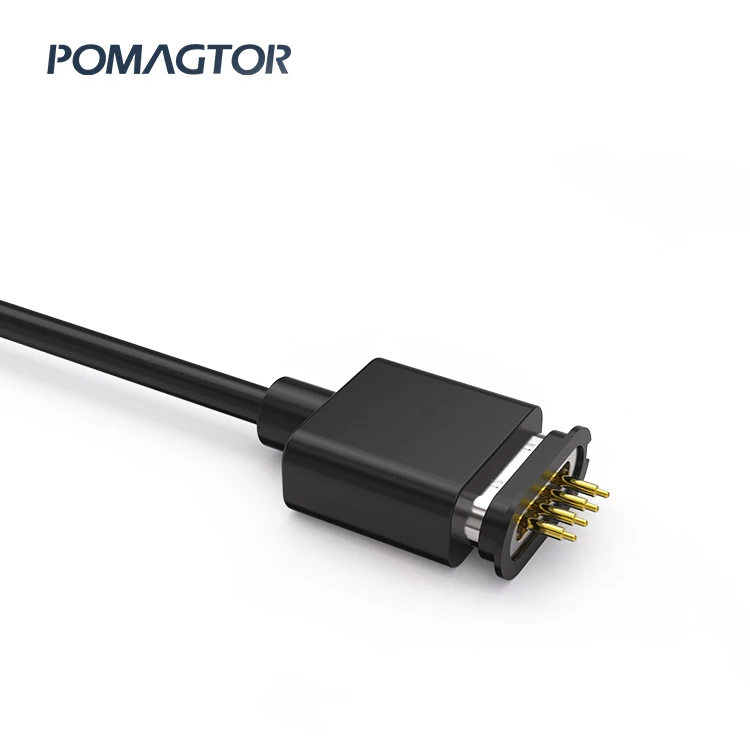

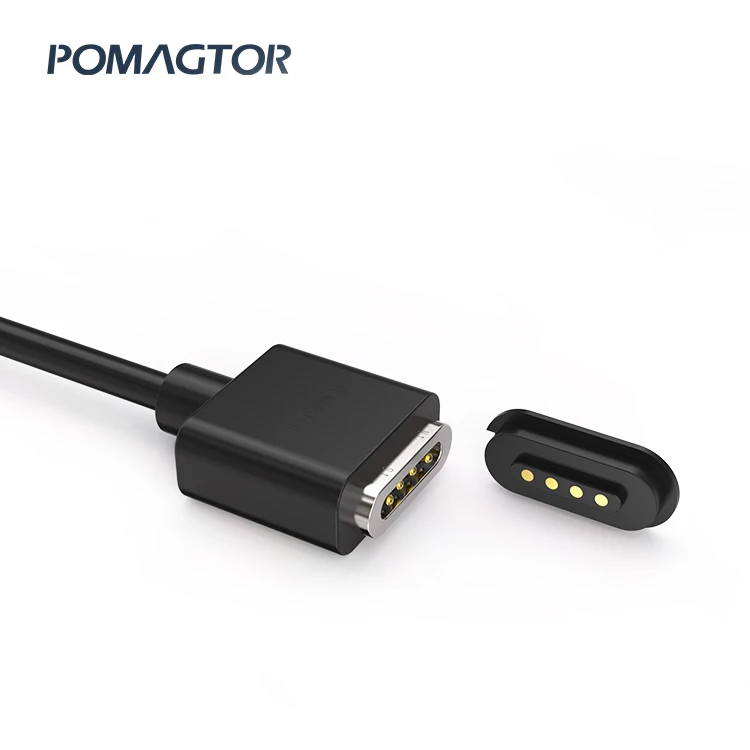

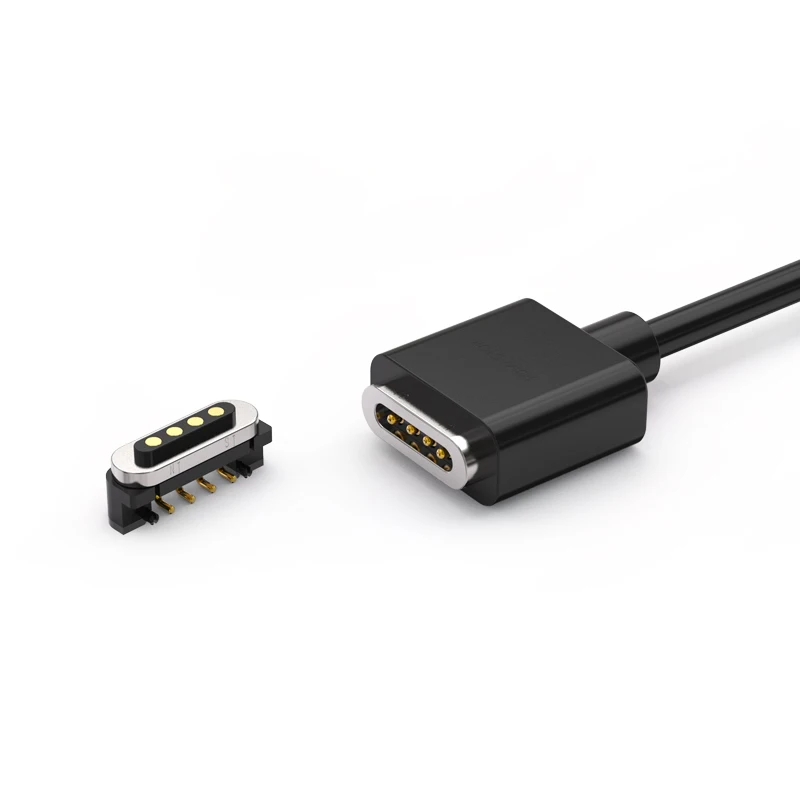

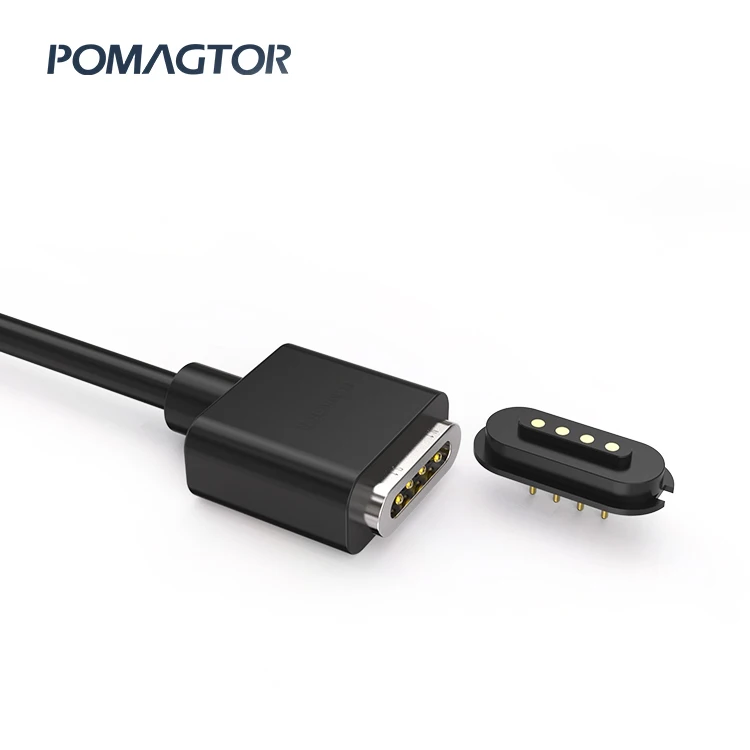

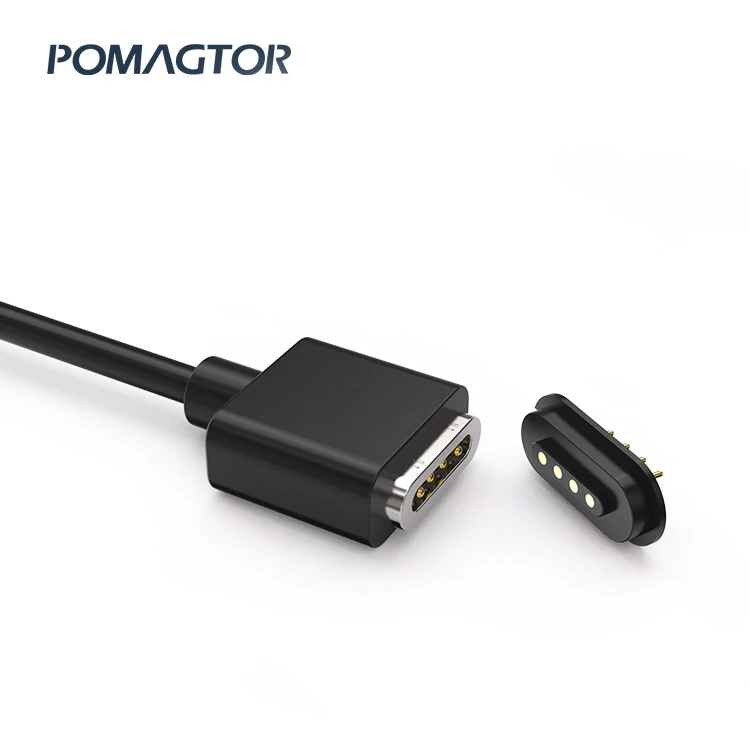

Professional JDF4Pin male and female pair suction connector magnetic suction line for medical equipment
- Category: >>>
- Supplier: Shenzhen Pomagtor Precision Electronics Co. Ltd.
Share on (1600700151151):
Product Overview
Description
Product Paramenters
Part Name | Q'TY | Material | FInlsh | Remarks |
USB2.0 Plug | 1pcs | PBT Black+Brass | …… | Black |
Shell | 1pcs | ABS | …… | Black |
PCB | 1pcs | FR-4 | JDF 4Pin-1/M PCB | …… |
Connector | 1pcs | JDF 4Pin-1/M connector | POGO PIN gold-plated 3u" | Black |
Outer mold | 8g | Black TPE 90A | …… | …… |
Internal mold | 3g | LD-PE transparent | …… | …… |
Wire rod | 1.03m | TPE Black | …… | 0D:∅3.5 |
On-resistance | 0.3Ω (max) | |
Insulation resistance | 300V/DC 10MΩ (min). | |
Swing test | 200g lifting weight, ±60 degrees 30 times/min, 2000 times conduction OK. | |
Rated voltage (PIN contact) | 5Volts | |
Rated current (PIN contact) | 3A maximum | |
Working elastic single PIN | Press stroke 0.8mm (PIN contact):80gfMax | |
Life test | Press stroke 0.8mm, 10,000 times (Min) | |
Gauss value of magnet | 3600GS~ 4200GS | |
Operating temperature range | - 30~85℃ | |
is marked with ”*” as a key dimension | ||
Applications：
1.smart wearable device,GPS(smart watch,smart bracelet,bluetooth earphone) data cable,charging cable,magnetic cable
2.medical device,wireless device, handset,telecom device, industrial and auto equipment
3.areospace industry,military telecom
4.vehicle navigation
5.3C,measuring equipment
6.smart toys,VR,digital cameras,printing machine,PDA,drone)
1.smart wearable device,GPS(smart watch,smart bracelet,bluetooth earphone) data cable,charging cable,magnetic cable
2.medical device,wireless device, handset,telecom device, industrial and auto equipment
3.areospace industry,military telecom
4.vehicle navigation
5.3C,measuring equipment
6.smart toys,VR,digital cameras,printing machine,PDA,drone)
Products Description
Main Products
Company Profile
Certifications
Exhibition
Package & Shipping
FAQ
Q1：Can you provide OEM & ODM service?
A：Yes, we are the earliest manufacturer in the industry, can provide OEM and ODM service.
Q2： Do you have the experience working with big electronic brands?
A：Yes, our products meet CE and RoHs, we have been having a long-term partnership with some of global big electronics brands,Likes xioami huawei and jiaming and lixun.
Q3：Do you accept sample and small order?
A：Yes, we accept sample and small order. We can send you our existing samples for you to make a test, also can customize samples for your project. Except that we can accept small order to support your business.
Q4：How do you guarantee quality and lead time?
A：All of our products are 100% tested after production completed by our quality department. And our CNC-Mikron machines have the best production capability can meet the ETA to support your big order business plan.
Q5：Can we visit your factory and sign NDA with you?
A：Yes, we are welcome you to visit our factory at your convenience, and we would like to sign NDA with you to protect your copyright and commercial benefits.
Q6：How to ensure the magnetic force of the connector? Do you have any suggestions for this?
A：The strongest magnet is selected for the same shape and specifications, the connector pin has a small elasticity, and the distance between the attracting magnets is reduced.
Q7：What is the use environment of magnetic connectors?
A：-35 degrees Celsius +80 degrees Celsius
Q8：What are the reasons why pogopin does not rebound?
A：1. Design dimensions 2. Processing accuracy of the machine 3. Whether the electroplating process is cleaned 4. Voltage and current
Q9：What is the problem that the connector does not charge at first or does not respond during use?
A：1. Clean contact points, remove dirt and impurities
Q2： Do you have the experience working with big electronic brands?
A：Yes, our products meet CE and RoHs, we have been having a long-term partnership with some of global big electronics brands,Likes xioami huawei and jiaming and lixun.
Q3：Do you accept sample and small order?
A：Yes, we accept sample and small order. We can send you our existing samples for you to make a test, also can customize samples for your project. Except that we can accept small order to support your business.
Q4：How do you guarantee quality and lead time?
A：All of our products are 100% tested after production completed by our quality department. And our CNC-Mikron machines have the best production capability can meet the ETA to support your big order business plan.
Q5：Can we visit your factory and sign NDA with you?
A：Yes, we are welcome you to visit our factory at your convenience, and we would like to sign NDA with you to protect your copyright and commercial benefits.
Q6：How to ensure the magnetic force of the connector? Do you have any suggestions for this?
A：The strongest magnet is selected for the same shape and specifications, the connector pin has a small elasticity, and the distance between the attracting magnets is reduced.
Q7：What is the use environment of magnetic connectors?
A：-35 degrees Celsius +80 degrees Celsius
Q8：What are the reasons why pogopin does not rebound?
A：1. Design dimensions 2. Processing accuracy of the machine 3. Whether the electroplating process is cleaned 4. Voltage and current
Q9：What is the problem that the connector does not charge at first or does not respond during use?
A：1. Clean contact points, remove dirt and impurities
2. Make sure that the product is adsorbed in the correct way
Q10：How many people are in the factory and what is the area of the factory?
A：We have 200 people in Shenzhen factory and 150 people in Hunan factory, a total of 350 people. The production area is 18,000 square meters
