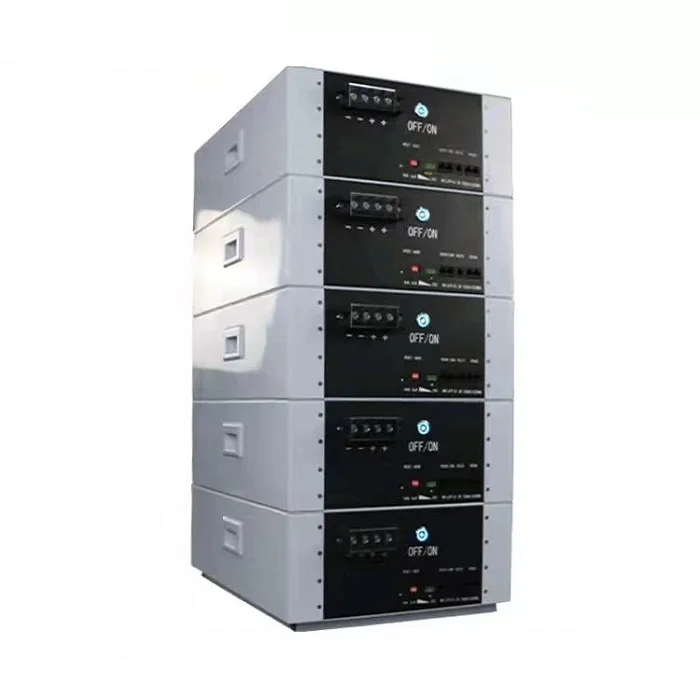

Stacked lifepo4 48V 100AH lithium iron battery pack for solar energy storage electric power systems home appliances UPS
- Category: Renewable Energy >>>
- Supplier: Shenzhen,High,Power,Battery,Technology,Co.,Ltd.
Share on:
Product Overview
Description

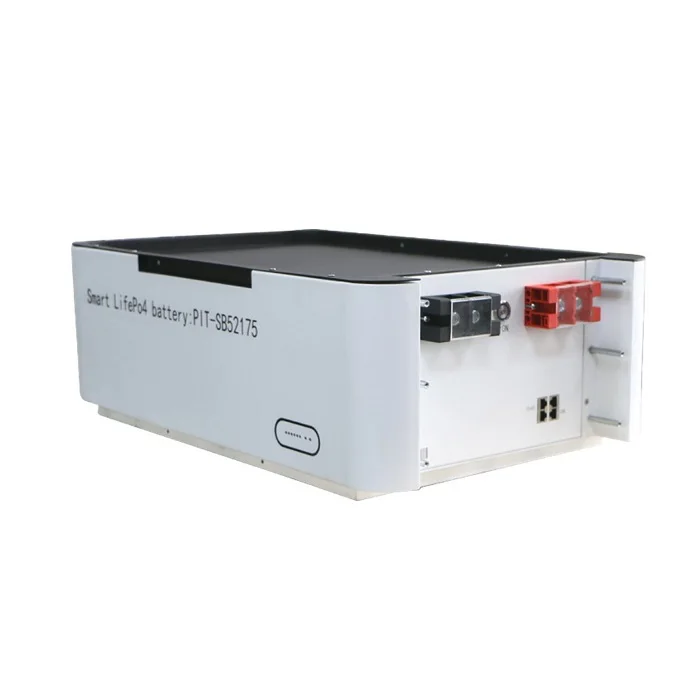

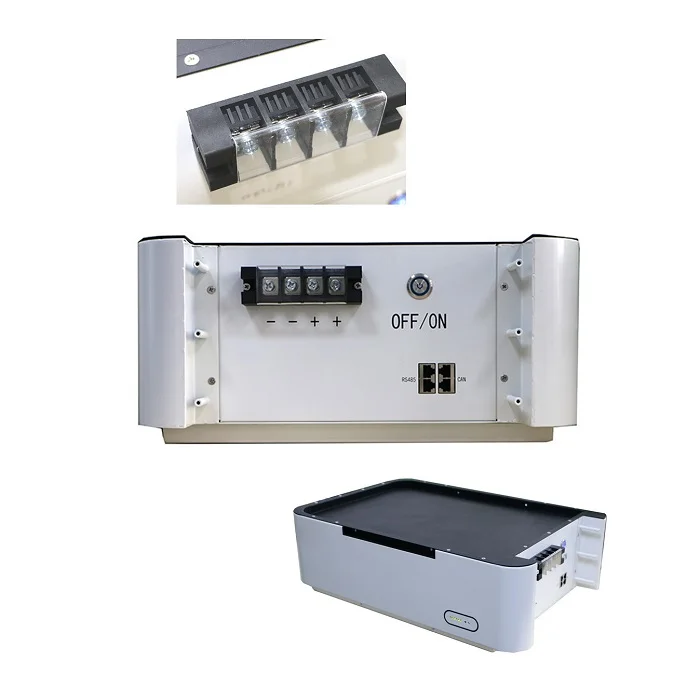

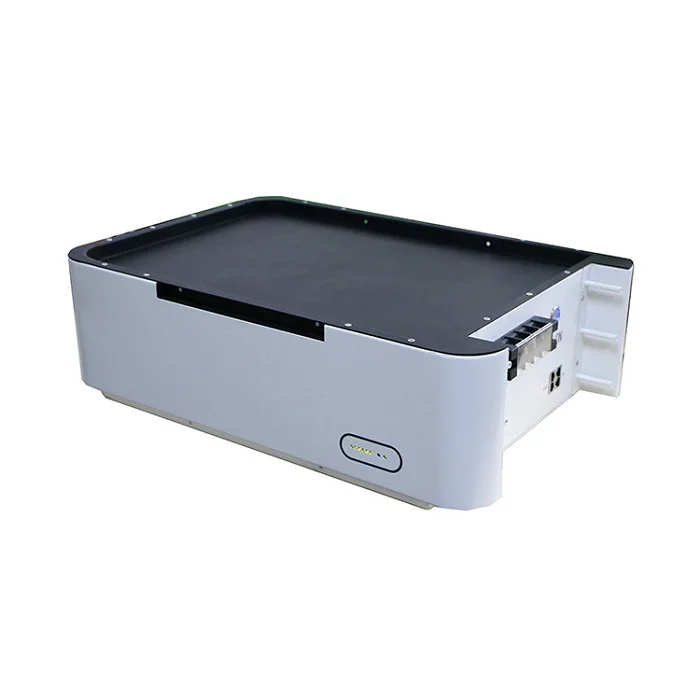

Stacked lifepo4 48V 100AH lithium iron battery pack for solar energy storage electric power systems home appliances UPS
Product Description
| 48V Series Stacked Battery System | |||
| Product Model | HPSLF48-100 | HPSLF48-175 | HPSLF48-200 |
| Battery Cell Parameters | |||
| Battery Cell Type | LiFePO4 | LiFePO4 | LiFePO4 |
| Nominal Voltage | 3.2V | 3.2V | 3.2V |
| Nominal Capacity | 100Ah | 175Ah | 200Ah |
| Voltage Rage | 2.8V-3.65V | 2.8V-3.65V | 2.8V-3.65V |
| Certification | MSDS/ UN38.3/ UL1973/ IEC62619 | ||
| Battery Pack Parameters | |||
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 175Ah | 200Ah |
| Energy by kWh | 5.12kWh | 8.86kWh | 10.24kWh |
| Serial/Parallel | 16S1P | 16S1P | 16S1P |
| Discharge Voltage | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Charge Voltage | 54.4V-55.2V | 54.4V-55.2V | 54.4V-55.2V |
| Floating Charge Voltage | 53.6V-54.4V | 53.6V-54.4V | 53.6V-54.4V |
| Max. Charge Current | 100A | 100A | 100A |
| Max.Continuous Discharge Current | 100A | 100A | 100A |
| Dimensions (W*D*H) | 165*329*481mm | 232*419*678mm | 494*334*700mm |
| Weight (About) | 35kgs | 68kgs | 78kgs |
| Housing | Metal Case | ||
| Cycle Life | >4000 cycles @ 80% DOD | ||
| Design Life Span | >10 years | ||
| Charge Temperature | 0 - 55 °C | ||
| Discharge Temperature | (-)10 - 55 °C | ||
| IP Rating | IP20 | ||
| Communication Interface | CAN2.0/RS485/232 | ||
| Support Connection in Parallel | Max. 15pcs | ||
| BMS Protection Functions | Over charge, Over discharge, Over current, Over Voltage, And Temperature Protection | ||
| Applications | Solar/Wind Energy Storage/Communication Backup/ Household and Commercial Energy Storage System/ Power Station, etc. | ||
| If Support OEM/ODM Service | YES | ||
Features:
- 3-5 Year Manufacturer Warranty
- Deep Cycle LiFePO4 Lithium Iron Phosphate Battery
- Grade A LiFePO4 EV Cell
- Built-in Smart Battery Management System (BMS)
- 4000+ Cycle life & Maintenance-free
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature protection
- IP65 Rated, dust and waterproof
- Internal heating allows for charging in below freezing conditions(Optional
APPLICATIONS:
- Trolling Motors
- Fishing Boat, Houseboat & other Marine Application
- Golf Cart
- RV, Van, Camper
- Mobile Power
- Solar PV System, Household Energy Storage System, Backup Power Supply, ect.

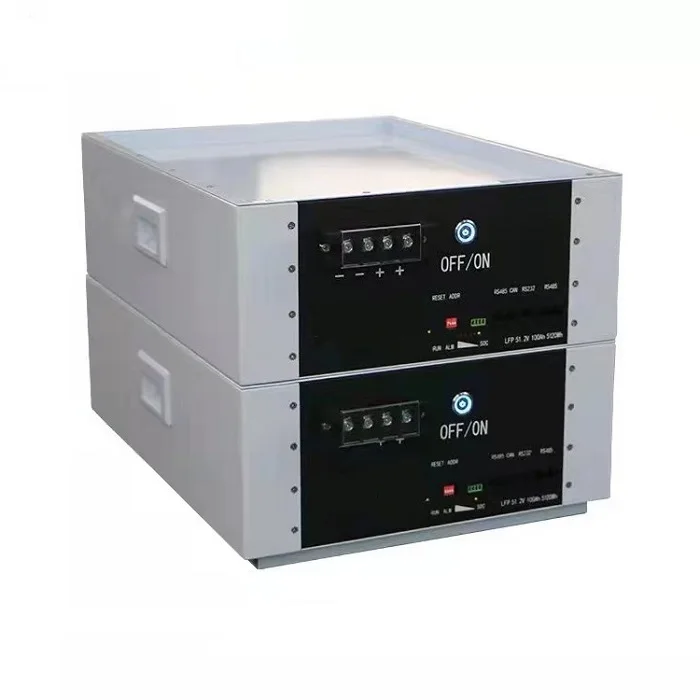

Stackable Lifepo4 lithium batteries with SMART BMS with RS485/232/CAN communication. Easy install, widely used for solar energy stoarge application for home/office/industry More than 4000cycles Life at DOD 80% and at least 10 years service Life | ||
|  |  |

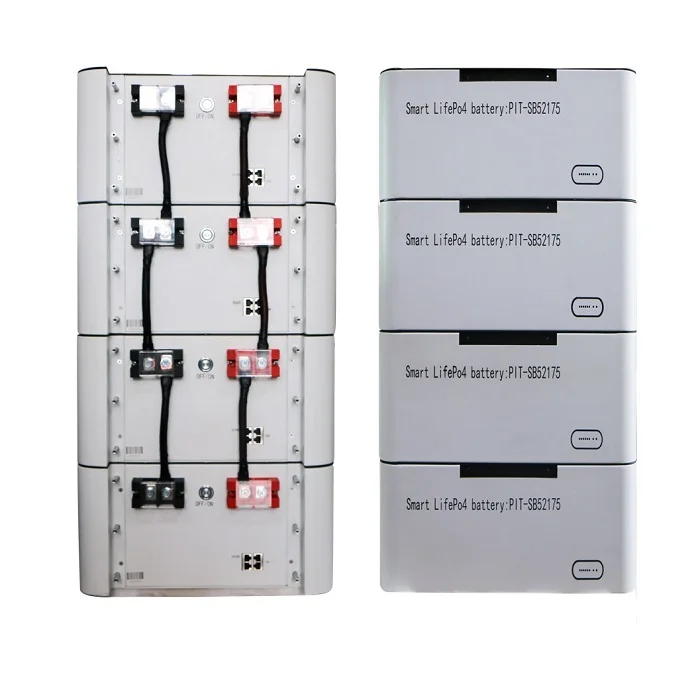

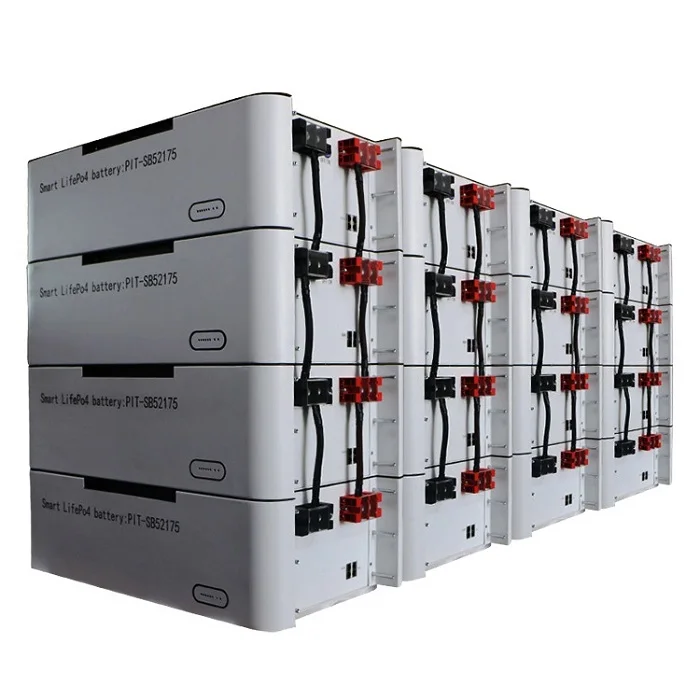

LiFePO4 48V 100Ah Support 16PCS in Parallel to 1600Ah | LiFePO4 48V 200Ah 2 Sets of LiFePO4 48V 100Ah in Parallel | LiFePO4 48V 300Ah 3 Sets of LiFePO4 48V 100Ah in Parallel |
 |  |  |
LiFePO4 48V 400Ah 4 Sets of LiFePO4 48V 100Ah in Parallel | LiFePO4 48V 500Ah 5 Sets of LiFePO4 48V 100Ah in Parallel | LiFePO4 48V 600Ah 6 Sets of LiFePO4 48V 100Ah in Parallel |
Application
Company Information
Shenzhen High Power Battery Technology Co., Ltd, is a professional and reliable national Hi-tech enterprise of intelligent and clean energy products and solutions. The Company is located in Shenzhen with factory area over 10000 m² and employees more than 200 people. Our Company has a strong and professional R&D team and a well-equipped laboratory for battery testing.
Our company focuses on the energy field and takes batteries as the core, covering two types of battery systems: Lithium Ion Battery (NMC) and Lithium Ferrous (Iron) Phosphate Battery (LiFePO4). Our Company’s smart energy solutions are widely used in Energy Storage System (ESS), Telecommunication, UPS, Electric Vehicles, Wind & Solar Energy and other industries.
We have always adhered to the concept of innovation and customer-oriented development, environmental protection and green development. We will continuously enhance our innovation ability, outstanding production capacity and increasingly perfect delivery ability to deepen the cooperation with customers all over the world.
Our Main product range:
1. ) 12/24V /48V 6Ah-400Ah LiFePO4 Battery in SLA case for RV/ Solar Energy/Marine/UPS;
2. ) 48V50AH/100AH/200Ah LiFePO4 Battery for Energy Storage and Telecom;
3. ) 5KWH-20KWH Power Wall;
4. ) 4KWH-20KWH All-In-One energy storage system with 3KVA/5KVA Inverter;
5. ) 24V/36V/48V/72V/96V LiFePO4/Li-Ion Battery for low speed vehicles;
6. ) Portable Power Station;
7.) Energy Storage System
8.) Other customized lithium battery pack (OEM/ODM)
9.) Lithium battery cells (Lifepo4 and NMC)
Cycle life 800-2000 times for Li-ion battery, and 3000-5000 times @80% DOD for LiFePO4 battery.
Warranty 1-2 years for Li-ion battery, and 3-5 years for LiFePO4 battery.
Optional functions: CAN/RS485 communication, B lue tooth, Heating system, etc.
Factory & Production
Certifications

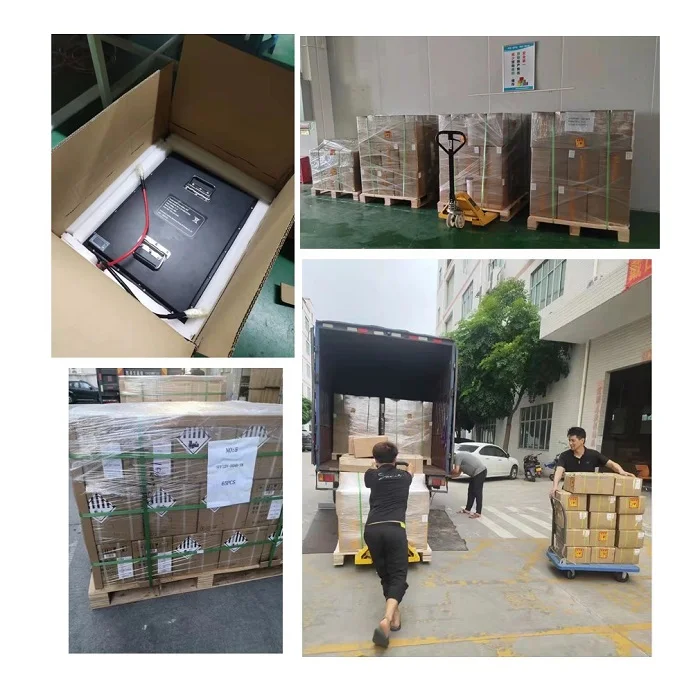

Packaging
Shipping & Payment
FAQ
Q1. Do you support OEM/ODM services?
Answer: Yes, of course.
Q2. Can I order samples?
Answer: Yes, we welcome to order samples to test and check the quality.
Q3. Can I print my logo on the product?
Answer: Yes. Please inform us formally before production, and first confirm the design based on our samples.
Q4. Does your battery pack include BMS (Battery Management System)?
Answer: Yes, our battery pack includes BMS, mainly functions are: Over charge, over discharge, over current, short circuit and temperature protection.
Q5. How do you ship the batteries and how long will it take to arrive?
Answer: We can ship the batteries by Sea, by Air and by Express like UPS, DHL, FedEx, etc.
Normally shipping by Sea will take around 45-60 days to arrive; shipping by Air will take around 7-15 days.
Q6. What is your production lead time?
Answer: For battery cells will be around 7-10 days after payment received.
For samples, will be around 20-25 days after payment received.
For bulk orders, will be around 25-35 days after payment received.
