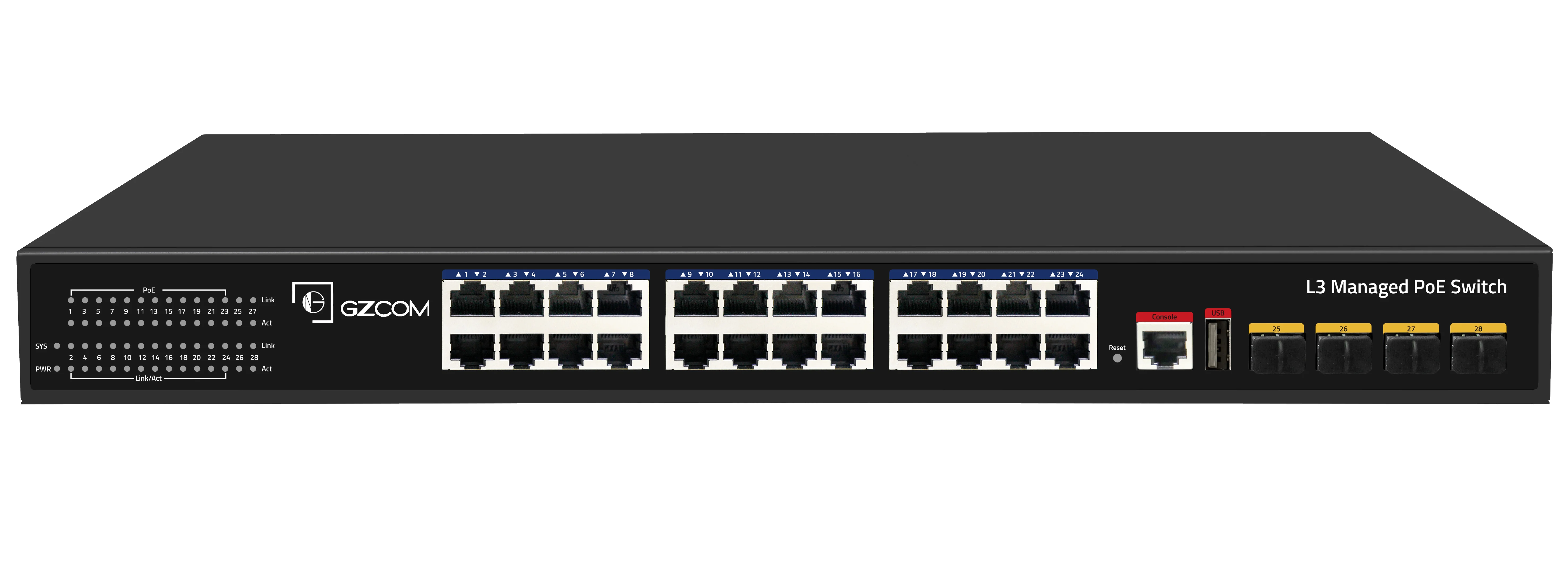

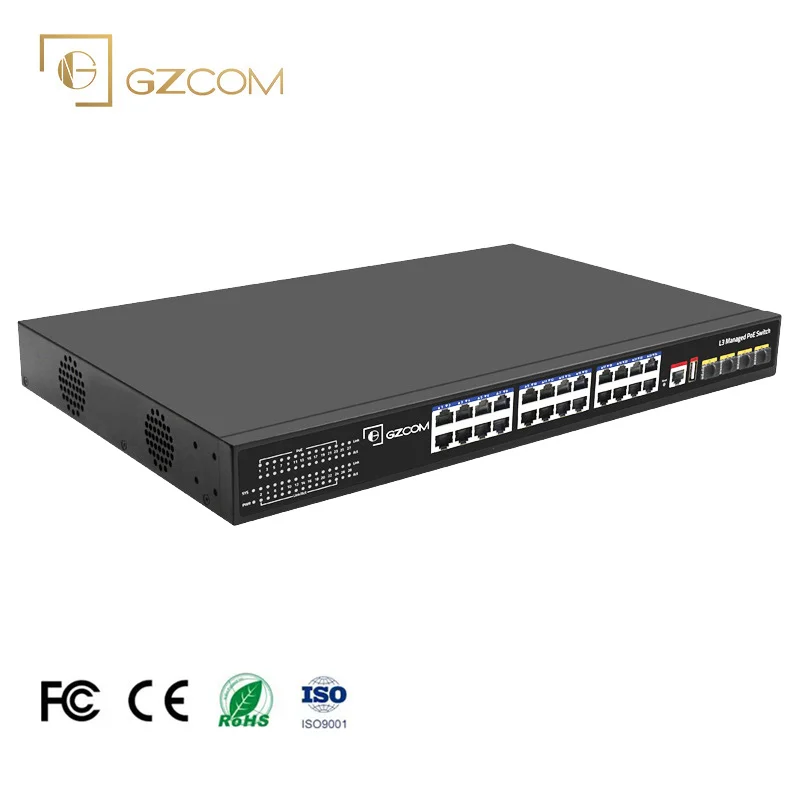

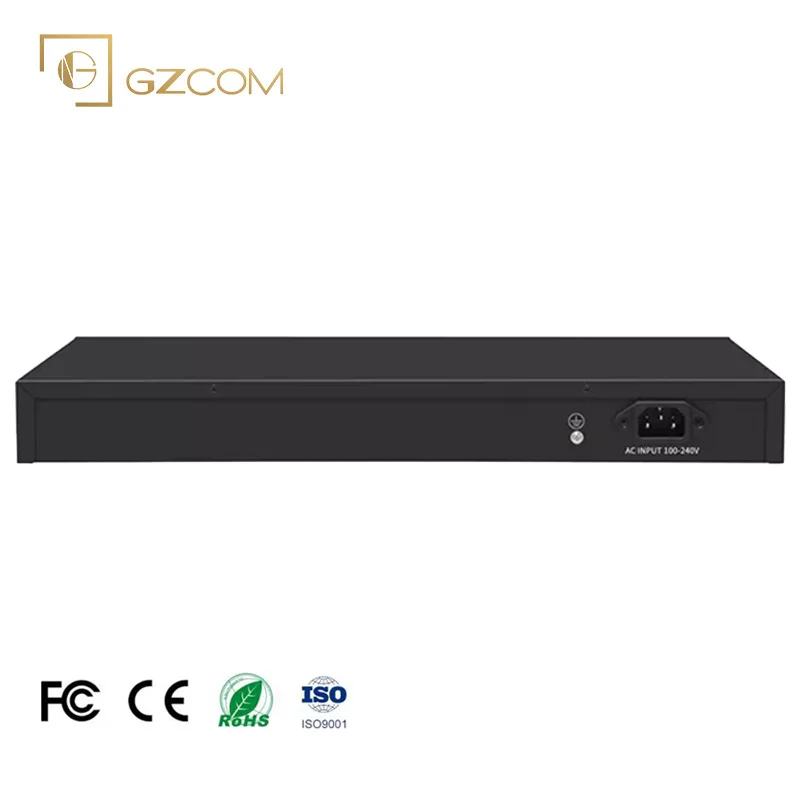

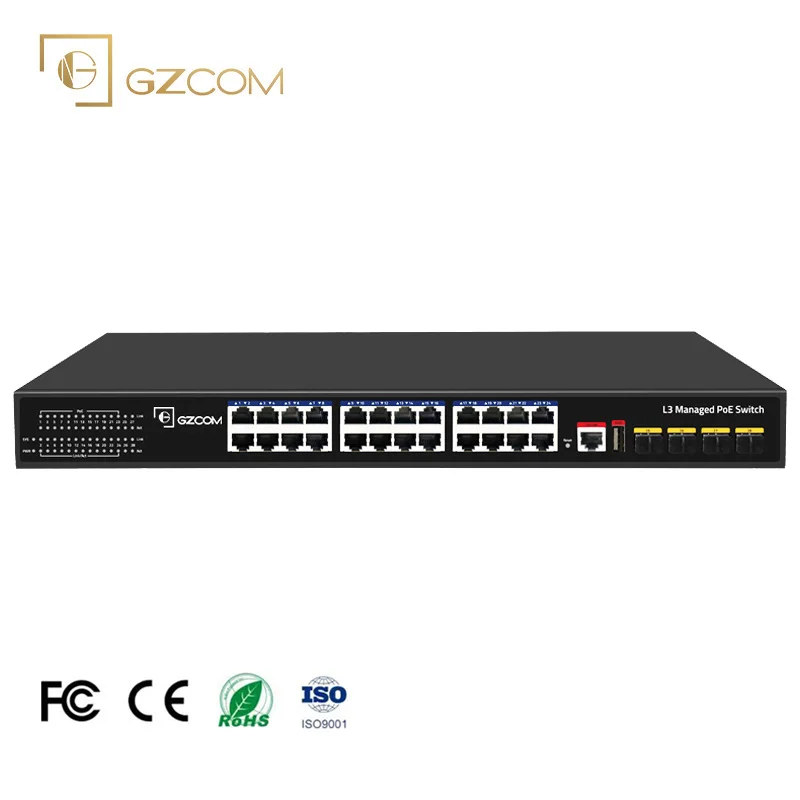

Manufacturer Wholesale L3 Managed 24 Gigabit Ethernet PoE Switch With 10g Fiber Port

I/O Interface

Power

Input: AC 100-240V, 50/60Hz

Ethernet

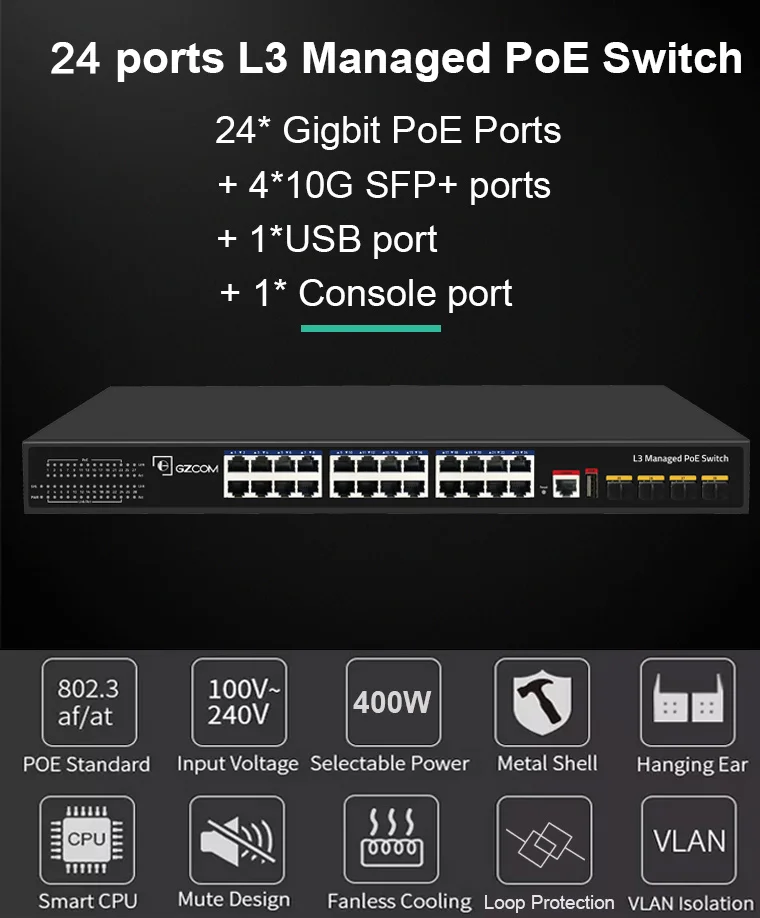

24 * 10/100/1000Mbps PoE Ports4 * 10G SFP+ Ports
1 * RJ45 Console Port
1 * USB Port

Performance

Bandwidth

128Gbps

Packet Buffer

95.23Mpps

DDR SDRAM

512MB

Flash Memory

32MB

Package Cache

12Mbit

MAC Address

16Kb

Jumbo Frame

12Kbytes

Transfer Mode

Store and forward

VLANs

4096

MTBF

100,000 hours

Standard

Network Protocol

IEEE 802.3: Ethernet MAC Protocol
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae: 10G Ethernet (optical fiber)
IEEE 802.3az: Energy Efficient Ethernet
IEEE 802.3ad: Standard method for performing link aggregation
IEEE 802.3x: Flow control
IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p: LAN Layer QoS/CoS Protocol Traffic Prioritization (Multicast filtering function)
IEEE 802.1q: VLAN Bridge Operation
IEEE 802.1x: Client/Server Access Control and Authentication Protocol
IEEE802.1d: STP
IEEE 802.1s: MSTP
IEEE 802.1w: RSTP

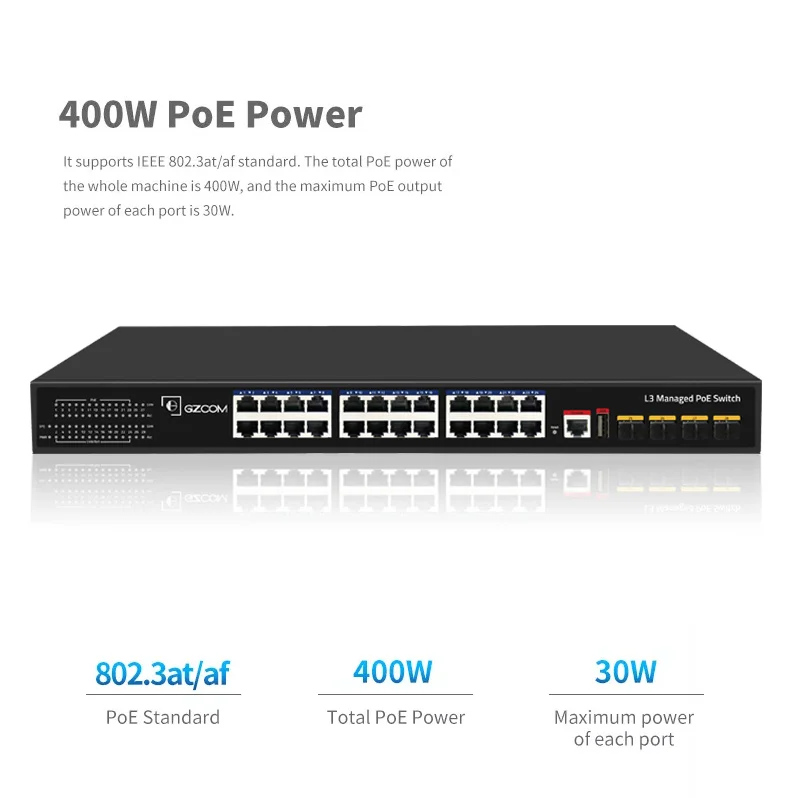

PoE Protocol

IEEE802.3af (15.4W)IEEE802.3at (30W)

IEEE802.3bt (60W)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) Class AEMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT),

Network Medium

10BASE-T: Cat 3, 4, 5 UTP (≤100 meter)100BASE-TX: Cat5 or above UTP (≤100 meter)

1000Base-TX: Cat5 or above UTP (≤100 meter)
Fiber: 50/125, 62.5/125, 100/140um
Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um

Power Supply

Power Voltage

Input Voltage: AC 100-240VOutput Voltage: 52V7.5A, 12V4A

Protection

Certificate

CE, FCC, RoHS

Environment

Environment

Working Temperature: -10°C~+50°CStorage Temperature: -40~70°C

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~90%, non-condensing

Working Height: Maximum 10,000 feet

Storage Height: Maximum 10,000 feet

Physical Features

Dimension

Product Dimension (L*W*H): 440*280*44 mmPackage Dimension (L*W*H): 503*385.5*91 mm

N.W: 3.9 KG

G.W: 4.6 KG

Packing Info

Carton Meas: 520*380*405 mmPacking Qty: 4 Units

Packing Weight: 18.6 KG

Package List

Switch: 1 Set, Instruction manual: 1 PCS, Certificate: 1 PCS, Power cord: 1PCS,

Indication

PWR

Lighting: Powered , Un-Light: No Power

SYS

Lighting: System is normal , Flashing: system startup

Link

Lighting: Connecting , Flashing: Data Transmit , Un-Light: Disconnect

Act

Lighting: Connecting , Flashing: Data Transmit , Un-Light: Disconnect

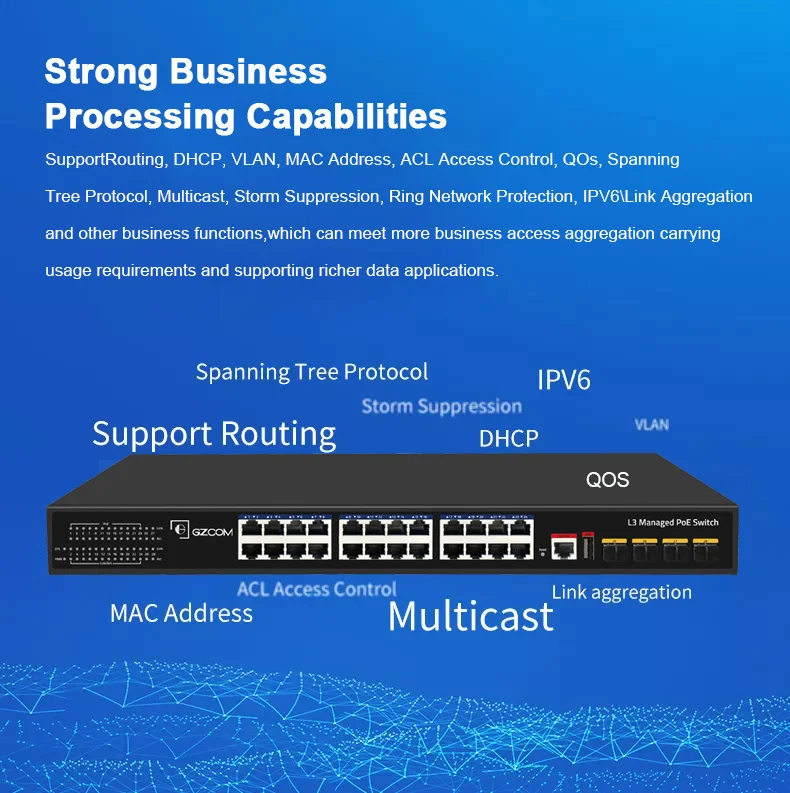

Software Function

Basic Function

Support hardware watchdog, factory reset, system and port LED

Support global information, statistical information, log information

Support User management, alarm management, configuration management

Support Port rate, duplex, flow control, maximum frame length configuration

Support Port mirroring, port speed limit, port energy saving

Layer 3 Interface

Support Layer 3 interface

Support IPv4, IPv6 address configuration

Support ARP configuration

Support ND configuration

Layer 3 Routing

Support IPv4 static routing

Support IPv6 static routing

DHCP

Support DHCP server

Support DHCP relay

Support DHCP Snooping

VLAN

Support 4K VLAN

Support 802.1Q VLAN, baesd on port VLAN

SupportAccess, Trunk, Hybrid VLAN mode

Support GVRP (VLAN registration protocol)

Support MAC VLAN , IP VLAN

Support Voice VLAN

MAC Address

Support MAC address automatic learning and aging

Support Static, dynamic, filtered address table

Security Features

Password protection

Support Restrict user access based on port number, IP address, MAC address

Support HTTPS, SSH V1/V2

Support VLAN-IP-MAC-PORT binding

Support ARP detection, IP source protection, DoS protection

Support DHCP Snooping、DHCP Attack protection

Support 802.1X Certification

Support AAA (Authentication, Authorization, Accounting), Support RADIUS protocal

Support Port security, Port isolation

Access Control

Support L2(Layer 2)～L4(Layer 4) Packet filtering function

Support Port mirroring, flow rate limiting, QoS remarking

QoS

Support 8 port queues

Support SP, WRR Priority scheduling algorithm

Support Port priority, 802.1P priority, DSCP priority

Spanning Tree

Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocal

Support Multi-instance, Support Aggregate interface

Support BPDU protection

Multicast

Support IGMP v1/v2/v3 Snooping

Support MLD v1/v2 Snooping

Support Layer 2 multicast fast leave mechanism, querier

Support Layer 2 IPv4 static multicast

Support Layer 2 IPv6 static multicast

Support IGMP v1/v2/v3 Layer 3 multicast

Storm Suppression

Support multicast suppression

Support broadcast storm suppression

Support unknown unicast suppression

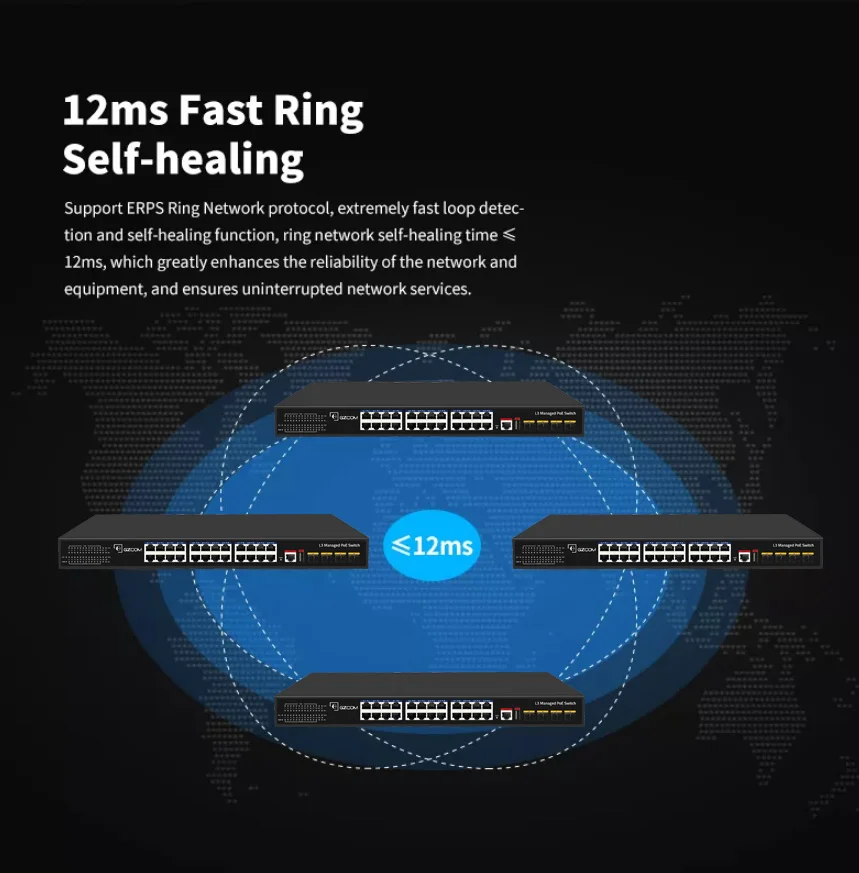

Ring Protection

Support Ring protection

Link Aggregation

Support Static Aggregation

Support LACP Dynamic Aggregation

Support based on IP, MAC, mixed load-balancing modes

Maximum support 8 aggregation groups (8 ports per aggregation group)

IPv6

Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet

Support IPv6 SSH

Support IPv6 HTTP, IPv6 HTTPS

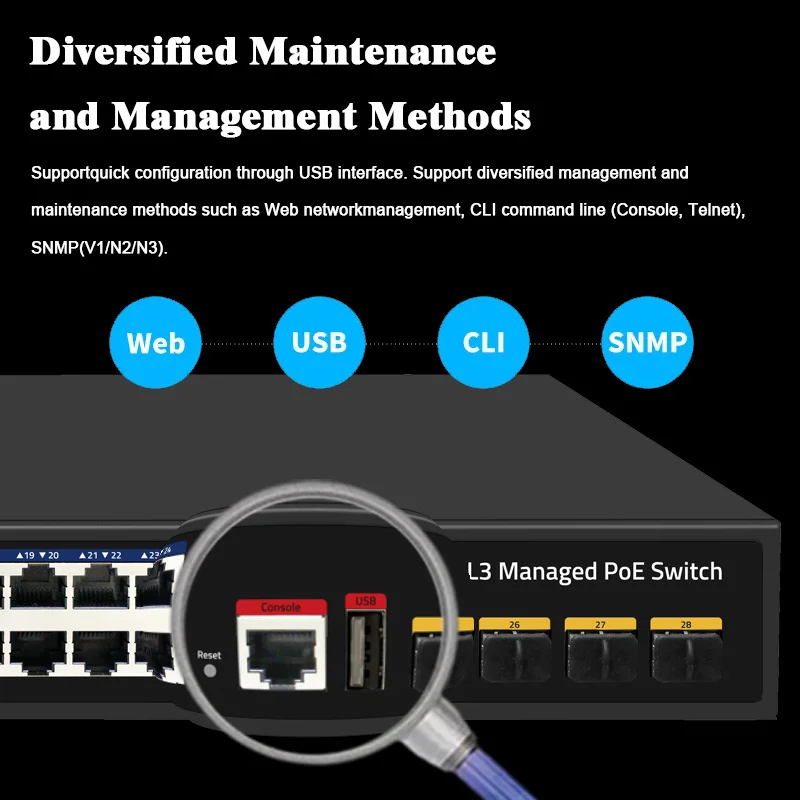

Management And Maintenance

Support WEB Management (HTTP, HTTPS)

Support CLI (Telnet, SSH V1/V2, Local serial port)

Support SNMP V1/V2/V3

Support RMON V2

Support LLDP Device discovery

Support SNTP Time synchronization

Support CPU Monitoring, Memory Monitoring

Support System log, classification warning

Support Ping, Traceroute detection, cable detection
