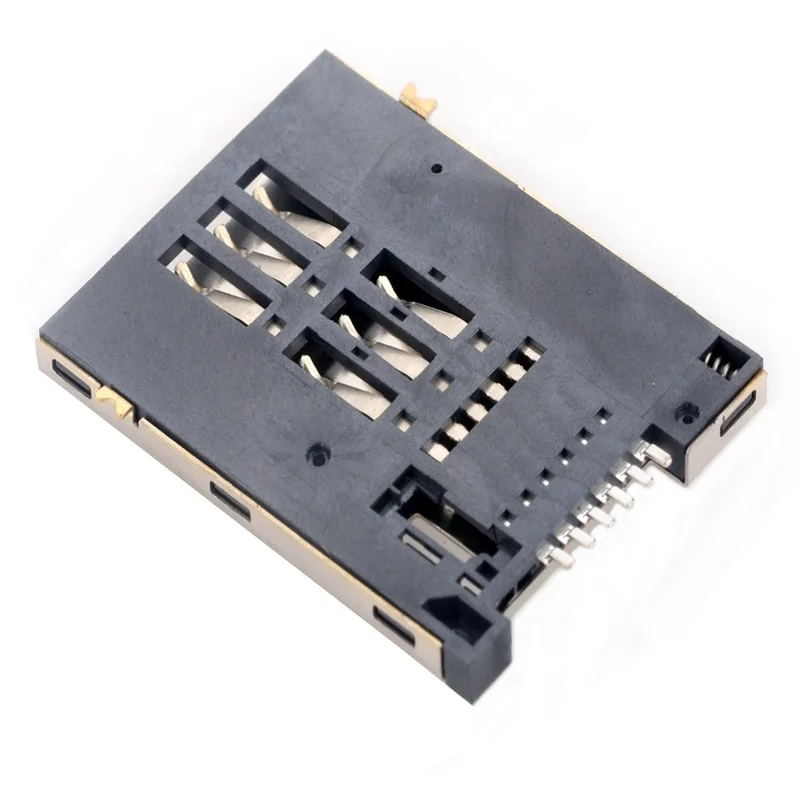

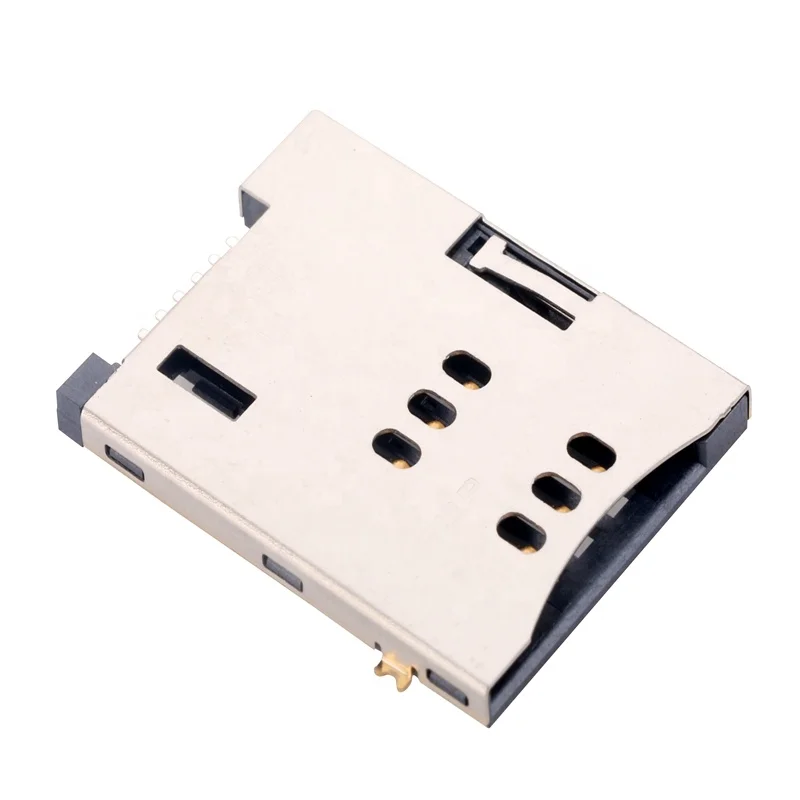

MUP 6 PIN SMT push push TYPE H1.80mm sim card adapter connector PCB solder card reader socket for mobile phone POS terminal
- Category: >>>
- Supplier: Shenzhen Mup Industrial Co. Ltd.
Share on (1600700520002):
Product Overview
Description

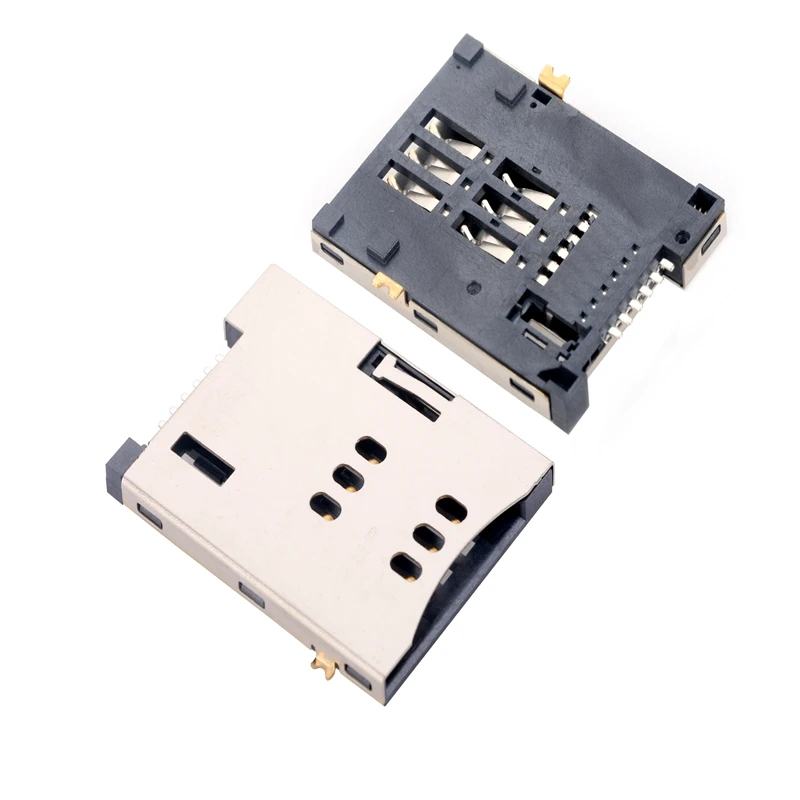

MUP 6 PIN SMT push push TYPE H1.80mm sim card adapter connector PCB solder card reader socket for mobile phone POS terminal

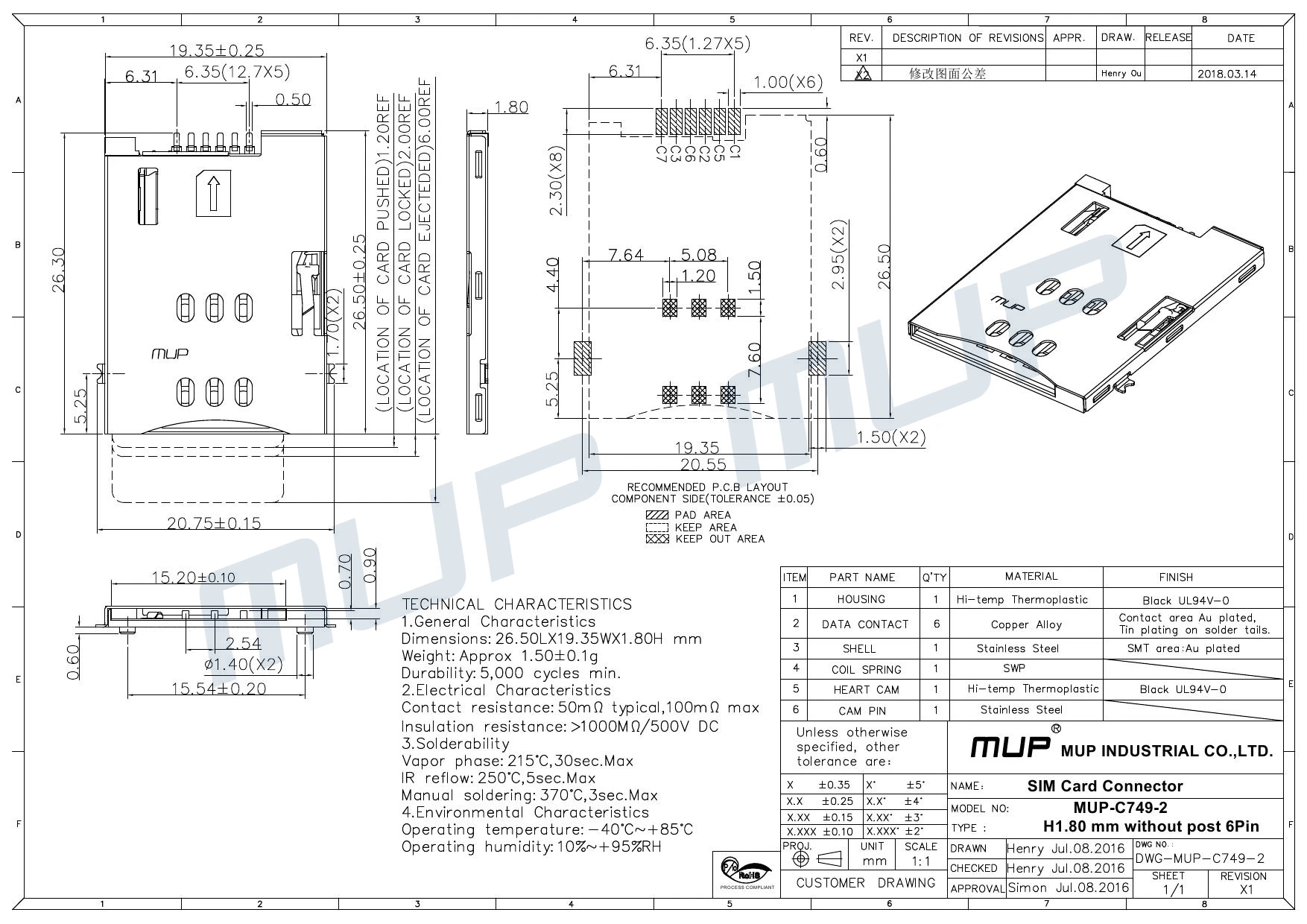

1. Technical characteristics
1.General characteristics
Dimensions:27.60L*18.70W*1.80Hmm
Weight:0.5g
Contact principle:Friction technology
Operating position:shaft up/down/horizontal
Mounting system:SMT(post optional)
Durability:5000 cycles min
2.Mechanical characteristics
Insulation material:Thermoplastic
3.Electrical characteristics
Number of contacts:6pins
Contact resistance:50MΩ typical,1000 MΩ max
Insulation resistance:>1000 MΩ/500V DC
Switch type:Blade
Operation:Normally open
4.Solderability
Wave:not applicable
Vaporphase:215oC30sec Max
IR reflow:230oC,15sec Max
Manual soldering:360oC,3sec.Max
5.Environmental characteristics
Operating temperature-40oC +85oC
Operating humidity:10%≈+95%RH
Storage temperature:-40oC +85oC
Storage humidity:10%≈95%RH
Thermal shock: -40oC≈+85oC,5cycles
Damp Heat:40oC,90%RH,10days
Salt-mist:35oC,5%Nacl,24H
1. Technical characteristics
1.General characteristics
Dimensions:27.60L*18.70W*1.80Hmm
Weight:0.5g
Contact principle:Friction technology
Operating position:shaft up/down/horizontal
Mounting system:SMT(post optional)
Durability:5000 cycles min
2.Mechanical characteristics
Insulation material:Thermoplastic
3.Electrical characteristics
Number of contacts:6pins
Contact resistance:50MΩ typical,1000 MΩ max
Insulation resistance:>1000 MΩ/500V DC
Switch type:Blade
Operation:Normally open
4.Solderability
Wave:not applicable
Vaporphase:215oC30sec Max
IR reflow:230oC,15sec Max
Manual soldering:360oC,3sec.Max
5.Environmental characteristics
Operating temperature-40oC +85oC
Operating humidity:10%≈+95%RH
Storage temperature:-40oC +85oC
Storage humidity:10%≈95%RH
Thermal shock: -40oC≈+85oC,5cycles
Damp Heat:40oC,90%RH,10days
Salt-mist:35oC,5%Nacl,24H
If you want to learn more about connectors, Pls link https://mupconnector.en.alibaba.com/productlist.html

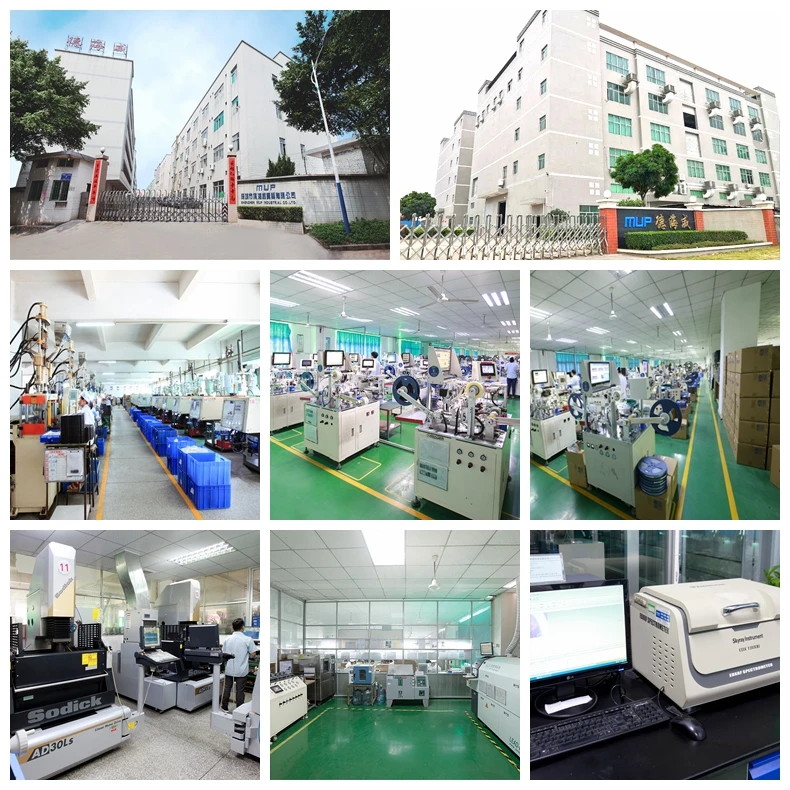

● Founded in 2003 ,many years of R&Dand manufacturing experience in the connector industry

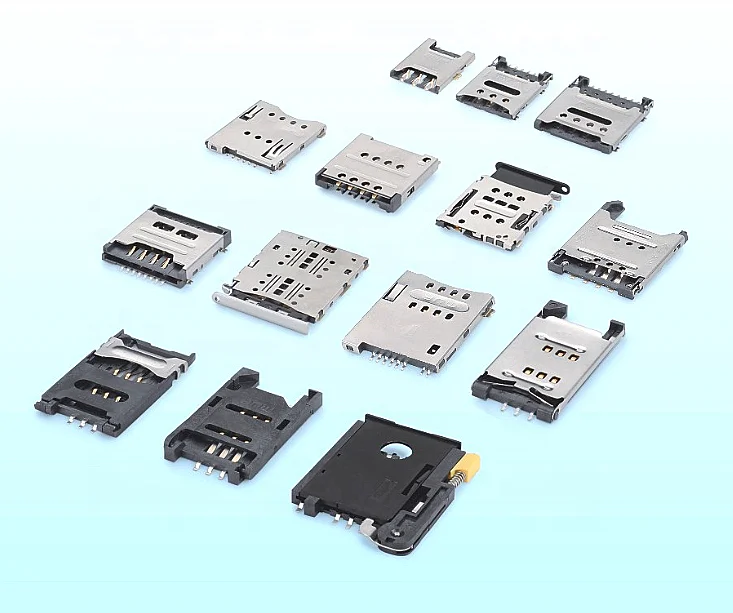

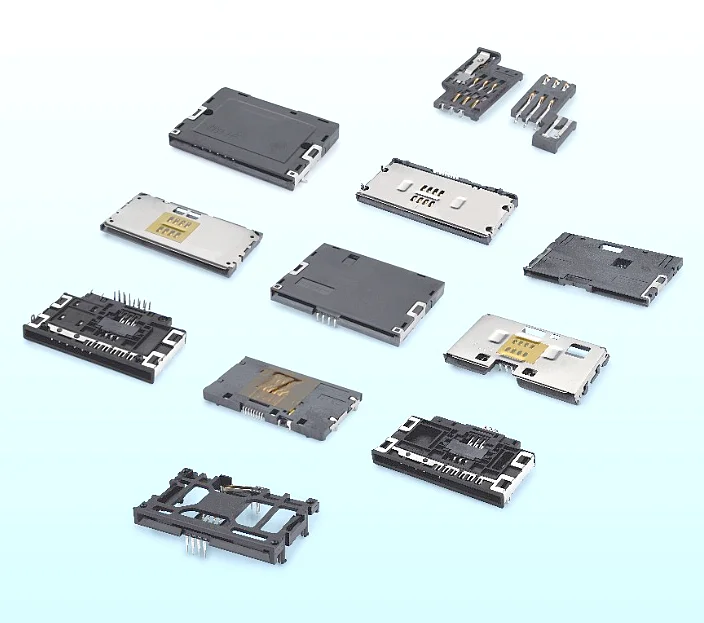

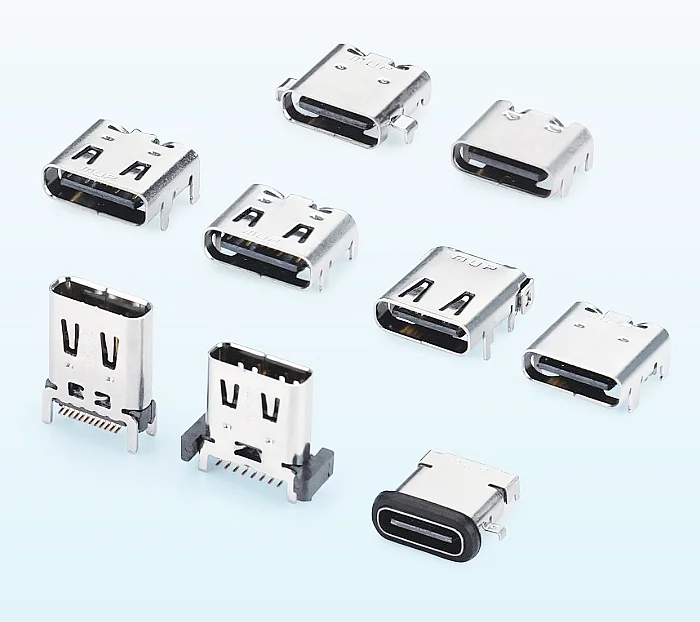

● Offering IC,SIM,memory card,HDMI,USB Type-C battery, RF ,FPC ,BTB and other kinds of precision connectors
● Products widely used in POS, STB,DTV,automotive electronics, network communication,smart meters
and other electronic products
● Exporting to 50+countries in Europe,North and South America,Asia and Africa
● Supplying Ingenico,Sagemcom,Tech-Front and Teltonika
● IS0 9001:2015- and 150 14001:2015-certifed
.● Holding RoHS.EMVNDSPCLHDMIand TID certifcations
.● Holding RoHS.EMVNDSPCLHDMIand TID certifcations
Products widely used in Payment equipment, Computer communications, Digital TV, Automotive electronics, Intelligent Safety
,Intelligent instruments, Smart home ,Intelligent wearing and other electronic products .
Main Partners
Many years of technology accumulation and professional manufacturing experience in the connector field, and adhering to the business philosophy of "honest and trustworthy, learning innovation, and common development, social returns", establishing a national long-term stable cooperative relations with many well-known enterprises at domestic and oversea.
● passed ISO9001: 2015 international quality
management system certification and
ISO14001: 2015 international environmental
management system certification and
IATF16949:2016 certification. Products fully
meet the RoHs 2.0 standard, and adopted the
NDS,EMV, PCI professional certification, and
we also are members of the HDMI Association & USB Association.
●Obtained excellent supplier &partners qualification from many customers .
Delivery &samples
Price Term: FOB Shenzhen / Hongkong
♦ Payment Terms: T/T, PayPal
♦ Delivery: UPS, DHL, FEDEX, TNT
Select the most economic and efficient way.
Sent the tracking number to u after delivery.
♦ Samples:
Free samples will be sent on request.
The samples lead time is within 3-5 days after u confirmed.
♦ Packing
Inside: Reel / tray packing
Outside: carton
♦ Payment Terms: T/T, PayPal
♦ Delivery: UPS, DHL, FEDEX, TNT
Select the most economic and efficient way.
Sent the tracking number to u after delivery.
♦ Samples:
Free samples will be sent on request.
The samples lead time is within 3-5 days after u confirmed.
♦ Packing
Inside: Reel / tray packing
Outside: carton
Q: Are you a factory or trading company?
A: We are factory and share competitive price.
Q: How about your quality control?
A: All the products will be 100% checked before the shipment.
Q: How could I get a samples?
A: Free sample,you can take it from our office by your express delivery or pay express fee to us to send you.
Q: What is your warranty ?
A: Within 90 days after shipment if quality problem we will solve it well or we accept return of goods and replenishment
Q: How about your quality control?
A: All the products will be 100% checked before the shipment.
Q: How could I get a samples?
A: Free sample,you can take it from our office by your express delivery or pay express fee to us to send you.
Q: What is your warranty ?
A: Within 90 days after shipment if quality problem we will solve it well or we accept return of goods and replenishment
money .
Q: Shipping
A: UPS / Fedex / DHL / TNT / EMS. or pls contact us directly which way your preferred.
Q: Shipping
A: UPS / Fedex / DHL / TNT / EMS. or pls contact us directly which way your preferred.
