Surgical Dressing Cotton Roll Making Machines For Producing Medical Foam Hydrocolloid Dressings
- Category: >>>
- Supplier: Liaoyang Xianglong International Machinery Trading Co. LTD
Share on (1600700554563):
Product Overview
Description
Product Description

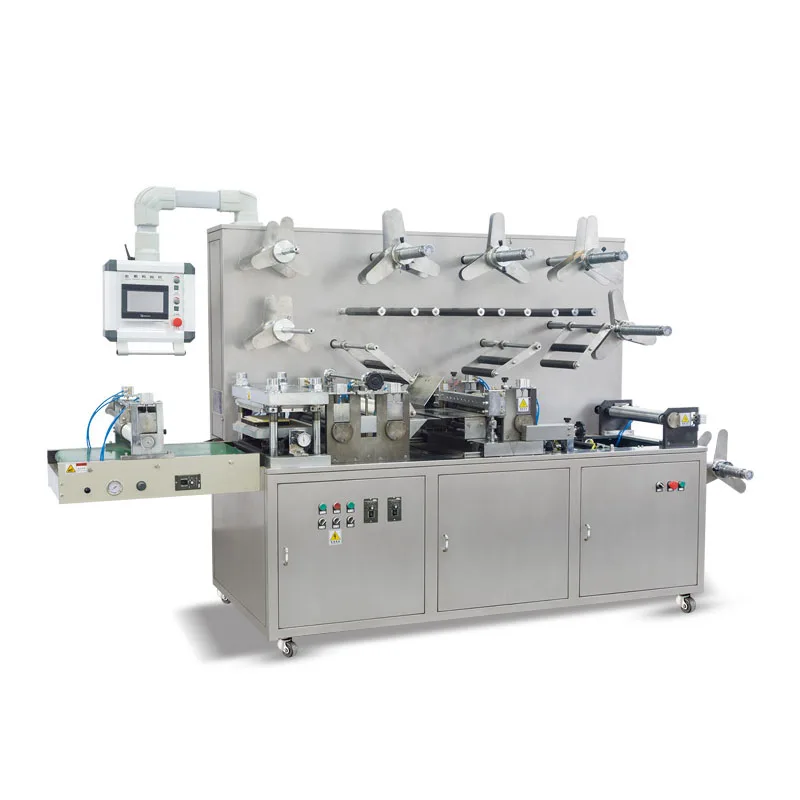

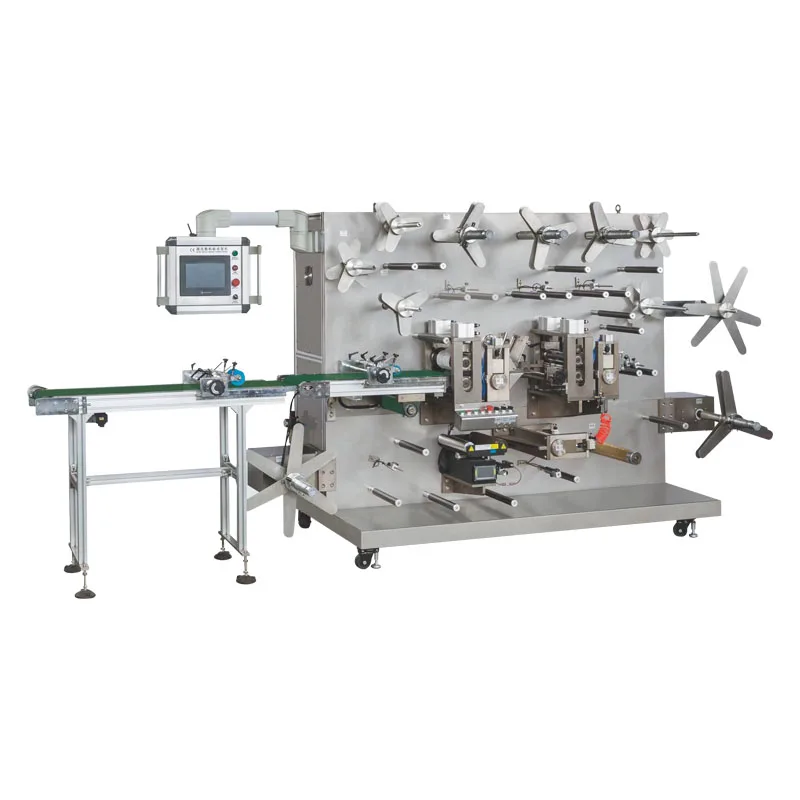

Rotary cutting medical dressing forming machine
Description:
1.This machine is used in general surgery and surgery to protect the wound. It has advanced functions, such as automatic
stripping, pasting, compounding, cutting, rolling cutting of adhesive tape, PU film, absorbent pad, stripping paper, roll
cutting,etc.
stripping, pasting, compounding, cutting, rolling cutting of adhesive tape, PU film, absorbent pad, stripping paper, roll
cutting,etc.
2.The machine is easy to operate and has a stable interface.

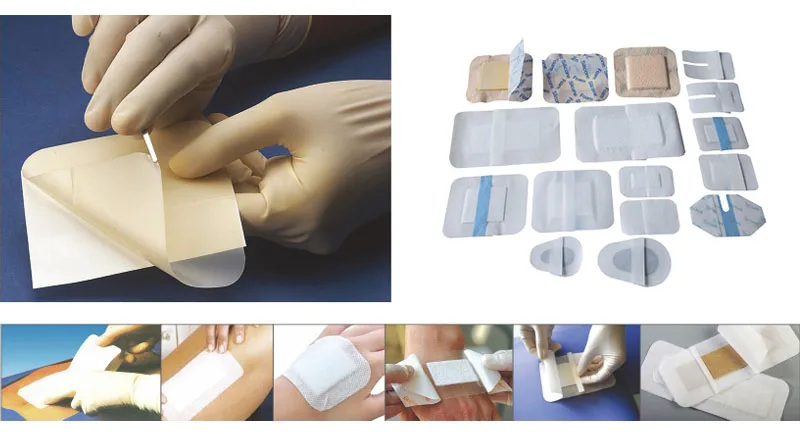

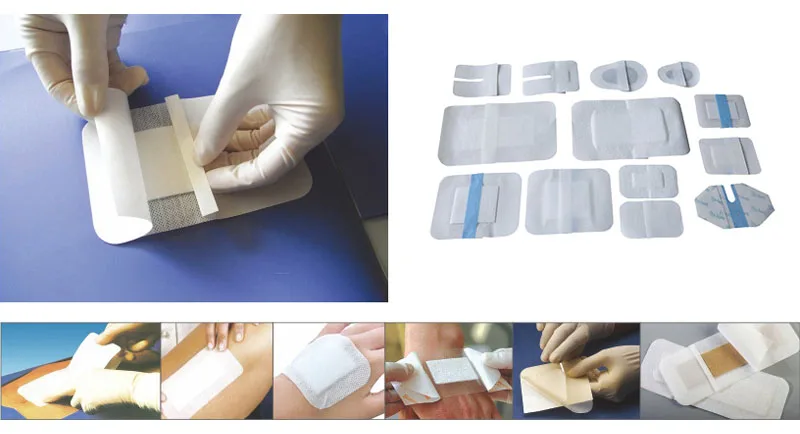

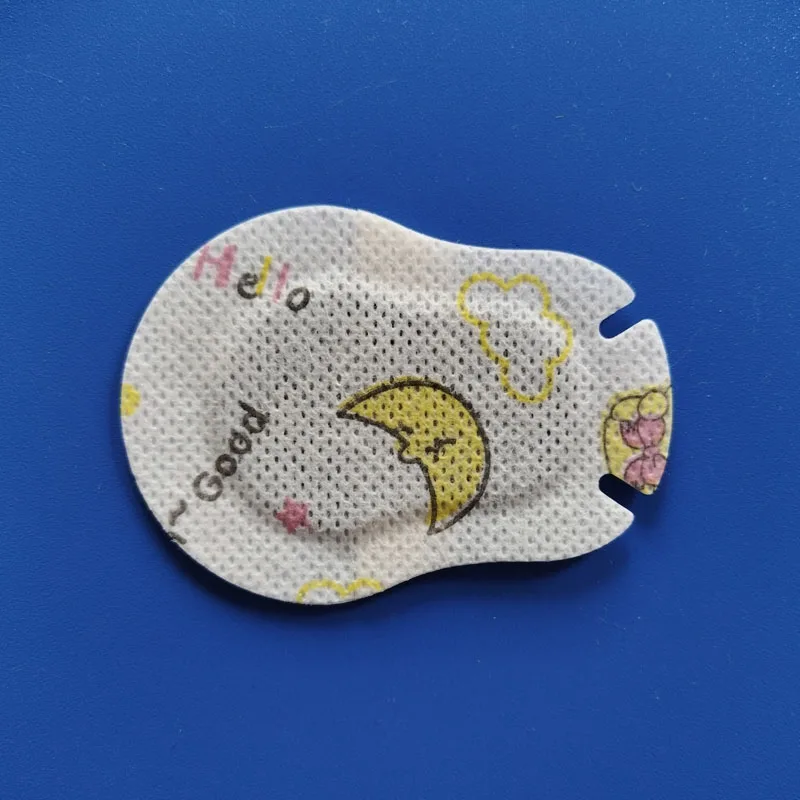

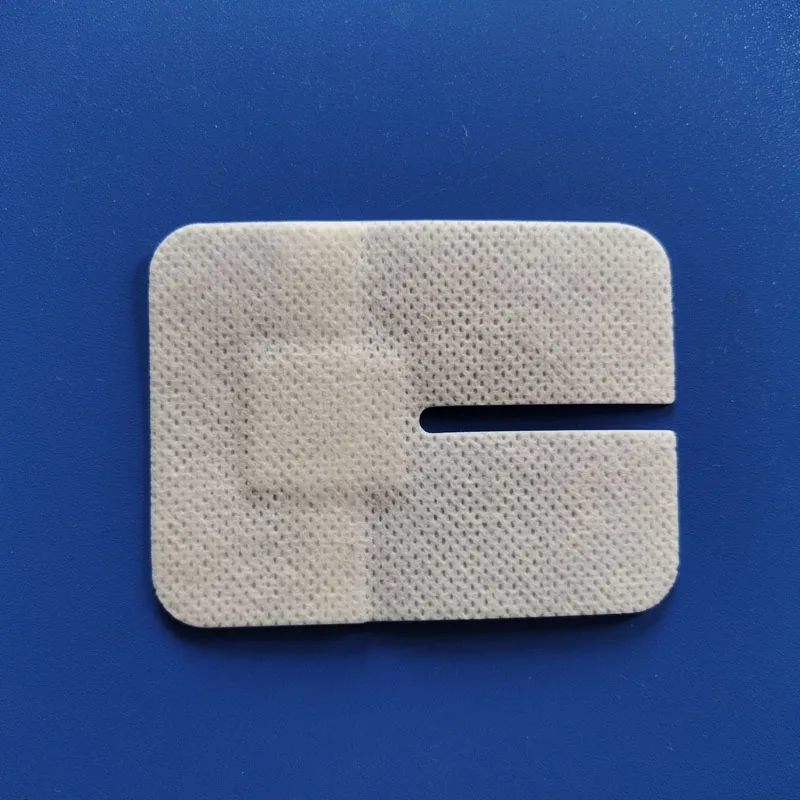

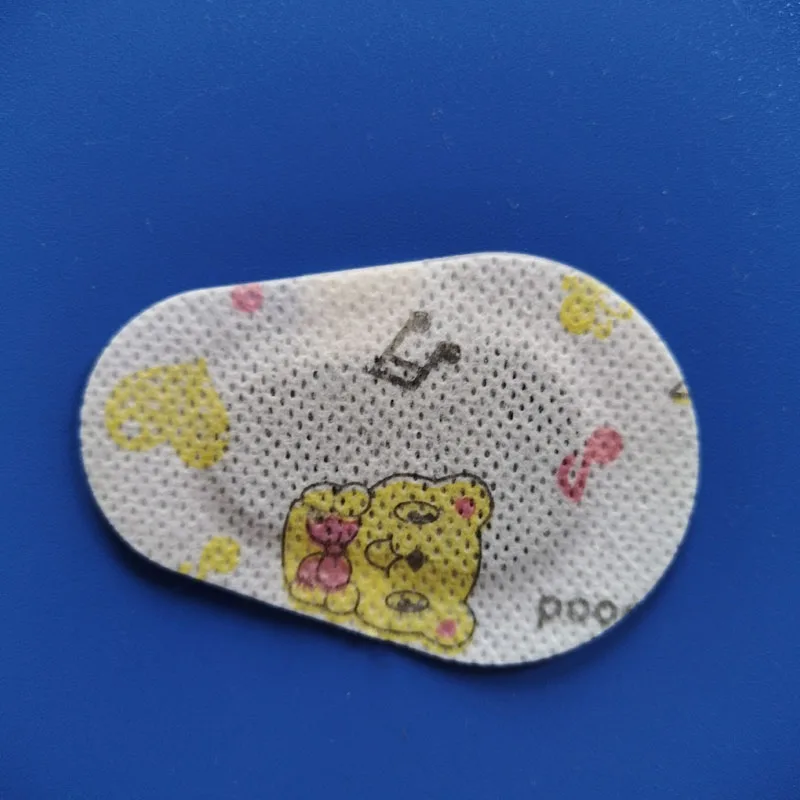

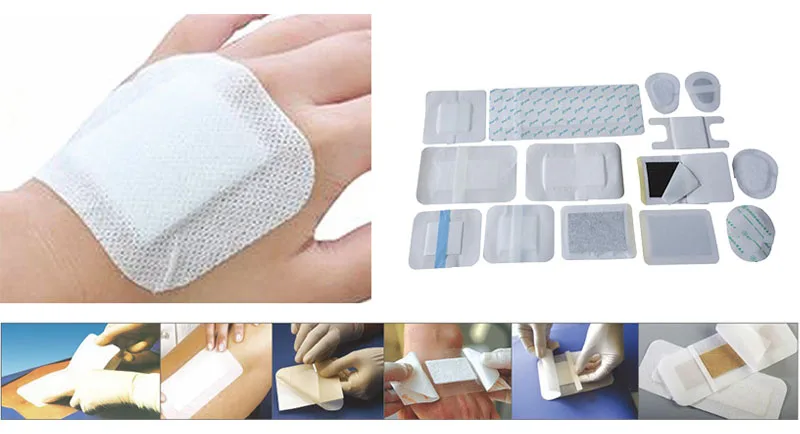

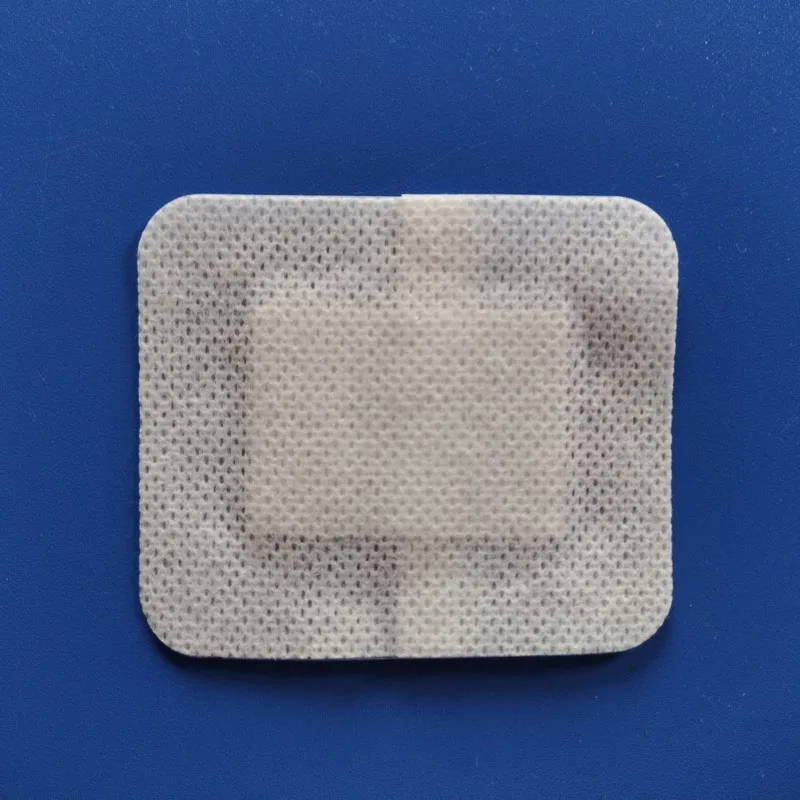

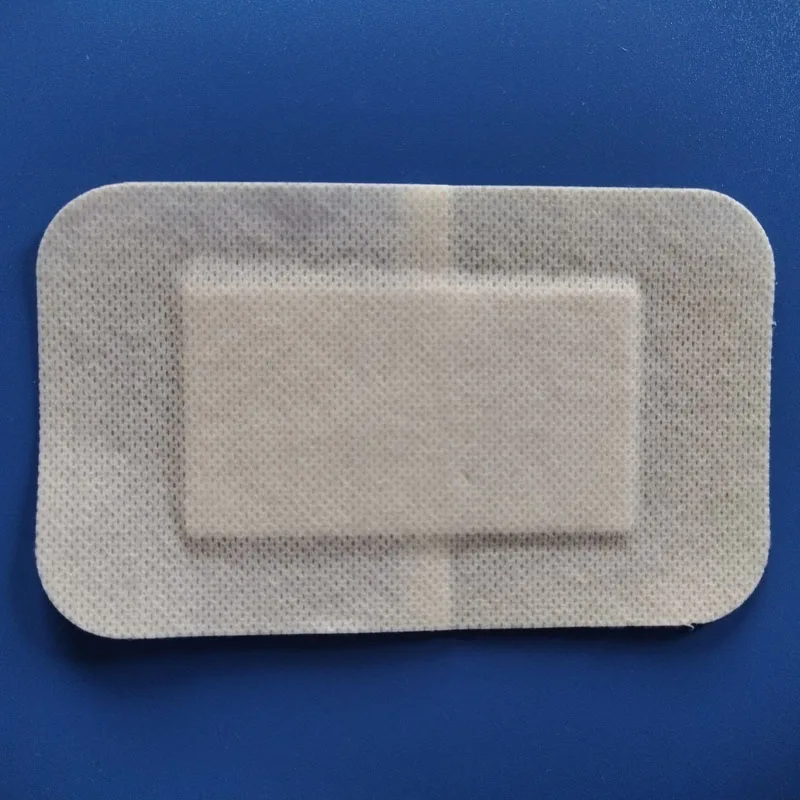

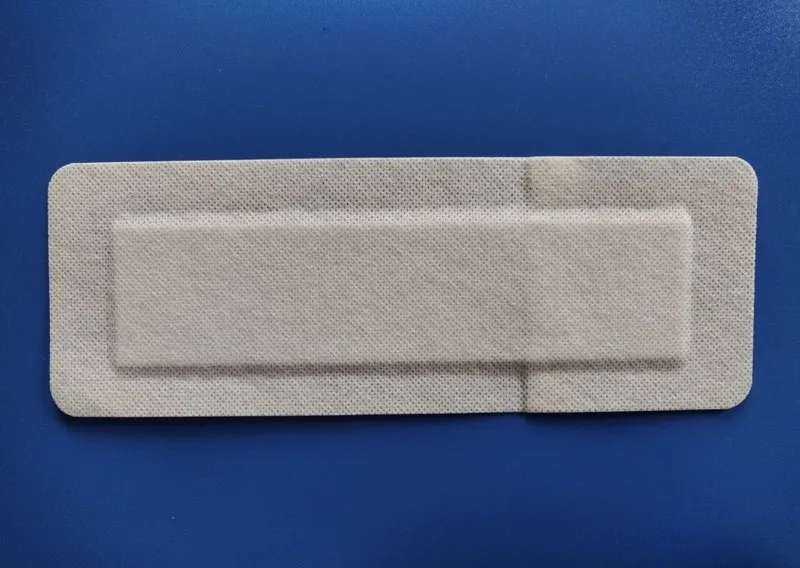

3.This function production:Pu dressing paste, medical dressing paste, plaster paste, eye patch, etc.
3.This function production:Pu dressing paste, medical dressing paste, plaster paste, eye patch, etc.
Specification
Technical parameters | ||
Model | FLT-200/250 | |
Cutting Speed | 30 m/min | |
Cutting Width | 50-200 mm(FLT-200) / 50-250 mm(FLT-250) | |
Cutting Length | 30-300 mm | |
Positioning Accuracy | ±0.2 mm | |
Total Power | 5 kw | |
Power Supply | 380V±10% 50Hz(three phases four lines) | |
Overall Dimension | 4050*1000*1800 mm | |
Weight | 2000kg | |
Notes:If any change of data, we will not notify further
Other Products

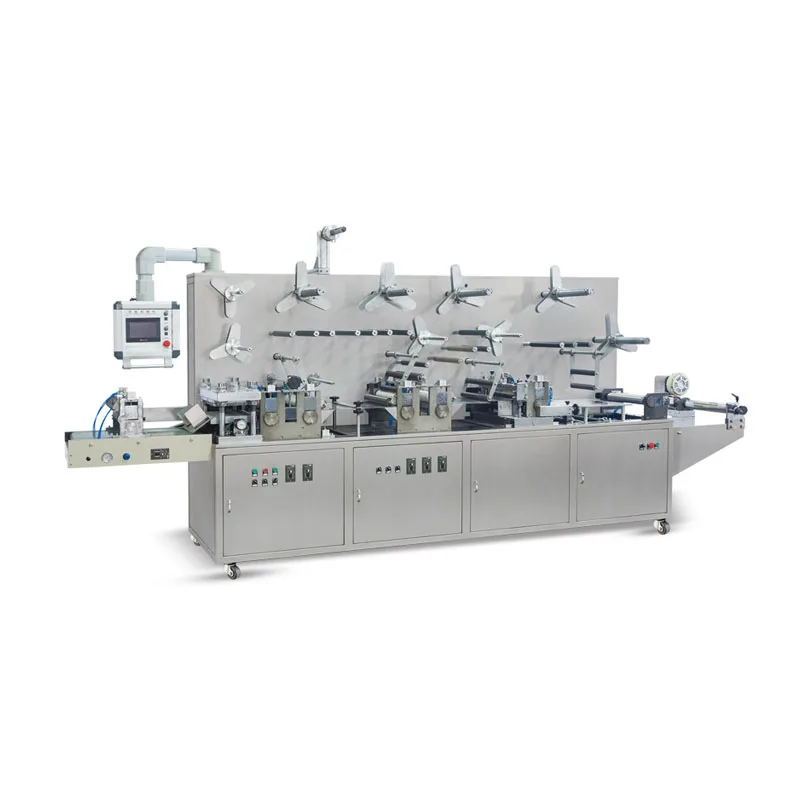

Medical Dressing Forming Machine
1.This machine is applied to producing wound-protection dressing medicated gauzes for surgery and wound in surgery
operation.Namely,it can automatically strip,stick,recombine and cut off such drum-shaped materials as adhesive tape, absorbent
cushion and release paper, shaping once and for all.It has the function of automatic feeding waste after forming.
2.This machine adopts double microcomputers to locate through photo-electricity control; displaying states with digital; controlling length with panel; alarming and sending out automatically on arrival of digital and with the function of protecting
data when power cut.
operation.Namely,it can automatically strip,stick,recombine and cut off such drum-shaped materials as adhesive tape, absorbent
cushion and release paper, shaping once and for all.It has the function of automatic feeding waste after forming.
2.This machine adopts double microcomputers to locate through photo-electricity control; displaying states with digital; controlling length with panel; alarming and sending out automatically on arrival of digital and with the function of protecting
data when power cut.
Main Performance & Features
This machine can produce abnormal dressing medicated gauzes of all varieties. Easy to set length; high accuracy at location;steady at delivering material;with even tension and regulating peed through frequency conversion.The whole machine operates easily and simple with its steady functions.
Technical parameters | ||
Model | FLT-300/400 | |
Cutting Speed | 10-90 (piece/min) | |
Outer Forming Width | 40-300 mm(FLT-300) / 40-400 mm(FLT-400) | |
Length of Absorbent Cotton | 20-300 mm | |
Positioning Accuracy | ±0.2 mm | |
Total Power | 3.5 kw | |
Power Supply | 380V±10% 50Hz(three phases four lines) | |
Overall Dimension | 4620*1060*1940 mm / 4620*1160*1940 mm | |
Weight | 2000kg(FLT-300) / 2400kg(FLT-400) | |
Multifunctional Medical Dressing Forming Machine
Product Features：1.This machine is applied to producing wound-protection dressing medicated gauzes for surgery and wound in surgery operation.Namely,it can automatically strip,stick,recombine and cut off such drum-shaped materials as adhesive tape, PU film,absorbent cushion and release paper, shaping once and for all.It has the function of automatic feeding waste after forming.
2.This machine adopts double servo motor, PLC, touch screen control. It has high positioning accuracy, easy to operate, stable
performance.
3.It can productiong Silica gel dressing, PU dressing, medical dressing, eye paste and so on.
2.This machine adopts double servo motor, PLC, touch screen control. It has high positioning accuracy, easy to operate, stable
performance.
3.It can productiong Silica gel dressing, PU dressing, medical dressing, eye paste and so on.
Technical parameters | ||
Model | FLT-300/400 | |
Cutting Speed | 30-90 (piece/min) | |
Cutting Width | 50-300 mm(FLT-300) / 50-400 mm(FLT-400) | |
Cutting Length | 60-200 mm | |
Positioning Accuracy | ±0.2 mm | |
Total Power | 4 kw | |
Power Supply | 380V±10% 50Hz(three phases four lines) | |
Overall Dimension | 4499*1060*1950 mm / 4499*1160*1950 mm | |
Weight | 2600kg (FLT-300) / 2900kg(FLT-400) | |

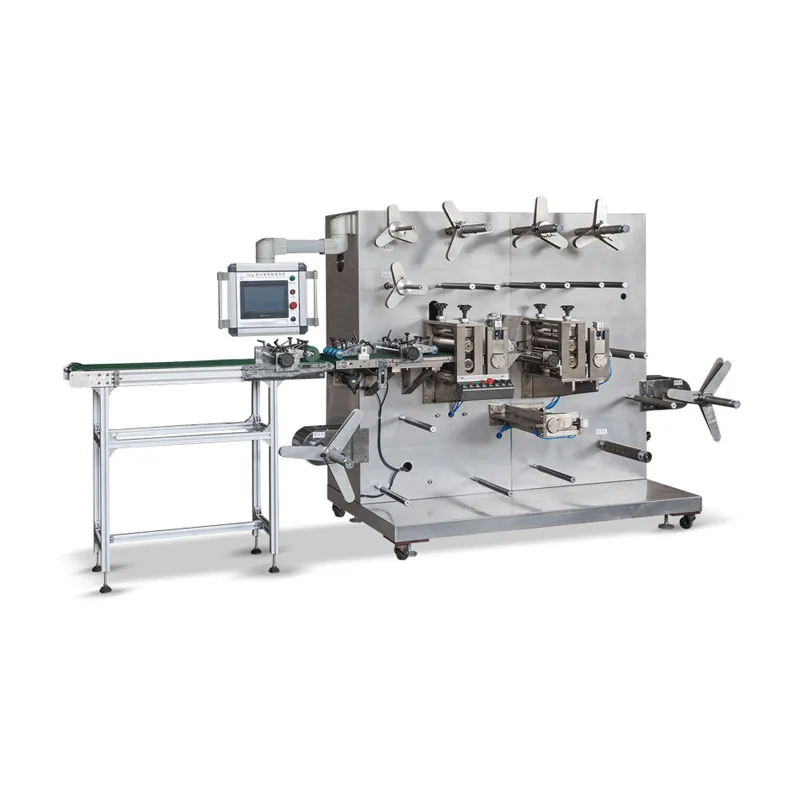

Round Compression Dressing Machine
Product Features:
1. The dressing forming machine used in general surgery and surgical surgery to protect the wound, namely, after adhesive tape, PU
film, absorbent pad, stripping paper, silicone paper roller material automatic stripping, pasting, compounding,cutting off, forming, then automatic waste collect and other advanced functions.
2. The machine adopts imported seven servo motor, motion controller, man-machine interface, high precision servo positioning
correction has the advantages of convenient operation, stable performance.
3. The functional production: PU dressing, medical dressing, plaster paste, eye paste and so on.
film, absorbent pad, stripping paper, silicone paper roller material automatic stripping, pasting, compounding,cutting off, forming, then automatic waste collect and other advanced functions.
2. The machine adopts imported seven servo motor, motion controller, man-machine interface, high precision servo positioning
correction has the advantages of convenient operation, stable performance.
3. The functional production: PU dressing, medical dressing, plaster paste, eye paste and so on.
Technical parameters | ||
Model | FLT-300B | |
Cutting Speed | 30m/min | |
Cutting Width | 100-300mm | |
Cutting Length | 50-350mm | |
Positioning Accuracy | ±0.2 mm | |
Total Power | 5 kw | |
Power Supply | 380V±10% 50Hz(three phases four lines) | |
Overall Dimension | 4000*1100*1950 mm | |
Weight | 2000kg | |
