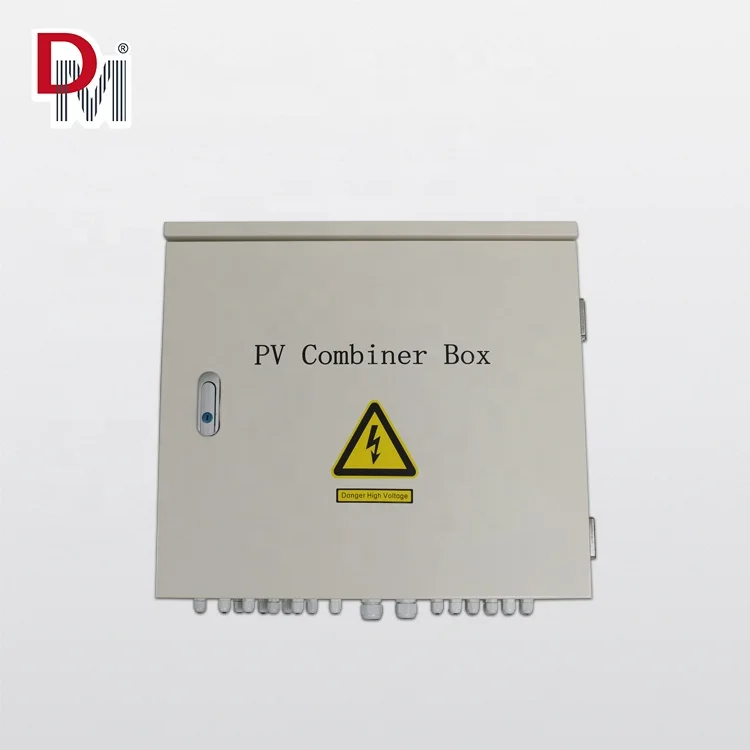

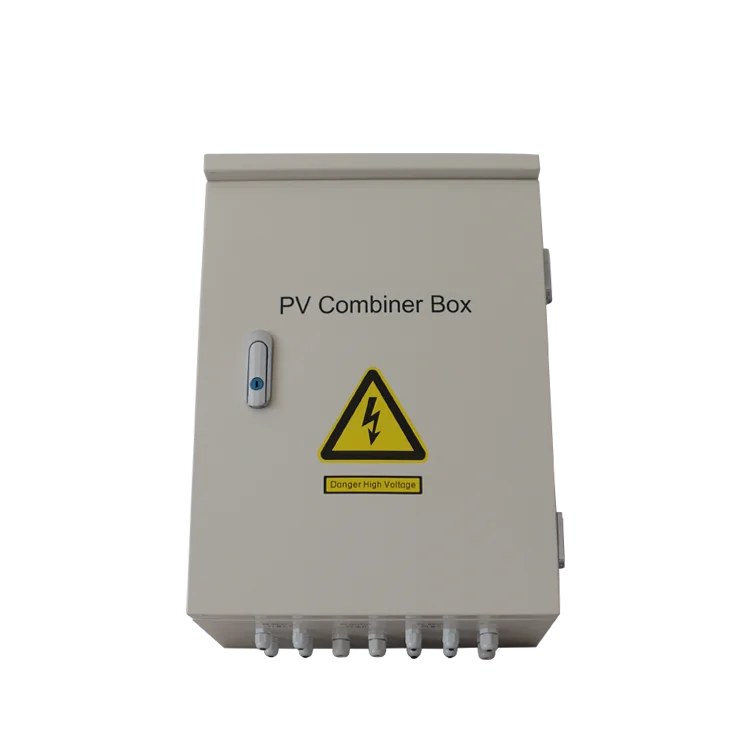

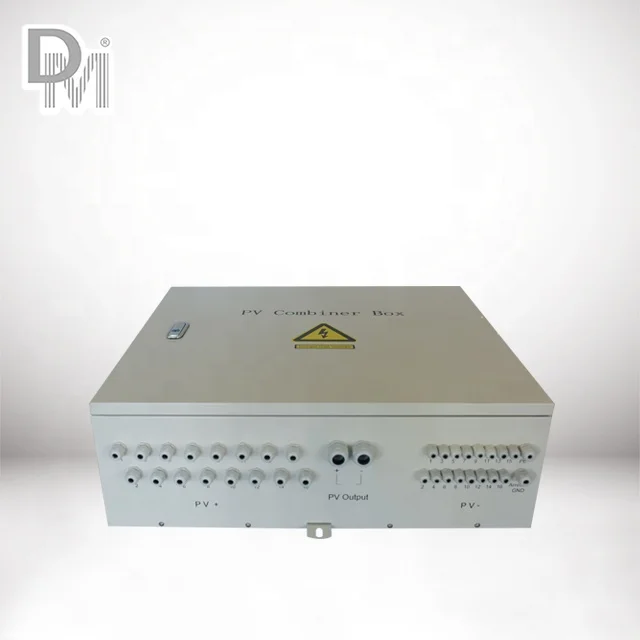

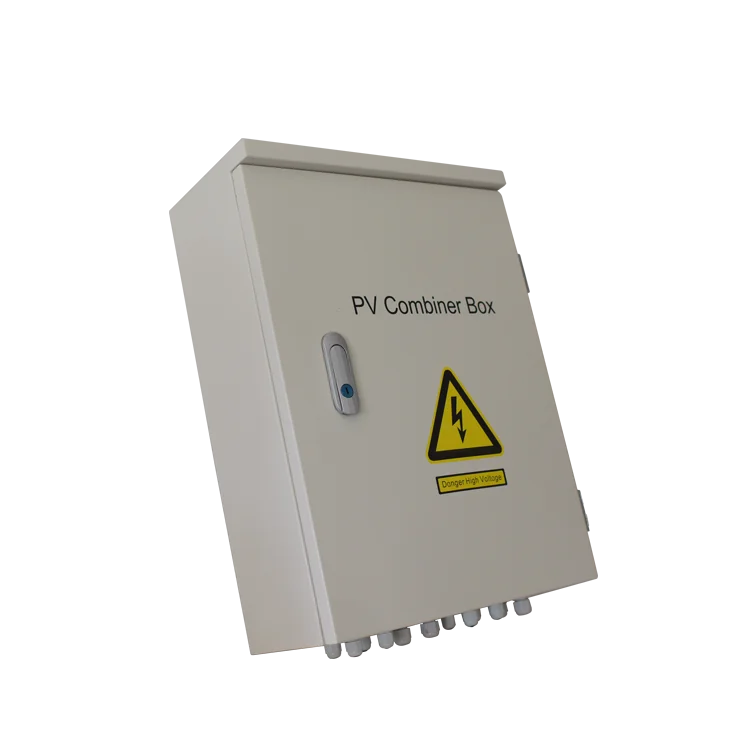

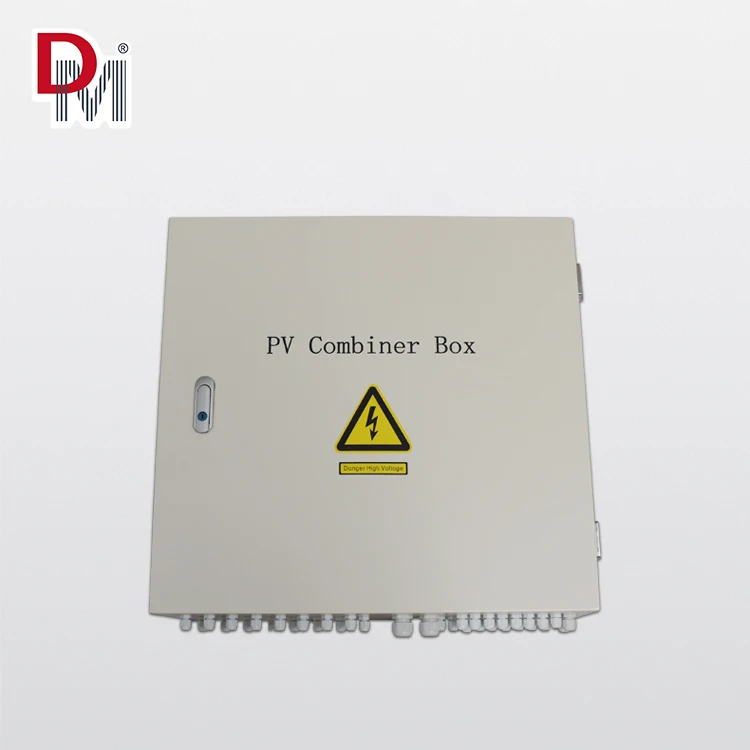

PV Junction Box 10 In 1 pv solar array combiner box

Product Overview

Description

SPD 10 Stings in 1 out Solar PV Array Combiner Box For Solar Power System

    Product Introduction of 10 in 1 out Solar PV Combiner Box



Solar PV combiner box in the on grid solar system



Solar PV combiner box in the off grid solar system



1. In the solar power system, in order to decrease the connecting line, easy maintenance, reduce losses, optimize system structure, improving the safety and reliability of items, the Solar PV combiner box is usually in need between the solar panels and inverter.



2. Except the PV junction function, the solar pv combiner box should also have reverse current prevention, over-current protection, over-voltage protection, lightning protection etc a series of perfect protection functions, meanwhile, checking the running state, current, voltage and power after junction, arrester state, collection of DC circuit breaker state and Arc detection,leakage detection(optional) and so on.



3. The solar PV combiner box we manufacture is equipped with all the functions mentioned above, configuration with on grid/off grid solar inverter to make up a complete set of solar power system.



4. When choose the solar pv combiner box, based on the input dc voltage range and output power of inverter, certain qty of panels will be connected in series as a string, certain strings in parallel will connect to the PV combiner box for junction, via control of circuit breaker and protection of arrester, then feed to the inverter.



Main Feature:

1. Conform to CGC/GF002:2010, PV Array Junction Box Technical Specifications

2. Allowable maximum 24 strings panels to connect, Nominal voltage of each string is 10A, maximum 15A

3. Total output current is 250A, the maximum voltage is 1000Vdc

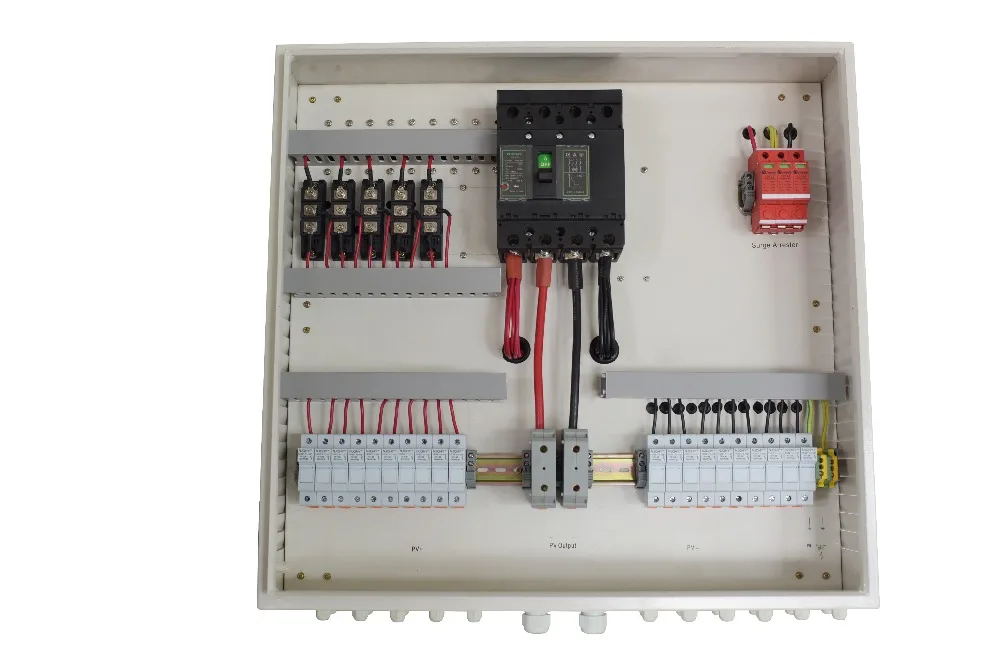

4. For each string, high voltage fuse protection and anti-connection protection.

5. Equipped with pv high voltage arrester protection

6. PV high voltage circuit breaker control the output, pressure-resistant DC1200V, fusing current is optional

7. In line with outdoor installation, protection class IP65

8. Isolate RS485 port used for remote data communication, support MODBUS-RTU protocol.

9. Built-in comprehensive protection alarm function, not only the various of alarm parameters are programmable set, but also each alarm function can be set “On” Or “Off)

10. Real-time the harmful arc in the DC circuit, once there is the harmful arc, alarm will work and directly make the trip switch and cut off fault circuit, accordingly, prevent the fire disaster etc from the arc.

















       Technical Data Sheet of the 10 in 1 Solar PV Combiner Box:



Model	DM-CB10
Basic
Max.PV Array Voltage	1000V

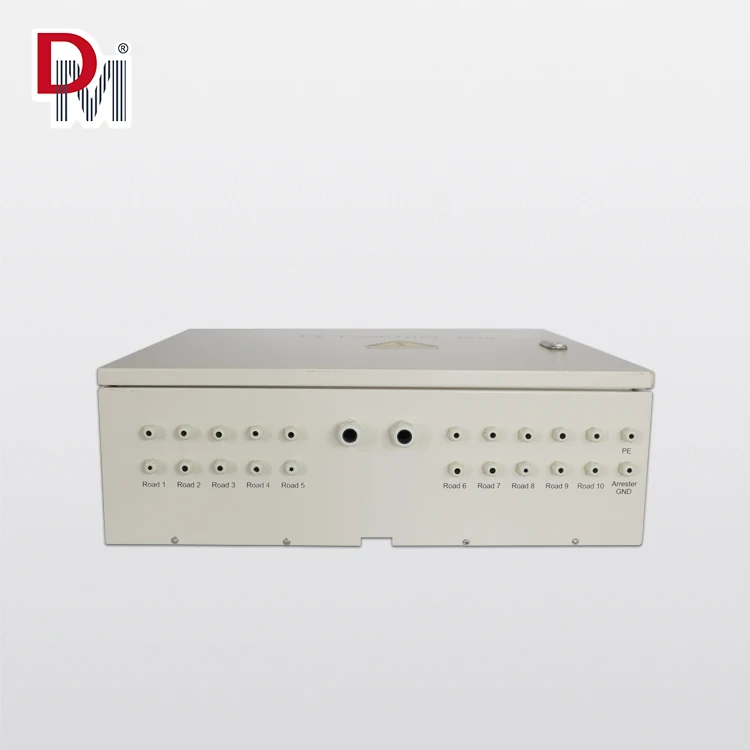

Max. PV Array parallel Inputs	10
Rated fuse current(replaceable)	15A
Allowable input current	10A
Output Circuit Breaker	120A
Max. Output current	100A
Diameter of wire of input PV array	2.5 mm²
Diameter of wire of output PV array	20 mm²
Diameter of wire for ground	10 mm²
PV dedicated SPD	yes
Signal Arrester	yes
IP	IP65
Size(MM)	600*600*200MM
Weight	28KG
Environment
Normal working temperature/humidity	-25℃-60℃,humidity 95% No Condensation,No corrosive gas
Temperature range	-50℃-125℃
Altitude(m)	<2000m
Alarm	DC Arc fault state, voltage alarm, current alarm, temperature alarm etc
Optional
Communication Interface	RS485/Modbus-RTU Protocol
Current monitor for each string	Yes
