Product Overview
Description
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description

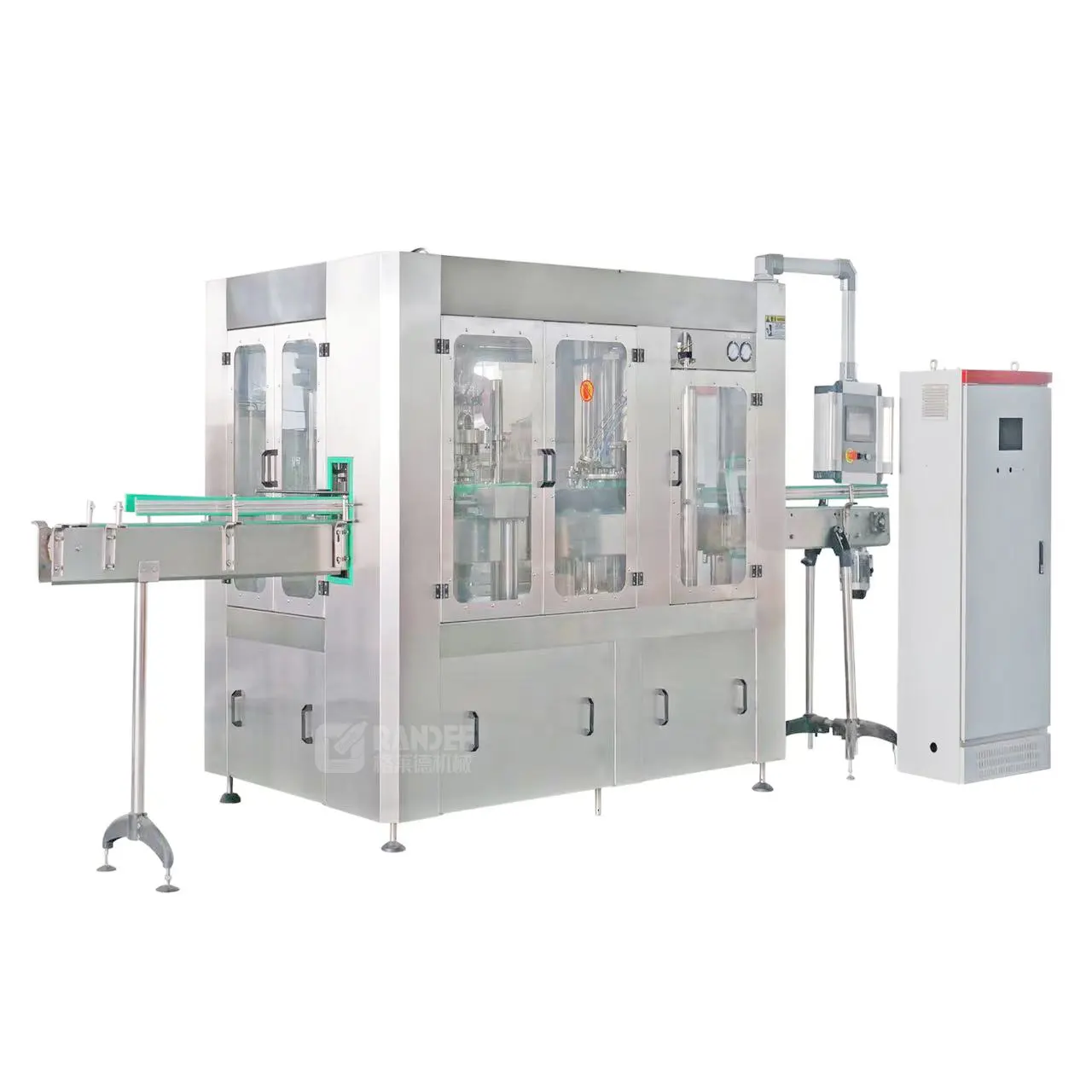

Carbonated Can Filling Sealing Machine DGF12-1
Beer canning machine / soda water filling sealing machine for equal pressure can filling sealing machine of carbonated drinks in beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination. It adopts the advanced machine, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip long-distance control system according to the customers’ request. It is the preferred equipment for the medium beer and beverage plant.

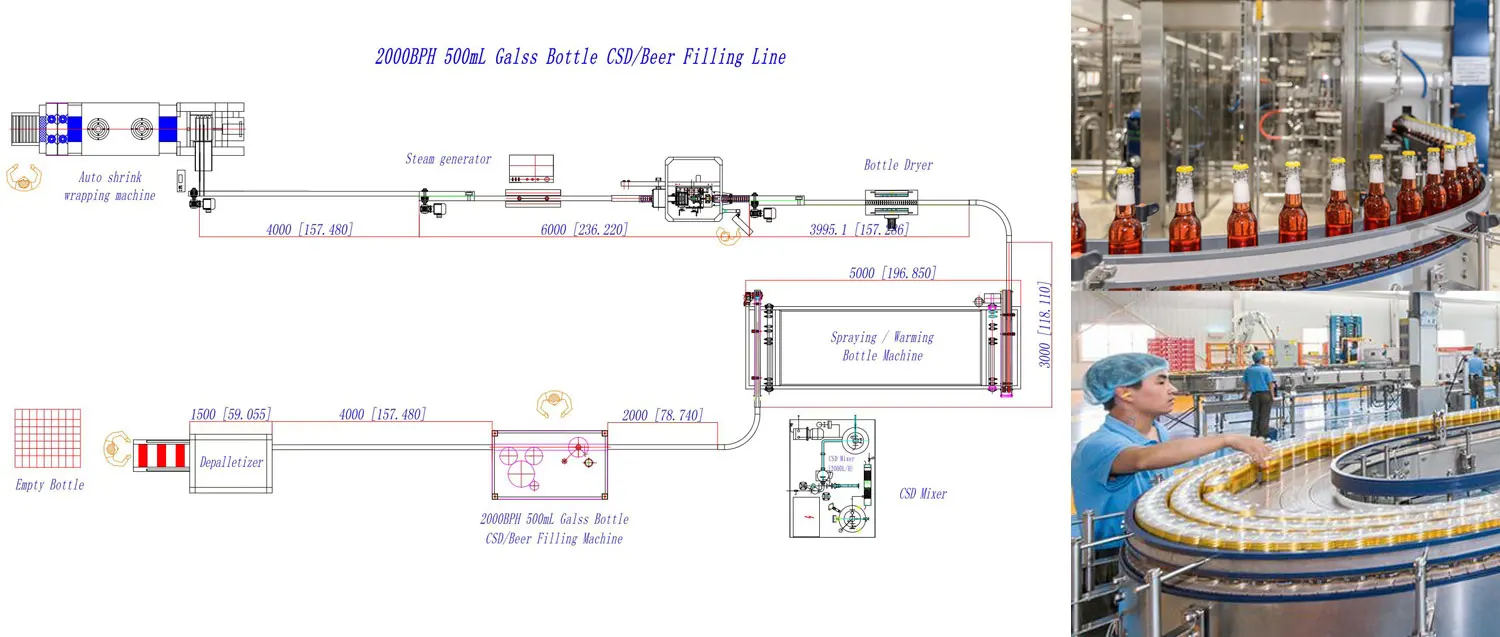

Auto depalletizer → Automatic can rinsing machine→Automatic soda water can filling machine→
Automatic can sealing machine→Can warmer(optional)→Blow dryer→Automatic or Manual sleeve labeling machine→Bottle Collection Table
Automatic can sealing machine→Can warmer(optional)→Blow dryer→Automatic or Manual sleeve labeling machine→Bottle Collection Table
Washing part
The spray can washing machine automatically sprays and sterilizes the inner and outer surfaces of the cans. All materials are
stainless steel 304. When flushing the can, first turn the empty can into the can washer, spray it through a porous warm water
pipe to the side and downward, and the empty can rotates 0.5 meters to achieve the purpose of cleaning, then come with turning
over can into the next conveyor chain. Note that the can should not be interrupted in the slideway to prevent can from being fast
and the water can not drained out completely.
stainless steel 304. When flushing the can, first turn the empty can into the can washer, spray it through a porous warm water
pipe to the side and downward, and the empty can rotates 0.5 meters to achieve the purpose of cleaning, then come with turning
over can into the next conveyor chain. Note that the can should not be interrupted in the slideway to prevent can from being fast
and the water can not drained out completely.

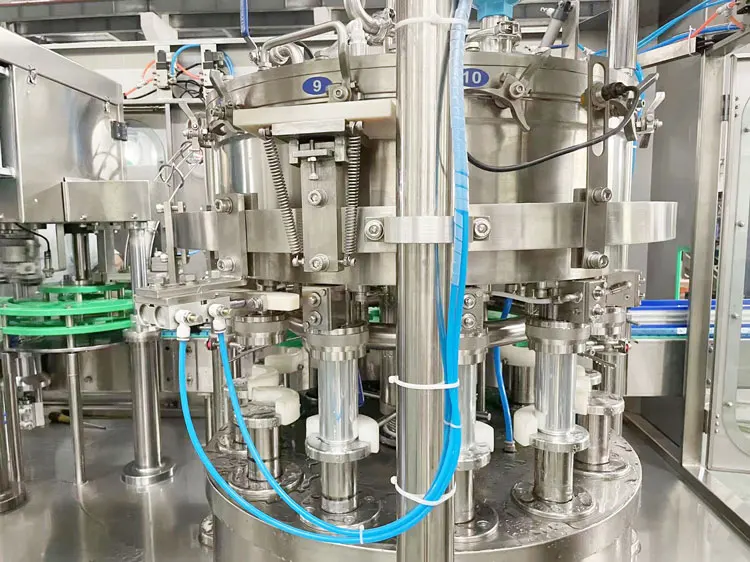

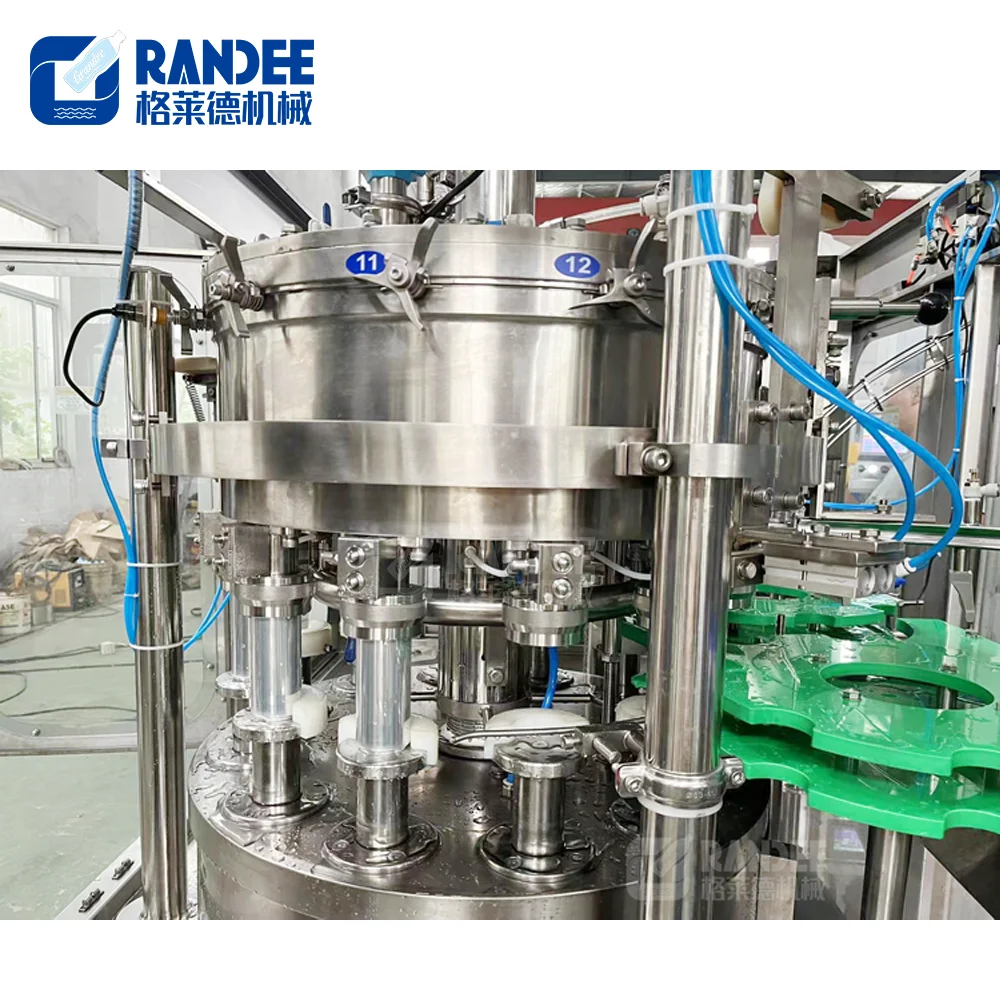

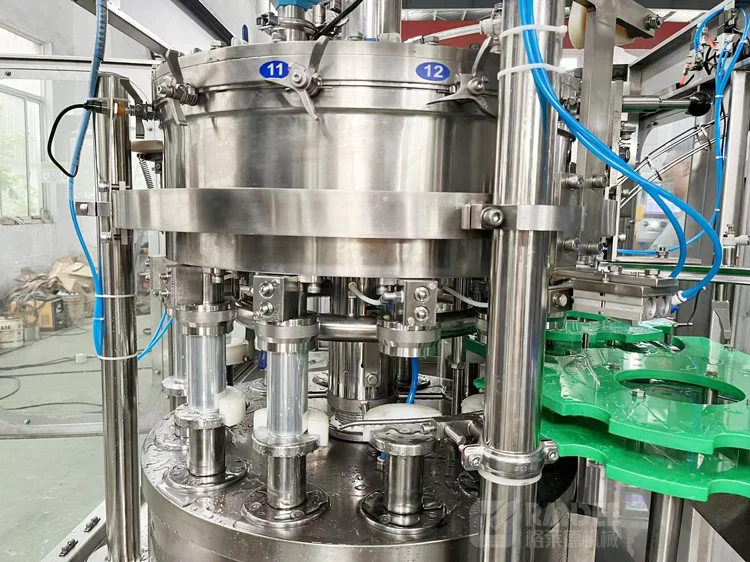

Filling part

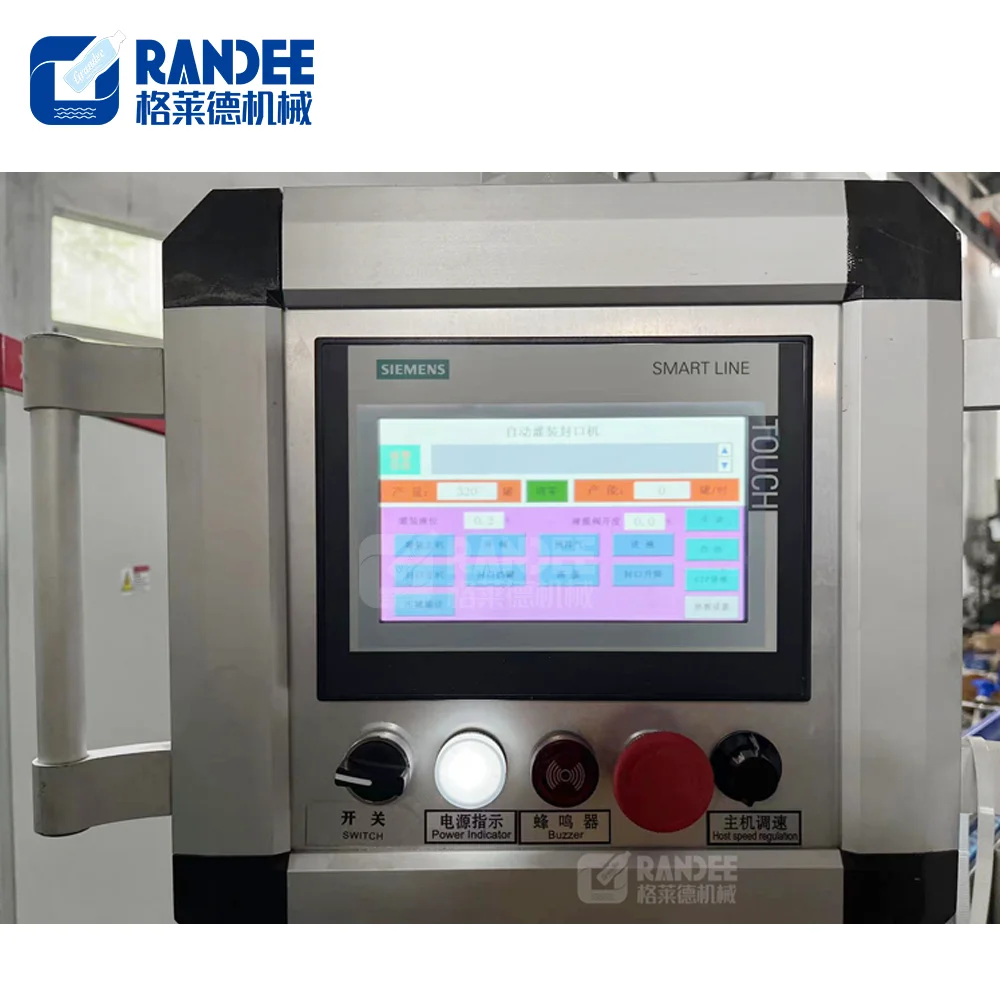

Adopt PLC, frequency converter and man-machine interface control system. It has advanced control technologies such as variable
frequency speed regulation, automatic filling with cans, no filling without cans, etc. Through various sensors on the device, the
accurate production speed and production quantity can be displayed on set it on the touch screen.
frequency speed regulation, automatic filling with cans, no filling without cans, etc. Through various sensors on the device, the
accurate production speed and production quantity can be displayed on set it on the touch screen.

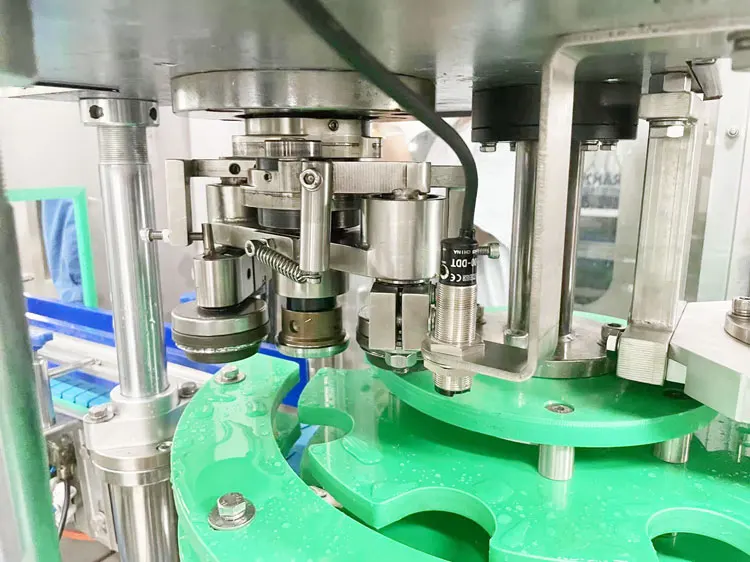

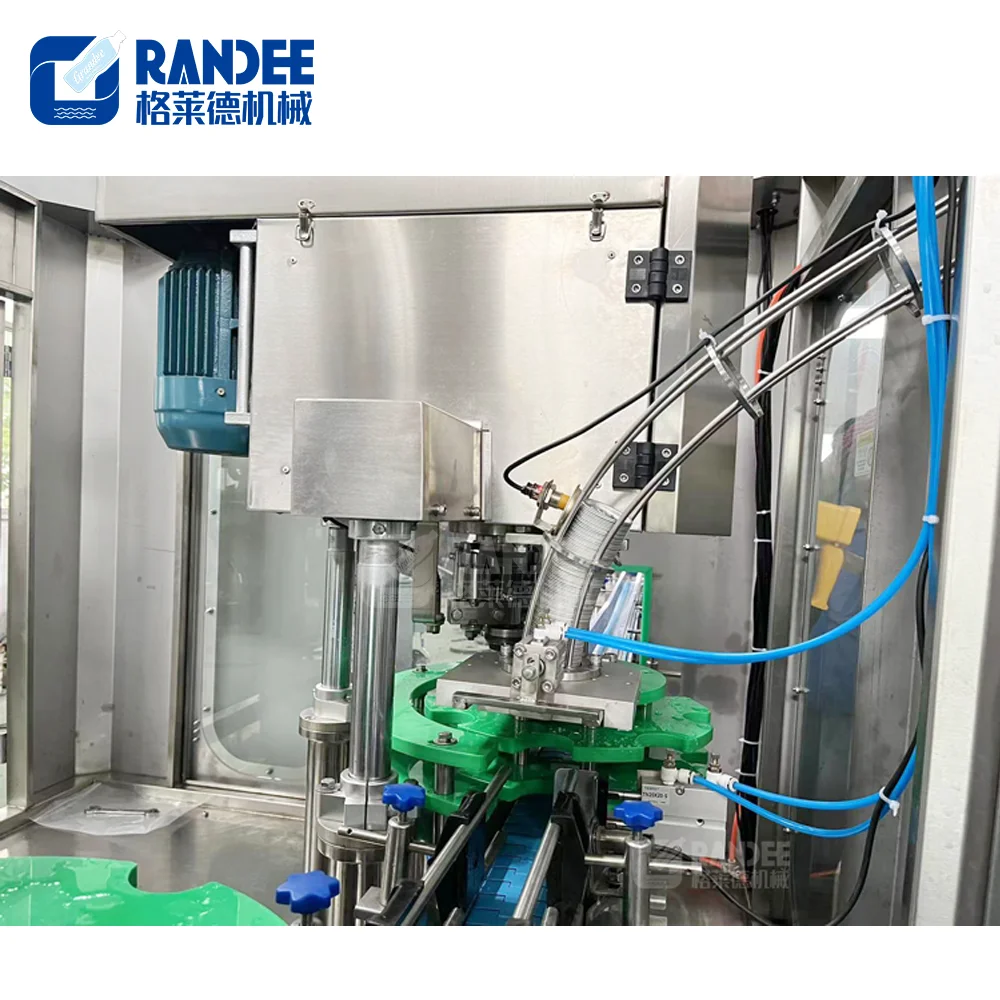

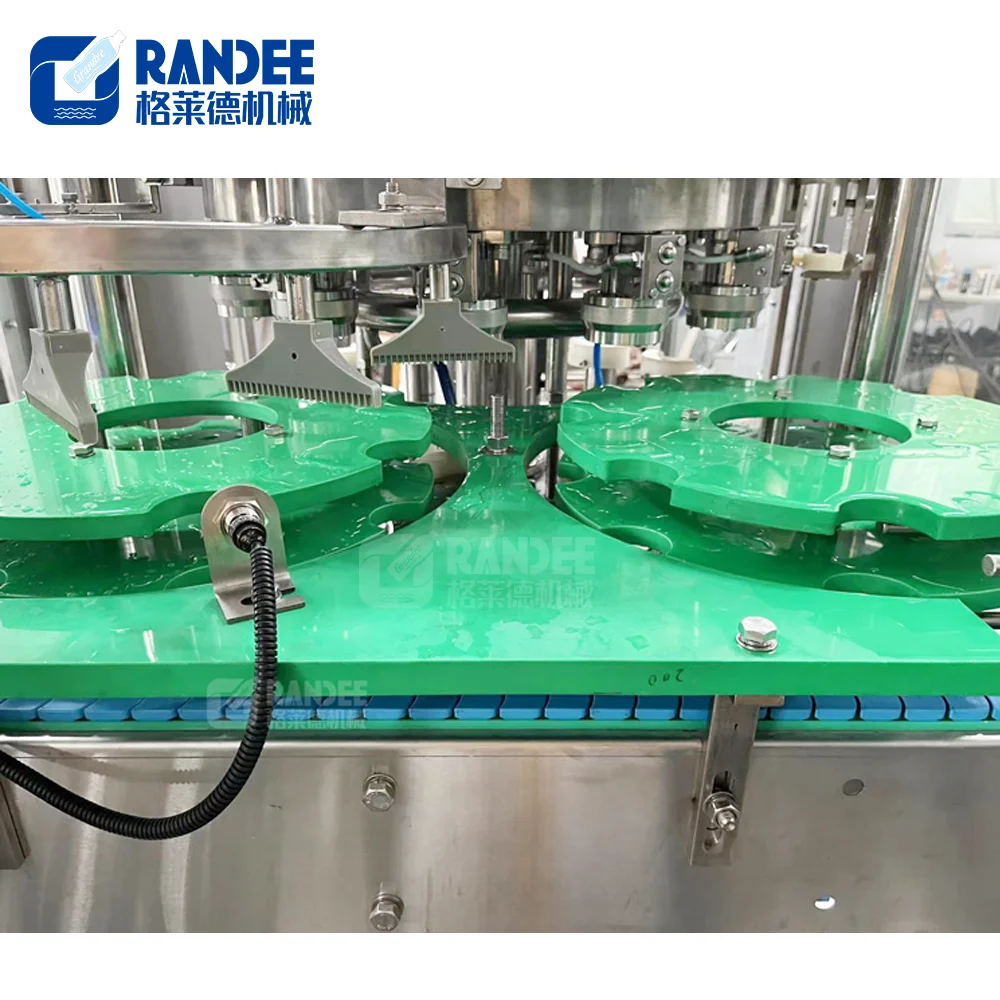

Sealing part
The finished cans are sent to the sealing machine head via a hook chain, and the lid is sent to the mouth of the tank through the
cap feeder. When the can supporting mechanism is raised, the indenter presses the mouth of the can, and the sealing wheel is
pre-sealed and sealed. After the can is sealed, it is pushed out by the canning mechanism to complete the process of filling and
sealing
cap feeder. When the can supporting mechanism is raised, the indenter presses the mouth of the can, and the sealing wheel is
pre-sealed and sealed. After the can is sealed, it is pushed out by the canning mechanism to complete the process of filling and
sealing
Main technical parameter
Model | GDF12-1 | GDF12-4 | GDF18-4 | GDF24-4 | GDF36-6 | DXGF 50-50-12 | |||||
Capacity (500ml) | 1500-2000 | 2000-3000 | 4000-10000 | 8000-9000 | 10000-12000 | 12000-14000 | |||||
Filling type | Isobaric filling | ||||||||||
Filling pressure | ＜0.4MPa | ||||||||||
Rinsing water pressure | ＞0.06MPa ＜0.2MPa | ||||||||||
Application | Carbonated soft drink bottling line | ||||||||||
Totalpower | 2.5kw | 3.7kw | 5.5kw | 7.5kw | 8.2kw | 11kw | |||||
Overall dimensions | 2.0*1.9m | 2.3*1.9m | 2.5*2.2m | 2.8*2.5m | 3.6*2.3m | 5.5*3.3m | |||||
Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | 2.5m | |||||
Weight | 2000kg | 2500kg | 3000kg | 4500kg | 6000kg | 11000kg | |||||
NAME | BRAND | AREA |
PLC | Siemens | Germany |
INVERTER | Siemens | Germany |
CONTACTOR | Siemens | Germany |
TOUCH SCREEN | Siemens | Germany |
INVERTER | Siemens | Germany |
MOTOR | ABB | SWISS |
PNEUMATIC PARTS | FESTO | GERMANY |
ELECTRICAL PARTS | SCHNEIDER | FRANCE |
Turnkey Solution
1.RO system
This RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc

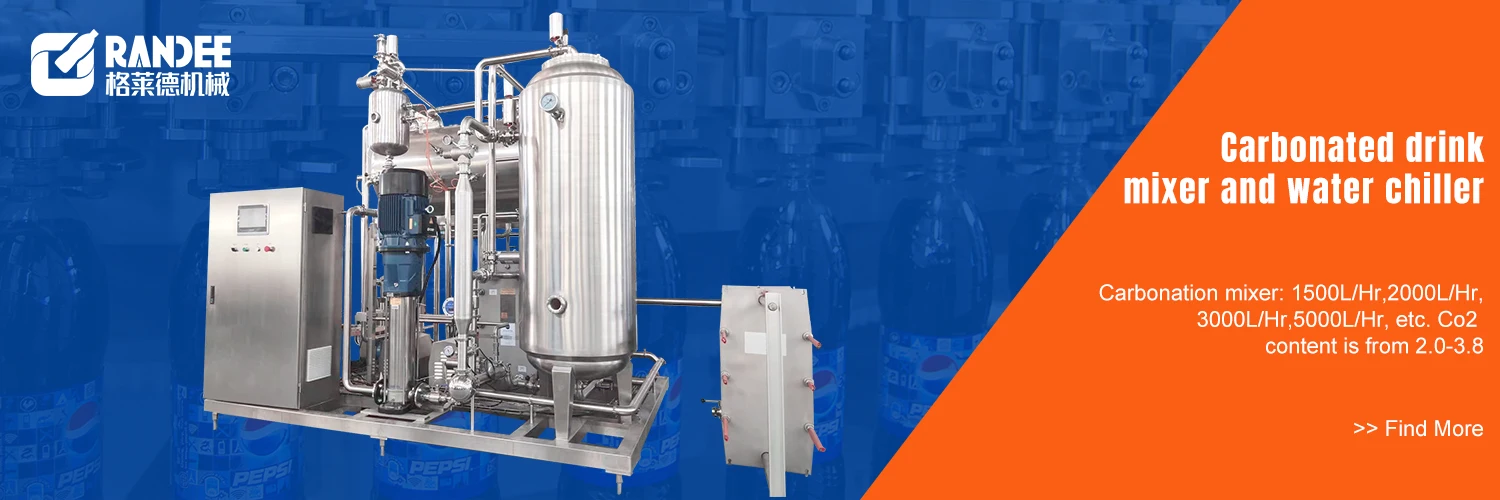

2.Carbonated drink mixer and water chiller
Carbonation mixer: 1500L/Hr,2000L/Hr,3000L/Hr,5000L/Hr, etc. Co2 content is from 2.0-3.8
Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature).
Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature).
3. High speed automatic PE film shrink packing machine:
Film material: PE Shrink membrane thickness: 70~100um
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000～1100mm
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000～1100mm
Recommend Products
Turkey Project - Carbonated Drink/Water/Juice Production Line
High Speed PE Film Shrink Packing Machine
Packing speed: 22-28bags/min
Automatic Sleeve Shrink Labeling Machine
1. signle head or double heads available
2. Output: 150-350bottles/min
2. Output: 150-350bottles/min
Automatic PE Film Shrink Packing Machine
Speed: 8-10bags/min
Company Profile
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line , can filling and sealing line, complete blowing labeling and packaging system.
We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line , can filling and sealing line, complete blowing labeling and packaging system.
