Z12A 65x95 Locking Assembly Bushing Shaft Hub Locking Device factory price
- Category: >>>
- Supplier: Changzhou Tianniu Transmission Equipment Co. Ltd.
Share on (1600700792292):
Product Overview
Description
Product Description

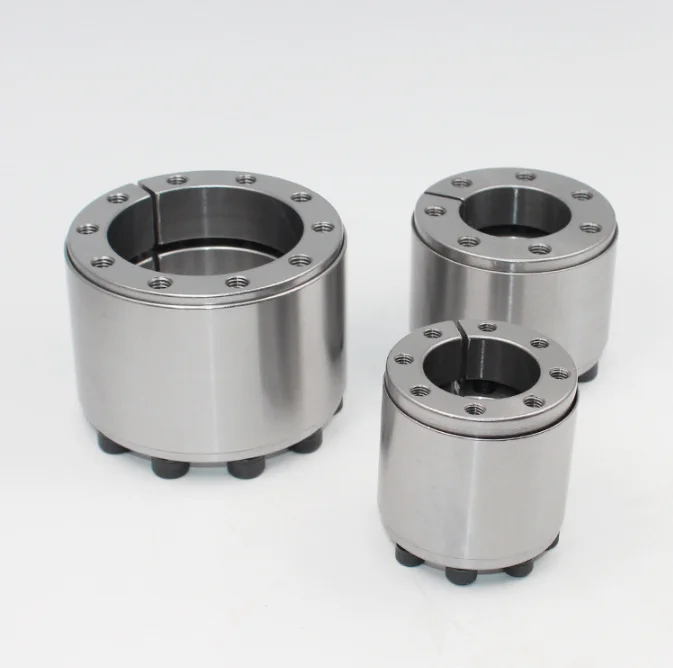

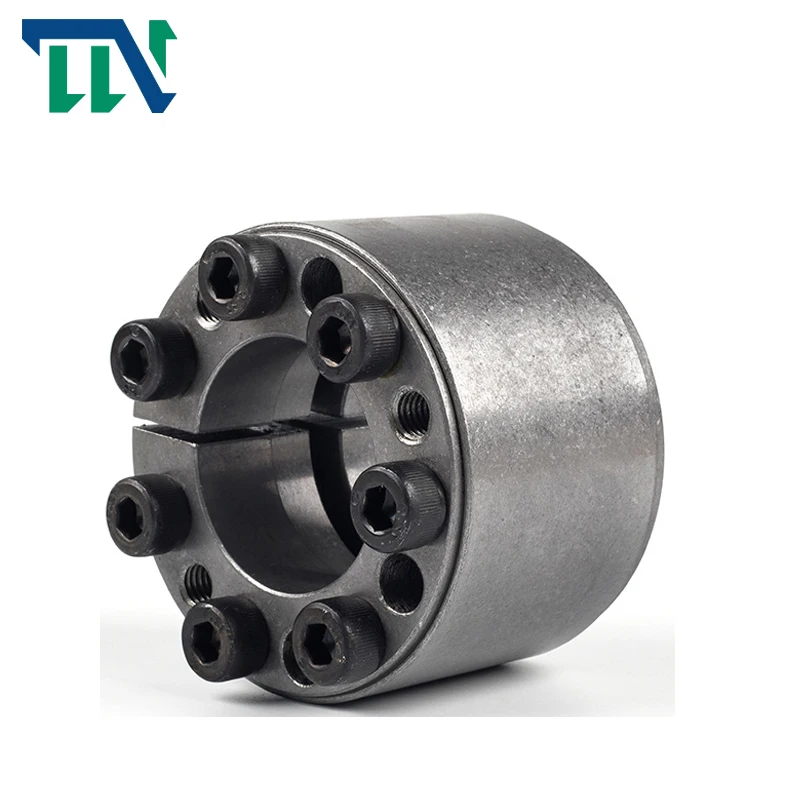

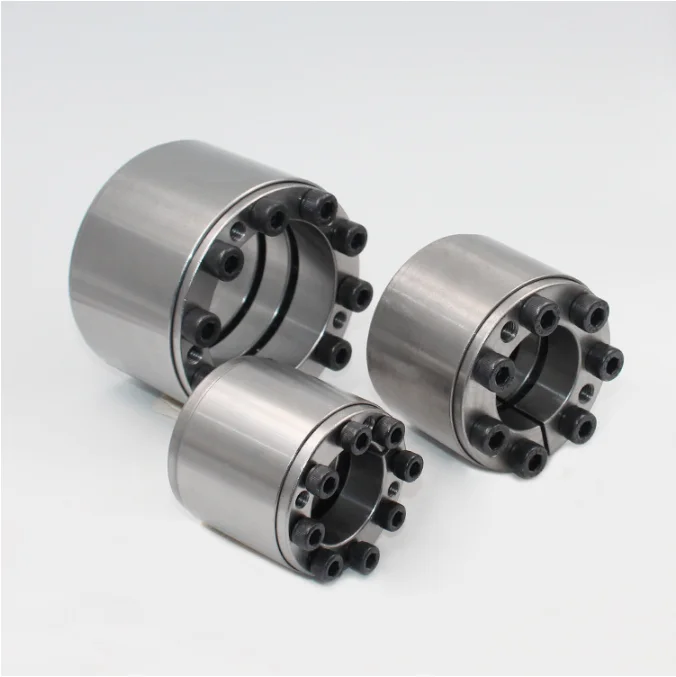

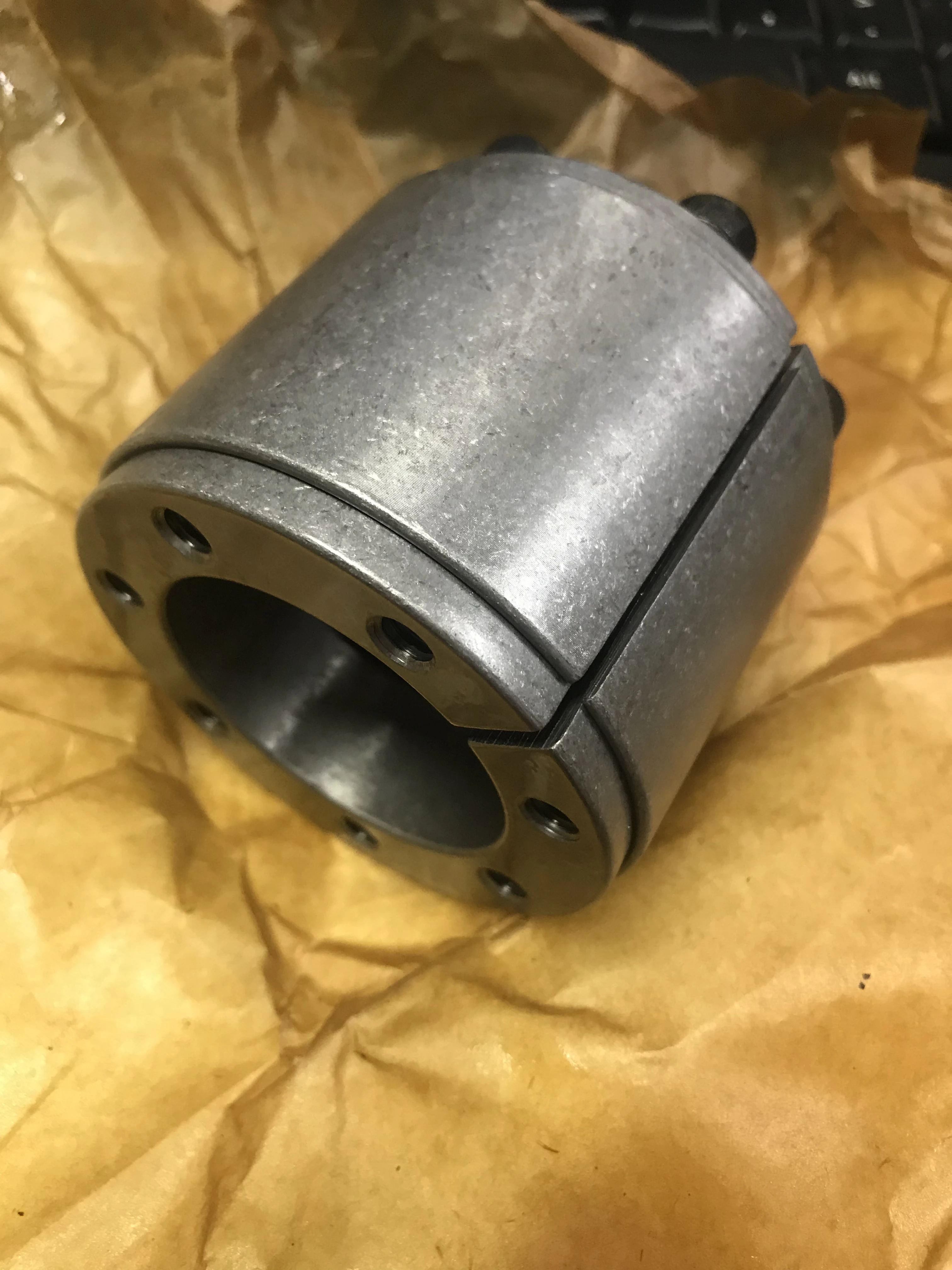

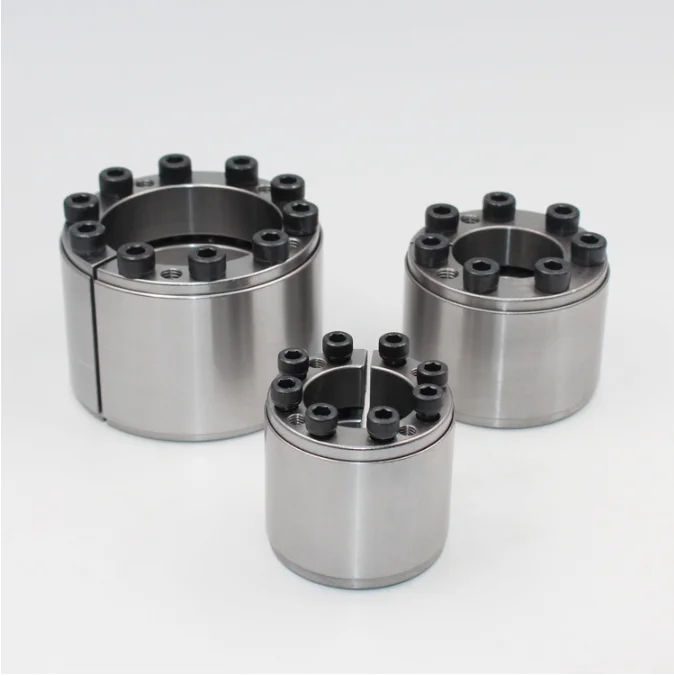

Description of Z12A 65x95 Locking Assembly Bushing Shaft Hub Locking Device factory price
It can replace single keywey and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub ,inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft .
Data sheet of Z12A 65x95 Locking Assembly Bushing Shaft Hub Locking Device factory price
| Model | Z12A Cone Clamping Elements | |
| Pressure on Shaft (N/mm2) | 297-120 | |
| Pressure on Hub (N/mm2) | 87-108 | |
| Rated Load (kN.m) | Force | 67-4130 |
| Torque | 0.84-4130 | |
| Inner Race Size (mm) | 25-600 | |
| Outer Race Size (mm) | 55-695 | |
| Thickness (mm) | 46-155 | |
| Weight (Kg) | 0.47-188 | |

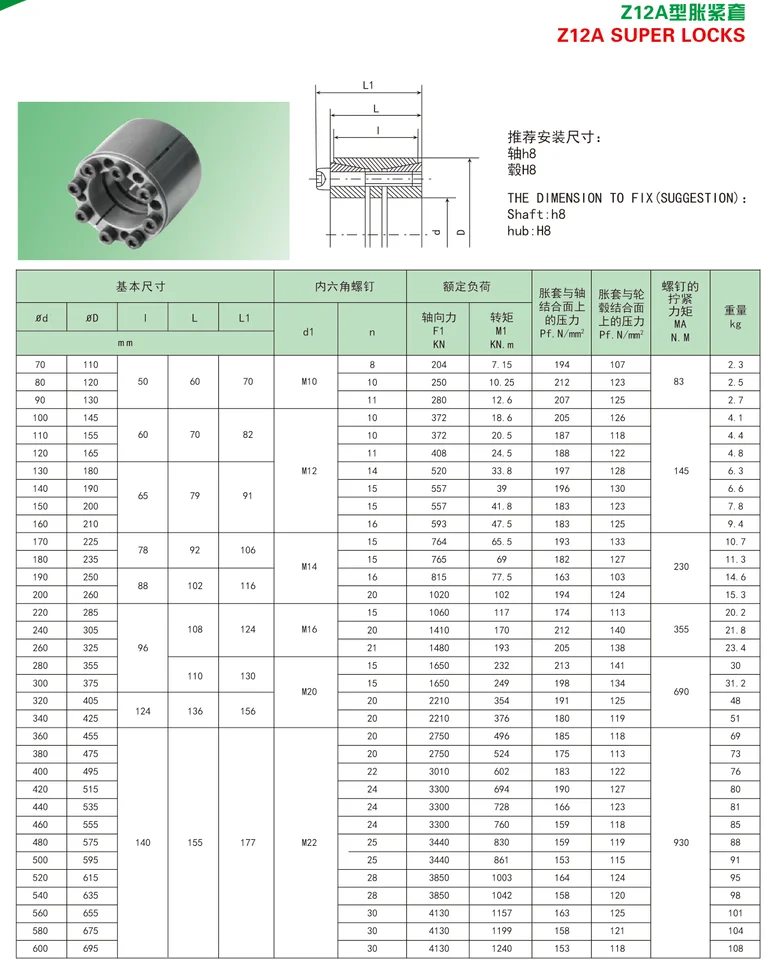

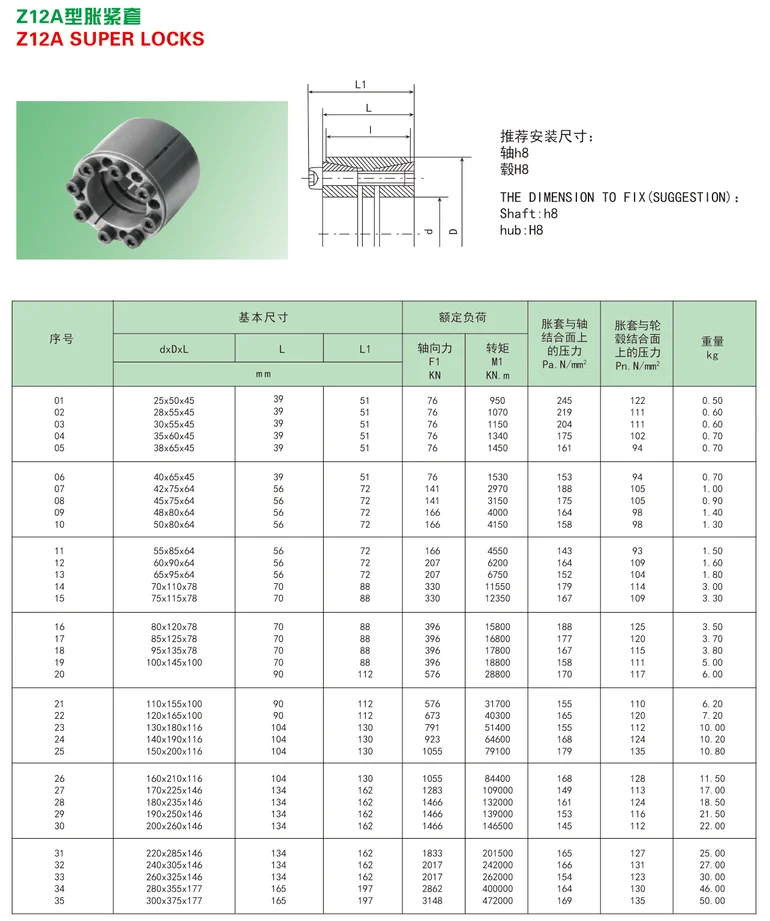

Catalogue of Locking Device Assembly Z12A
Production Flow
Company Information
Packaging & Shipping
Clients Visit
Certifications
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
