Product Overview
Description
Product Description
Type | LB3000 | |
Production capacity (t/h) | 240 | |
Cold aggregate supply system | Feeder hopper (pcs) | 5 |
Hopper volume(m3/pc) | 13 | |
Loading width(m) | 3.6 | |
Drying system | Drying drum Le×L(m) | 2.5x10 |
Driving power(kW) | 4x22 | |
Burner capacity(MW) | 20 | |
Fuel | Diesel, heavy oil or gas | |
Mixing tower | Screening mode | Double shaft / Linear screening |
Screen driving power (kW) | 2x15 | |
Screen layer | 5 | |
Hot bin volume (m3) | 70 | |
Mixer capacity(kg/batch) | 3300 | |
Mixer driving power(kW) | 2x37 | |
Filler supply system | Stone powder silo volume(m3) | 70 |
Recycled powder silo volume(m3) | 70 | |
Dust collection system | Dust collection mode | Primary gravity dust collection + secondary bag filter pulse cleaning |
Filtering area(m2) | 896 | |
Bitumen supply system | Bitumen tank (pc x m3) | 3 x 50 |
Hot oil furnace (×104kal/h) | 80 | |
Total power (kW) | 610 | |
Covering area (m x m ) | 53x35 | |
Optional | End product underneath storage (m3) | 40-120 |
End product side storage (m3) | 120 | |
Product Feature
Energy-efficient Eco-friendly Stable
1. Cold feeding system
n Warning device prevents feeding belt running without load.
n Vibrator keeps materials from jamming the gate or clinging to the bin walls.
2. Drying system
n State-of-the-art flights ensure an even aggregate veil to facilitate heat transfer and protect the drum against wear and tear as well.
n The burner adapts to a variety of fuels (diesel, heavy oil, natural gas), and has low noise emissions.
n The turndown ratio of burner is 10:1, which reduces energy consumption.

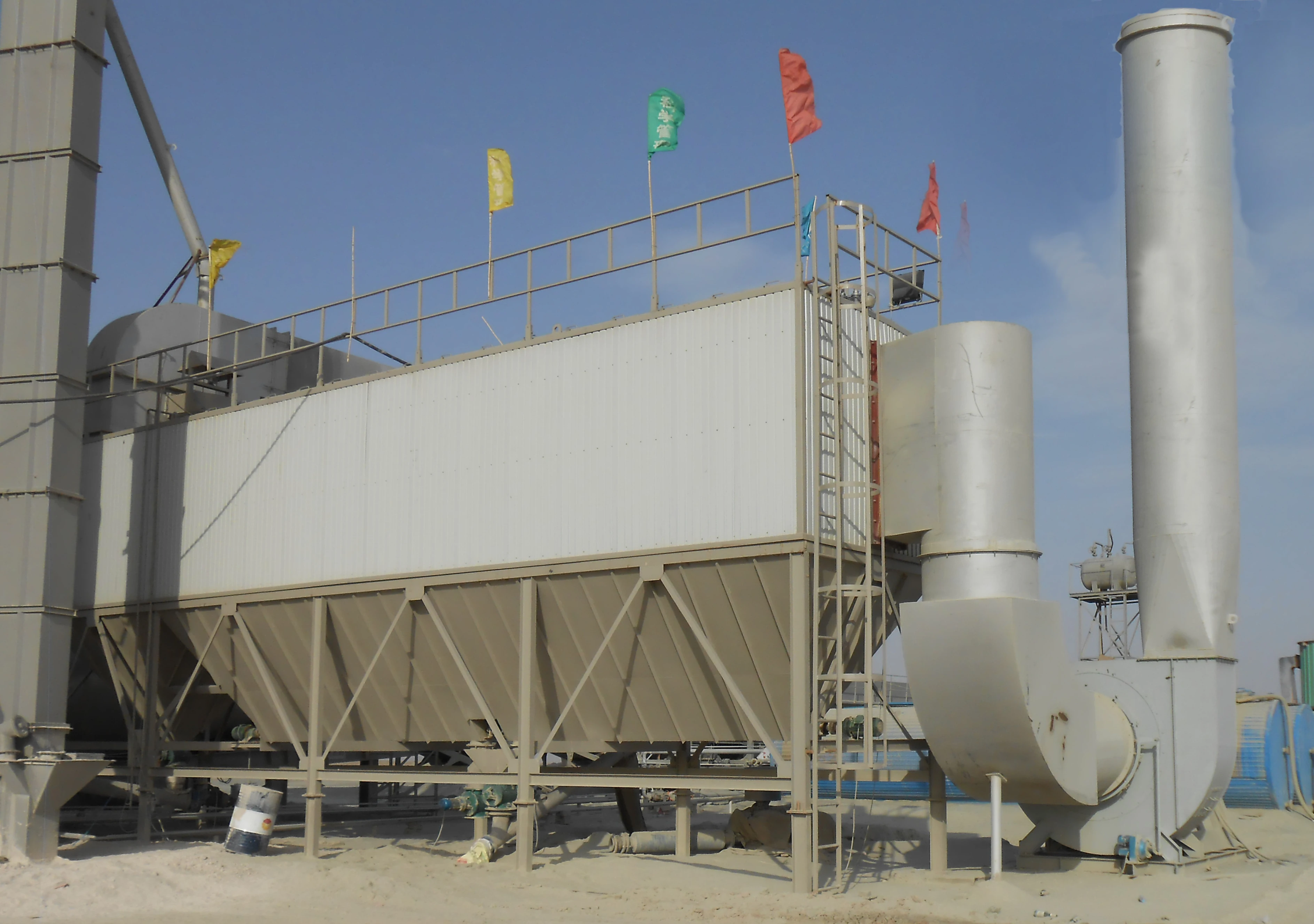

3. Dust removal system
n Low dust emission (less than 20 mg/Nm3).
n Temperature protection system protects filter from overheating by controlling cold air valve and burner.
4. Screening system
n Our inclined vibrating screen is driven by two eccentric shafts or two unbalanced motors. Both have high screening performance.
n Bearing is low-maintenance.
5. Hot aggregate storing system
n The bin level indicator transmits signal to the control system timely.
6. Weighing system
n Mineral scales have automatic in-flight correction function. The scale is accurate to within ±2.5%.
n Filler scales and bitumen scales are accurate to within ±2%.
7. Mixing system
n The twin-shaft mixer has high mixing efficiency and low wear costs.
n The liner plates and agitator paddles are made from wear-resistant nichrome, thus ensuring a long service life.
8. Control system
n Our PLC cabinet adopts Siemens components and is user-friendly. Automatic, semi-automatic and manual controls are available, thus ensuring a precise control.
Company Information
Shandong Beite Heavy Industry Stock Co., Ltd (hereinafter referred to as Beite Heavy Industry) was founded in 2004. We are one of top 50 specialized construction machinery manufacturers in China.
Beite Heavy Industry is a professional manufacturer of asphalt mixing plant, RAP recycling plant, concrete batching plant, and stabilized soil mixing plant. We have long-term corporation with many government-owned companies such as China Railway Engineering Group (CREC) and China State Construction Engineering Group (CSCEC). Our products are also accepted by overseas markets, such as Russia, Kazakhstan, Saudi Arabia, Indonesia, Thailand, Vietnam, Sudan and Ethiopia.
We have independent R&D department, intelligent factory, and complete spare parts warehouse. Our engineering team is highly trained to provide customers with integrated solutions. Besides, we attach great importance to innovation. By continuous investment in R&D, Beite holds numbers of patents for inventions and innovations.
Certification
Exhibition
Packaging & Shipping
FAQ
Q1: How about the price?
A:We are a professional manufacturer and the offer of product is for reference only,the final price will be according to your configuration.,and the final interpretation right belongs to our company.
Q2: What is your payment term?
A:We usually accept T/T, L/C. T/T: Pay 30% of the contract total value in advance ;70% of the total price will be paid before delivery.
Q3: What is the delivery time?
A: Asphalt mixing plant:60 days after receiving advance payment.
Concrete batching plant:45 days after receiving advance payment.
Stabilized soil mixing plant:30 days after receiving advance payment.
Q4: Do you provide after-sale service?
A: Yes. The warranty period of our equipment is one year from delivery, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
