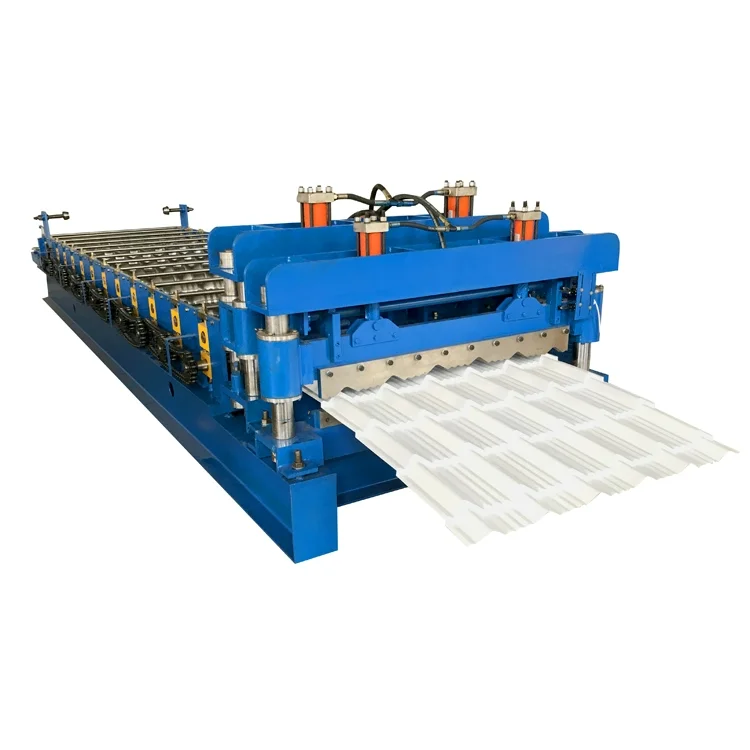

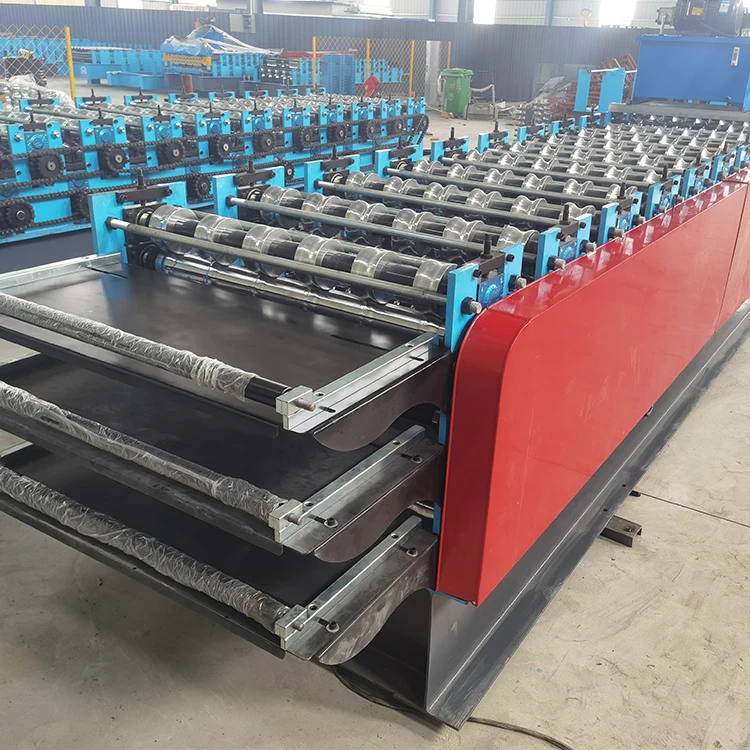

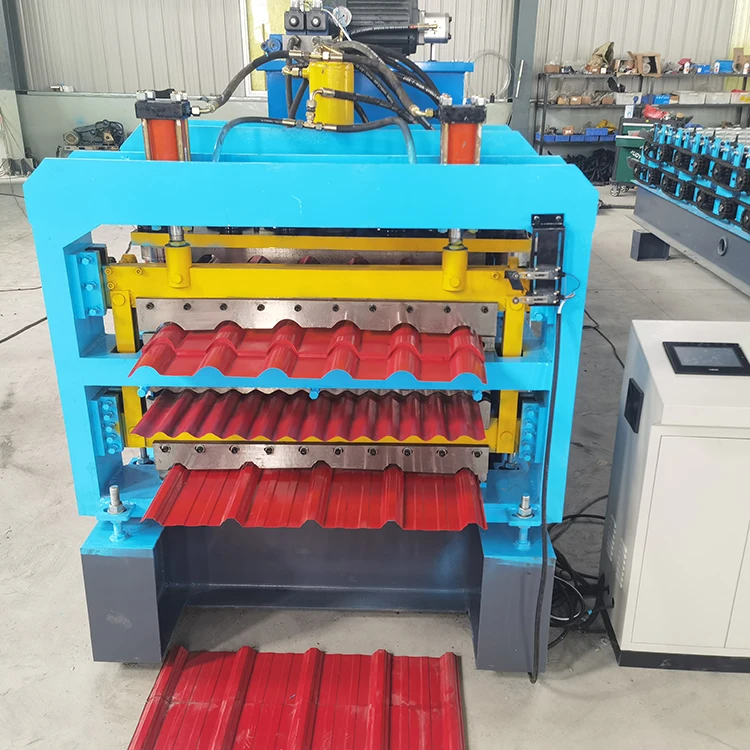

South Africa Bamboo1000 Roofing Making Machinery Glazed Tile Ibr Trapezoidal Sheet Corrugated Iron Making Roll Forming Machine
- Category: >>>
- Supplier: Henan Austing Machinery Co. Ltd.
Share on (1600700971972):
Product Overview
Description
Products Description
Features

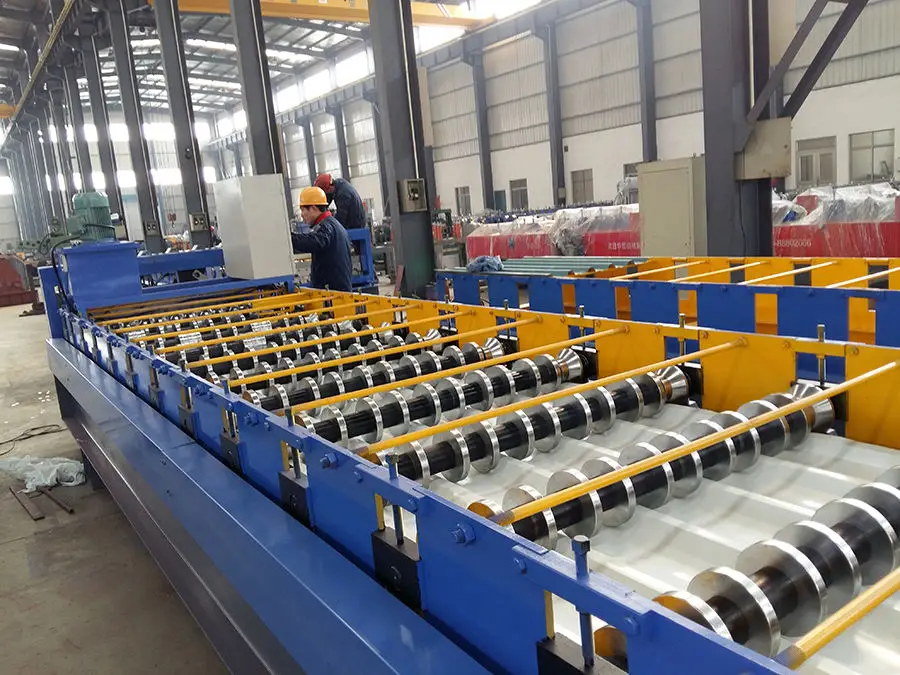

1. The main parts: roll forming machine; molding press; cutting machine; PLC computer control; hydraulic system.
2. The machine is stable, with no noise, no shake.
3. Controlling by computer, PLC display, the operation is easy, running is steady and reliable, endurable.

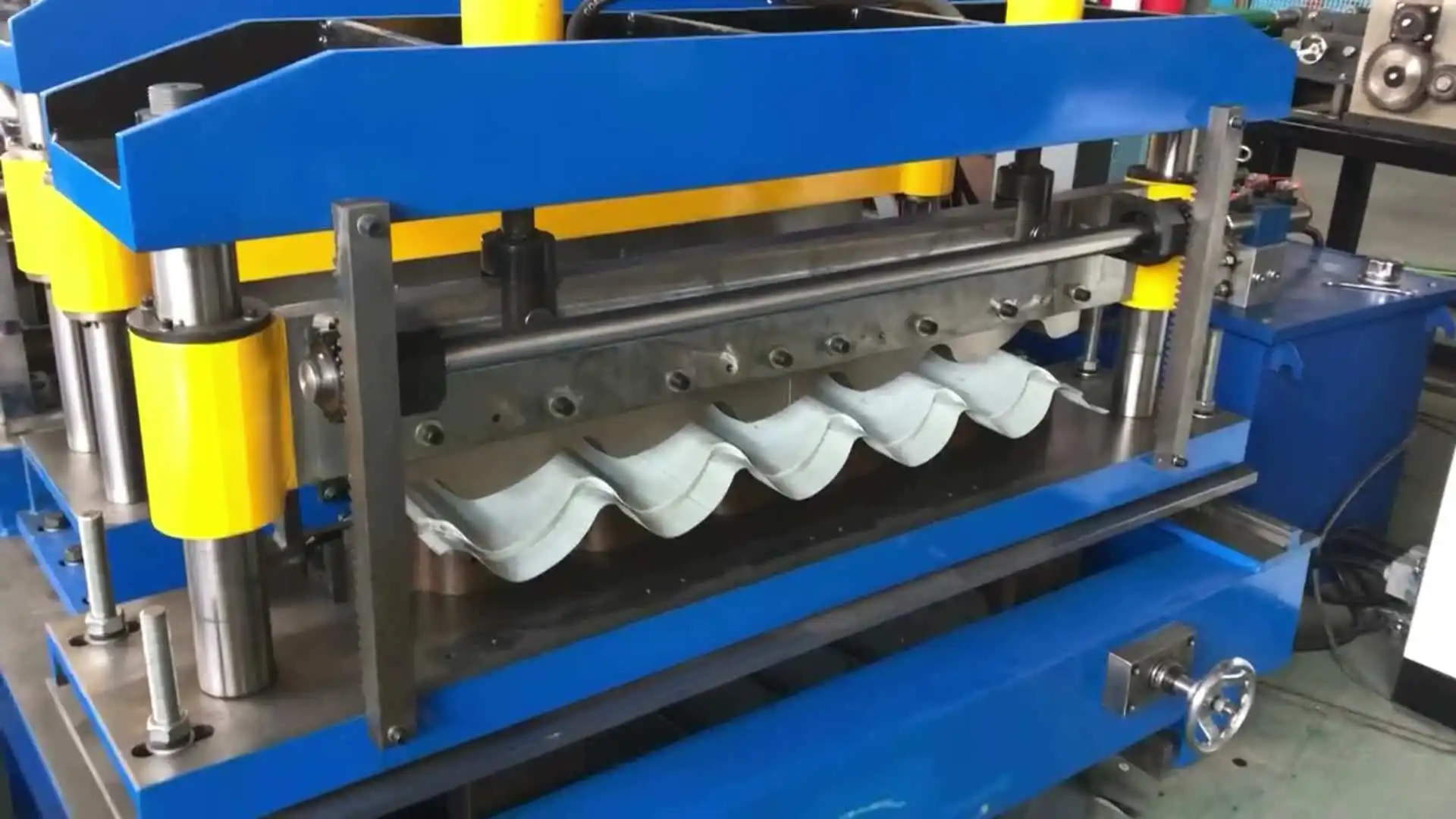

4. Cutting machine is characterized by stable driving, easy operation.
5. The hydraulic system uses the CDF-10 hydraulic pump, long operating life, no noise.
6. Material: galvanized, colored steel or aluminum coil.
7. We can make and design the kinds of roll forming machines according to customer's requests.
2. The machine is stable, with no noise, no shake.
3. Controlling by computer, PLC display, the operation is easy, running is steady and reliable, endurable.
4. Cutting machine is characterized by stable driving, easy operation.
5. The hydraulic system uses the CDF-10 hydraulic pump, long operating life, no noise.
6. Material: galvanized, colored steel or aluminum coil.
7. We can make and design the kinds of roll forming machines according to customer's requests.

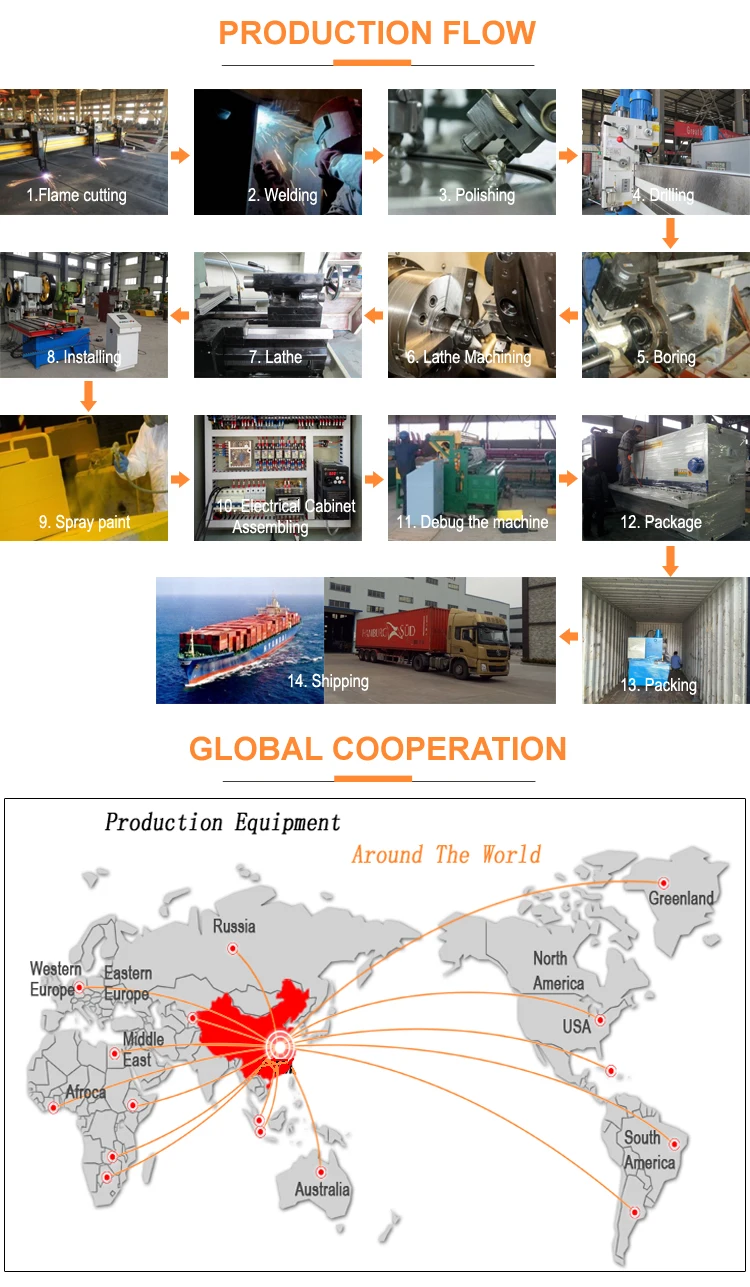

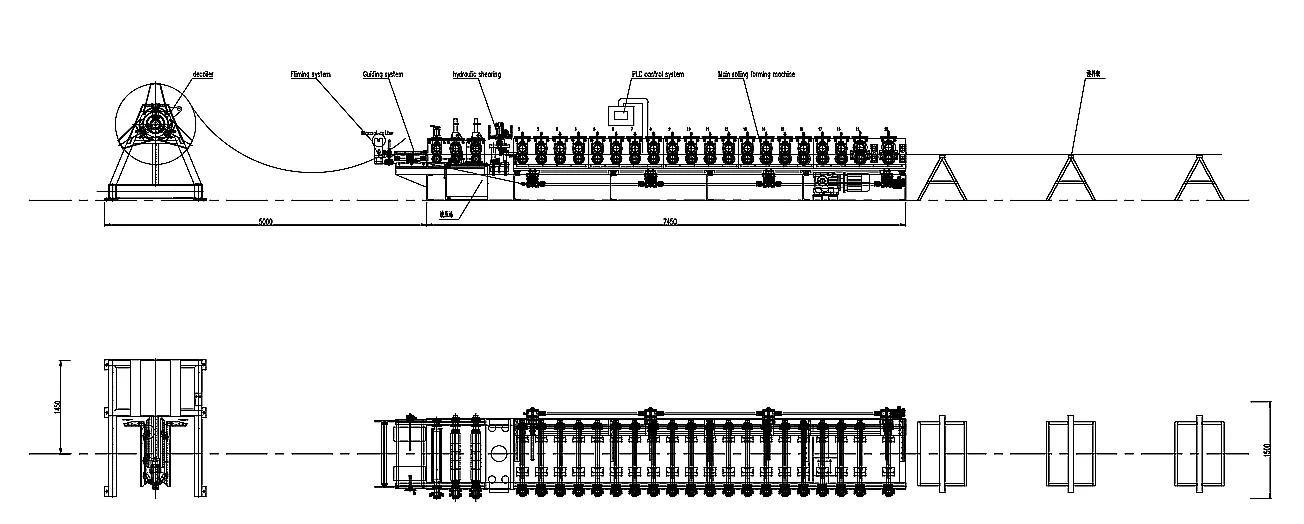

Working Process
Specification
NO. | Item | Specification |
Material | Raw material | Galvanized steel or PPGI |
Thickness | 0.3-0.7 mm | |
Decoiler | Operation | Manual or Hydraulic |
Weight capacity | 3T 5T 7T 10T | |
Machine | Roller station | 10-14 or depend on customer' drawing |
Shaft diameter | 70-80 mm | |
Machine body frame | 350H steel | |
Roller material | Cr12 | |
Machine size | About 6*1.5*1.2 m | |
Machine weight | 4 - 6 tons | |
Machine color | As customer need | |
Working speed | 12-60 m/min | |
Cutter | Hardness | 50-65 HRC |
Cutting tolerance | ± 1mm | |
Material | Cr12 | |
Operate | Hydraulic cutting | |
Power | Main motor | 5.5 KW |
Pump motor for cutter | 7.5 KW | |
Voltage | 380V/50HZ, 3P or Customized as customer' request | |
Control system | PLC brand | Delta |
Screen | Delta touch screen | |
Language | Chinese and English or add customer need language |

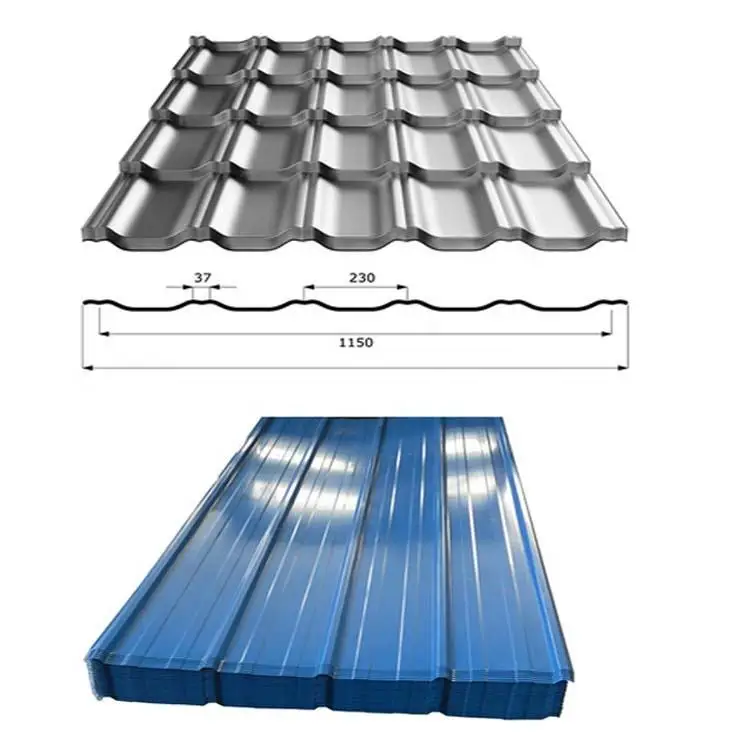

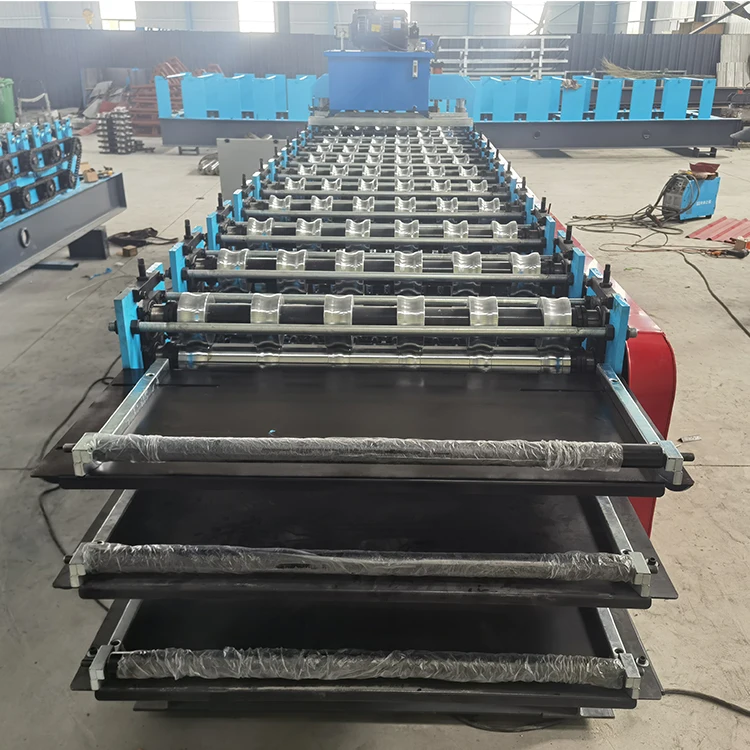

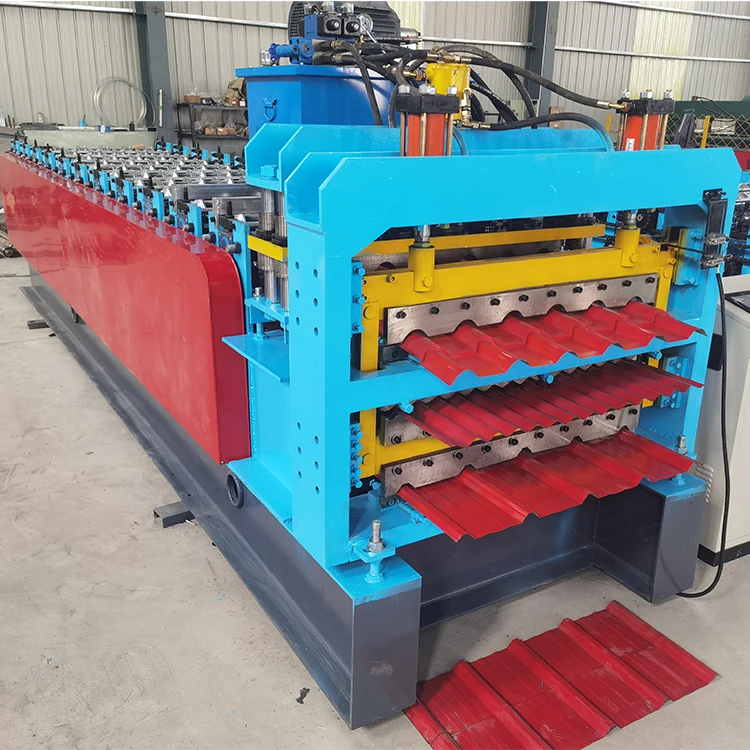

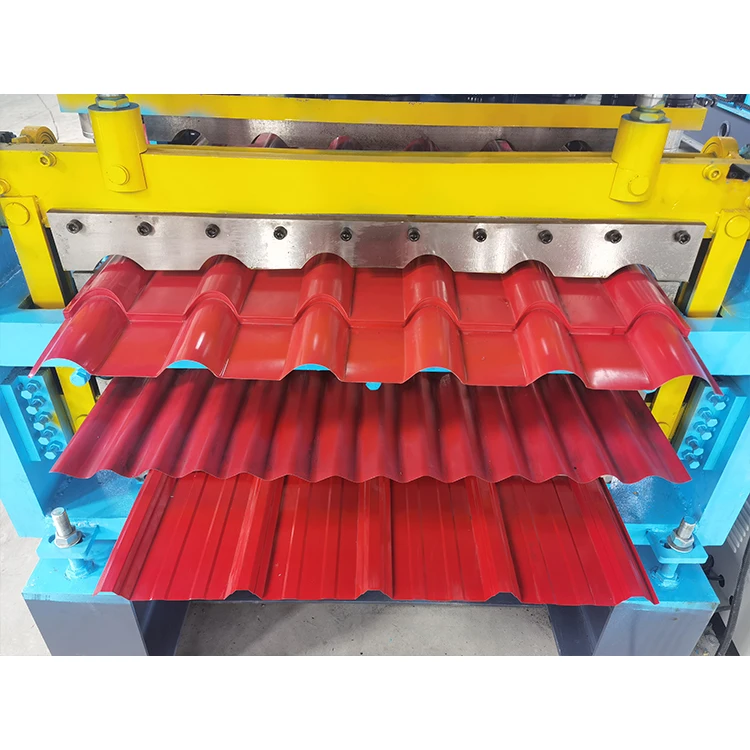

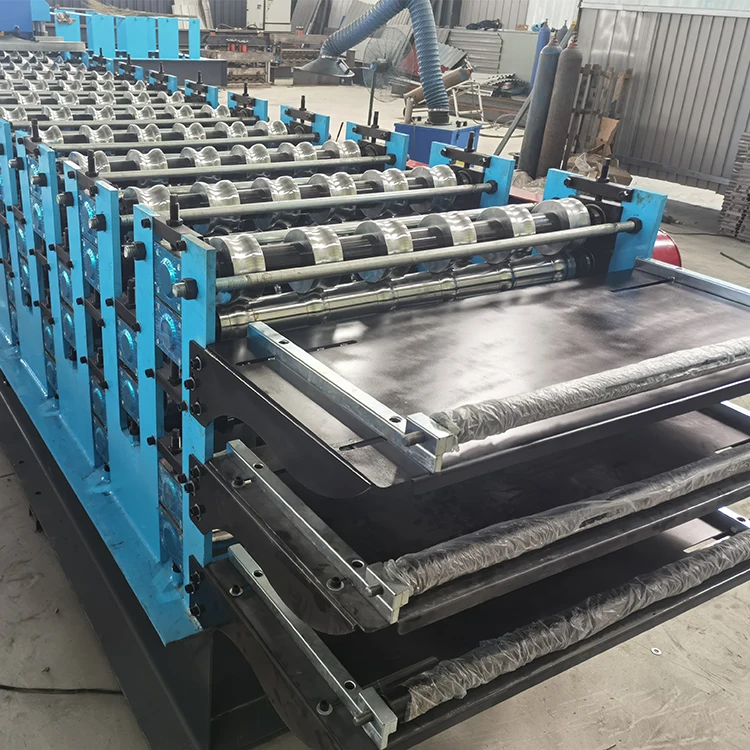

Product Details

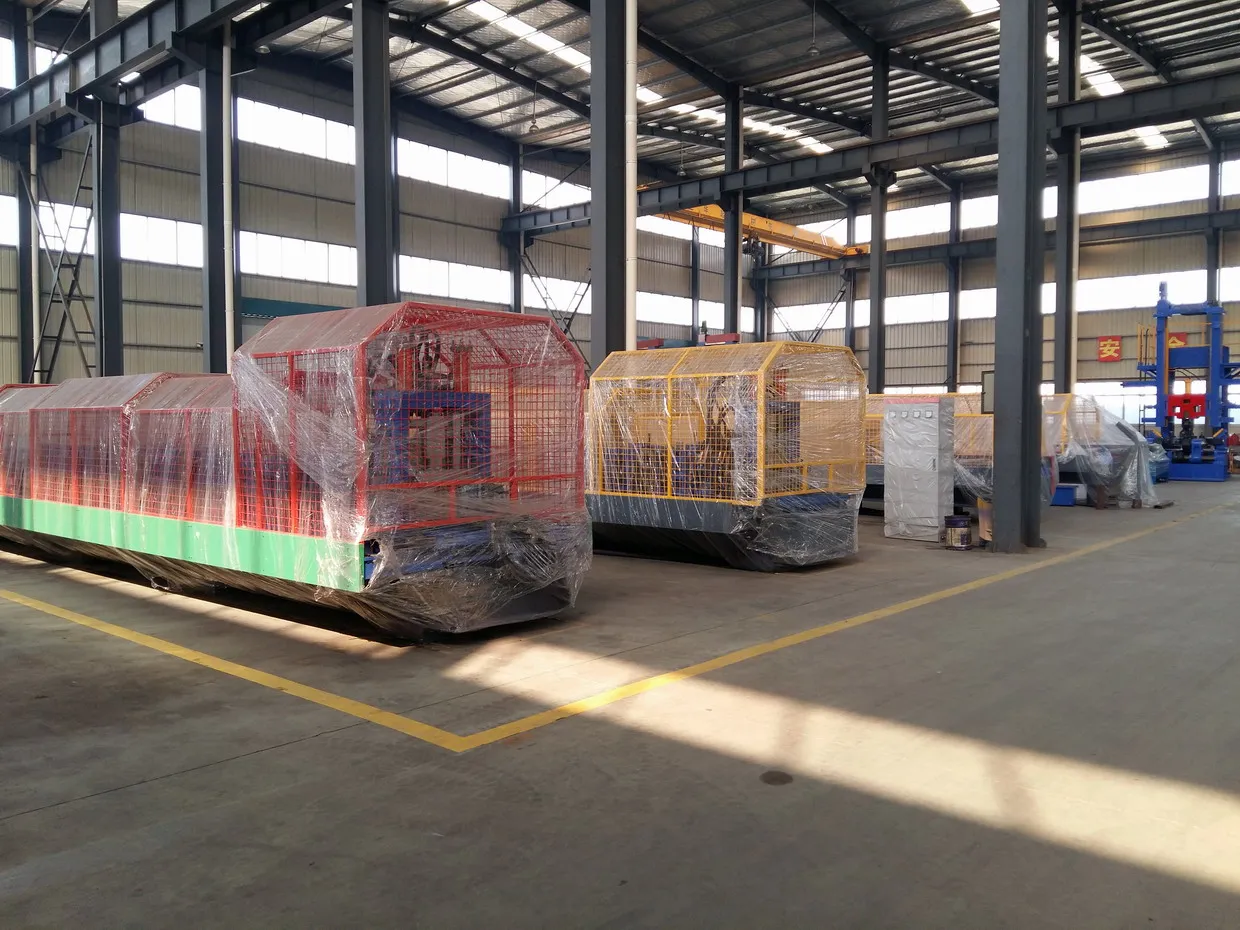

Packaging & Shipping
Why Choose Us
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
