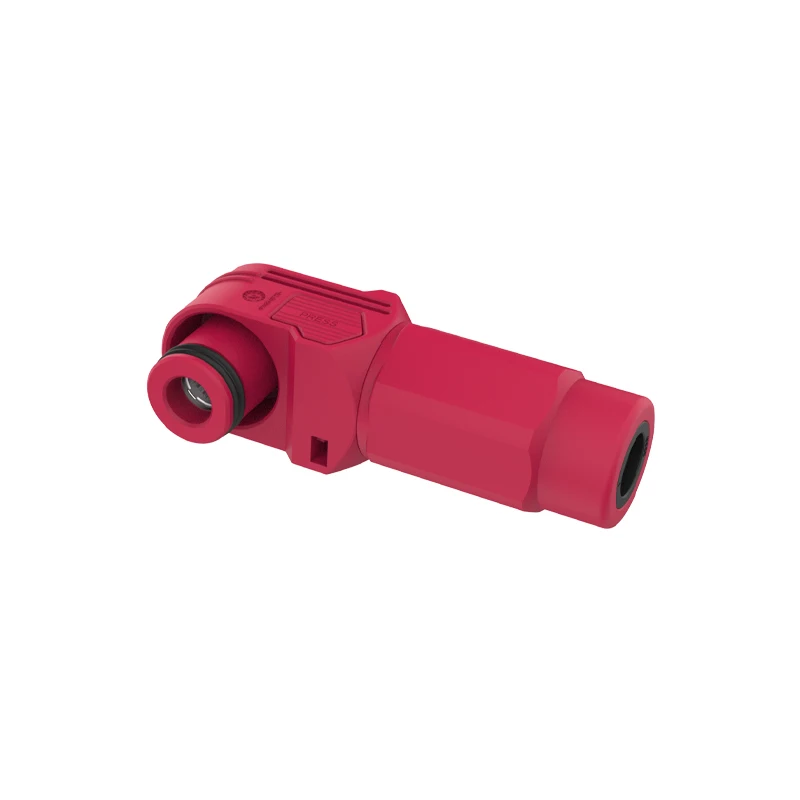

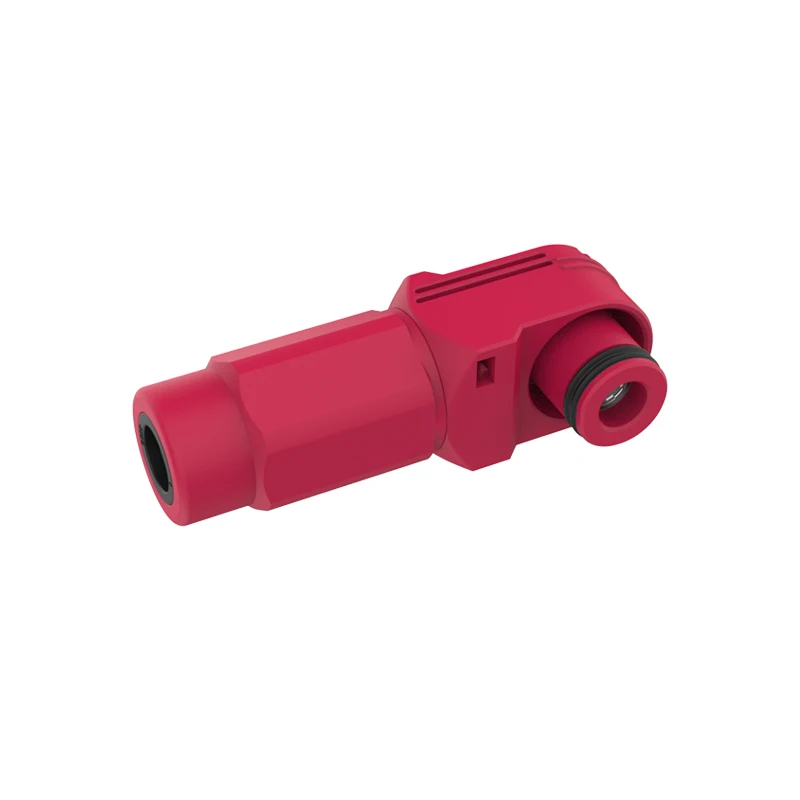

FPIC solar wind energy storage system ess battery BMS terminals connector parts
- Category: >>>
- Supplier: Shenzhen Forman Precision Industry Co. Ltd.
Share on (1600701005771):
Product Overview
Description
Product Description

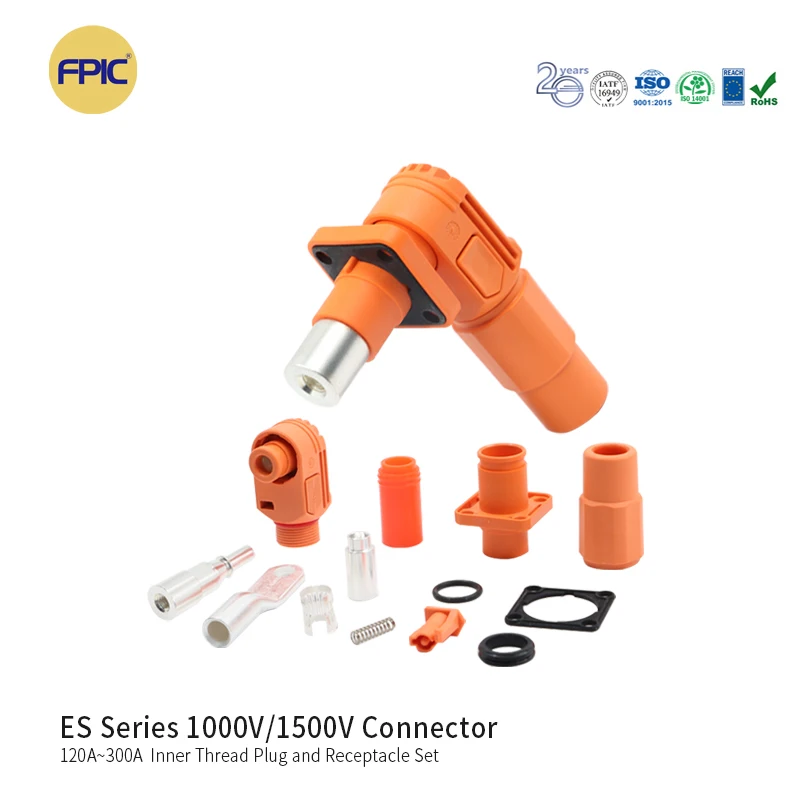

ESS battery terminal connector solar wind energy storage system spare parts | ||||||||
Wire Dimension | 25mm2~70mm2 | Rated Voltage | 1500V DC | |||||
Plugs Connection Type | Crimping | Rated Current | 60A~300A | |||||
Receptacles Connection Type | Inner Screw, Outer Screw, Copper Busbar Thread Hole Copper Busbar Through Hole | Dielectrict Strength | 8000V DC | |||||
Temperature Range | -40℃~+125℃ | Insulation Resistance | 1000MΩ Min. | |||||
IP Level | IP67 | Contact Resistance | 0.3MΩ Max. | |||||
Product Application
a, BMS/Energy Storage
b, EV/HEV
c, Rail Mass Transit
d, Process Control/Automation
e, Heavy Equipment
Details Images
The applications range is up to 1,500 V.

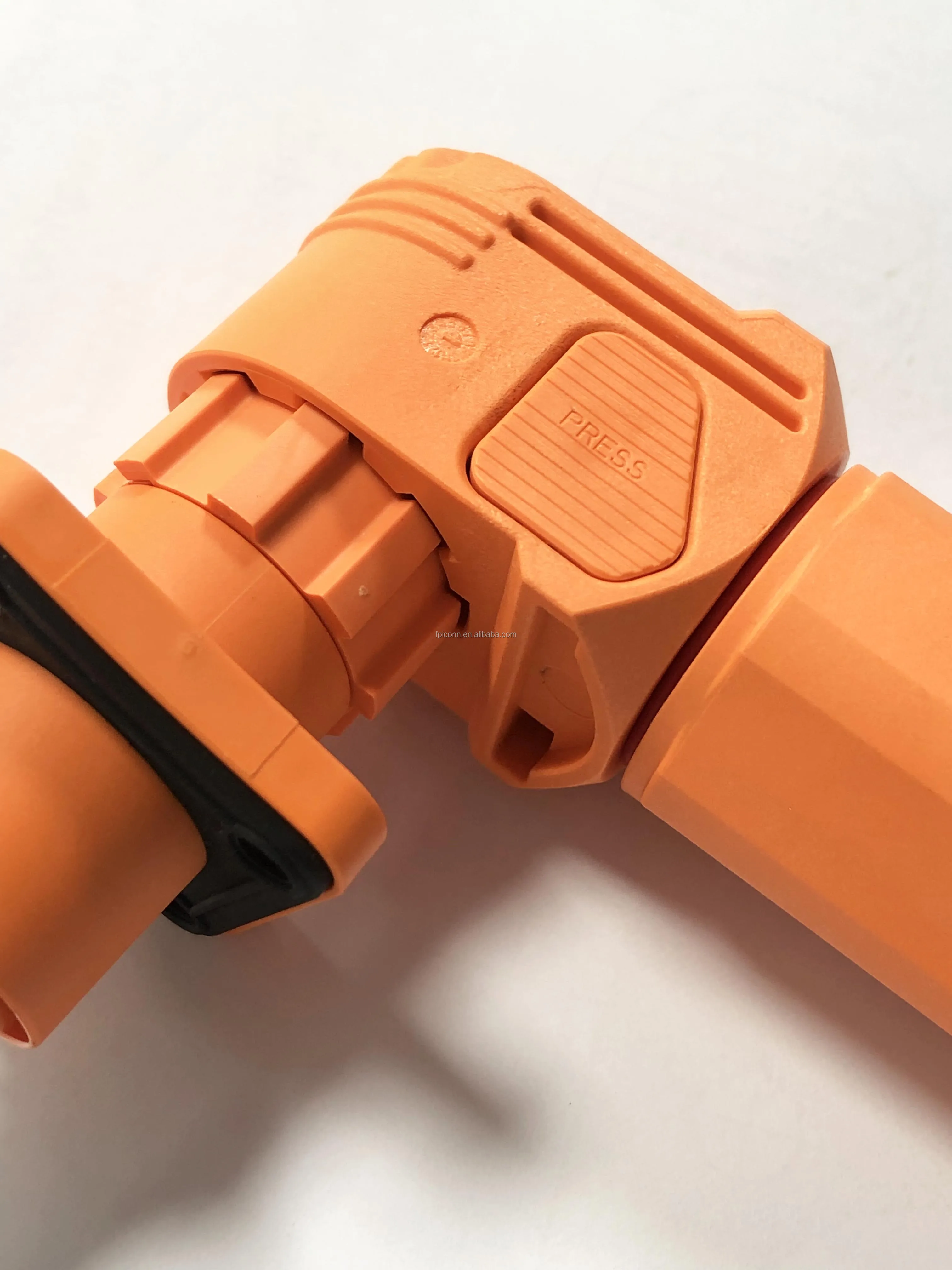

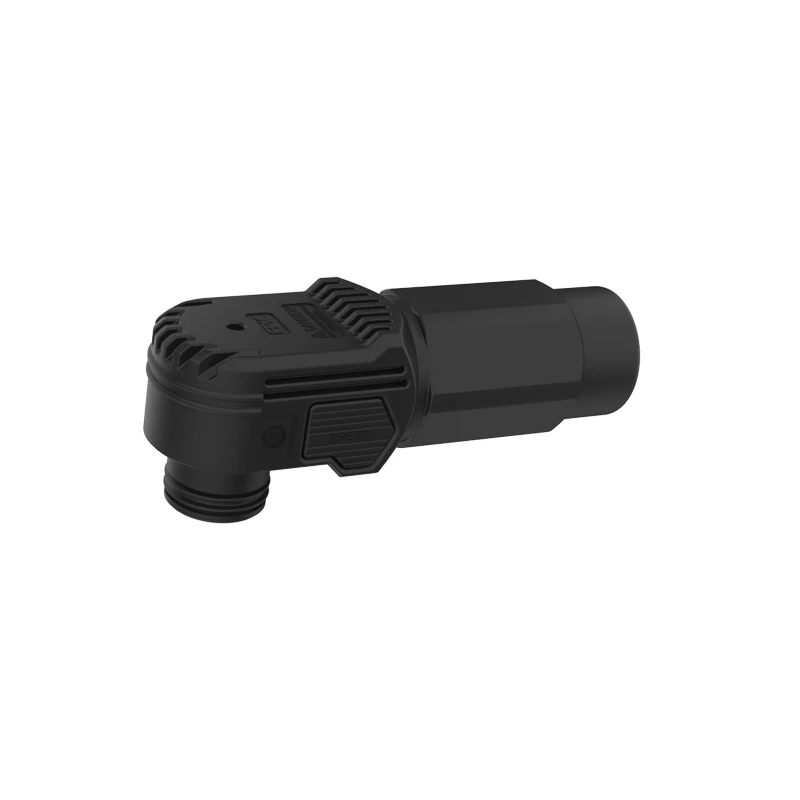

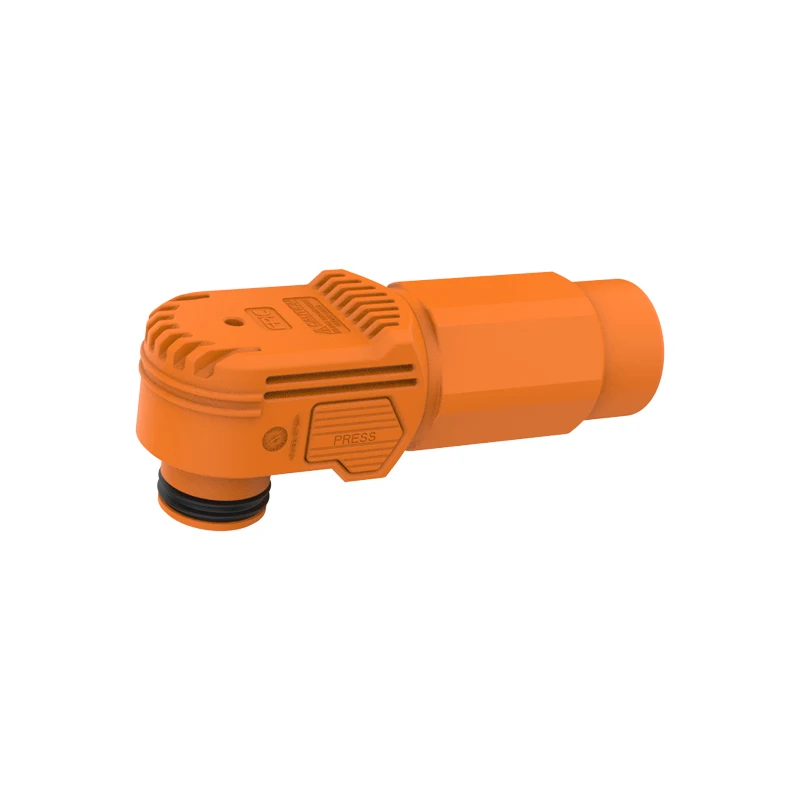

The 360° rotation design improves its operational efficiencies and making them ideal for flexible cable outlets in modular battery racks

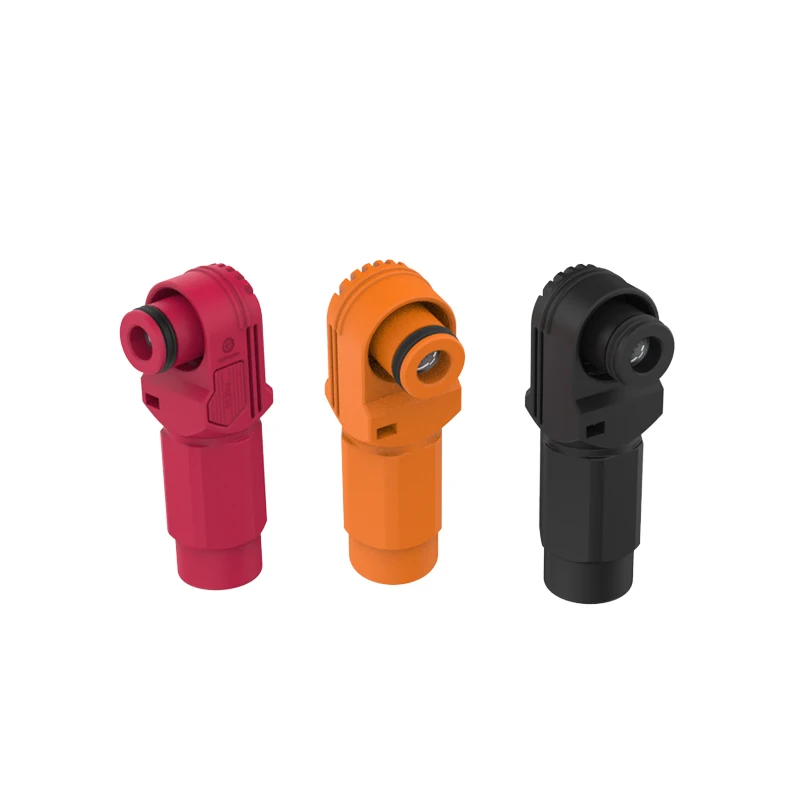

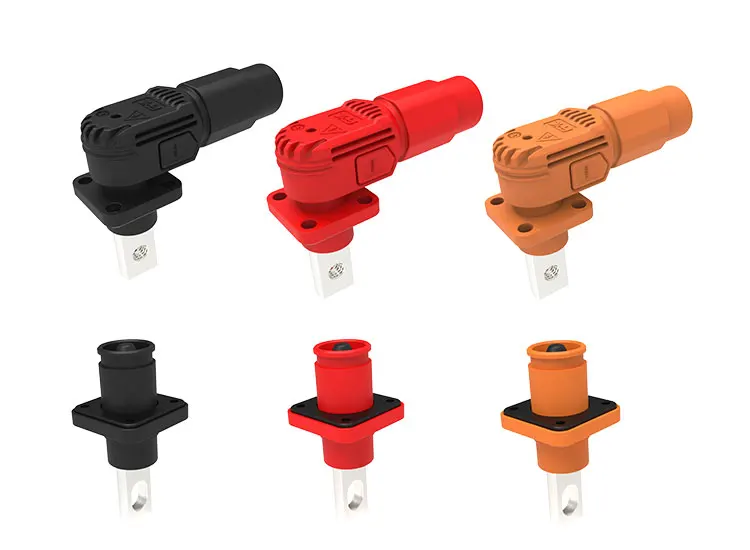

Various color versions: facilitates identification of battery poles

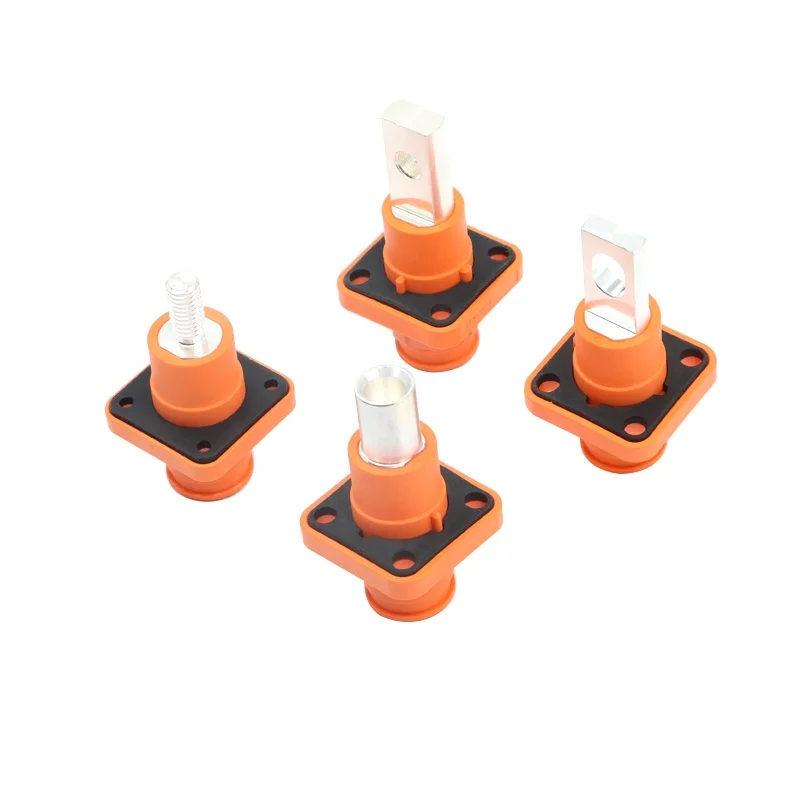

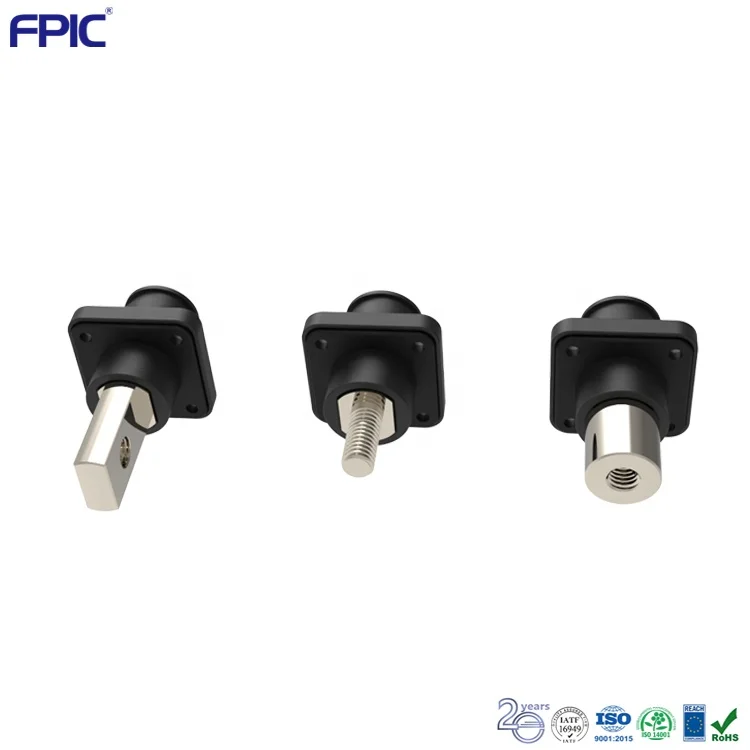

We offer three connecting methods to simplify the installation of plug-in systems in energy storage systems.
Why Choose Us
Model Selection

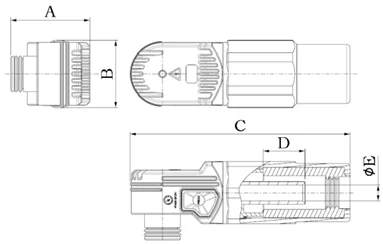

Plug Model Selection Instruction

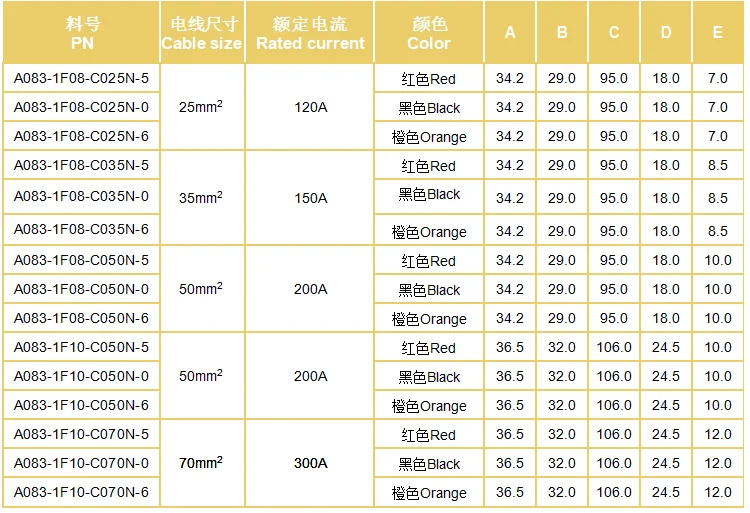

According to the conductor cross section, and rated current, you can find the recommend PN there.
Most of them can be shipped within 5 working days, kindly check and contact us for details.

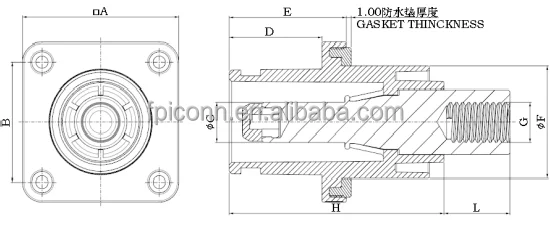

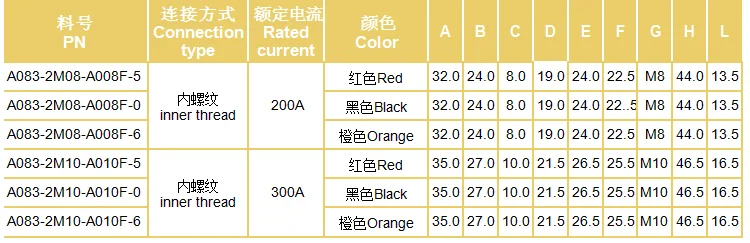

Receptacle Model Selection

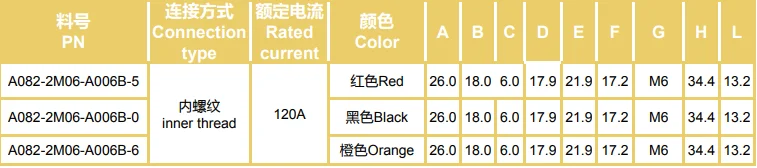

Below you can find the dimension of each model, you can easily find the modl P/N there or you can contact our sales person to recommend you the suitable item.
Where it will be mounted?

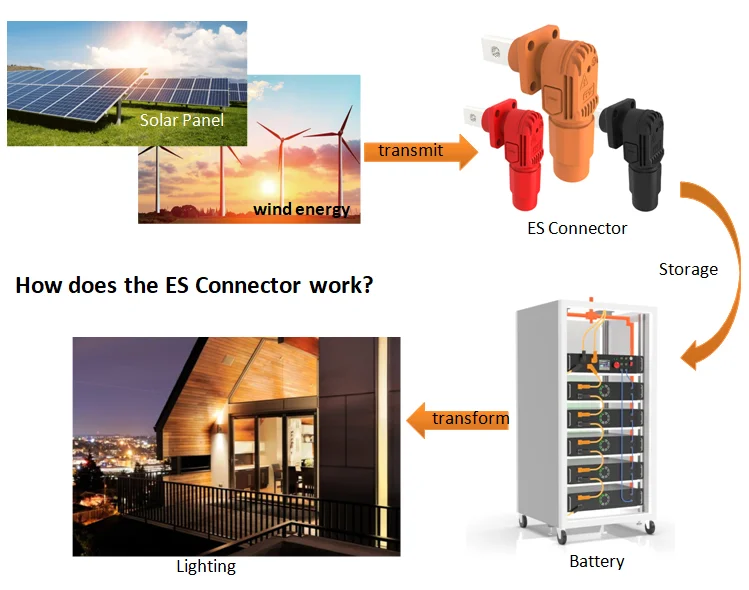

Application
Company Introduction
Establish | 1999 | Patent QTY (June, 2022) | 48 | ||
Plant Area | 12,300m2 | 2021 Turnover | RMB12,000,000 | ||
Number of employees（June, 2022) | 206 | Fixed Assets (June, 2022) | RMB53,000,000 | ||
Shenzhen High-Tech Enterprise | Yes | Main Export Country | Germany, Norway, France, Italy, France, USA, Russia, Mexico, etc. | OEM Plastic Injection & Metal Stamping Parts | |

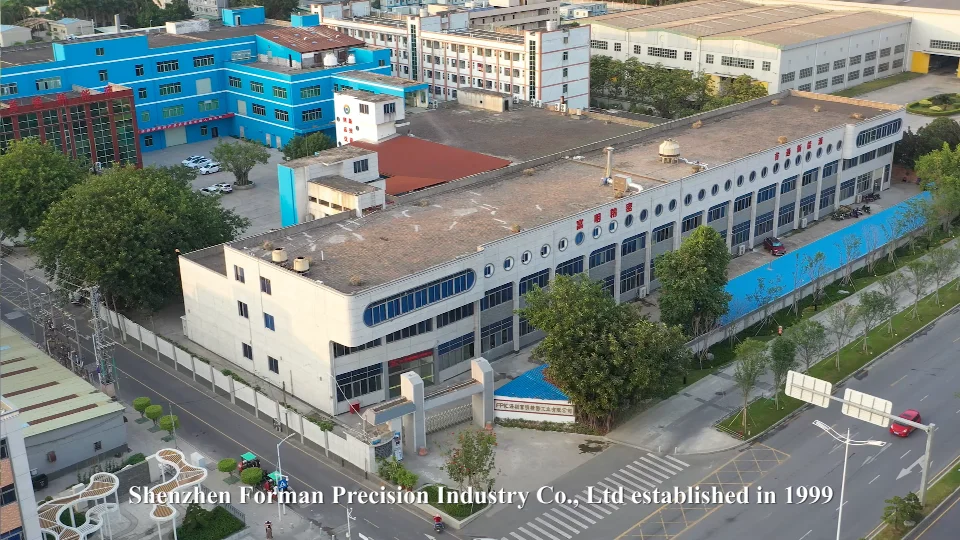

Shenzhen Forman Precision Industry Co., Ltd was established in 1999, from the beginning, we have been focusing on the development, production, and marketing services for precise spare parts, like automotive components, plastic injection and metal stamping parts, heat sink, electronic connectors. In recent years, we received more and more auto components' orders, mainly from Germany, Italy, France, America, Mexico, and other countries. Until the end of 2020, the plant covers over 10 thousand square meters, our total investment capital is almost USD10 million, and the annual sales amount is higher than USD15 million.
Forman has been attaching importance to talent team building and the average industry experience of our technical and managerial personnel over ten years. On the strength of good management, through the normative operation procedure, based on the ERP, ISO9001, ISO14000, and IATF16949 systems, our company has always been keeping in a good and healthy operation condition.
By the philosophy of "Focus on Customer, Contributor Based, and Always Going All Out", Forman has established a long-term cooperation relationship with many world-famous companies. There is no doubt that the capability of quality controlling, super flexible delivery, and continuous cost optimization can lead a long-term development, we look forward to working together with you for mutual development and benefits.
Forman has been attaching importance to talent team building and the average industry experience of our technical and managerial personnel over ten years. On the strength of good management, through the normative operation procedure, based on the ERP, ISO9001, ISO14000, and IATF16949 systems, our company has always been keeping in a good and healthy operation condition.
By the philosophy of "Focus on Customer, Contributor Based, and Always Going All Out", Forman has established a long-term cooperation relationship with many world-famous companies. There is no doubt that the capability of quality controlling, super flexible delivery, and continuous cost optimization can lead a long-term development, we look forward to working together with you for mutual development and benefits.
Production Workshop
VR
Mold-Making Area
Mold Accessories Inspection

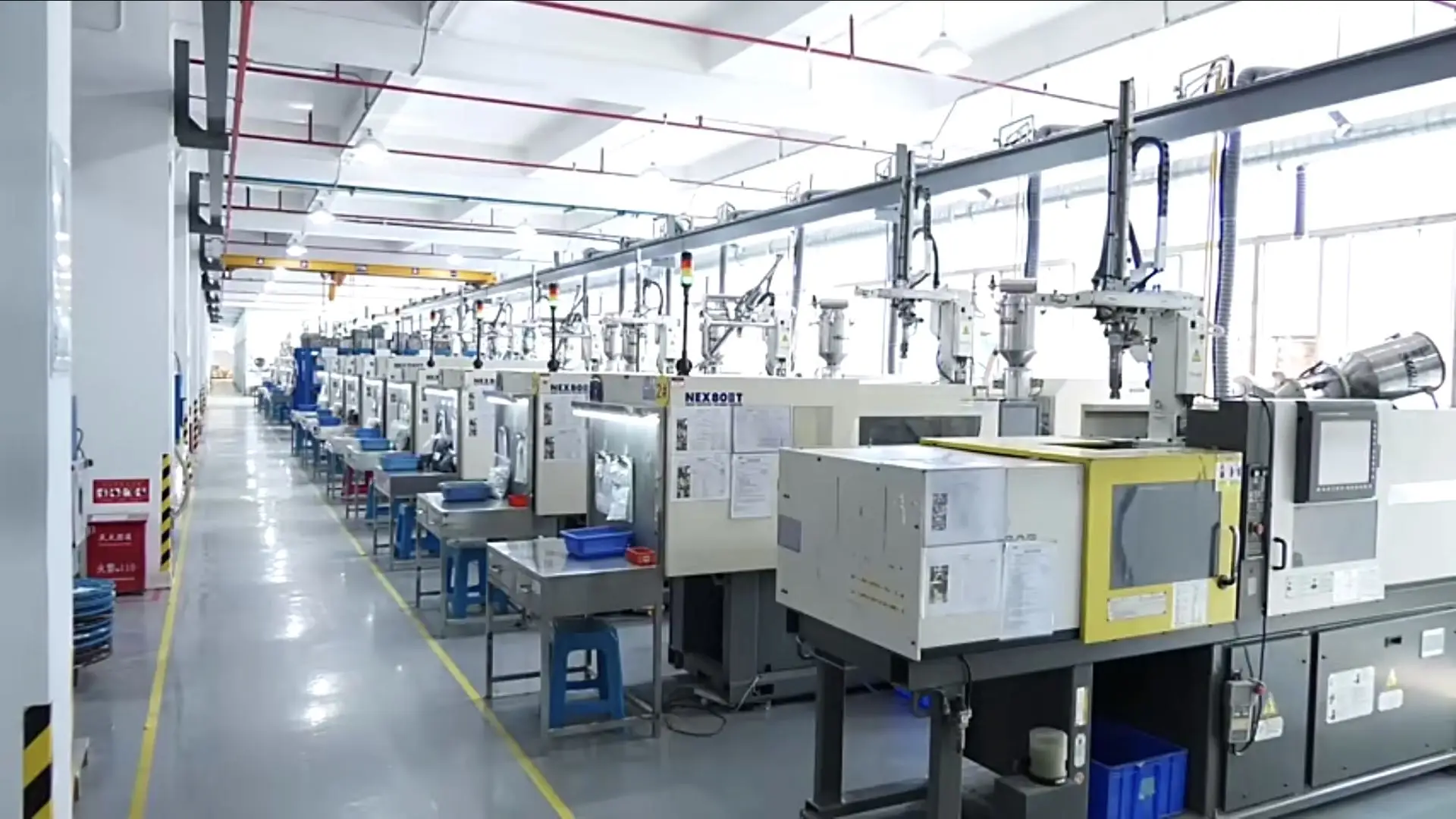

Injection Molding Area
Plastic Injection Area
High-Speed Forming/Stamping Area
Automatic Assembly Area
FAQ
Q: Does your automotive connector make at home or outsource?
A: The automotive connector is co-developed with our one of customers which is a world-famous company of electronic and the connector is made by ourself in our own plant.
Q: Can I order a few sets to test at first and how about the price?
A: Yes, small QTY order is accepted and can be sent within 5 working days if we have in stock.
Q: What kind of certifications you can offer?
A: The raw material certification, ROHS, and REACH will be sent per lot.
Q: Can I have a custom color and LOGO there?
A: Yes, we offer the OEM and ODM services but it depends on how many pcs you need. The MOQ will be higher than normal, kindly contact us to learn details.
Q: How can I get your cataloge and price list?
A: Please send us an inquiry or message with your email to share the catalogue with you and the quotation sheet will be updated based on your QTY.
LOOKING FORWARD TO HEARING FROM YOU, KINDLY SEND YOUR INQUIRY ↓ TO US NOW.
