Product Overview

Description

Analog RS485 Load Cell Weight Transmitter Communication Scales Weighing Indicator with PLC

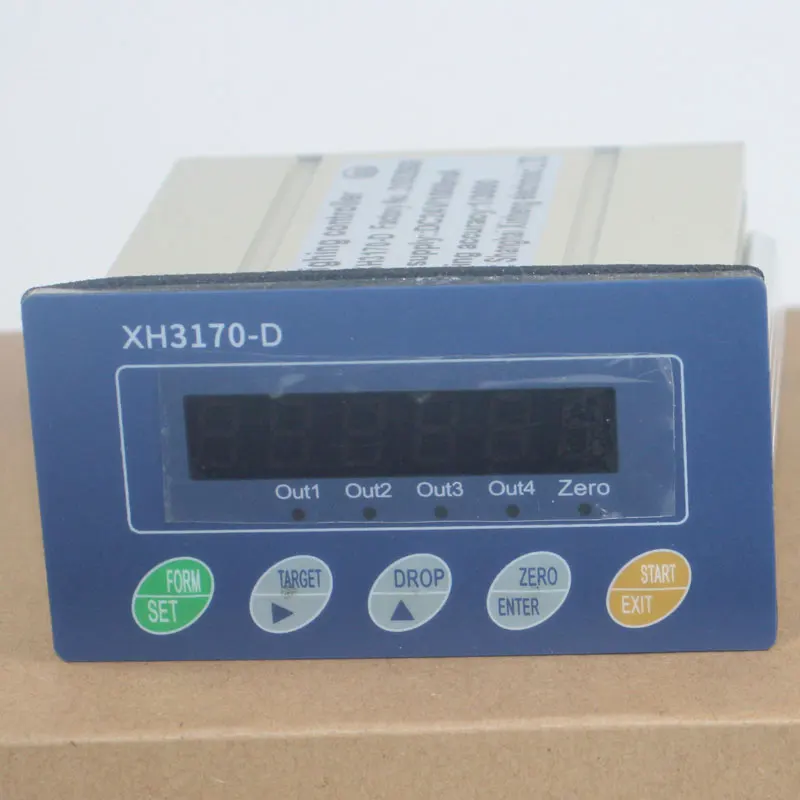

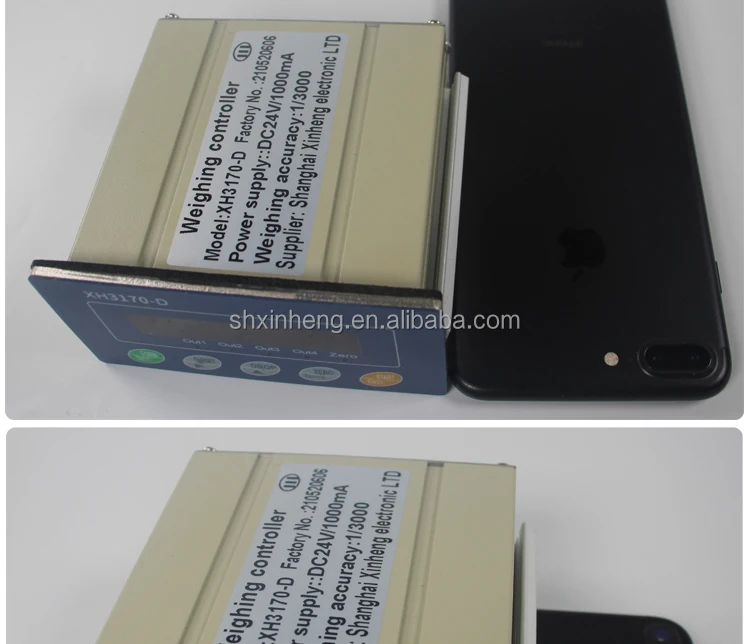

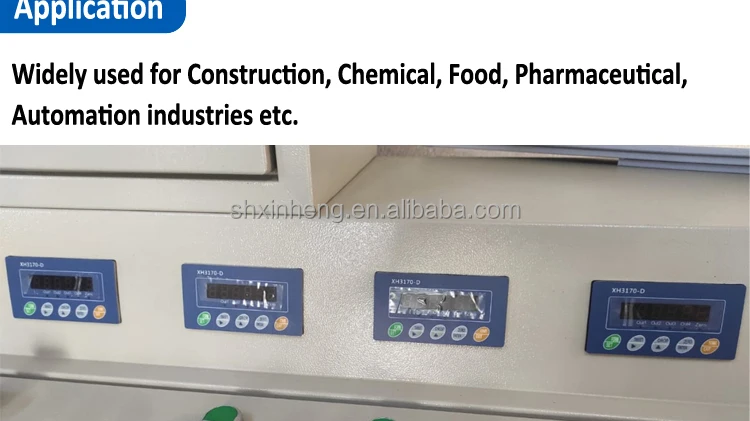

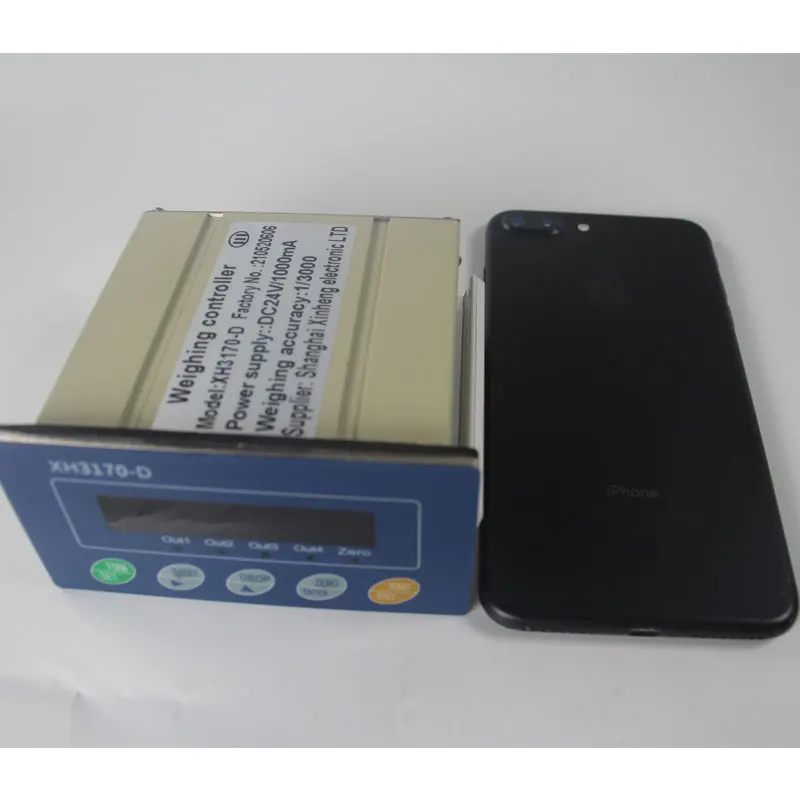

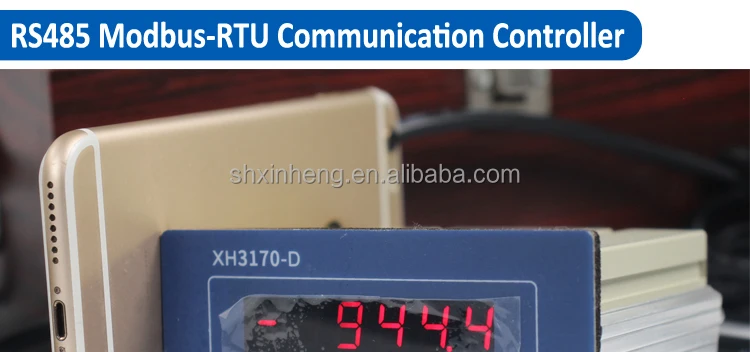

XH3170-D Weight Transmitter has weight display and RS232/RS485 interface. It adopts high-speed and high-precision 24-bit Σ-Δ A/D converter, which is suitable for building materials, chemical industry, food, metallurgy and other industries.



Main Features

• High-precision & high resolution Σ-Δ A/D converter, Max. number of A/D pulses: 1,000,000.


• Conversion speed can select:  30 times/second, 60 times/second, 100 times/second, 200 times/second.

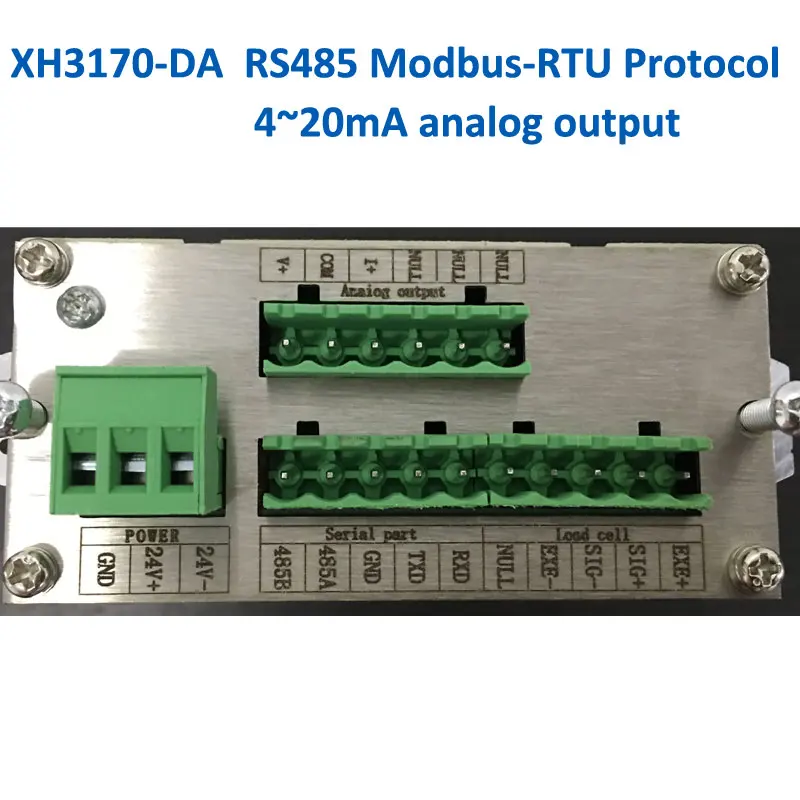

• RS232/RS485 digital communication interface, support Modbus-RTU communication, large-screen communication, etc.

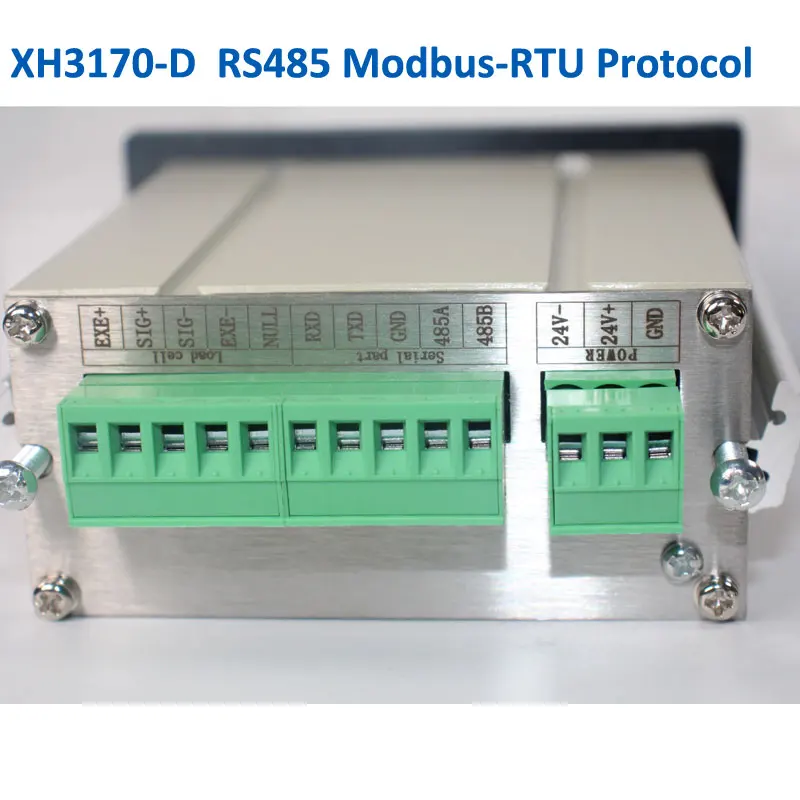

• Four-wire load cell input interface.


• 6 -digit LED digital tube display



Technical Parameters

Excitation voltage:	5.0VDC, can drive 6pcs 350Ω analog load cells
Capacity signal range:	1.5 ~ 40mV
Zero signal range:	-40 ~ 38.5mV
Full weighing capacity temperature coefficient:	5PPM/ ℃
Zero temperature drift:	0.06 uV/ ℃
Highest sensitivity:	0.6uV/d
Non-linearity:	better than 0.01% FS
ower supply & voltage range:	DC 18~28V, maximum power consumption 6 Watts.
Operating temperature:	-20 ℃~50 ℃, Humidity is 10%~ 95%, no condensation.
Storage temperature:	-30 ℃~60 ℃, Humidity is 10%~ 95%, no condensation.
