Waterproof smart lock alexa App Fingerprint Keyless for Home Finger WIFI Digital Lock Remote Control tuya TT smart locks
- Category: >>>
- Supplier: Dongguan Xingyi Intelligent Technology Co. Ltd.
Share on (1600701011099):
Product Overview
Description
Product Features:
What's the difference between 518 and 688?

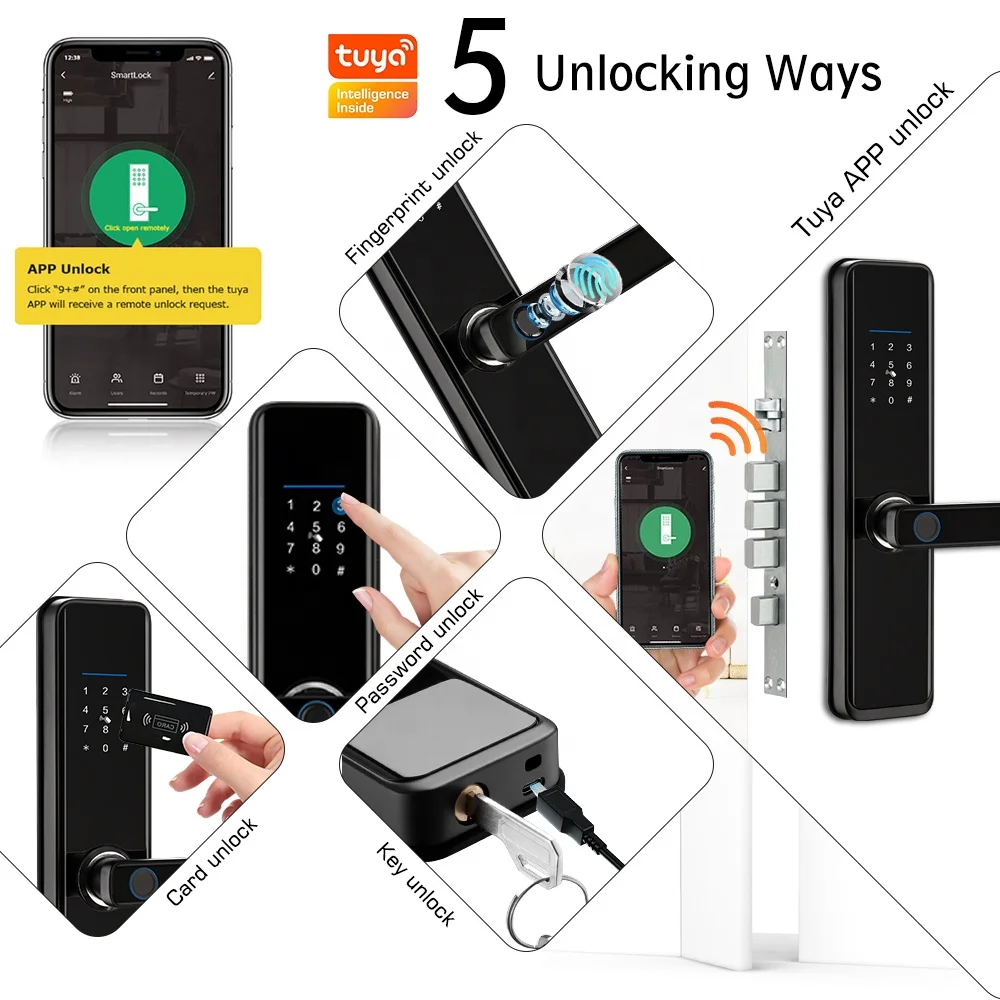

1.5 unlocking methods: WiFi remote unlocking, fingerprint unlocking, PIN code, card, mechanical key unlocking;
1.5 unlocking methods: WiFi remote unlocking, fingerprint unlocking, PIN code, card, mechanical key unlocking;

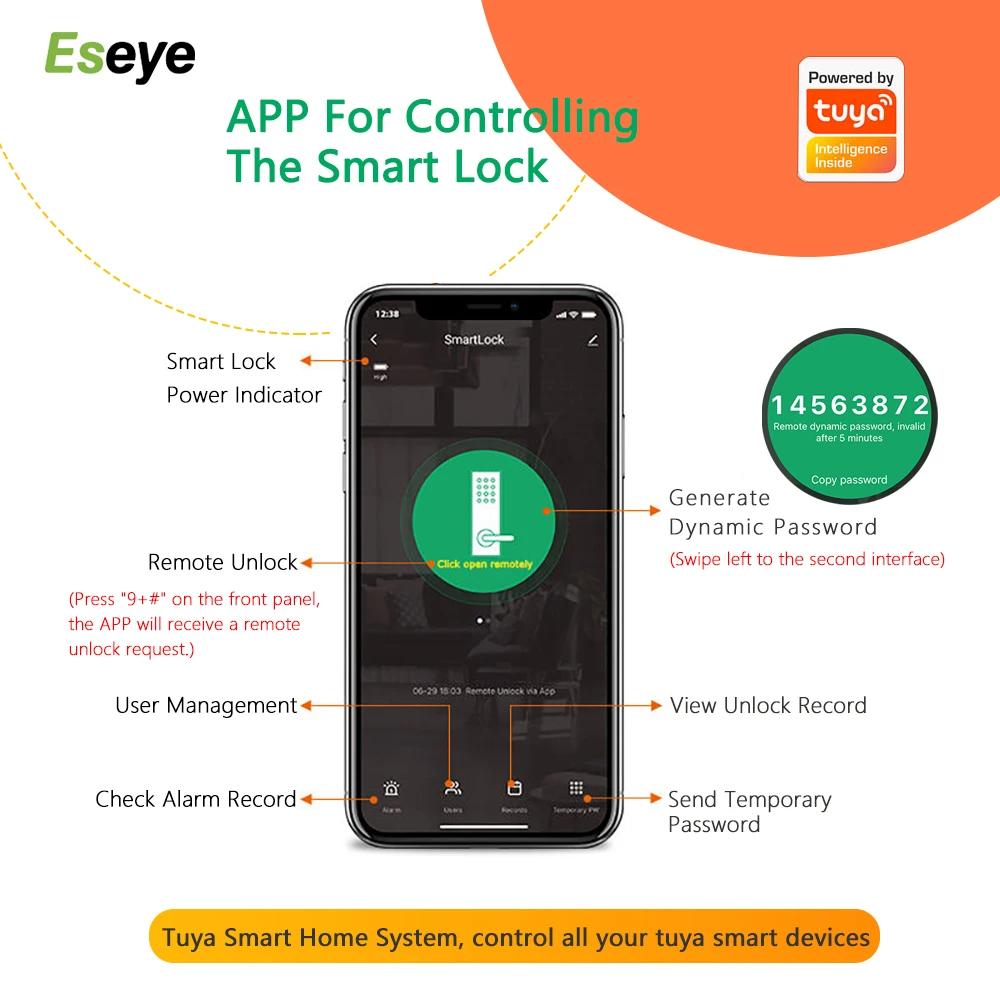

2. Convenient APP management system, you can manage smart locks anytime and anywhere;
3. One click biometric fingerprint access.
4. Query the unlocking records anytime and anywhere to know your family safety at the first time;
5. It is suitable for all kinds of moritse of 99% doors, especially for European standard 85 and 72 (CC size) series.
6. Type-c interface emergency power supply;
7. We can customize production according to your requirements, OEM/ODM;
8. The market uses 240 nylon polishing process, and we use the new 320 nylon polishing process to make the surface more smooth and bright
9. The panel size is larger, so we expand the size to fit and cover the old door opening.
10. The newly upgraded backplane is fully sealed, with better water resistance
11. New mobile phone glass curved surface technology is used to upgrade our smart lock glass curved surface to 2.5R, making the surface smooth and beautiful
12. The new door lock handle size conforms to the ergonomic hand type, and the handle glass curve surface process is specially customized
5. It is suitable for all kinds of moritse of 99% doors, especially for European standard 85 and 72 (CC size) series.
6. Type-c interface emergency power supply;
7. We can customize production according to your requirements, OEM/ODM;
8. The market uses 240 nylon polishing process, and we use the new 320 nylon polishing process to make the surface more smooth and bright
9. The panel size is larger, so we expand the size to fit and cover the old door opening.
10. The newly upgraded backplane is fully sealed, with better water resistance
11. New mobile phone glass curved surface technology is used to upgrade our smart lock glass curved surface to 2.5R, making the surface smooth and beautiful
12. The new door lock handle size conforms to the ergonomic hand type, and the handle glass curve surface process is specially customized
Technical specification: material: aluminum alloy, glass
Available colors: black, silver, gold
Available colors: black, silver, gold

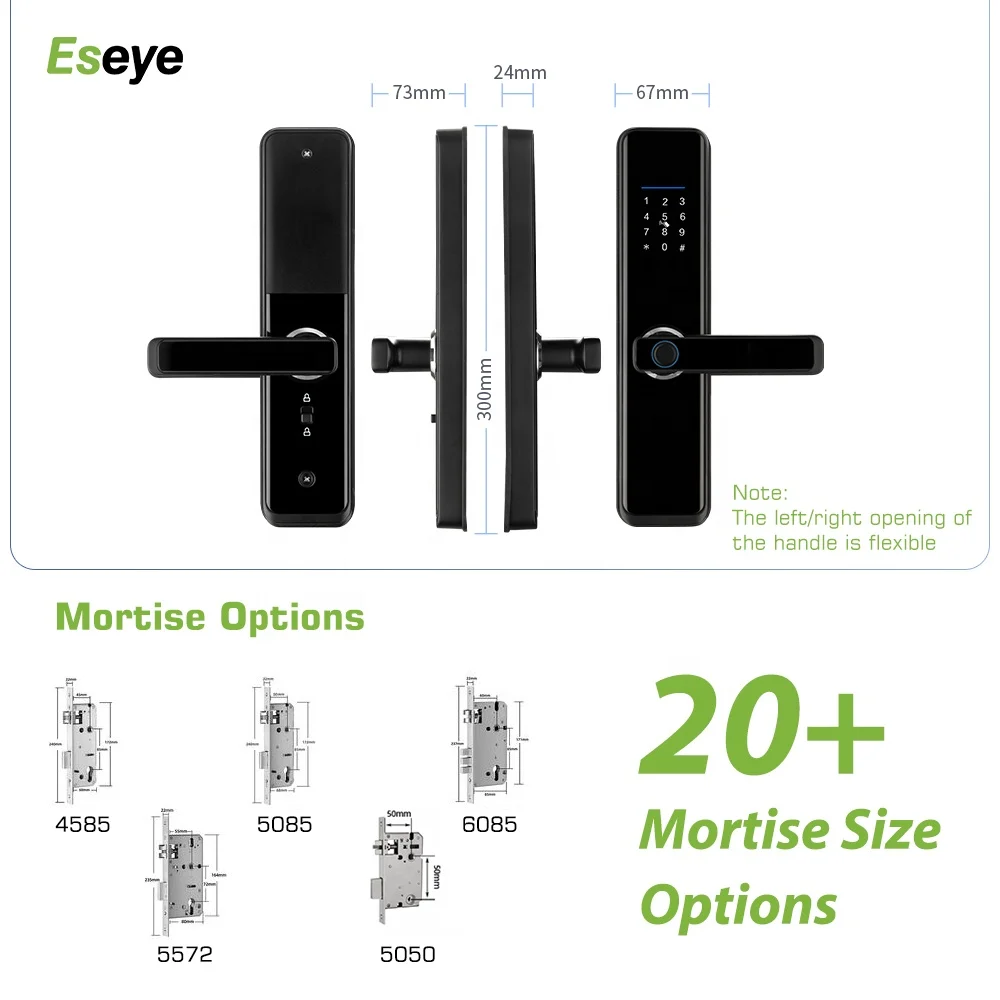

Panel size: L 300 (mm) * W 68 (mm)
Unlocking method: WIFI, M1 card, pass code, fingerprint, wrist strap or key
Application name: Tuya application or tt lock application
Support system: IOS7.0 or Android 4.4 or higher
Battery life: 10000 times of normal opening (12 months)
Power supply: DC6V, 4 alkaline batteries
Quiescent current: 45Ua
Dynamic current:<200Ma
Unlocking time: 0.5-1 seconds
Old 528:280 (L) * 65 (W) mm
New 688:300 (L) * 68 (W) mm
IP65 outdoor waterproof
Application name: Tuya application or tt lock application
Support system: IOS7.0 or Android 4.4 or higher
Battery life: 10000 times of normal opening (12 months)
Power supply: DC6V, 4 alkaline batteries
Quiescent current: 45Ua
Dynamic current:<200Ma
Unlocking time: 0.5-1 seconds
Old 528:280 (L) * 65 (W) mm
New 688:300 (L) * 68 (W) mm
IP65 outdoor waterproof
VR
Name | EY-688 | ||||||
Material | Aluminum alloy | ||||||
Unlocking method | Fingerprint/Password/Swipe card/Key/Temporary password/App | ||||||
Battery supply | 4 AA batteries | ||||||
Charging interface | Type-C | ||||||
Fingerprint Recognition | Semiconductor Sensors | ||||||
User capacity | 300 groups in total | ||||||
Password capacity | 12 digits (support virtual password) | ||||||
Applicable door thickness | 35-60mm | ||||||
Applicable door type | Wooden door/Security door/Copper door | ||||||
Lock cylinder grade | C grade | ||||||
Working temperature | -20°C-70°℃ | ||||||
Administrator capacity | 9 bits | ||||||
