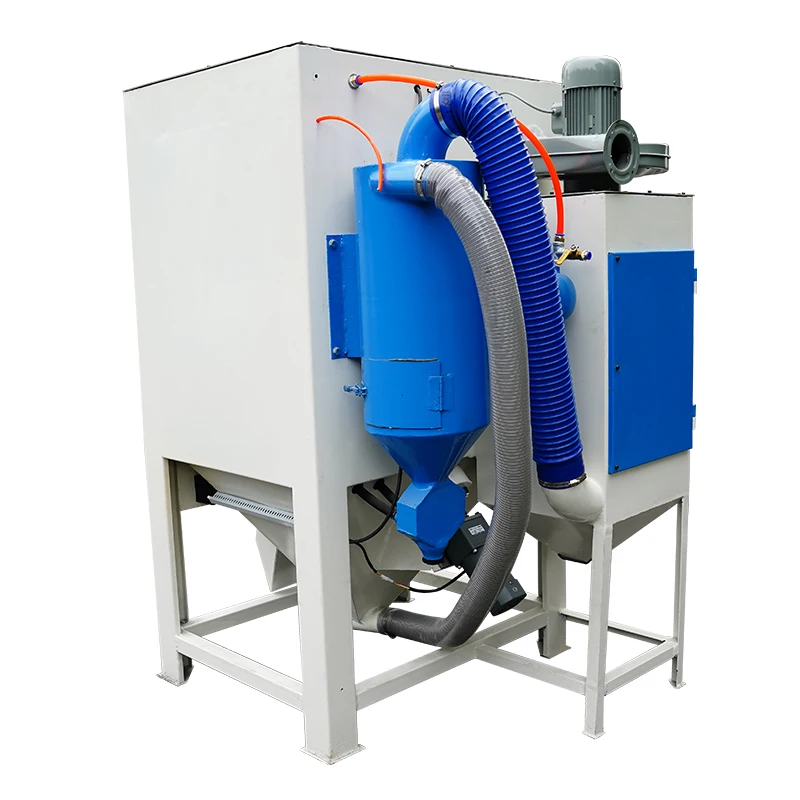

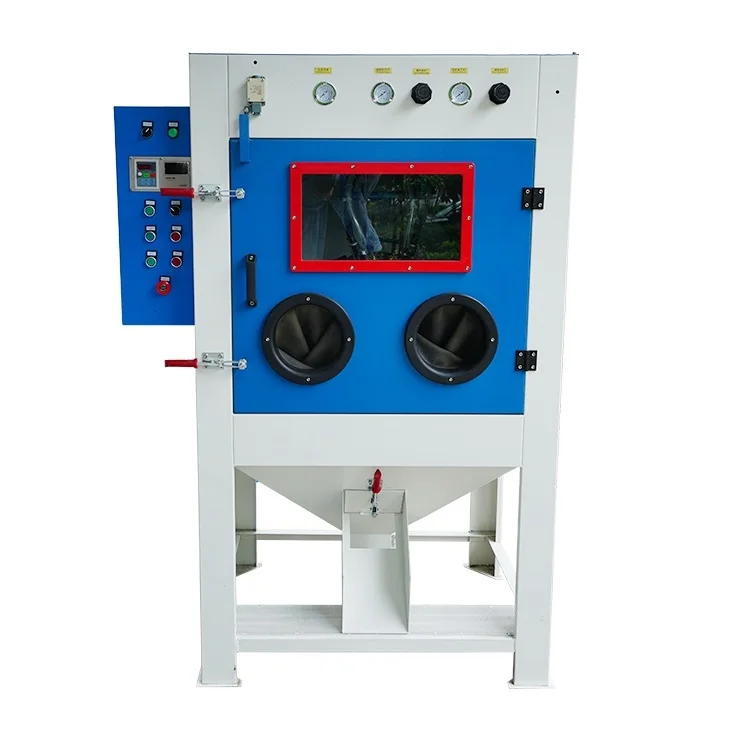

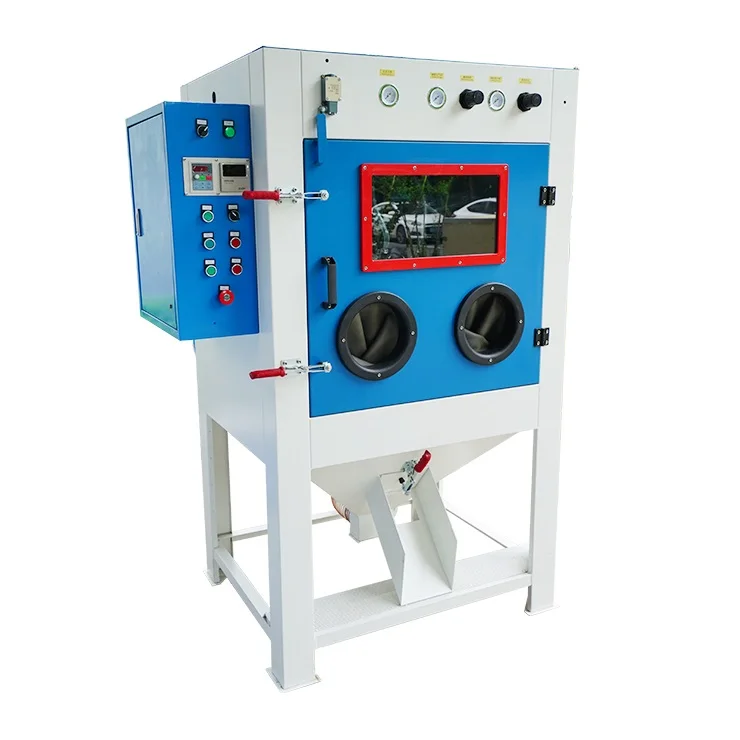

Rotary drum automatic sandblasting machine
Tumble blast machine can replace manual operation and do the finishing jobs. Batch small workpieces will be loaded in the tumbling drum for automatic blasting, which results in better and faster process.
Details Images
Tumble Drum Sandblasting Cabinet Features
1. The drum blaster can be set automatic or manual blasting for multi purposes.
2. The size of the rotary basket, the quantity of blasting guns can be designed according to user requirements.
3. Each blast gun is individually controlled thus to select single gun or multi-gun working according to the quanlity of parts.
4. The rotary basket is 360 degrees automatic rotation for entire workpiece sandblasting.
2. The size of the rotary basket, the quantity of blasting guns can be designed according to user requirements.
3. Each blast gun is individually controlled thus to select single gun or multi-gun working according to the quanlity of parts.
4. The rotary basket is 360 degrees automatic rotation for entire workpiece sandblasting.
Sand Blasting Chamber
Light
Fan Motor
Electric Controller

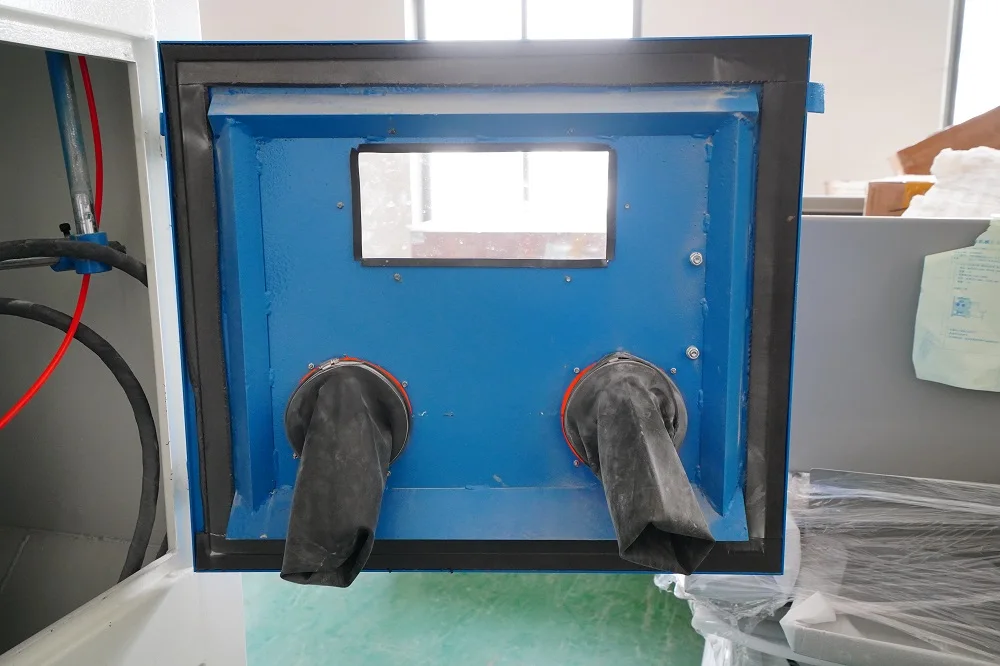

Inspection Window

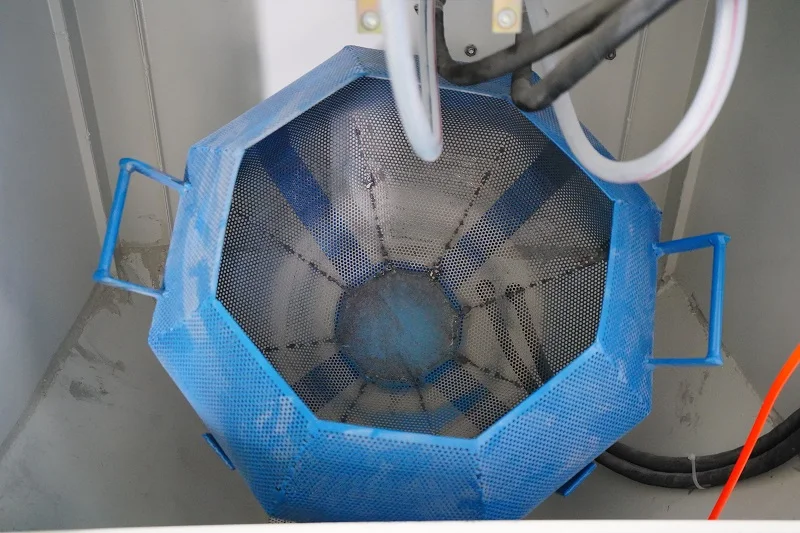

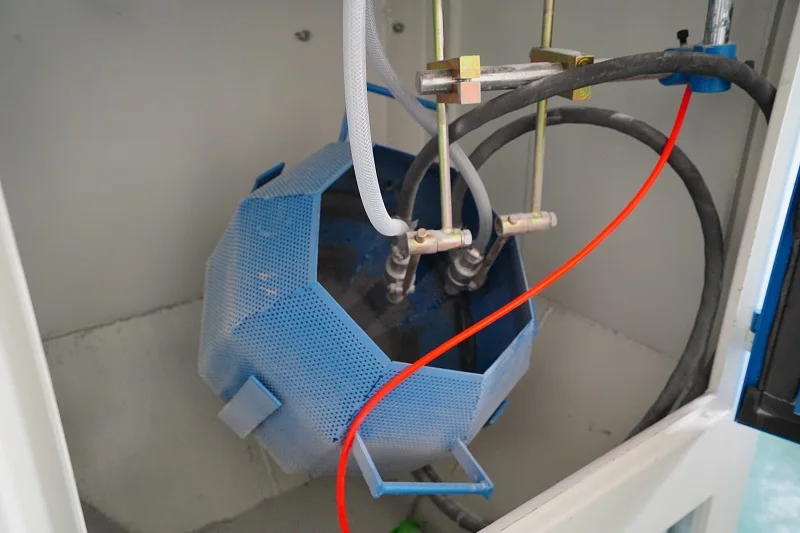

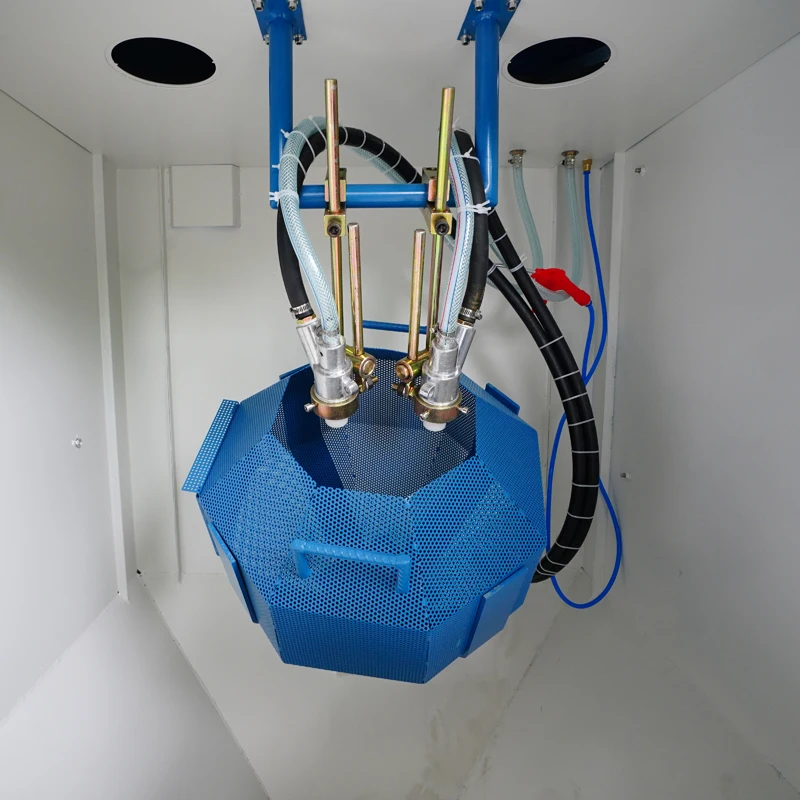

Tumble Basket/Drum
Specification
Model | KF-1080ZL |
Outer Size | Length1200*Width1250*Height1800mm |
Working Chamber Size | Length1000*Width800*Height800mm |
Barrel Diameter | 500mm(can be customized) |
Sandblasting Gun | 2 pcs |
Totating Speed | 8 round/min |
Air source | Pressure 2-7bar(kg/cm^2) |
Compressed Flow | 1.5-2.0m3/min |
Machine Shell Thickness | 2-5mm Coated Steel Plate |
Lighting | 220V 13W LED Lamp |
Total Machine Power | 380V/50HZ/1100W |
Weight (KG) | 300 |
Application | Abrasive Blast Rust Cleaning |
Applications
Tumble Sand Blasting Machine Applications

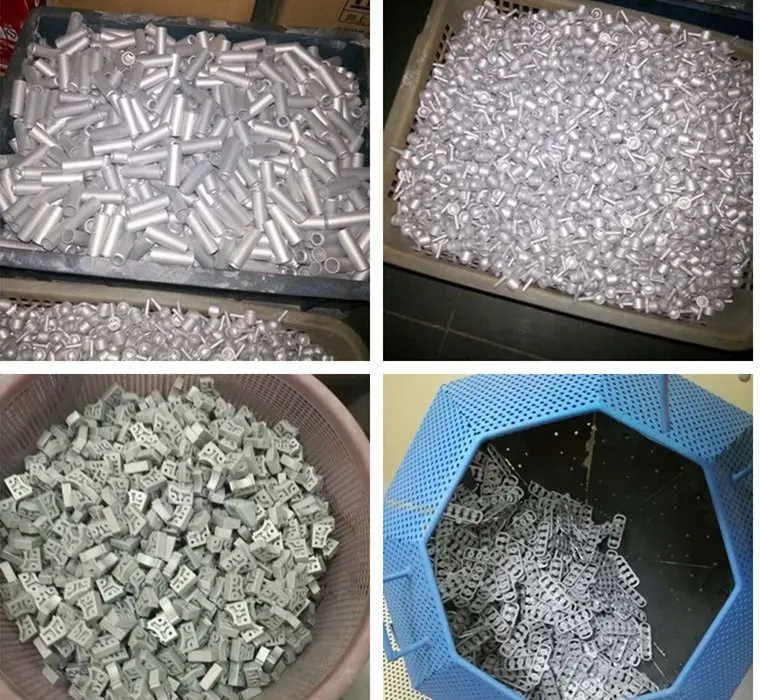

Tumble blast cabinet mounted with a drum which will holds a certain quanty of small parts for surface finishing purpose. Batch parts will be cleaned entirely and evenly through automatic blasting guns and tumbling basket, suitable for cleaning the rough surface of metal, rubber and plastic products, as well as for derusting, degreasing.
Related Products
Product packaging
All sandblasting machines comply with international export standards and are available in wooden boxes and foam films.
Company Profile
Hangzhou Kafan Machinery & Equipment Co., Ltd
Kafan, is a brand specializing in design and manufacturering sandblasting equipment and mass finishing equipment. devoted all ourselves supplying solution for worldwide customers, because of the superior technology, quality, service, we’ve established long term business relationship with distributor in US, Mexico, Russia, Poland, UK, Germany, South Africa, Vietnam, Thailand, etc.
Located in Hangzhou, China, we have our own a manufacturing building base that owns professional staff and production equipment, our employees is divided into technical department, sales department, after-sale department, production department, QC department, manage and finance department, etc. As a fast growing company in supplying sandblasting equipment and mass finishing equipment, we devoted all ourselves to offering solution for any surface finishing problems.
FAQ
Q1: What is the regular packaging?
A: We use wooden package. Membrane packaging for large equipment.
Q2: How to proceed an order for our productds?
A: Firstly let us know your requirements or application.Secondly we quote according to your requirements or our
suggestions. Thirdly customer confirms the samples and places deposit for formal order.Fourthly we arrange the production.
suggestions. Thirdly customer confirms the samples and places deposit for formal order.Fourthly we arrange the production.
Q3: Can you do the design for us?
A: Yes. We have a professional team having rich experience in sandblasting machine design. Just tell us your ideas and we will help to carry out your ideas.
Q4. Do you have any MOQ requirment.
A: Different products have different MOQ, please contact us for details.
Q5. How do you ensure the products delivered are in High Quality?
A: All the Products will be pass test before delivery.
