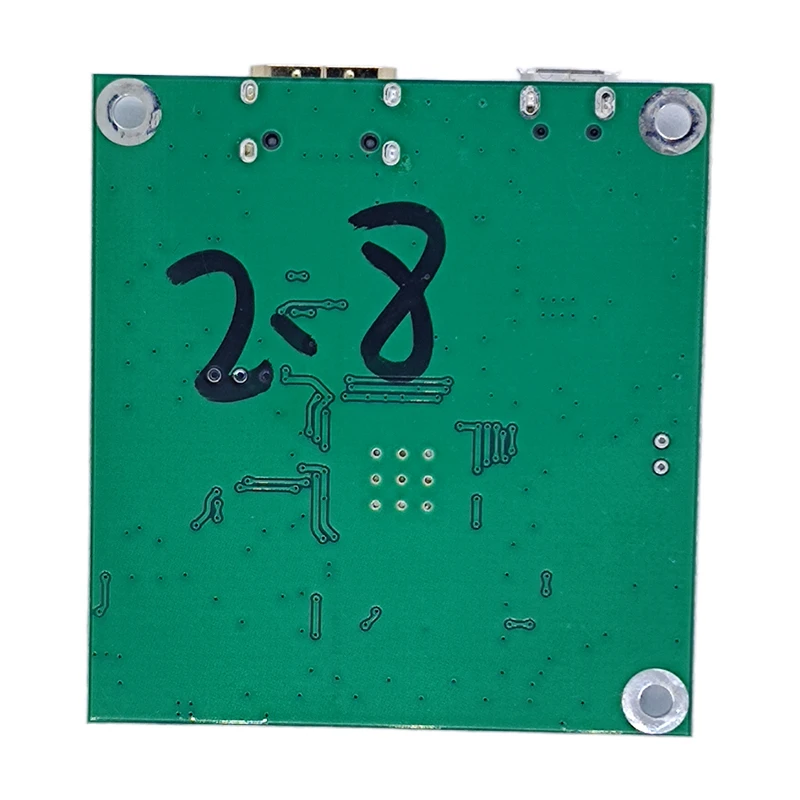

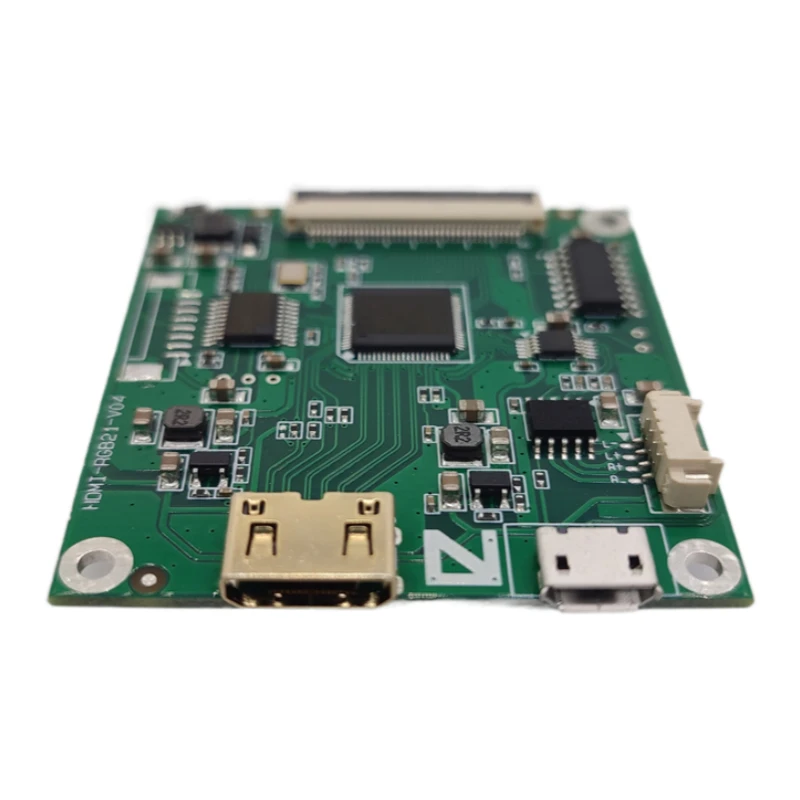

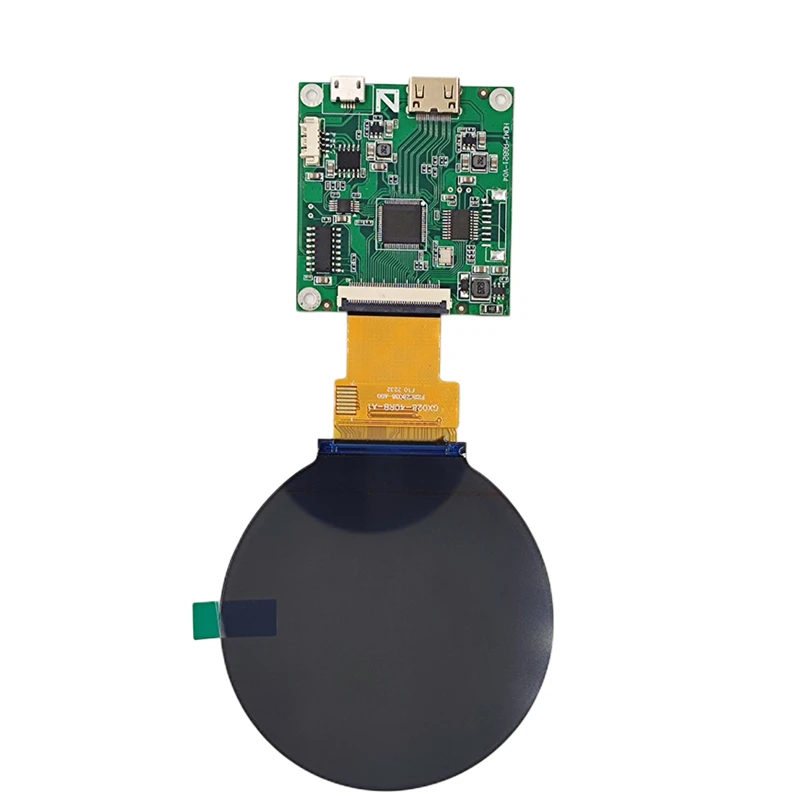

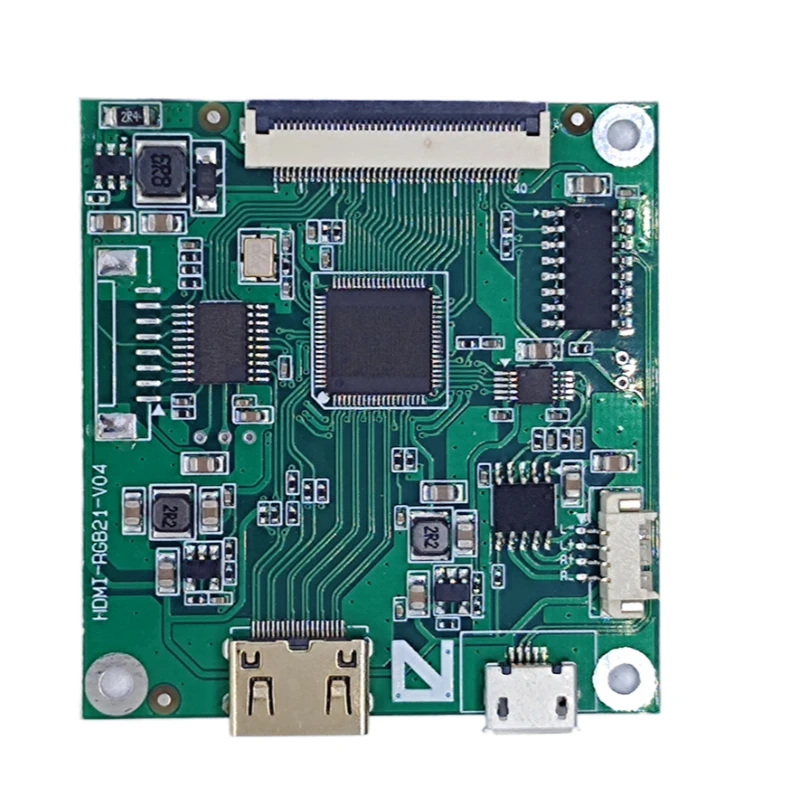

Signal driven adapter board with 2.8 inch 480 * 480 resolution screen RGB interface LCD drive board kit
- Category: >>>
- Supplier: Shenzhen Amelin Electronic Technology Co. Ltd.
Share on (1600701038160):
Product Overview
Description
Product Description
2.8 inch LCD drive kit is Signal driven adapter board with 2.8-inch 480 * 480 resolution screen RGB interface LCD drive kit
This TFT-LCD has a 2.8 inch diagonally measured active area with FHD
resolutions (480 horizontal by 480 vertical pixel array). Each pixel is divided into Red,
Green, Blue dots which are arranged in 1pixel 2 domain and this panel can display 16.7M
colors.

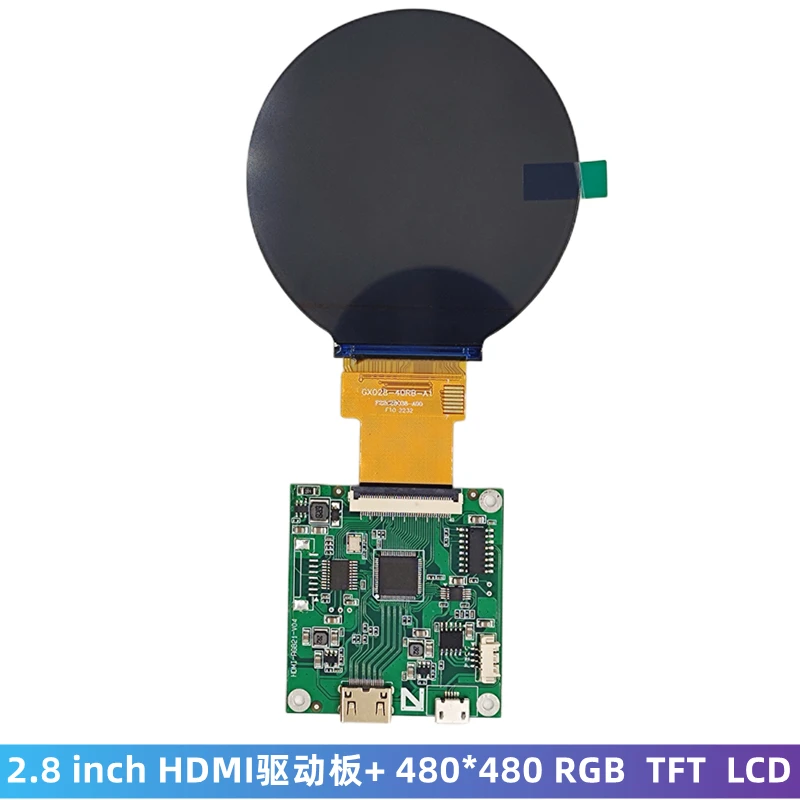

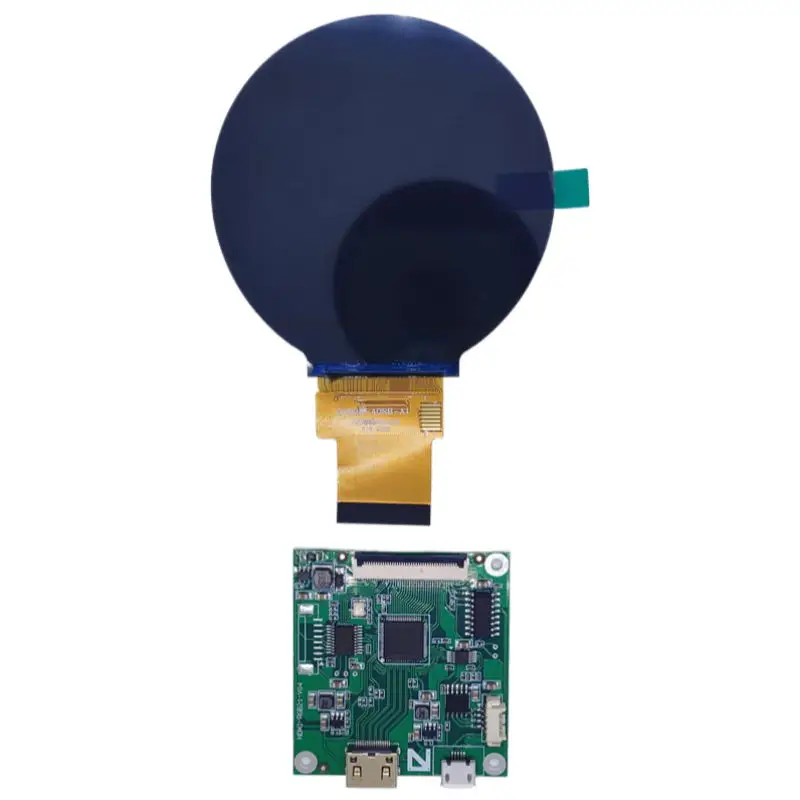

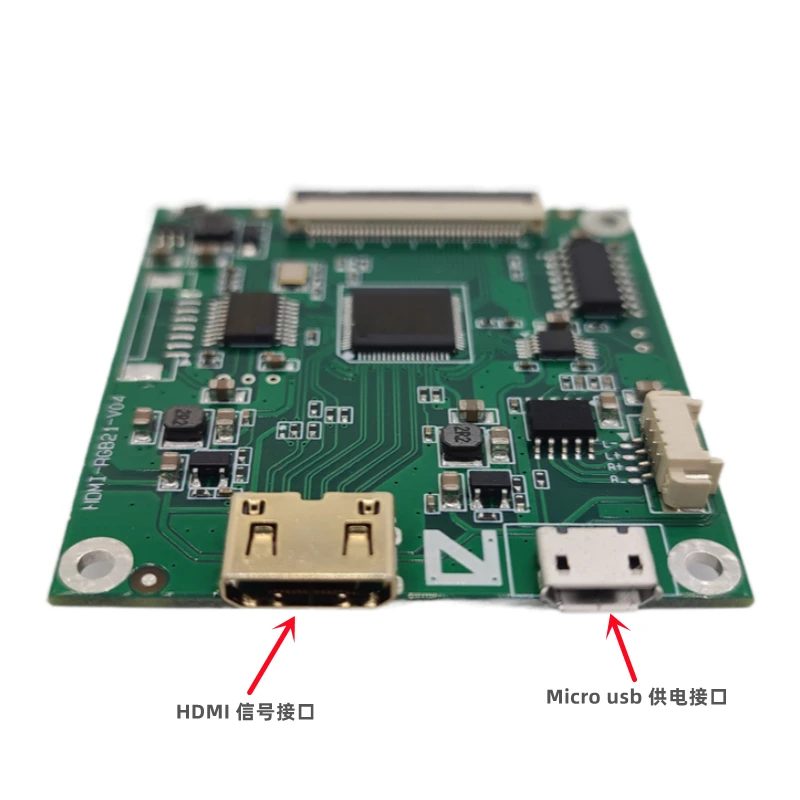

Pictures in kind

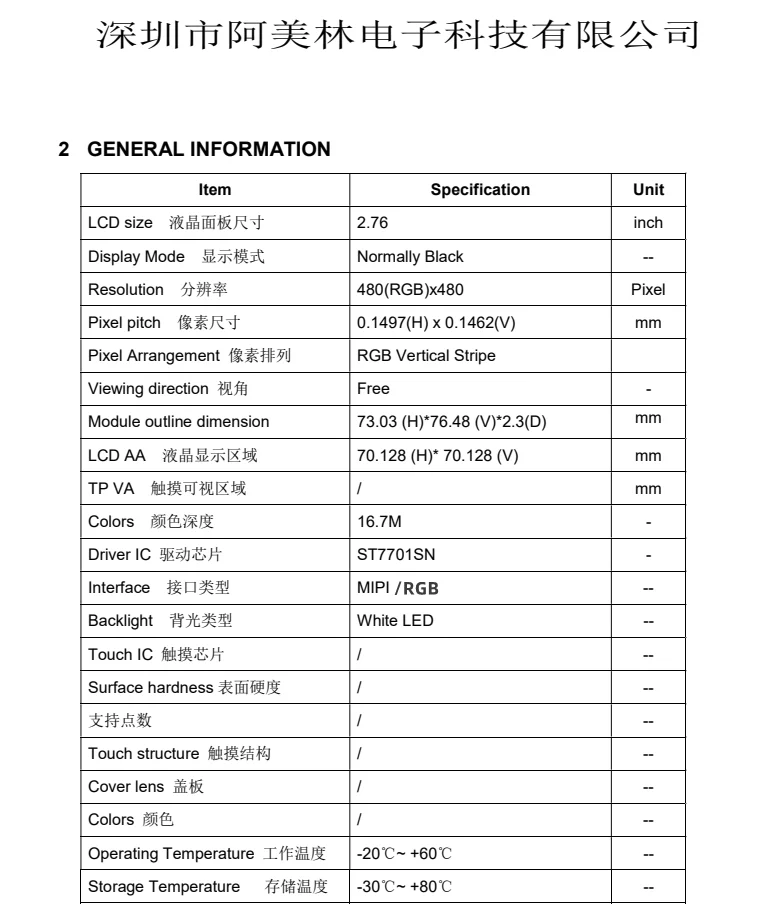

Product parameters
| size | 2.8 inch | Pixel arrangement | 480*480 |

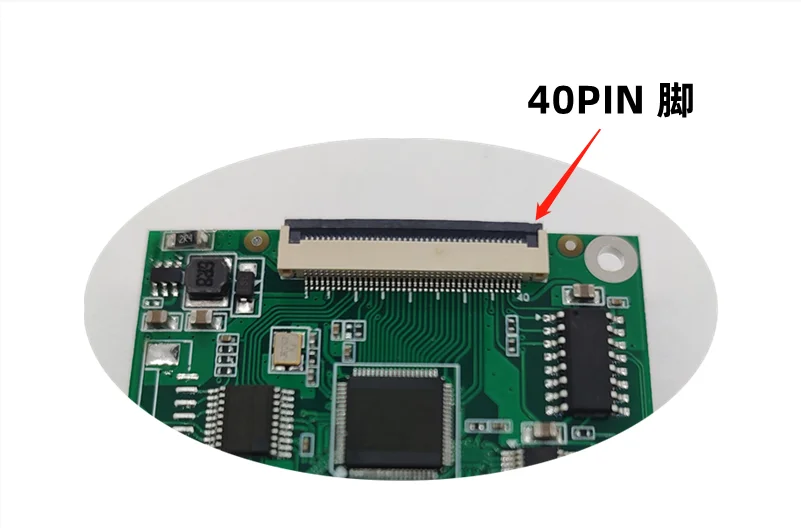

| Interface type | RGB | Pin | 40 PIN |
Luminance | 300CD /M2 | Driver IC | ST7701SN |
| Viewing direction | IPS | MODEL NO. | AML-HDMI-RGB21-V04 |
| Outline dimensions | 73.03 (H)*76.48 (V)*2.3(D) | Active area | 70.128 (H)*70.128 (V) |
| Backlight | White 4 LEDS | Ambient temperature | -20°- +70° |

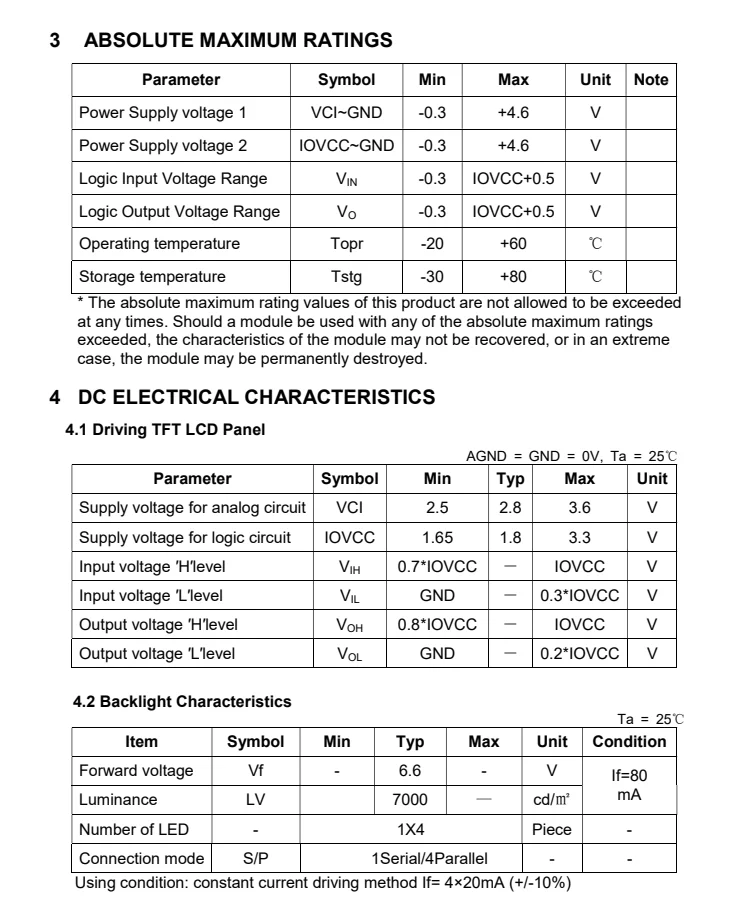

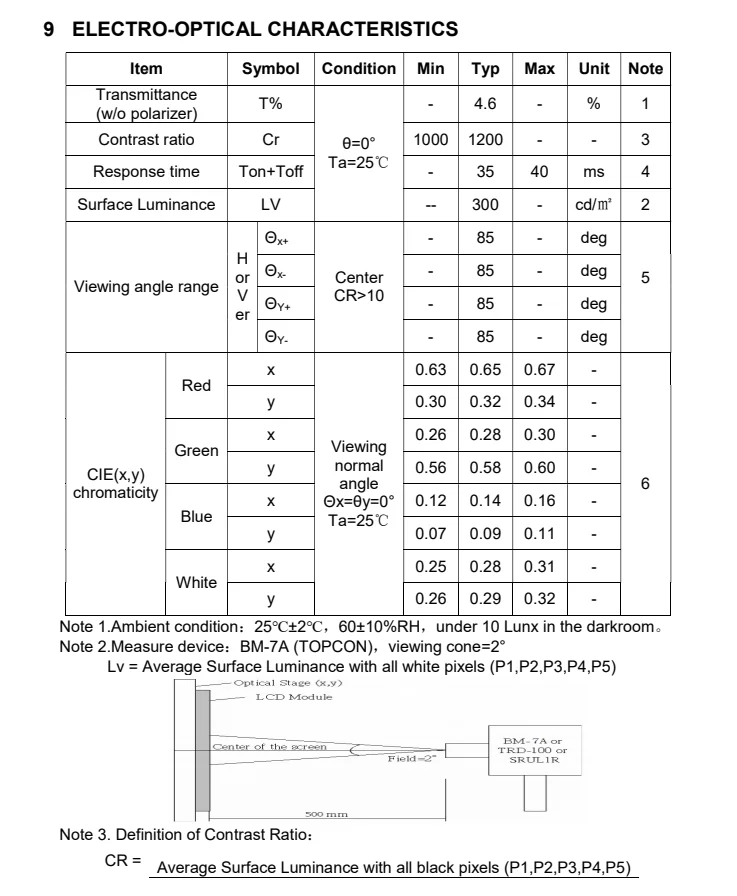

Product specificatio
Our Services
100% product testing and inspection before shipment.
100% free replacement for defective product.
Lead time
Lead time
| quantity | lead time |
| 1-20(pieces) | Within one working day |
| 21-100(pieces) | Within two working days |
| 101-500(pieces) | Within three working days |
| 501-1000(pieces) | Within a week |
| 1000-3000(pieces) | Within two weeks |
| 3000-5000(pieces) | Within three weeks |
| 5000+ | Within four weeks |
VI
Production process
The above is only a partial product display, and our company's products include but are not limited to 0.66 "~65" inch display modules, touch screens, and related kits. Welcome to contact us for more product and style information. Thank you!
