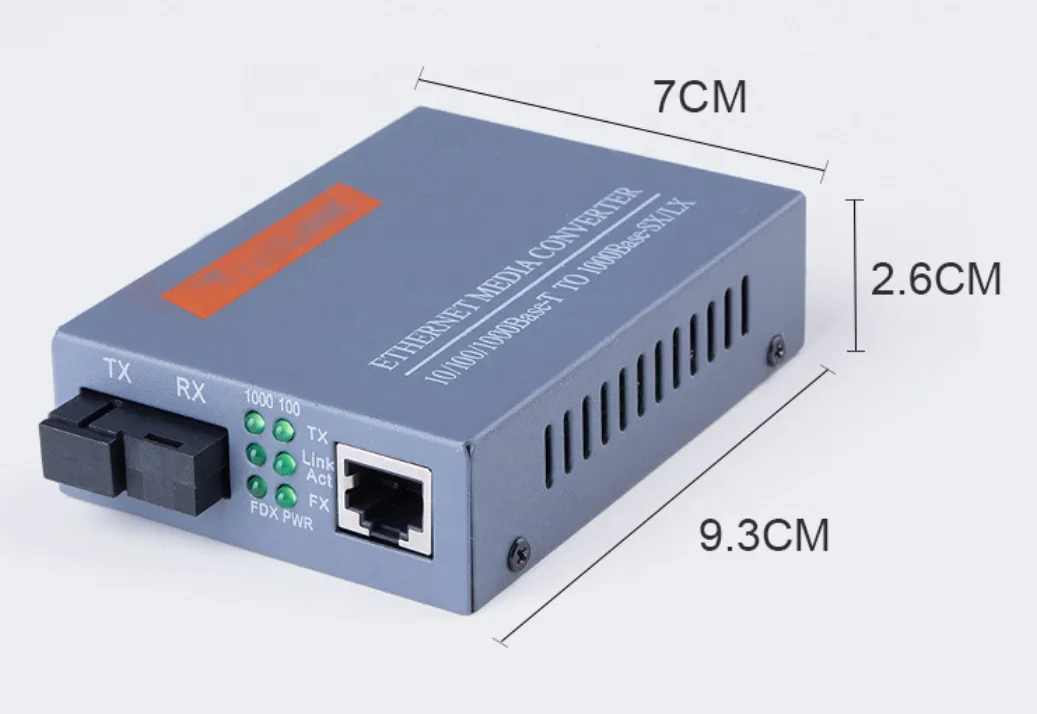

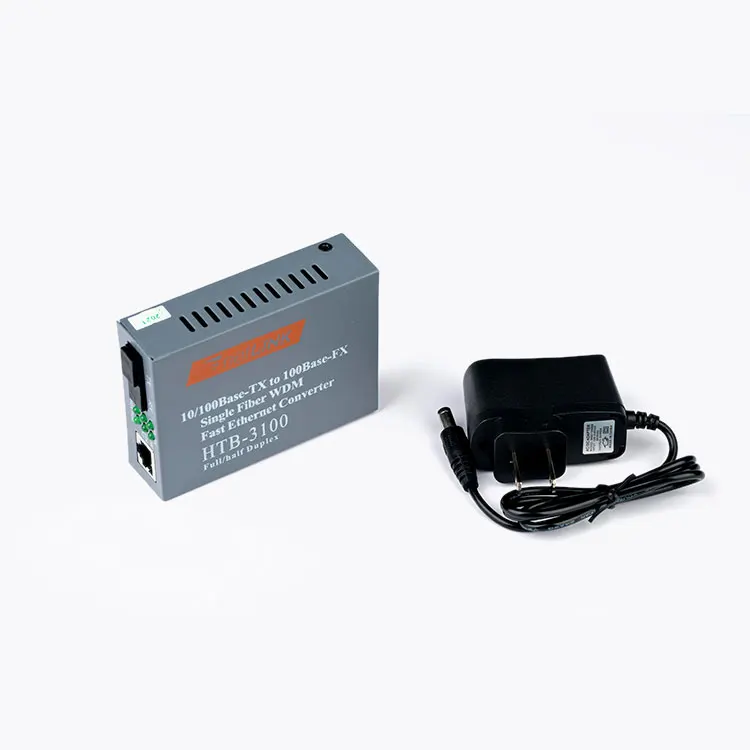

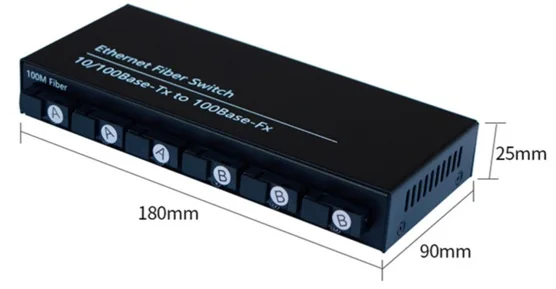

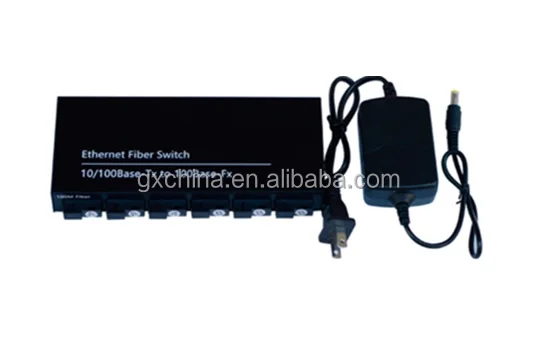

10/100M 20KM Single Mode Single Fiber Converter

Share on (1600701714673):


Price:$8.00 - $9.00

Quantity:


Product Overview

Description



Specification


Type
Fiber type
connector
Wavelength
TX power
Sensitivity
Max.
distance
Link Budget
HTB-3100A/B-25
SM
SC
1310/1550nm
-14~-6dBm
-32dBm
25km
18dBm
HTB-3100A/B-40
SM
SC
1310/1550nm
-5~0 dBm
-35dBm
40km
30dBm
HTB-3100A/B-60
SM
SC
1310/1550nm
-8~-2 dBm
-36dBm
60km
28dBm
HTB-3100A/B-80
SM
SC
1310/1550nm
-3~0 dBm
-37dBm
80km
34dBm


Product Description




Feature:
1 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps fiber
Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard
Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
UTP port supports MDI / MDI-X auto crossover.
Supporting 1552 bytes packet
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Data Transfer Rate:
- TP: 10/100Mbps - FX: 100Mbps
Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
LED indicators: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act
Supports link fault pass through function.

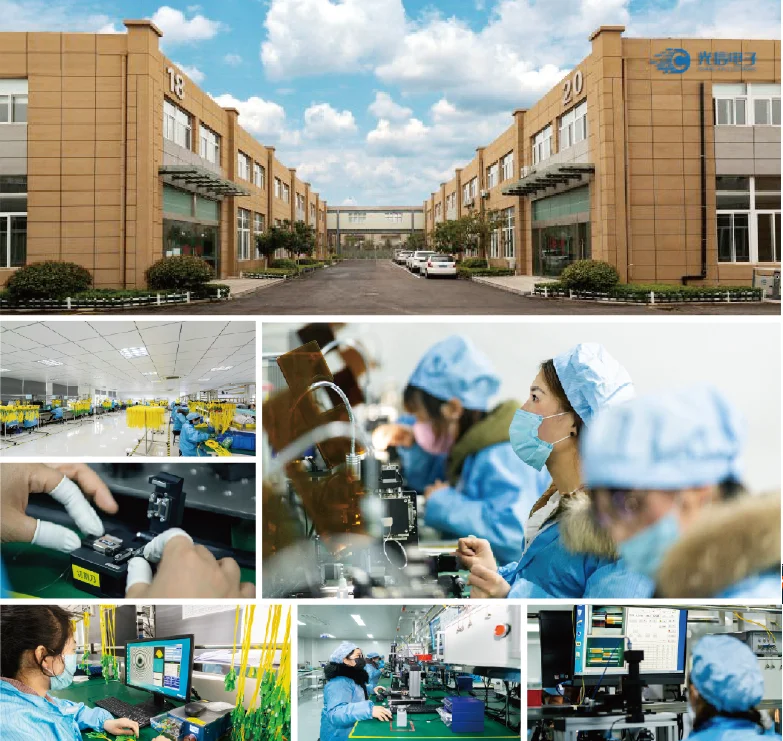

Company Profile

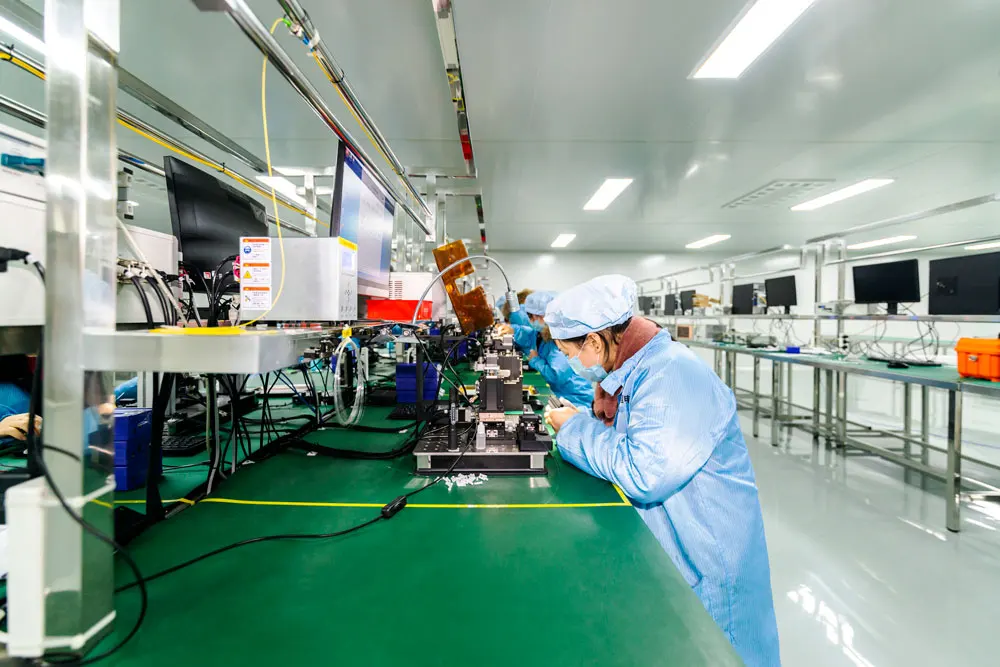

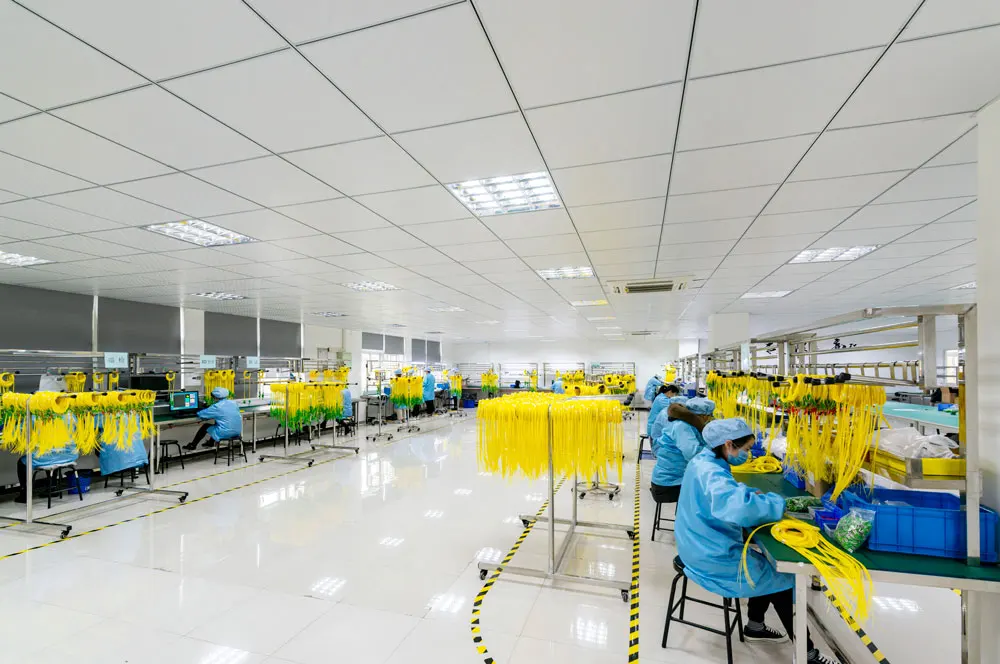

Optical trust (Xuzhou) Electronic Technology Co., Ltd. established in 2018, is a high-tech enterprise specializing in the production of optical network communications products. The company is located in the Economic and Technological Development Zones of Xuzhou, Jiangsu Province, China, area of about 5000 square meters, with 1000 square meters of high purification dust-free work area, the main products include indoor and outdoor cable, fiber optic patch cord, MPO patch cord, FTTH Junction Box, PLC Splitter, WDM series. The company has advanced equipment, skilled workers, focusing on manufacturing high-performance, stable and reliable quality, long life products, to ensure that each product before shipment will be subject to stringent testing and traceability.
At the same time we can according to the customer's special requirements, design and custom-made products. After years of rapid development, our product categories and the number of growing, our customers include telecom operators, system integrators and power companies, etc. , products are exported to the United States, Germany, Australia, Mexico and other countries and regions in the world.
As a well-known high-tech enterprise in the industry, we have passed many system certifications, including ISO9001, C E certification, RoHS certification, etc. We have also obtained many invention patents, utility model patents and computer software copyrights. Reliable products and perfect service are our responsibility, and it is our honor to grow together with our customers, and we are very much looking forward to doing business cooperation with you.

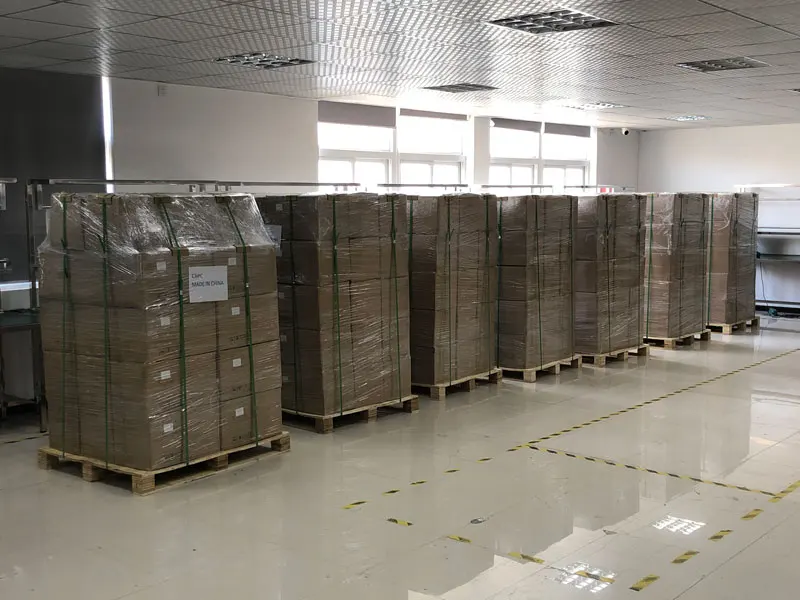

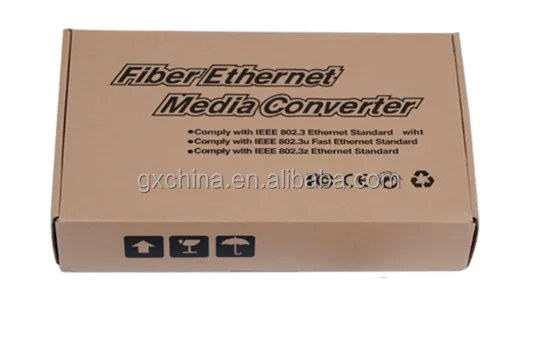

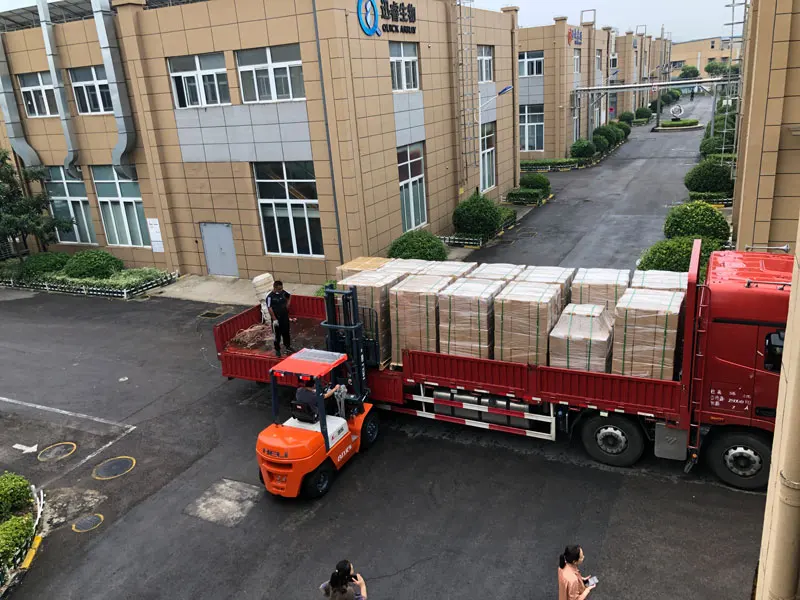

Packing & Delivery

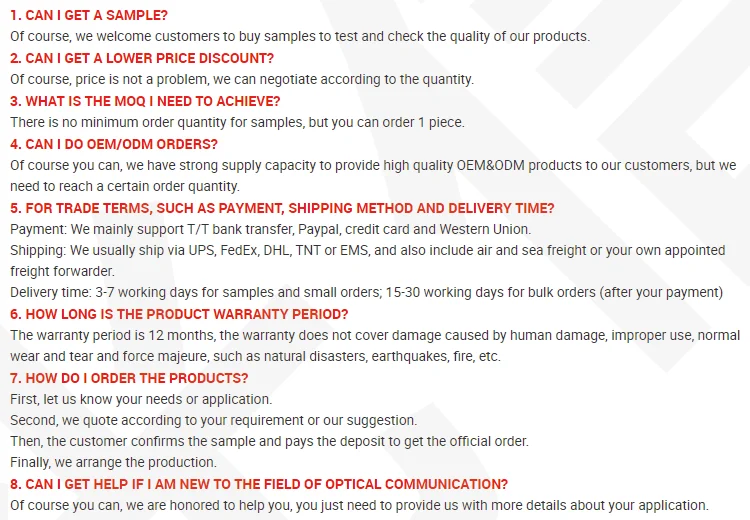

FAQ
