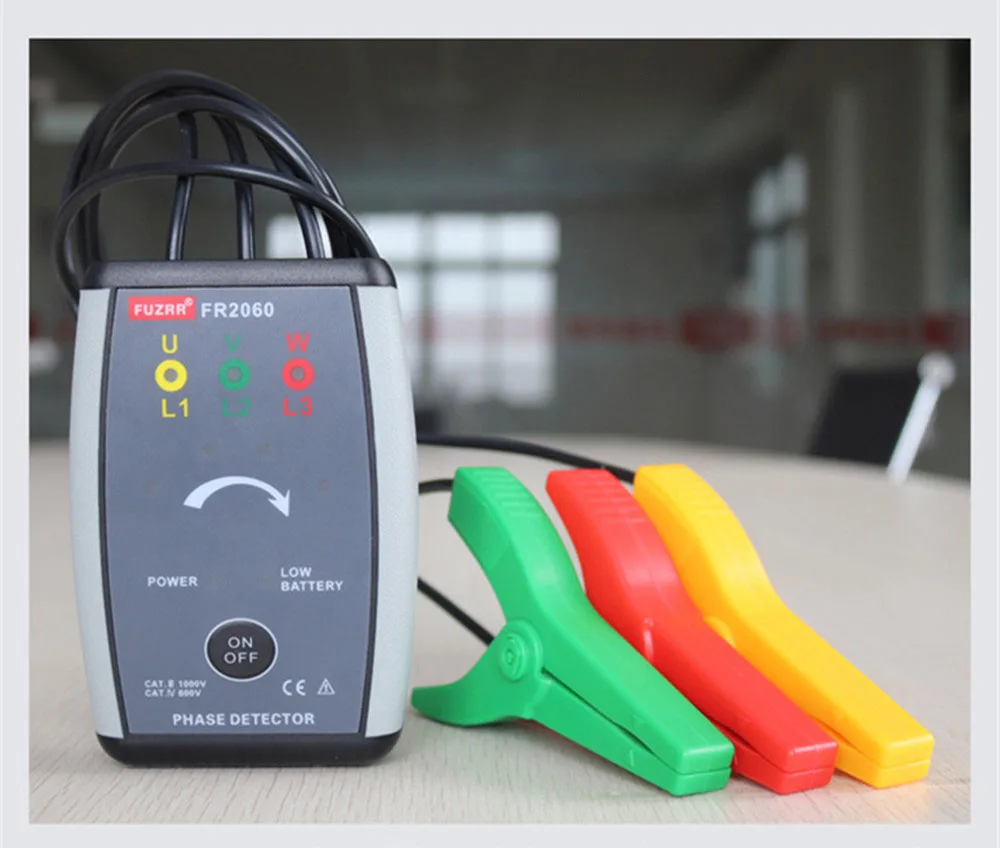

FUZRR FR2060 Three phase non contact sequential detection line open phase break point detection equipment

Function

Phase detection (positive phase, reverse phase), live line inspection, simple electricity inspection, phase loss judgment, circuit
breaker search, break point location, and line maintenance.

Power

9V battery, continuous use time is about 70 hours.

Measure mode

Non-contact clipping method

Wire position

The measured wire is in the center of the jaw

Frequency

50Hz/60Hz Automatic Identification

Live electricity range

AC70～1000V，45/65Hz（Sine wave continuous input），Conducted electrostatic detection

Measuring the highest voltage

AC1000V

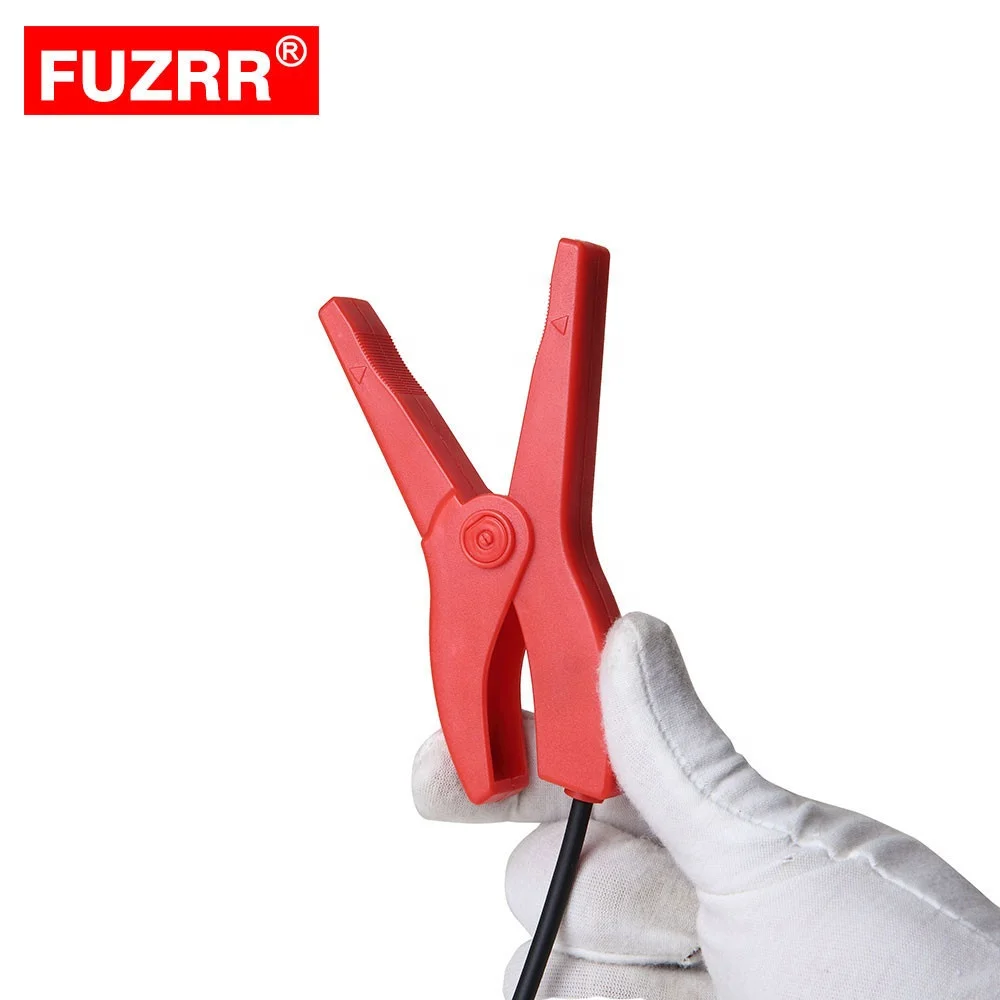

Clamp wire size

Outside diameter ø1.5mm～ø48mm

Display

【Positive phase】4 phase detector lights are turned on in a clockwise direction；

【Reverse phase】4 4 phase detection lights are turned on counterclockwise;

【Live electricity】L1, L2, L3 lights in the voltage setting range；

【Lack of phase】L1 or L2 or L3 lights are not lit；

【Open circuit】L1 or L2 or L3 lights are not lit

Beep

【Positive phase】The instrument emits intermittent short beep；

【Reverse phase】The instrument emits a continuous long beep。

Battery check

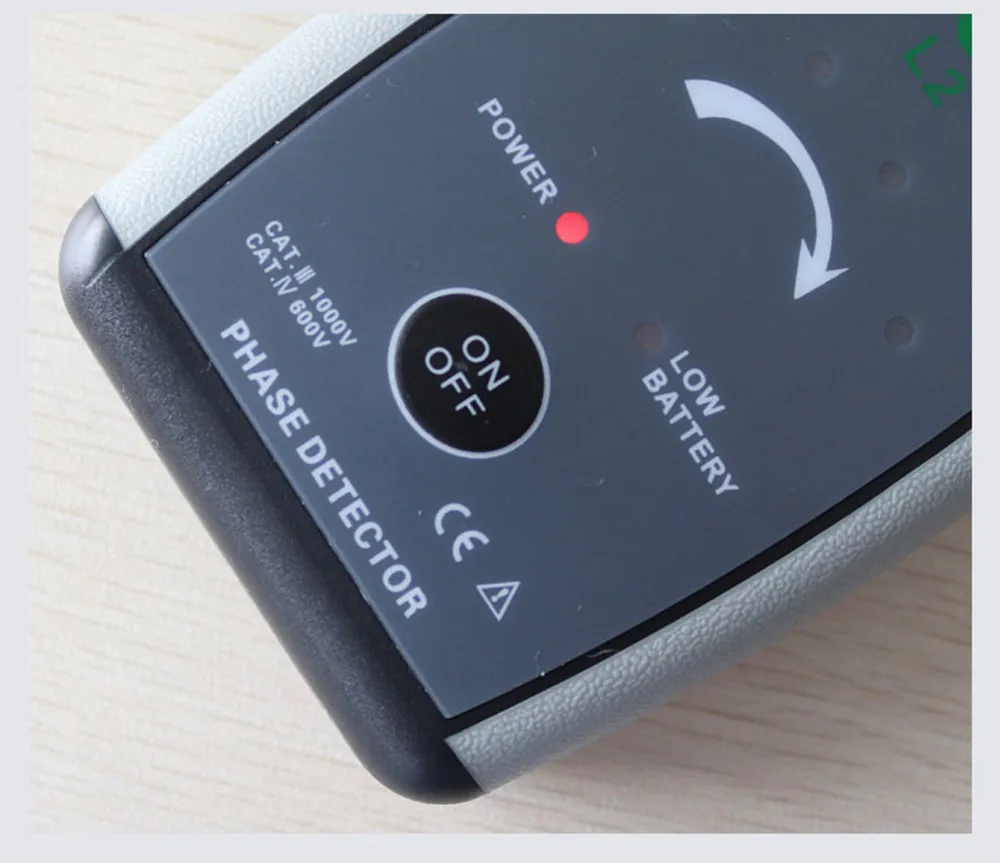

After the power is turned on, the POWER indicator is on; the battery is low; the LOW BATTERY lamp is on。

Clamp lead length

0.6m

Instrument size

L 117.6mm×W 81mm×T 25mm

Automatic shut-down

After about 6 minutes of power on, the meter automatically shuts down to reduce battery consumption.

Battery voltage

When the battery voltage drops to about 5.2V, the battery voltage is low symbol to remind to replace the battery

Instrument weight

Instrument：260g(including battery)

Maximum rated power

300mVA

Working temperature and humidity

-10℃～55℃；below 80%rh

Storage temperature and humidity

-20℃～60℃；below 90%rh

Insulation strength

3.7kVrms

Suitable for Safety Regulations

EN61010-1：2001、EN61010-031：2002、pollution grade 2、CAT Ⅲ(600V)、Instant overvoltage 6000V。
