High speed peel tester smd cover tape tensile tester
- Category: >>>
- Supplier: Guangdong Kejian Instrument Co. Ltd.
Share on (1600701778636):
Product Overview
Description

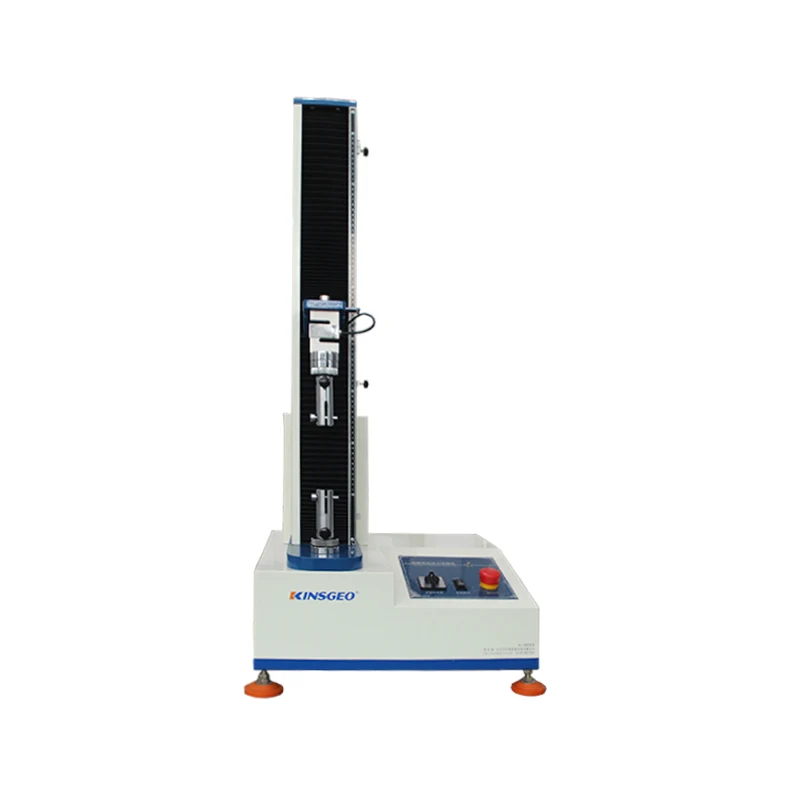

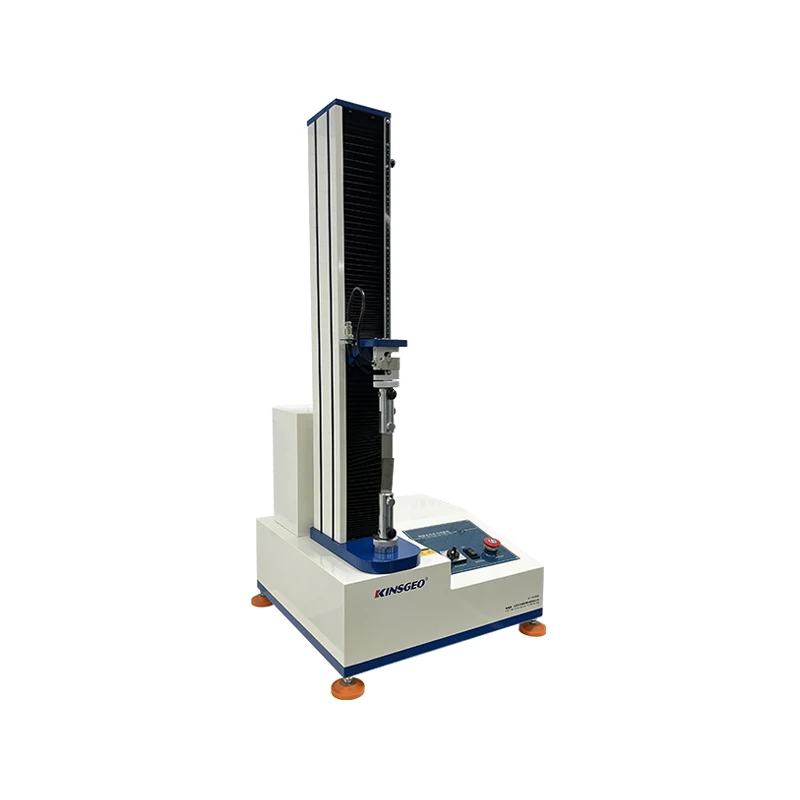

High speed tape Peel strength tester 90 degree tear tension tester
Uses
This machine is designed specially for the adhesive,tape,plastic film,BOPP,PET industry. Used to test peeling strength with different methods. It can perform the 180&90 degree, T-shape peeling test and tensile,shearing&spliting strength test with different clamps.
Character
1.Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2.Have steady performace, high accuracy, powerful software function and easy operation.
3.Use the USA high-precision load cell.Machine accuracy is ±0.5%.
Specification
Item | PSA Peel Adhesion Test Use KJ-1065 Peel Strength Tester | |
Design Standards | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663,ASTM D1335,ASTM F2458, EN 1465, ISO 2411,ISO 4587,ISO/TS 11405, | |
Model | KJ-1065 A | KJ-1065 B |
Range of speed | 0.5-1000mm/min | 50-500mm/min |
Motor | Japan Servo Motor | AC Motor |
Capacity choice | 1,2,5,10,20,50,100,200,500kg optional | |
Resolution | 1/250,000 | 1/150,000 |
Effective testing spac | 120mmMAX | |
Accuracy | ±0.5% | |
Operation method | Windows operation | |
Accessories | English video, system operation manual | |
Optional accessories | 1 pcs grip | |
Weight | 80KG | |
Dimention | (W×D×H)58×58×125cm | |
Power | 1PH, AC220V, 50/60Hz | |
Stroke protection | Upper and lower protection, prevent over preset | |
Force protection | system setting | |
Emergency stop device | Handling emergencies | |
