China Smaller Size But Stronger Robot Palletizer Carton Bag Palletizing Robot Focus Machinery 2023 New Product

Product Overview

Description

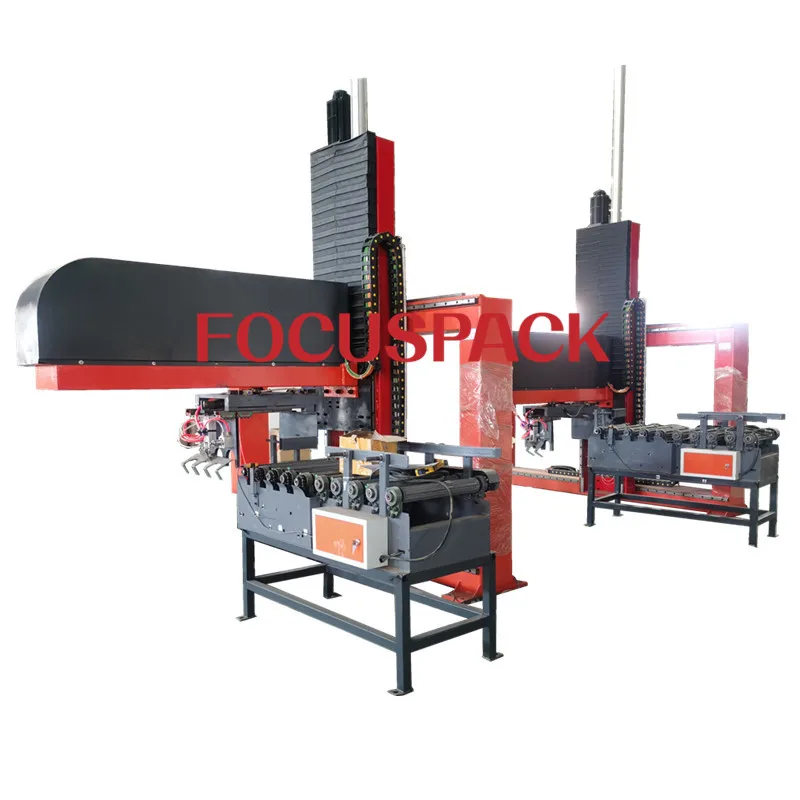

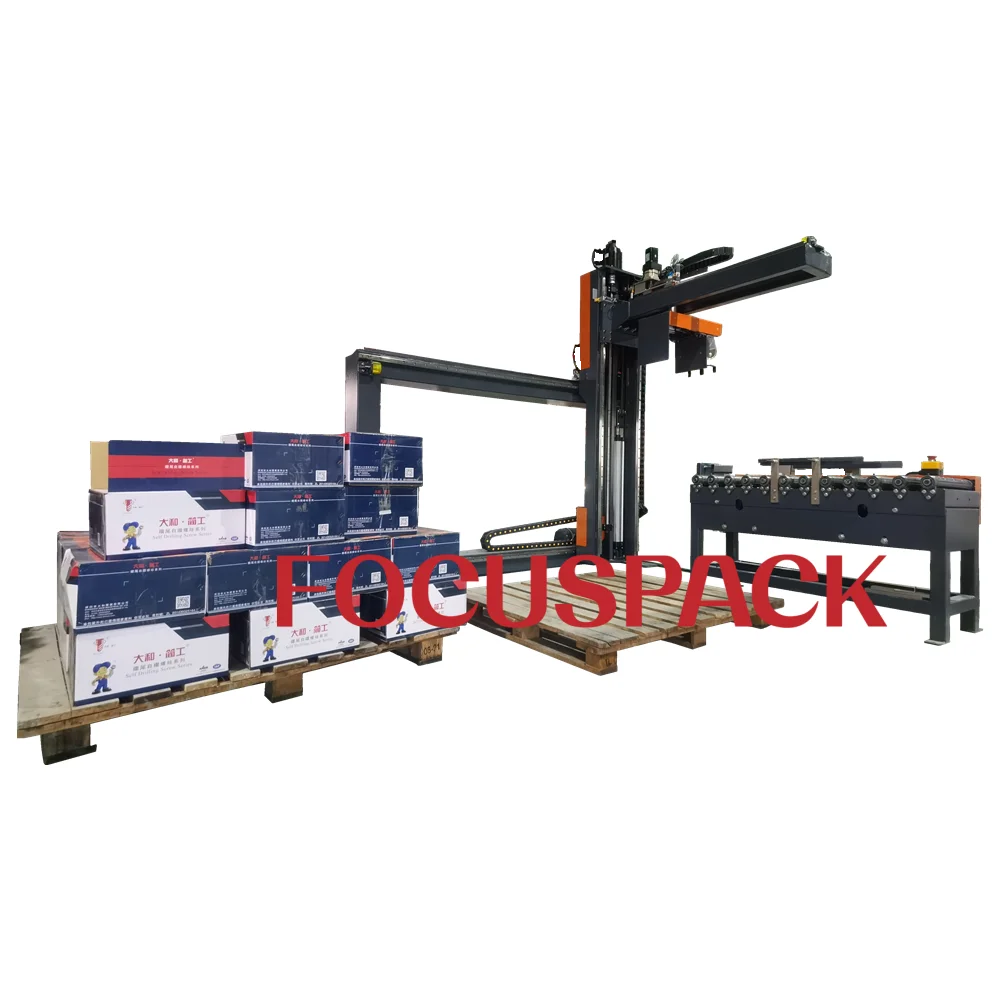

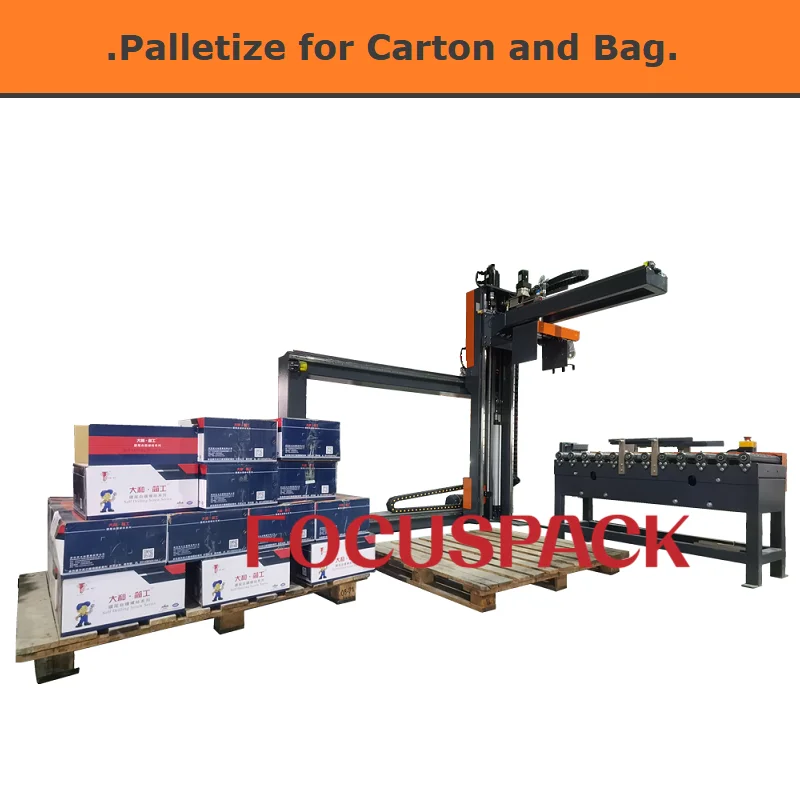

Smaller Size But Stronger Robot Palletizer



Production:



The robot palletizer is widely found in the automatic packing line for labor costs and labor intensity saving in the big size factory. Since the machine with complicated movement with height cost so many small size facotry still do the palletizing box in the tradictional way. While We Focus Machinery Co.Ltd. have developed a better, easy operation with low cost for you. The machine work with various size of carton and it just need to change the clamp size. It meets the requirement of most of factories on the economic way and do more works as well as the smaller size.



Specification:

• The machine caron steel painted


• With PLC and 7" touch screen controller


• with 4 servo motor(China top 3 brand)

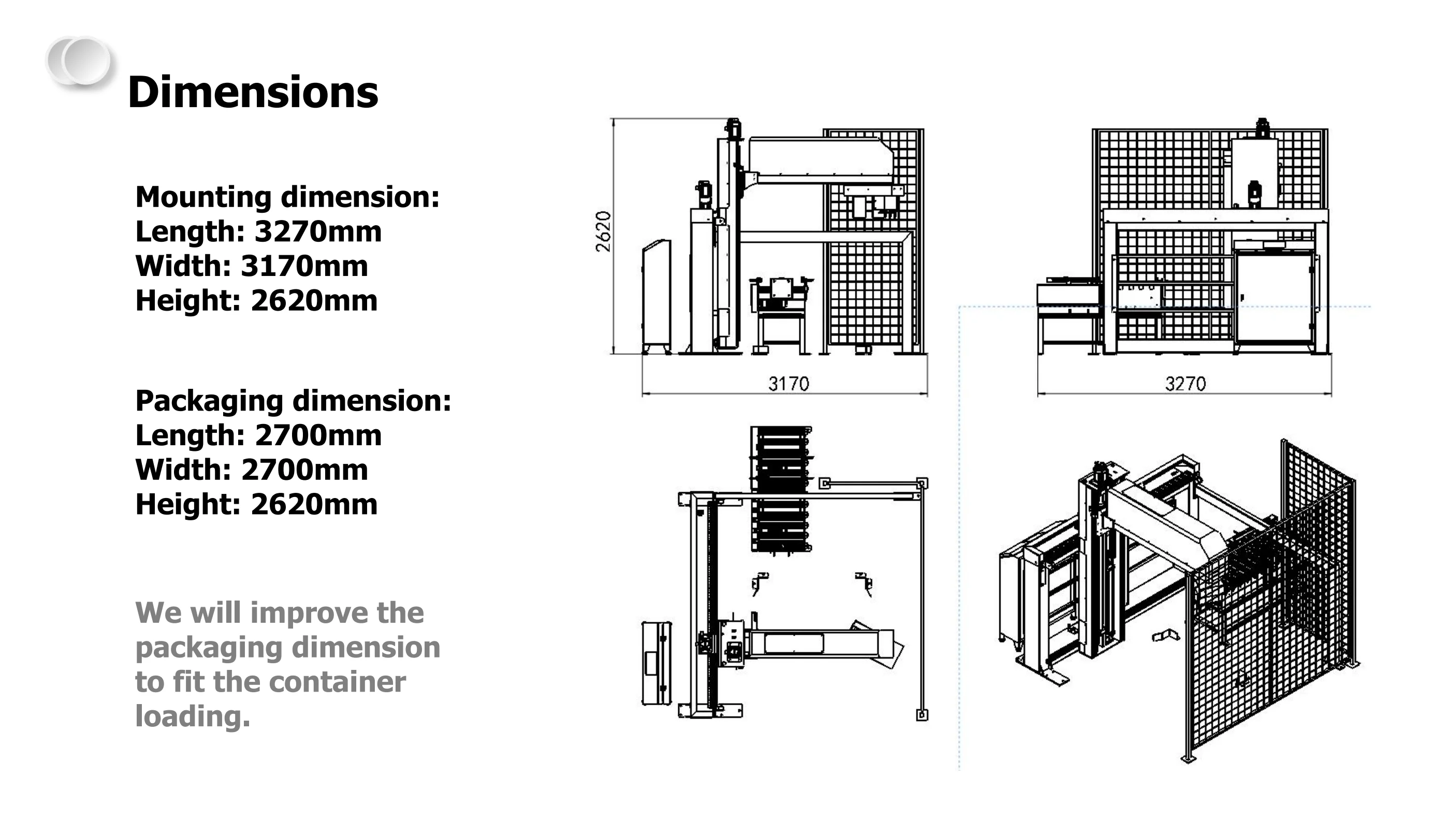

• with cover smaller space (about 3285mm for length)


• Lift up max. 50kg per bag/box/carton


• With stronger rubber belt

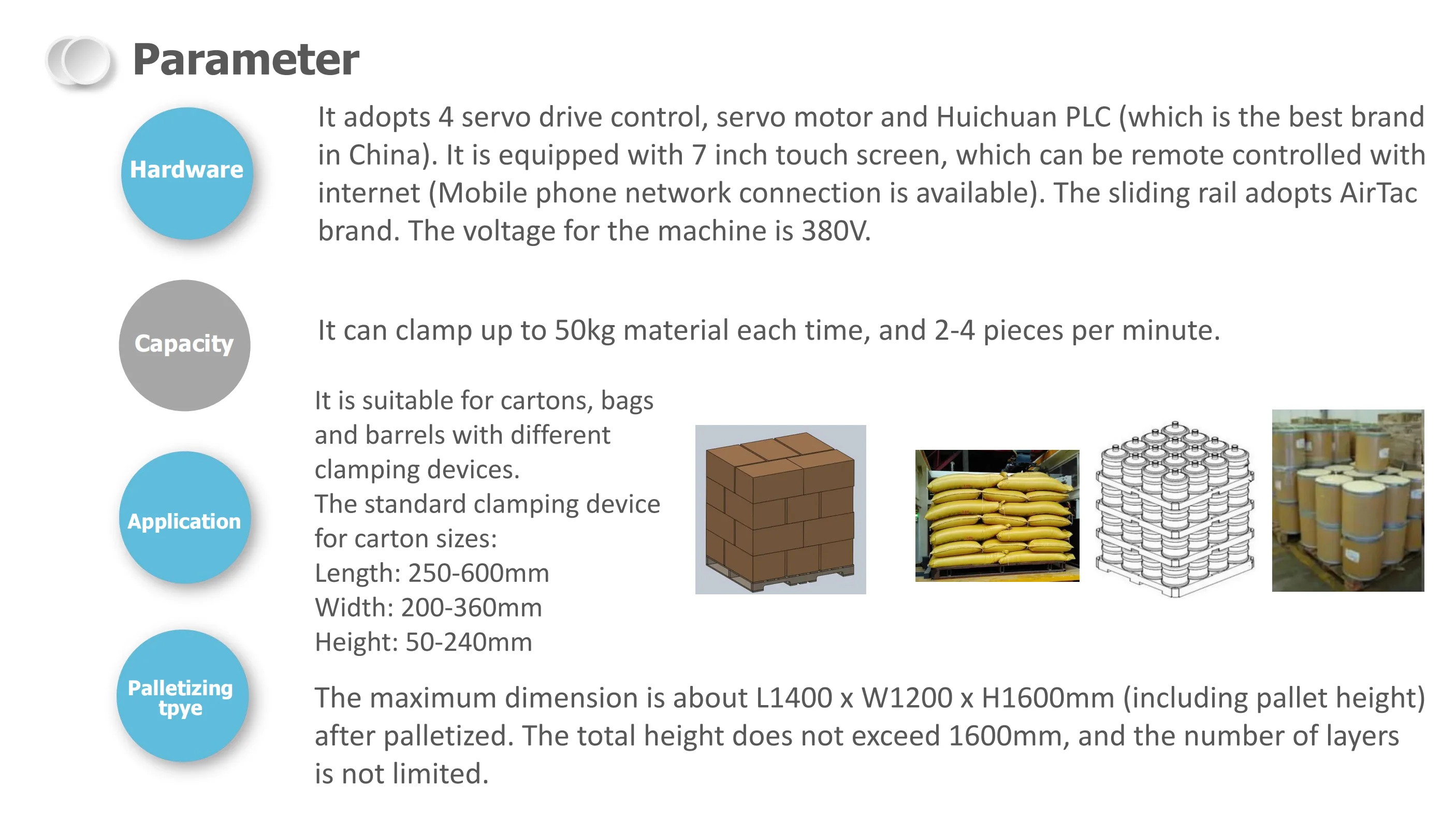

Technical parameters



Voltage	380V 50Hz/220V 60Hz
Total power	6KW
Gas source	0.5--0.7MPa
Gas consumption	20L/Min
Palletizing speed	3--5box,carton, bag/min.
lift up max. weight	1--50KG/box,carton, bag
Movement height of fixture	0--1550mm
Range of motion of fixture	1650 X 840mm
Palletizing layer	1--10 layers

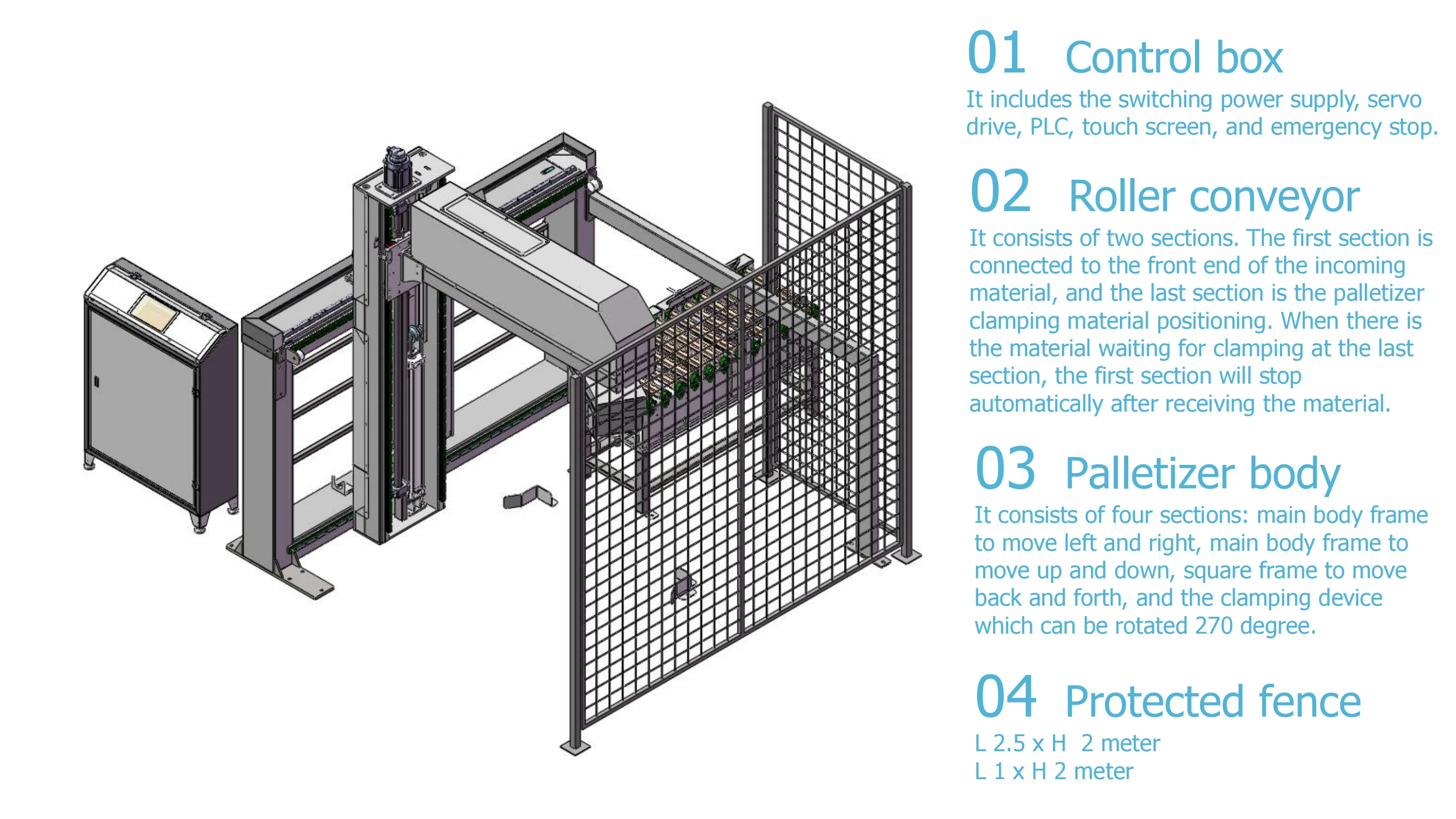

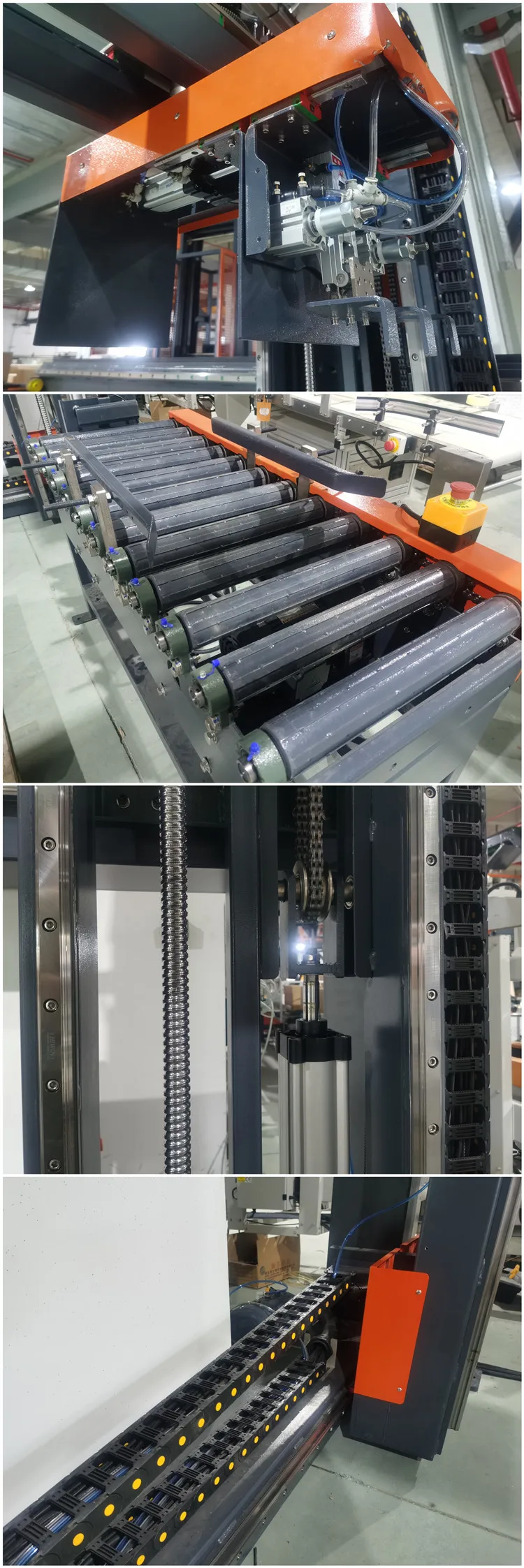

Detail images



Our Services

1. Specialize in packaging machinery and food conveying equipment, Focus machinery co., LTD.,is an integrated company with research and development, production, sales and service departments.

2. 8 Years of experience in conveyors and packaging machinery.

3. With research and development team, we welcome OEM and ODM orders.

4. Strict QC process to make sure each product with good quality.

5. Various equipments to meet your need.

6. Unique business philosophy brings reliable quality and considerate service.
