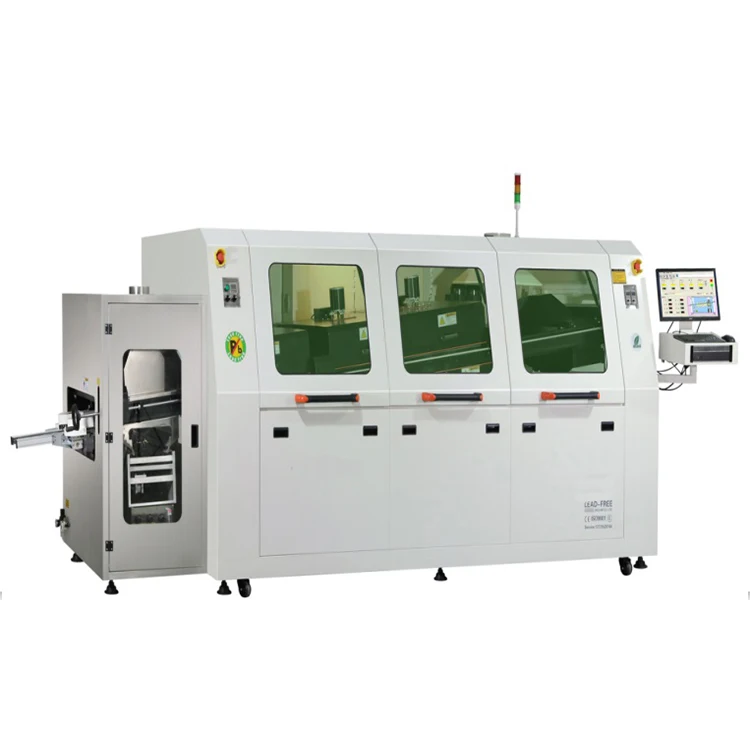

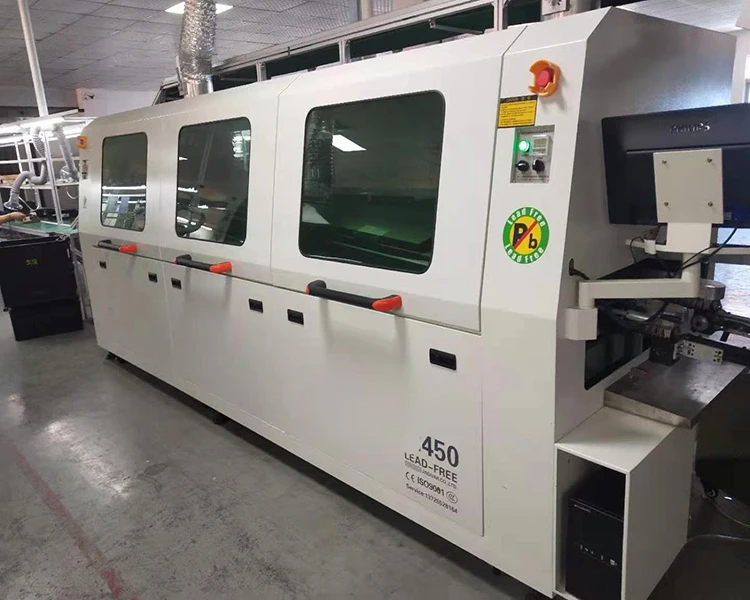

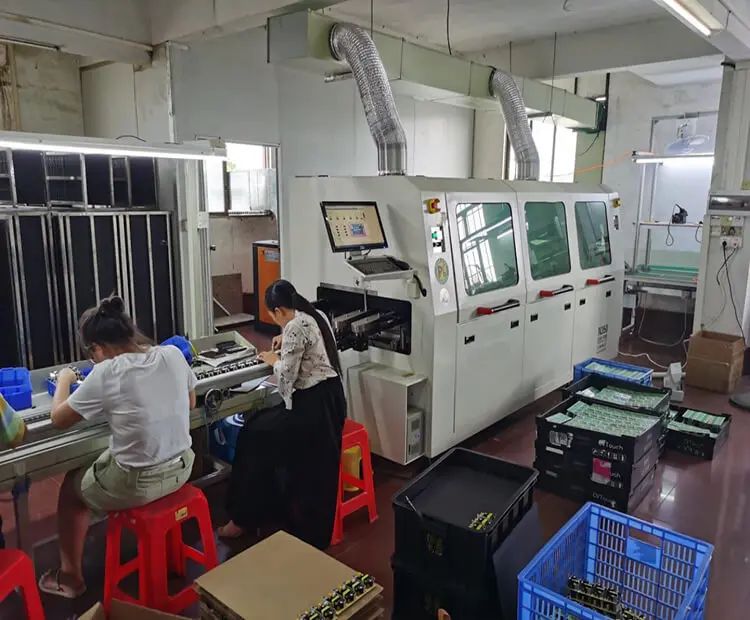

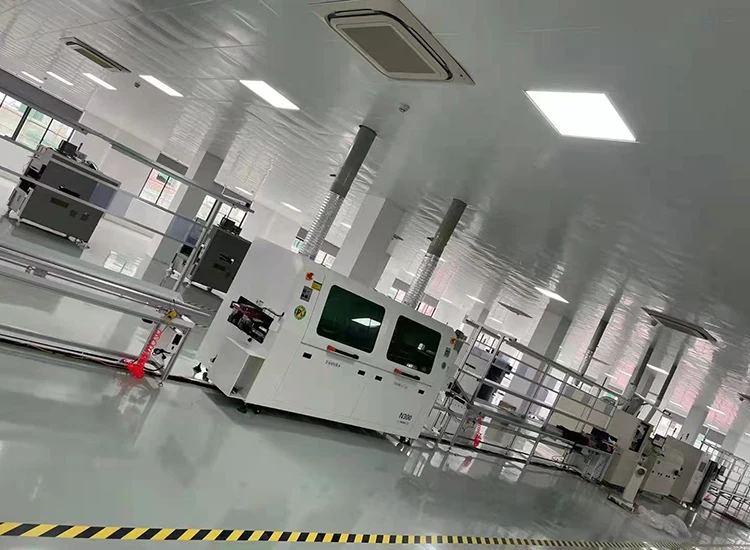

Dual Wave Soldering Machine 450 for LED driver, Dip line production line

General specification

Dimension;3900*1400*1560mm

Weight:Approximately:1100kg

Start Up Power:Approx 24KW

Normal running power :6-8 KW

Power supply :3ph,AC380V/220V 50HZ

Control systems:PC With Window 7+PLC

PCB counter

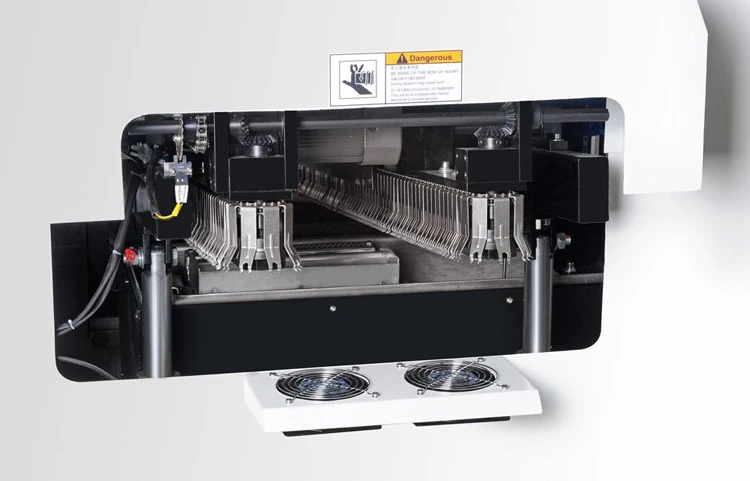

Conveyor systems

Direction: Left to Right ,Front Fix(R to L)

Titanium Alloy V shape Finger

300mm PCB loading buffer at entrance

Conveyor speed control method: Motor(Panasonic)

Conveyor speed:300-2000mm

Conveyor angle:4-7°

PCB Component Height”Top 120mm bottom:15mm

Spay Flux Systems

Stepper motor drive reciprocating Spray

7-UP ST-8 Nozzles

The capacity of Flux is 6.5/liter

Flux auto Feeding (Option)

Spary air pressure:3-5bar

Modular structure for easy maintenance

Heating system

Heating zones :Bottom 3 zones,

The Length of heating zones:1600mm

Heating method:Forces hot air /

Heating zones modularization easy to maintenance

Solder pot

The capacity of solder pot :320KG

Two wave :Turbulence Wave and Lambda 2^nd Wave

Materials :Titanium alloy (Op:Cast iron enamel)

Auto Solder Pot Moving (go in, go out ,up,down)

Cleaning Finger systems.
