Defond ARG 1215B P JKS34 85R SPDT 3 position hair dryer switch 10A 250 T85 5e4 15a 125vac 7.5a 250vac 3 way rocker switches

Share on (1600701918327):


Price:

Quantity:


Product Overview

Description





Product Description

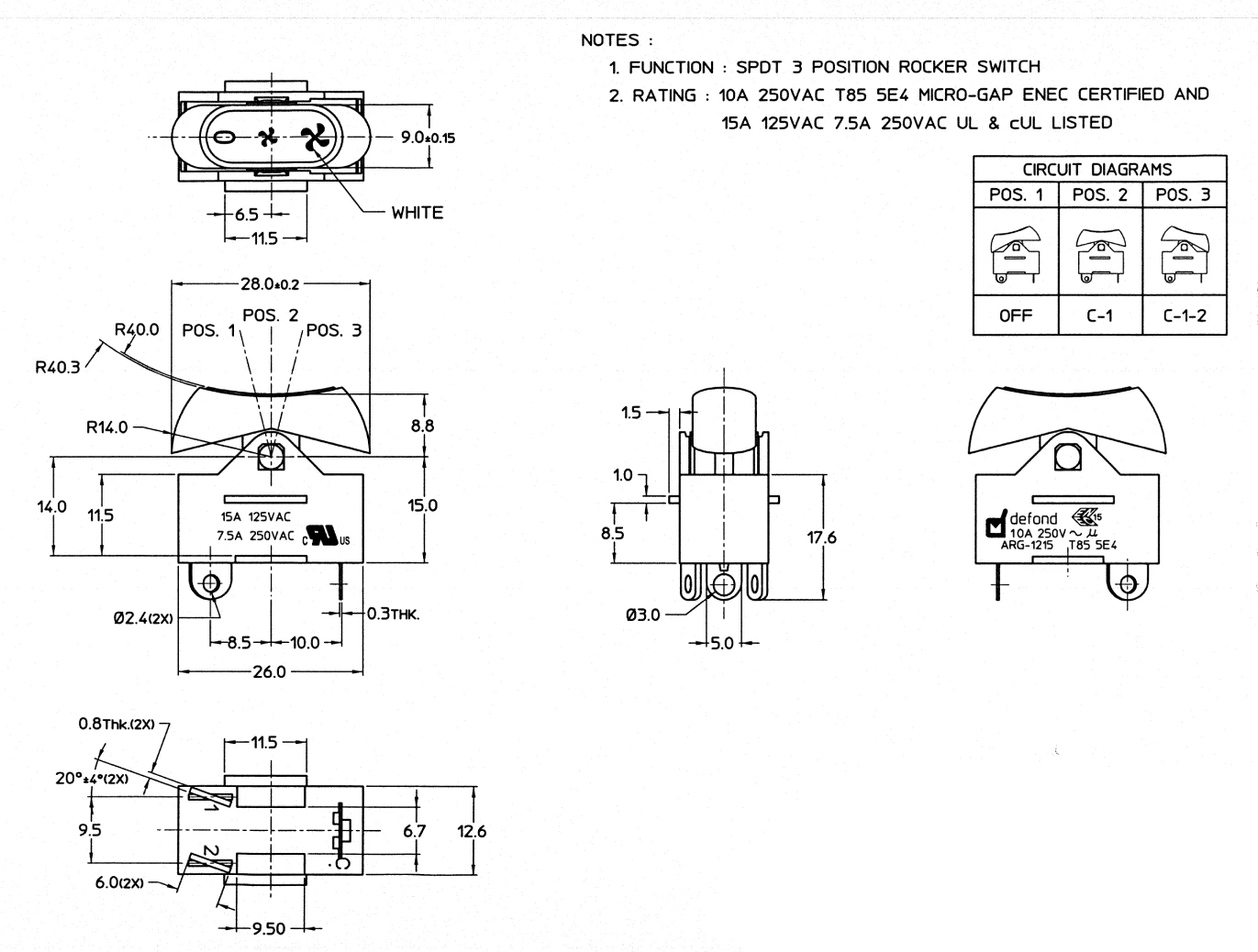

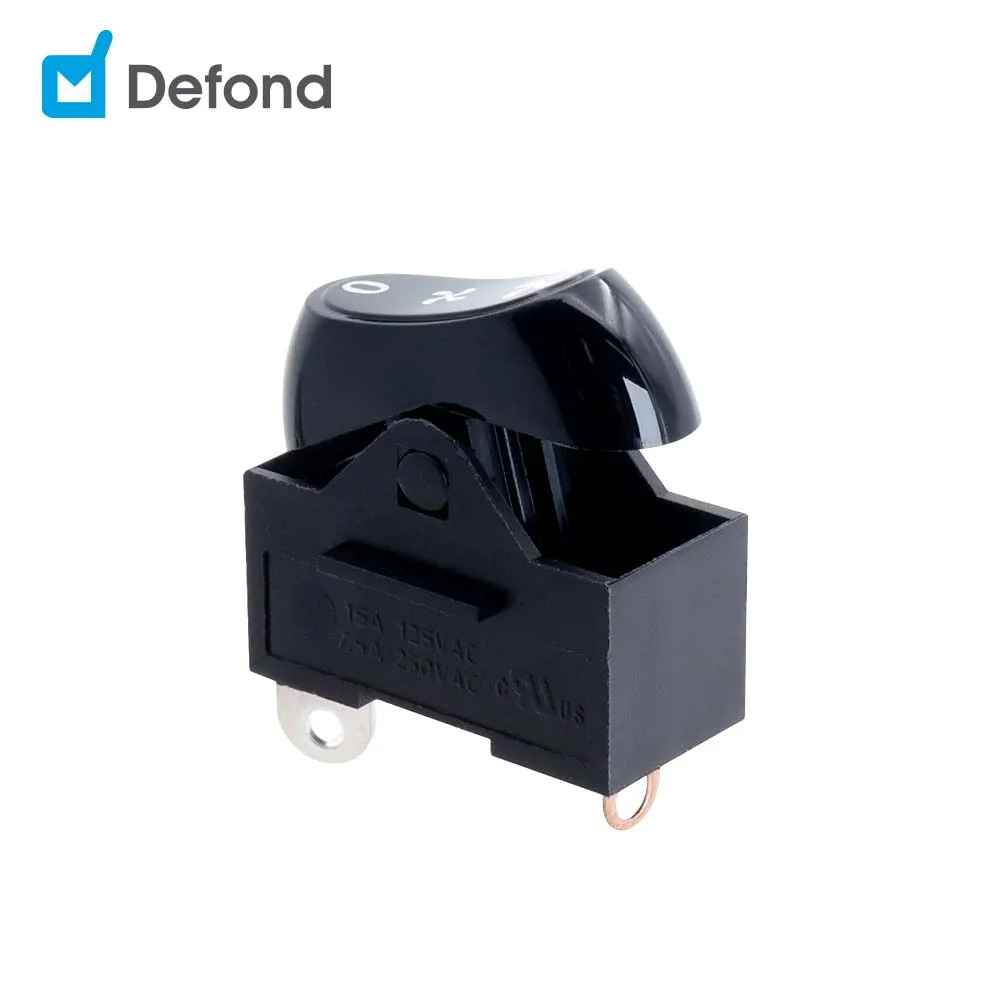

Defond ARG-1215B-P-JKS34-85R SPDT 3 position hair dryer switch 10A 250 T85 5e4 15a 125vac 7.5a 250vac 3 way rocker switches









With the large load, multi-range circuit selection and operating force, Defond rocker switches are designed to use as main power switch on various electrical appliances. Defond offers a large variety of colors and markings, as well as terminal shapes.








Features:




-Withstand high load, 50000 times of life expectancy
-Variety of knob shapes and colors
-Single or double poles with multi-circuits options












Applications:




-Beautycare appliances: Hair dryer

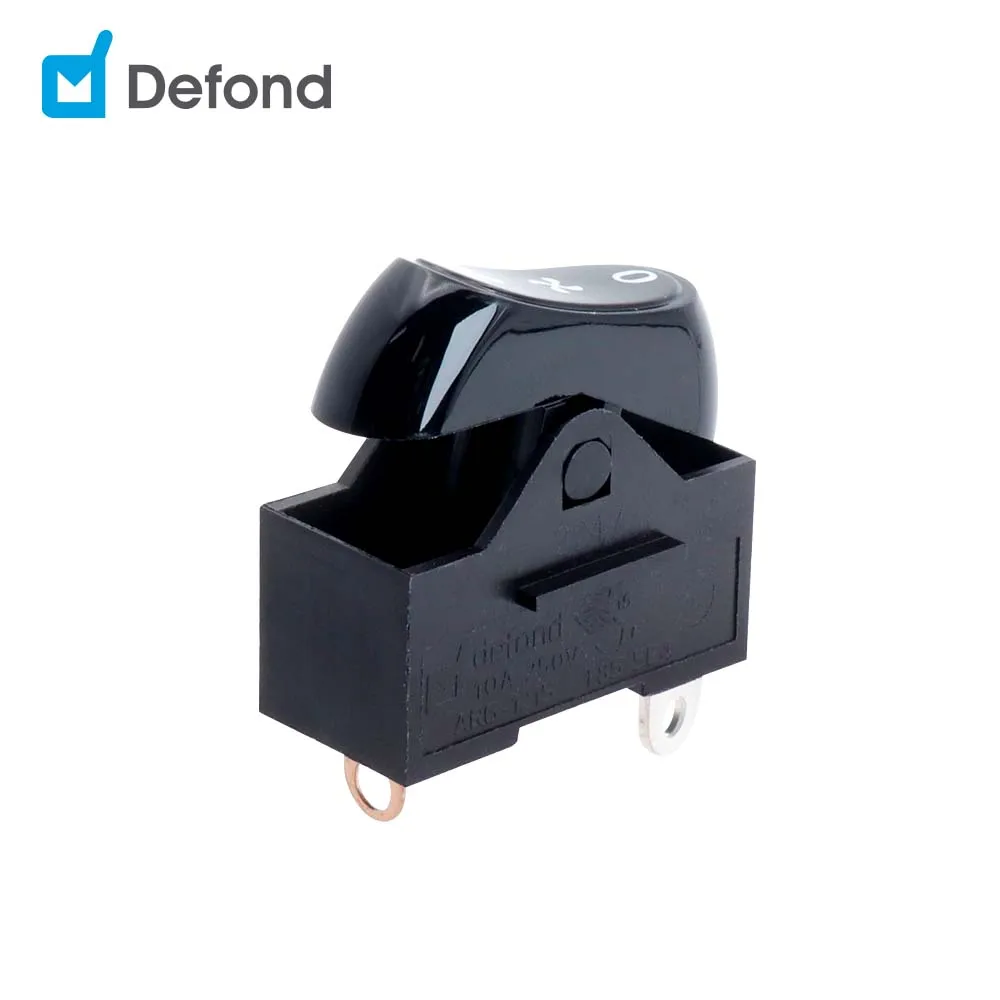

APG-1104-R-AAA21-01R-4






























































































item


value


Certification


UL1054, ENEC


Whether the smart


NO


Place of Origin


China


Guangdong


Brand Name


Defond


Model Number


ARG-1215B-P-JKS34-85R


Max. Current


15A, 7.5A, 10A


Max. Voltage


125VAC, 250VAC


Mechanical Life


UL1054: 6000  ENEC: 50000


Protection Level


IP00


Size


26mmx12.6mmx15mm


Operating force (range)


0.35-1.4Kgf


Insulation resistance


50M ohm Min.


Contact resistance


50m Ohm Max.


LED


No


Environmental temperature


UL1054: 0-65℃ ENEC: 0-85℃


Conductive material


Silver alloy


Pole


1


Throw


2








ARG-1215B-P-JKS34-85R

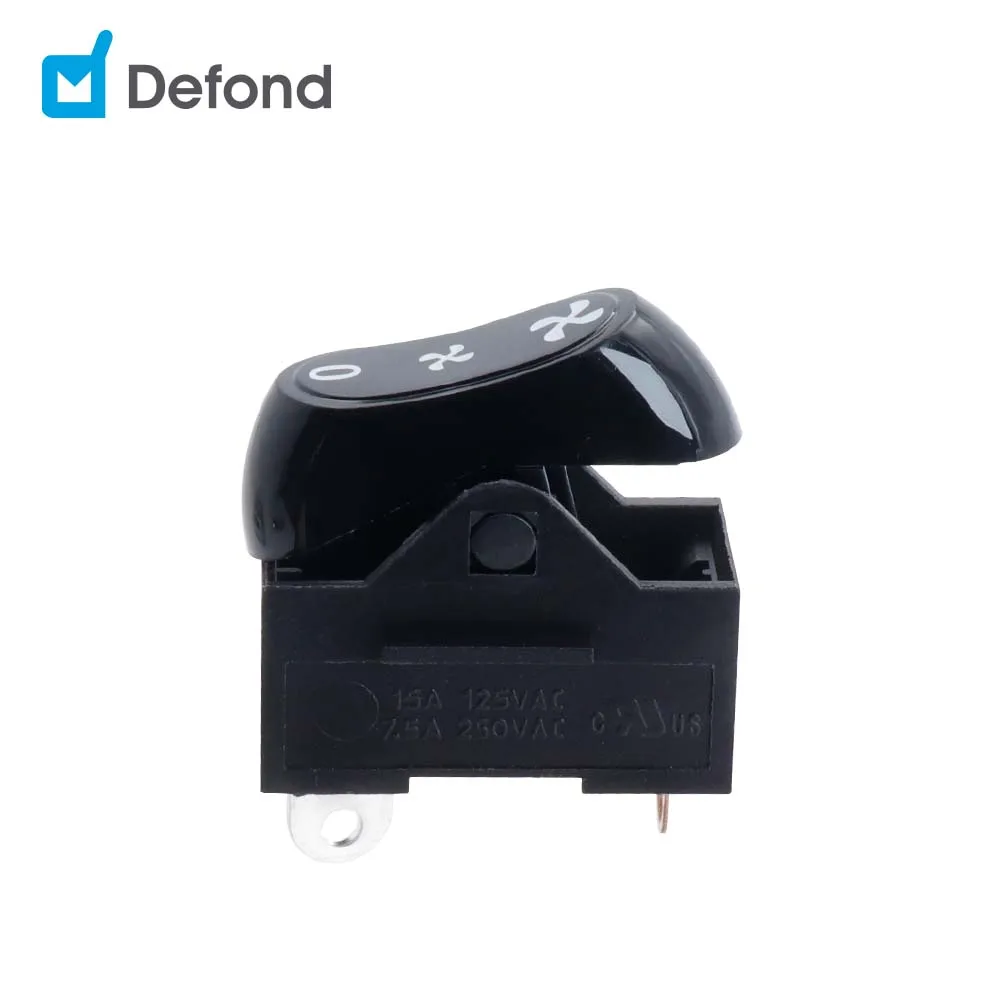

ARG-1215B-P-JKS34-85R-3

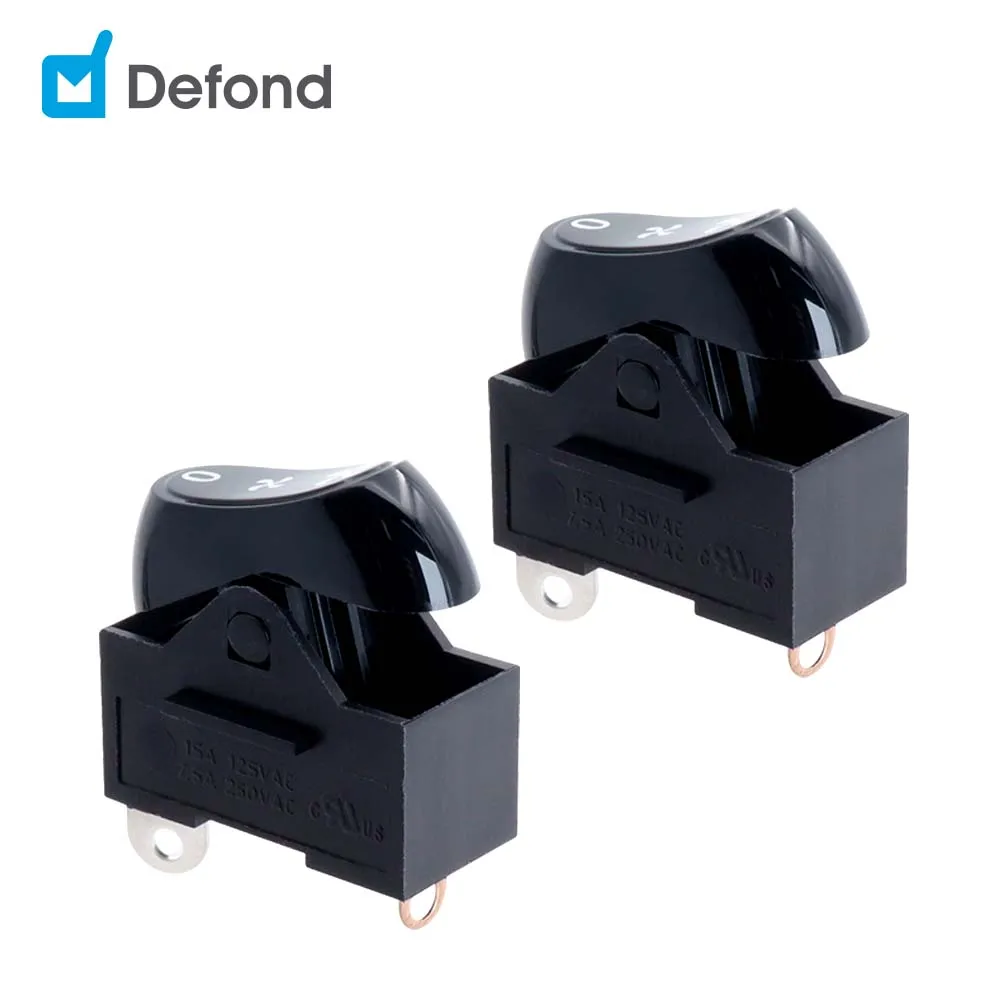

APG-1104-R-AAA21-01R-5




Company Profile
















Founded in 1978



Our parent company was founded in 1978 as a switch manufacturer in Hong Kong, the Defond brand has achieved global recognition in various sectors.
Over four decades later, we continue to facilitate our customers’ innovation and production across the world with a wide range of integration solutions, enabling our customers to keep ahead of the competition.









What we do



Engineering expertise, flexible approach and solid financial position.
Provide customers with total solution from initial design to manufacturing. We offer original design, co-development and manufacturing services of specialized switch and sensor based components and modules with top-notch engineering support, rapid prototyping and efficient manufacturing with superior quality and much more.
