Product Overview
Description
What is shell and tube heat exchanger(condenser)?
Tube exchanger is the equipment that can transfer certain heat from the thermal fluid to the cold fluid. It is the essential equipment to achieve the heat exchange and transfer during the production process.Tube heat exchanger is a high-efficiency heat exchanger suitable for steam-steam, steam-liquid and liquid-liquid heat transfer.
Tube exchanger is the equipment that can transfer certain heat from the thermal fluid to the cold fluid. It is the essential equipment to achieve the heat exchange and transfer during the production process.Tube heat exchanger is a high-efficiency heat exchanger suitable for steam-steam, steam-liquid and liquid-liquid heat transfer.
Specification for tube heat exchanger（condenser） | ||
Product name | Industrial Water Cooled Condenser Shell And Tube Heat Exchanger Equipment | |
Shell material | SS 304, 316L, duplex steel 2205, 2507, carbon steel , pure titanium, zirconium, Hastelloy , etc. | |
Tube material | 316L | |
Tube type | Spiral wound tube/parallel tube/U type tube | |
Tube diameter | φ8, φ10, φ12, φ14, φ16, φ19 ,φ25 etc | |
Tube thickness | 0.8-2mm | |
Heat exchanger area | 0.1-1000square meter (customized) | |
Max. working pressure | 4 MPa (customized) | |
Max. temperature | 300 degree celsius (customized) | |
Installation type | Horizontal/Vertical | |
Carried standard | Our national standard, GBT151-2014 | |
We are the first spiral wound tube heat exchanger manufacturer in China domestic. The spiral wound heat exchanger can greatly improve the solvent recovery rate (can reach 98%) and reduce its production cost, so as to improve the market competitiveness of enterprise products.
Features of our heat exchanger
* High heat transfer coefficient good heat transfer effect
The spiral winding structure enhances the heat transfer effect. The heat transfer ability is 3-5 times greater than the conventional heat exchanger. The maximum heat transfer coefficient is up to 14000w/m2·℃.The tube is 3~4 times of the shell side, increasing its heat exchange area.
Made of stainless steel material , high temperature resistance 400℃, high pressure resistance 1.6Mpa corrosion resistance, service life 20 years;
90-degree angle connection, no stagnation area, reducing fouling generation.
Small size and light weight, easy to install

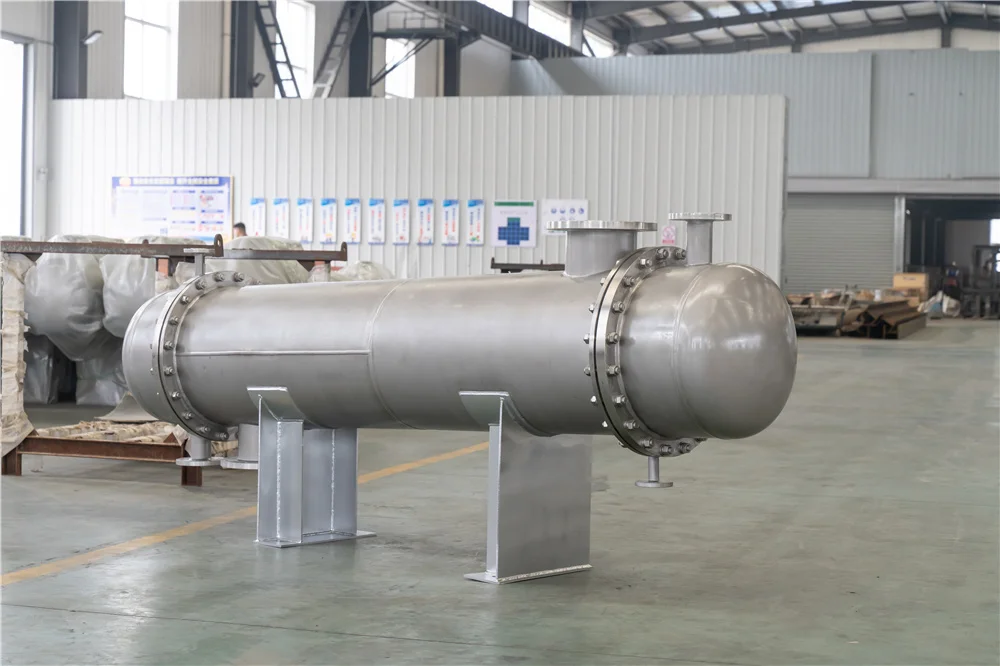

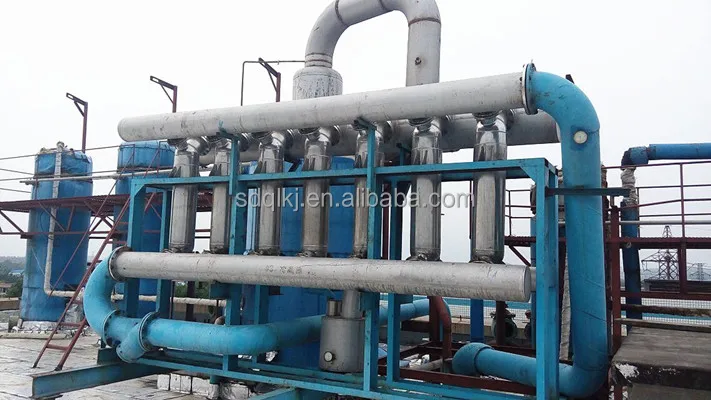

Products photos
You can tell me your need (medium, inlet/outlet temperature, working pressure, flow quantity etc) or send me the drawing,We can design and manufacture all types of tubular heat exchanger to order based on your requirements or select from our stock range of products.We will work together with you to develop a solution that meets your needs.
They are used as:.
Tubular heat exchanger are widely using in heating and cooling treatment of materials during production in food,
beverage,pharmacy,chemical industry, etc, the tube heat exchanger could be designed and produced according to customer's various requirements.different materials, size accepted.They are widely distributed in industry, being useful for condensers, turbine coolers, evaporators, feed water preheating, and much more.
beverage,pharmacy,chemical industry, etc, the tube heat exchanger could be designed and produced according to customer's various requirements.different materials, size accepted.They are widely distributed in industry, being useful for condensers, turbine coolers, evaporators, feed water preheating, and much more.

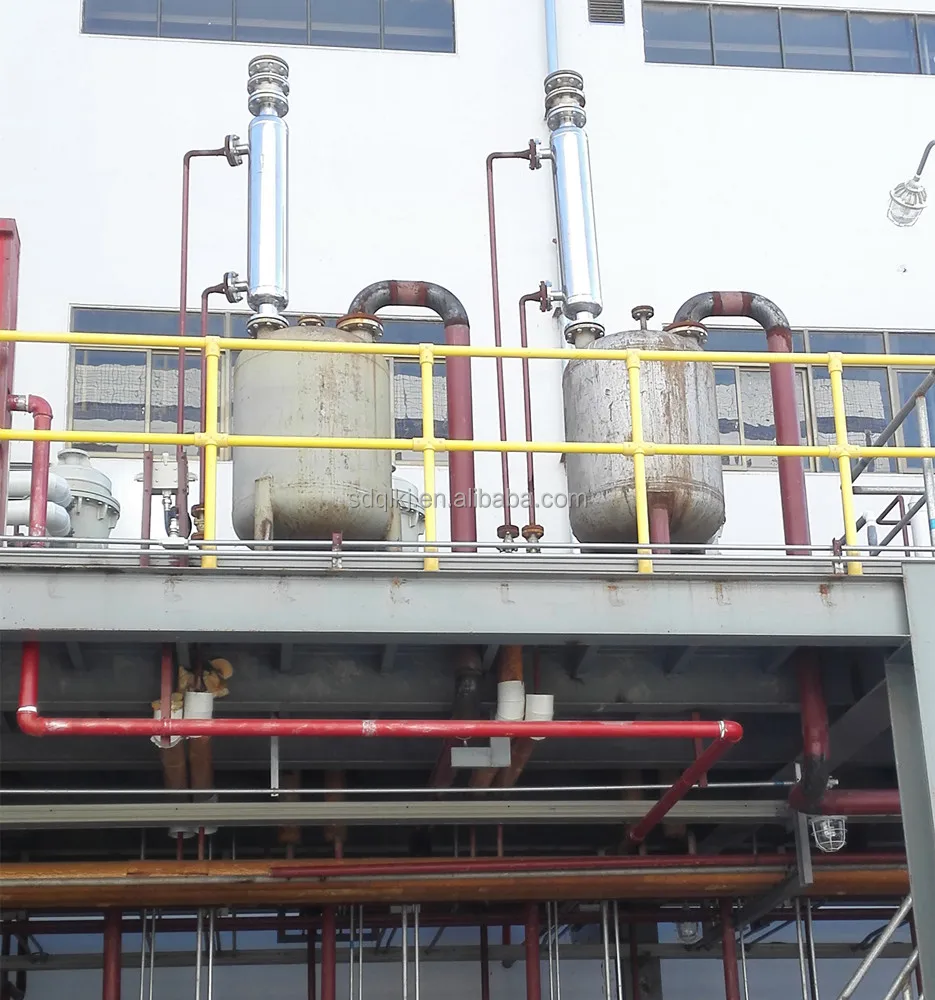

*High Efficiency Reflux Condenser
It can be used in Reaction kettle for condensing organic matter like ethylene glycol. The condensed organic matterare alwayspurified and refused.
These heat exchangers are used to recycle organic exhaust gas from plant to protect environment.,

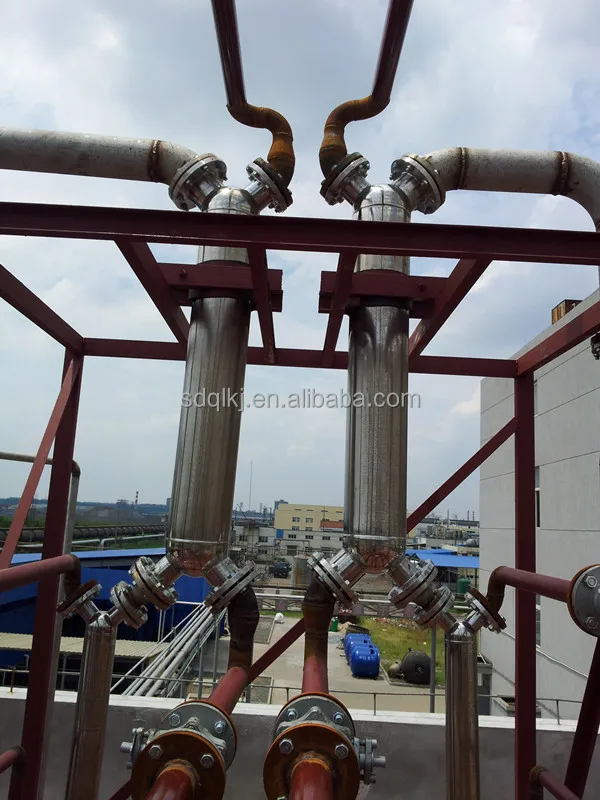

*Industrial Reboiler and Condenser
Our heat exchanger acts as the top condenser. Distillation is fine separation, generally in the raw materials, chemical industry
solvent recovery application, this recovery solvent requires high purity.
Our heat exchanger acts as the top condenser. Distillation is fine separation, generally in the raw materials, chemical industry
solvent recovery application, this recovery solvent requires high purity.
1.Are you manufacturer or trading company?
A: Yes,we are the professional heat exchanger manufacturer in China.
2.How could we confirm the details of the products?
A: Qinglei will provide the detail drawings for you to confirm.
3. How long the warranty will be?
A: 1 Year warranty.
4.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity, or any requirements in size.
A: Yes,we are the professional heat exchanger manufacturer in China.
2.How could we confirm the details of the products?
A: Qinglei will provide the detail drawings for you to confirm.
3. How long the warranty will be?
A: 1 Year warranty.
4.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity, or any requirements in size.
