Product Overview
Description
Product Overview

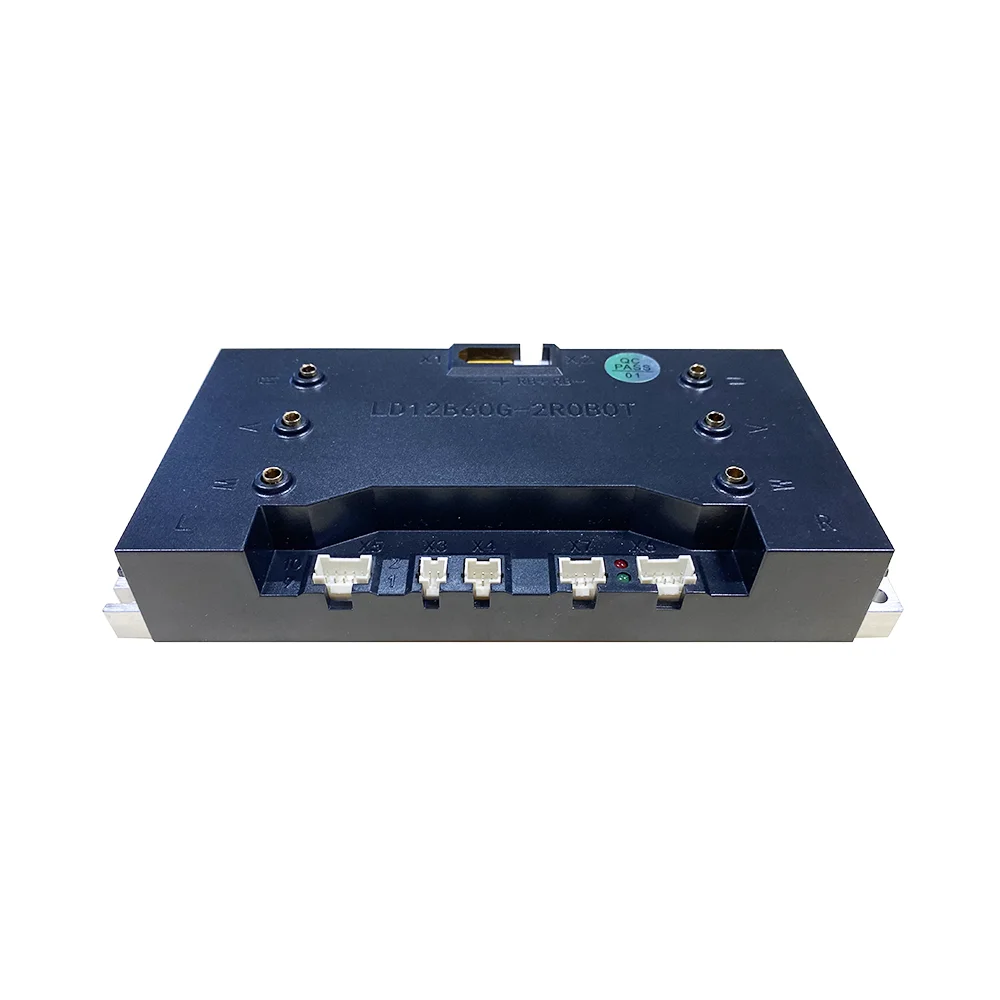

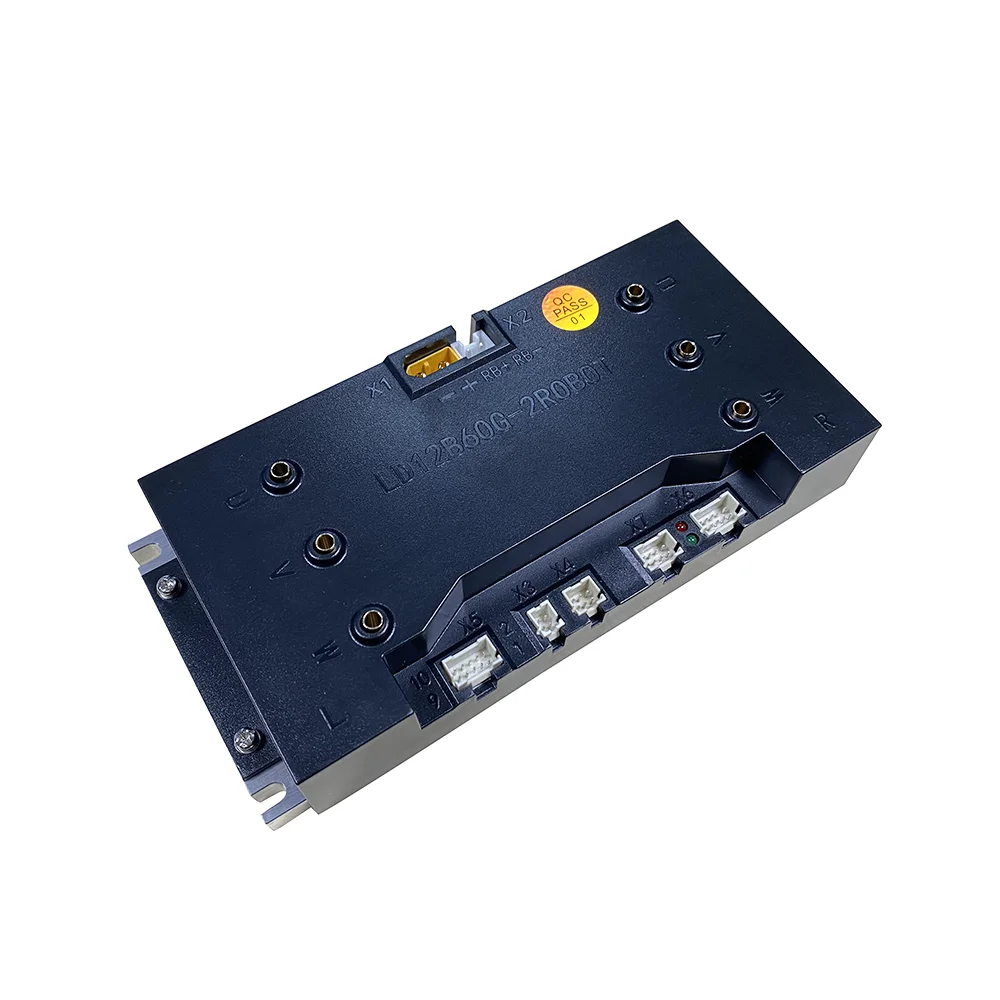

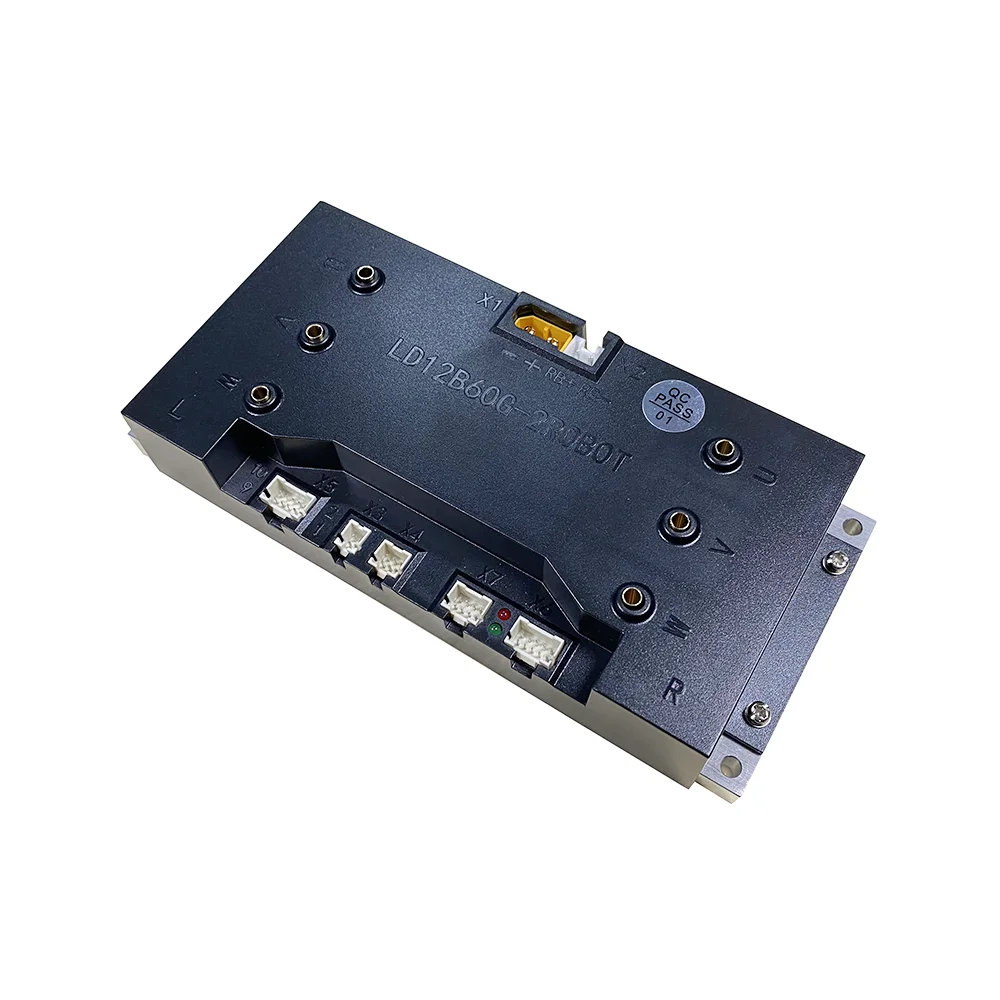

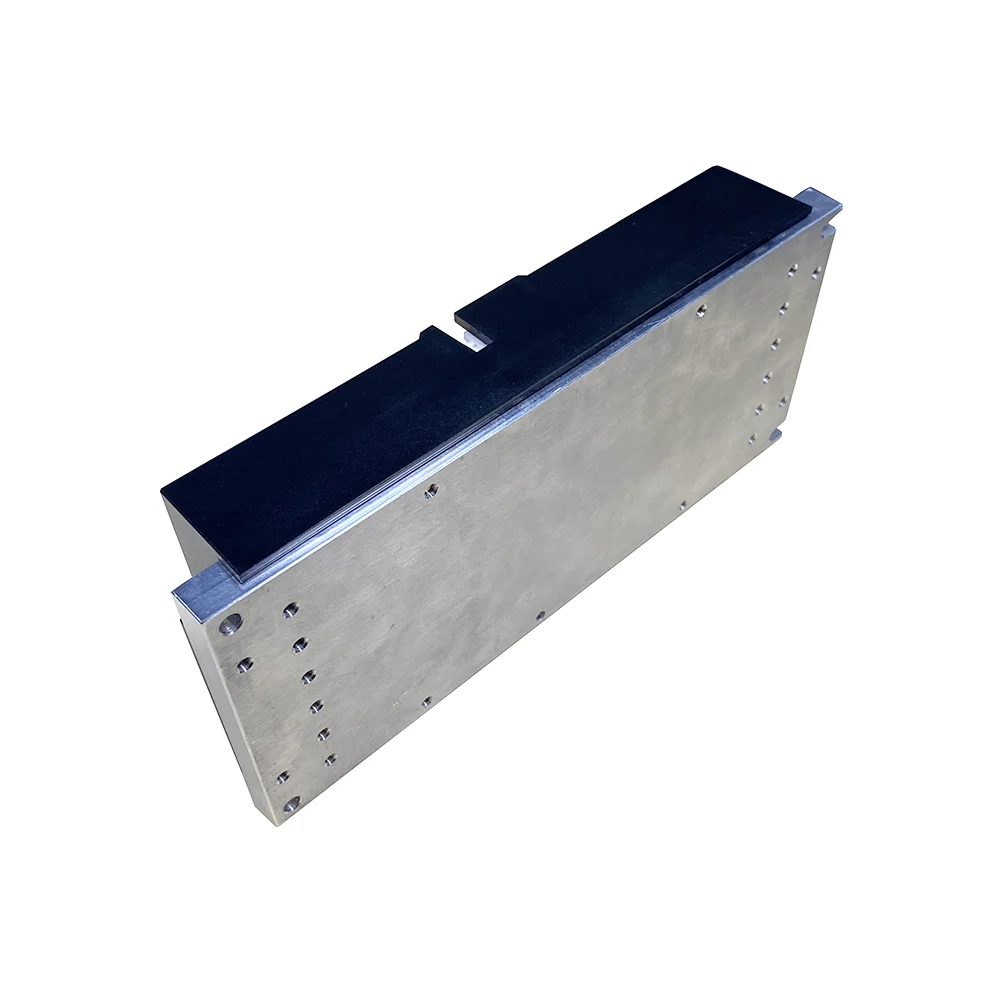

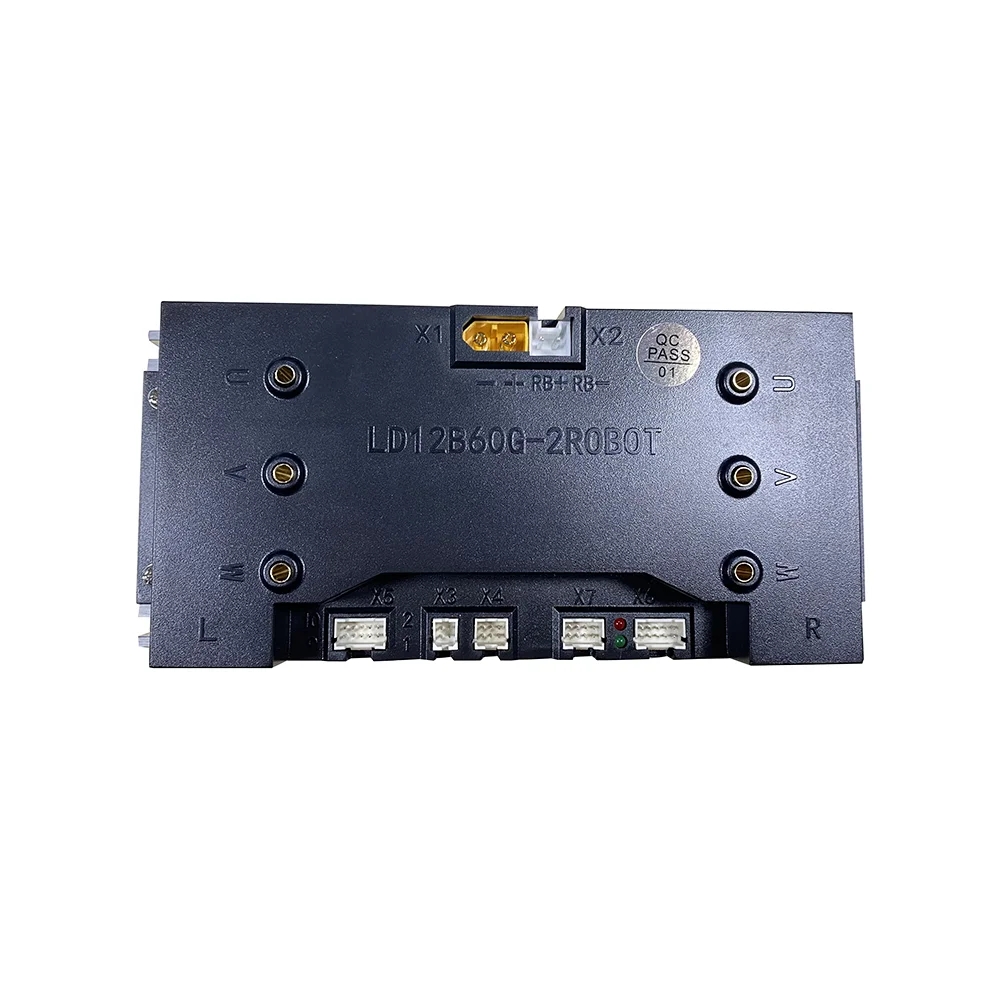

Dual Channel Motor Driver LD12B60G-2ROBOT
The LDS series DC servo motor driver combines cutting-edge motor control and modern, precise sensing technology to produce a high-performance DC motor driver. High current products ranging from 5A to 200A with input voltages ranging from 12v to 96v are also available. Mobile carts, service robots, wearable exoskeleton robots, and other goods all make extensive use of this product.
PRODUCT SPECIFICATIONS
Model | LDS12B60G-2ROBOT |
Dimensions | 185*85*33 (unit: mm) |
Weight | / |
Rated current (RMS) | 12A±5% |
Max. current (RMS) | 26A±5% |
Max. overload time | 30S |
Overload recovery time | 90S (without external cooling) |
Limit power supply range | 16～60 VDC |
Temperature rise | Rated current operation 30min≤40K |
Drive frequency | 16KHz ±0.1 KHz |
Rated insulation withstand voltage | Input and output DC 1000V leakage current to the enclosure less than 3mA. |
Insulation resistance of the whole machine | ≥1M at 40° temperature and 95% humidity (no dew on board) |
Mean time between failures (MTBF) | ≥5000 hours |
Power control mode | Vector control |
Protection level | Bare board, no protection level |
Cooling method | Natural cooling |

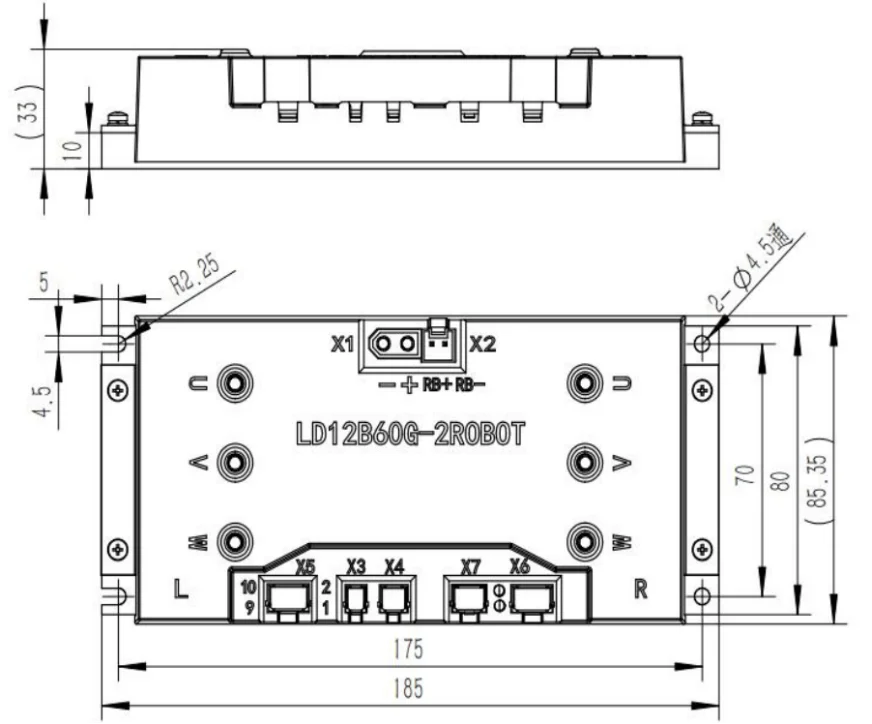

Dimension
Advantages
PID Regulation Technology
It can perfectly control the smooth forward and reverse rotation, commutation and braking of the motor,
Real-time Control of Output Current
Prevent overcurrent, precisely control motor speed and rotation position,
Motor Response Time
It is short and the recoil force is small.

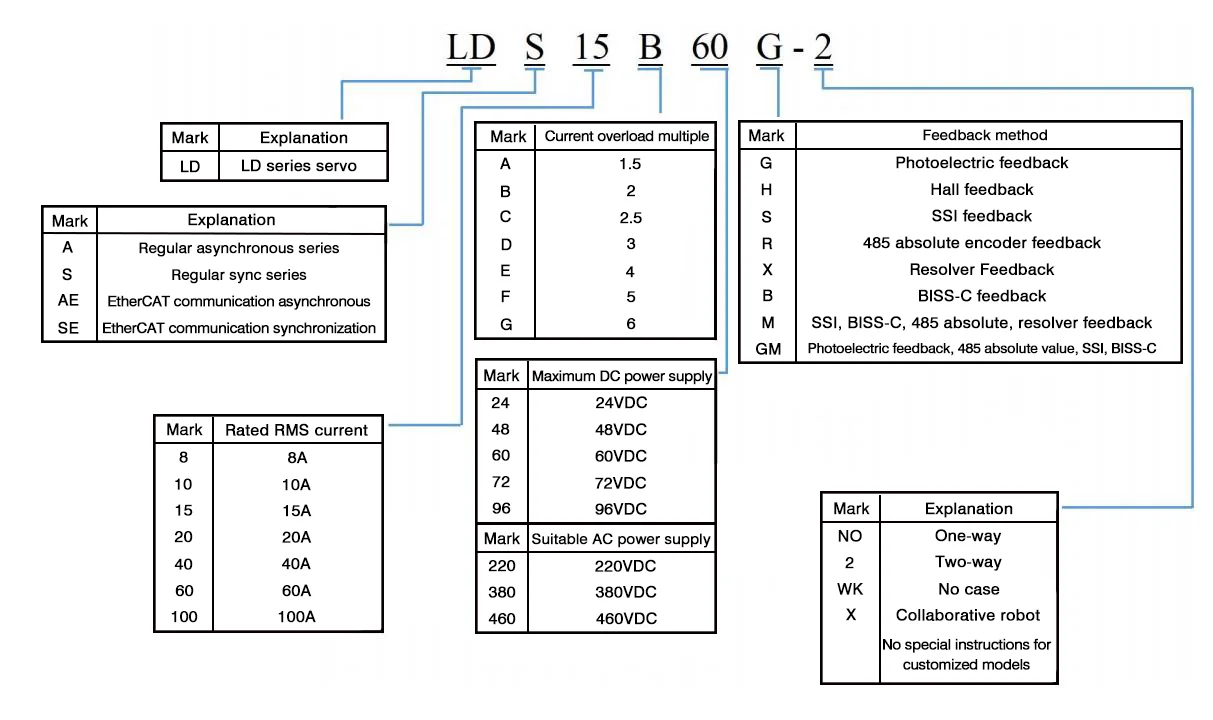

Structure Diagram
Company Profile
Zhejiang Tongzhu Technology Co., Ltd founded 2015, in ZHEJIANG designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, Pu wheel, motor in wheel units and all over the world.
TZBOT continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.
The factory, is 1000 sq. feet, and employs 50 people. The company is certified to ISO9001:2015.
The core to TZBOT's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. TZBOT has come to be recognized as one of the biggest suppliers of electric drive.
Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.
Today, TZBOT can quickly design and produce engines and special parts request from customers.
TZBOT's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
Certifications
FAQ
Q: Payment
A: Our payment is T/T, Paypal, West Union, Trade Assurance(Ali pay or E-check), L/C and D/P
Q: MOQ
A: Almost items on our website are in stock. The MOQ is $100-$500 per price list. The MOQ is different base on different items.
Q: Delivery Time
A: The usual delivery time of our stock item is 2-5 working days. If your order include over 10 different series lists, or in busy season, we need more time, and will confirm with you before make invoice. The delivery time of OEM/ODM order is 15-40 days. It based on different items and artworks.
Q: Transport/Shipment Time
A: The shipment is 3-7 days by express, 3-4 days by air, 15-35 days by sea. Feel free to let us know your delivery destination for learning the exact transport time.
