Product Overview
Description
PRODUCT DESCRIPTION
How the furnace working ?
The intermediate frequency melting furnace is mainly composed of a power supply, an furnace body with a induction coil and a crucible. Iron will be put in the crucible built with refractory cement. After turned on power, an alternating magnetic field is generated in the induction coil, and then a induced eddy current is created to heat and melt iron.
Parameters | Unite | Datas | ||
rated capacity | t | 1.5 | ||
max capacity | t | 1.8 | ||
highest temperature | ºC | 1800 | ||
transformer capacity | KVA | 1250 | ||
rated power | KW | 1000 | ||
rated input current | A | 1600 | ||
rated input voltage | V | 380 | ||
IF voltage | V | 750 | ||
startup success rate | % | 100 | ||
rated working frequency | KHZ | 0.5-1 | ||
working noise | db | ≤75 | ||
melting rate | T/h | 1.5 | ||
power consumption | KW.h/T | 550-600 | ||
water consumption | T/h | 50 | ||
Power parameters can be customized according to your pratical need. | ||||

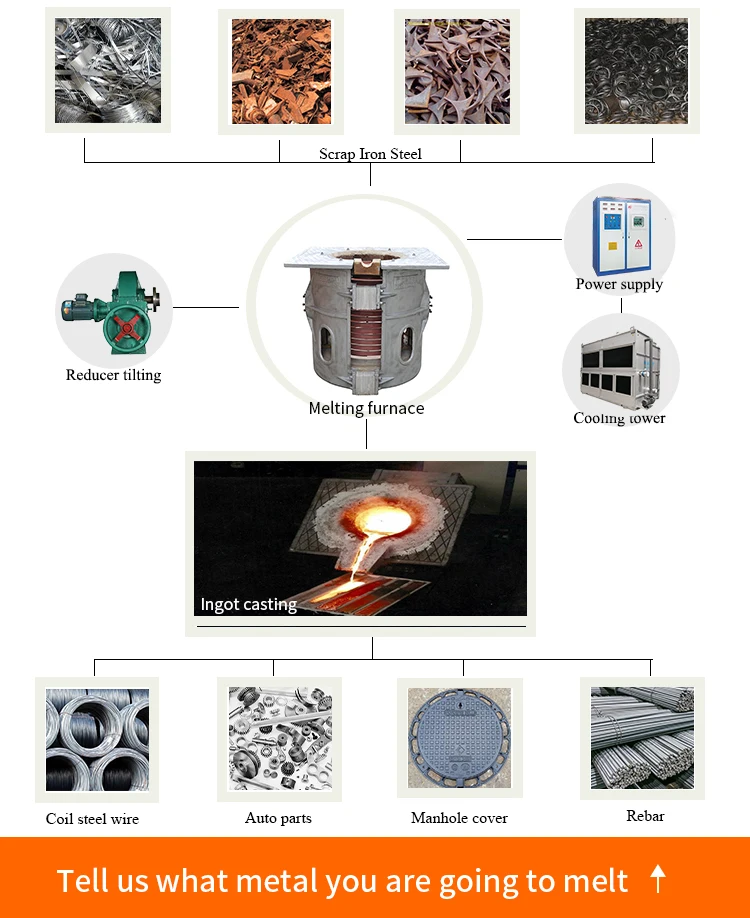

Whole set display
DETAILS DISPLAY

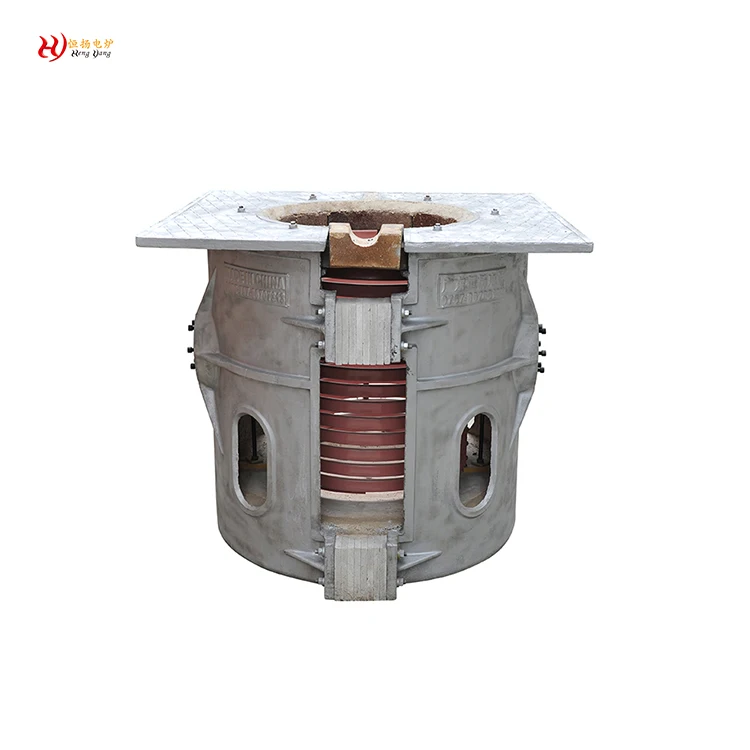

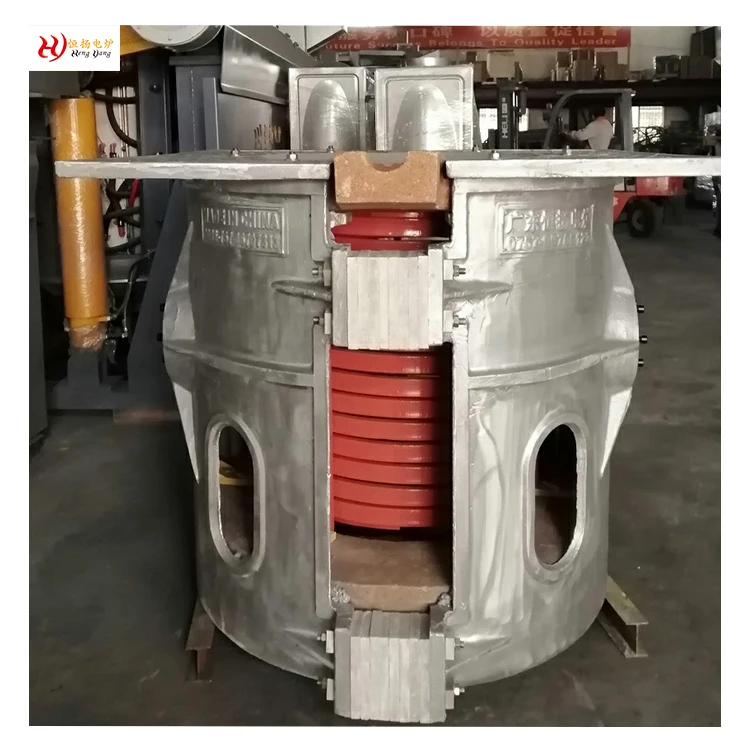

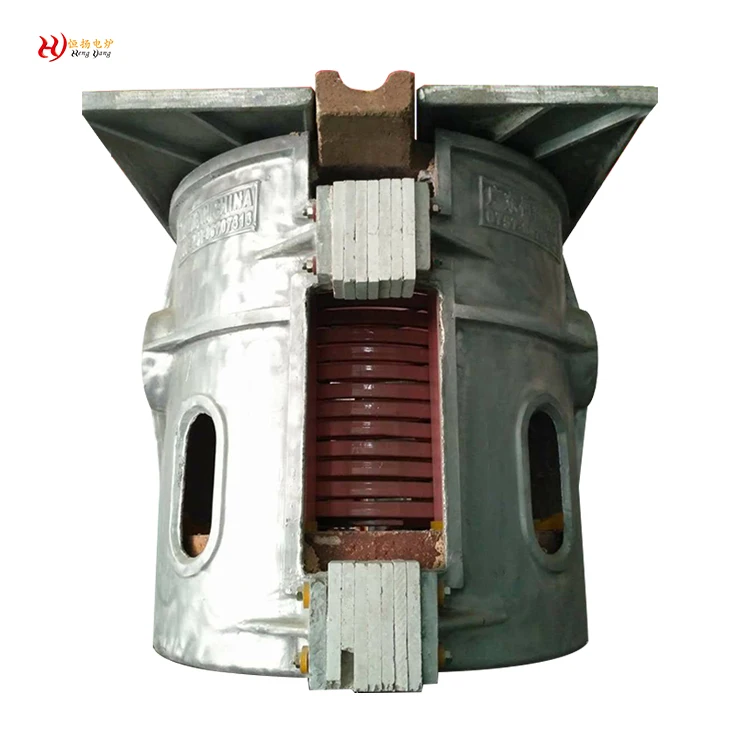

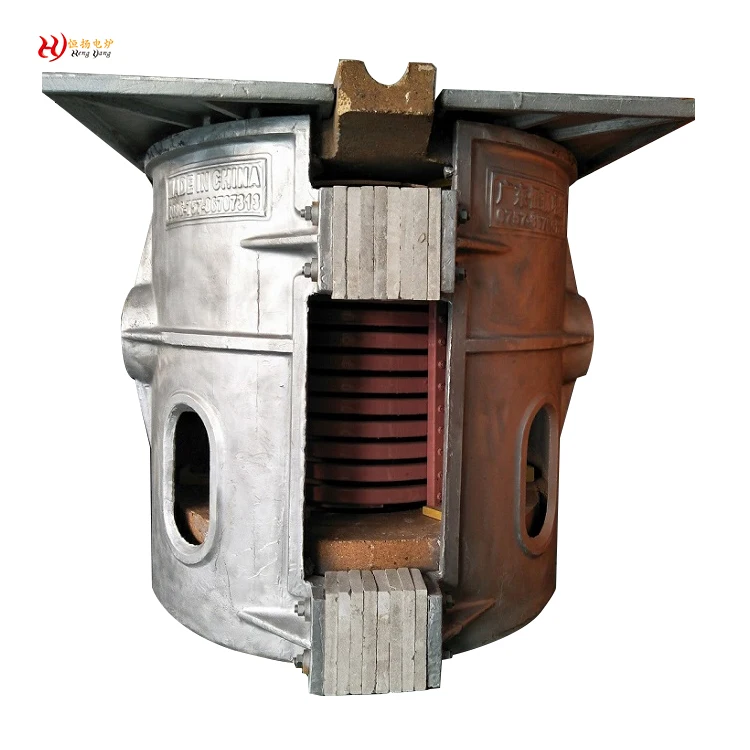

Good quality aluminium shell
The aluminum shell furnace is made of die-casting alloy aluminum plates of high quality. It is light in weight and easy to
install, even a simple welded steel structure can support it for melting.
install, even a simple welded steel structure can support it for melting.

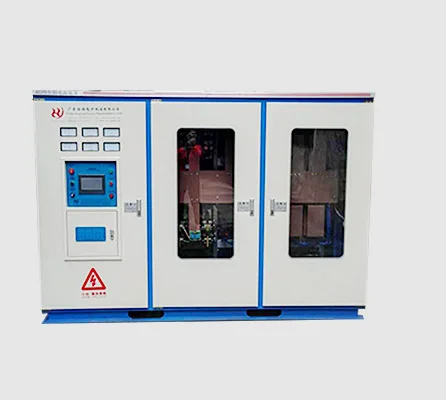

Power supply cabinet
The utility model has obvious energy saving effect,and the energy saving is 20% compared with the ordinary equipment.Can realize two furnaces to share a power cabinet.High utilization rate of transformer Two furnaces
can be poured at the same time, also can provide molten steel continuously.Any power distribution, starting rate of 100%
can be poured at the same time, also can provide molten steel continuously.Any power distribution, starting rate of 100%

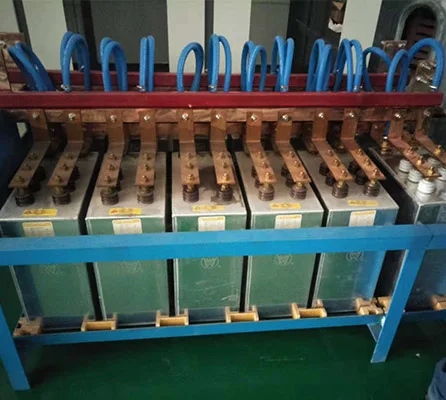

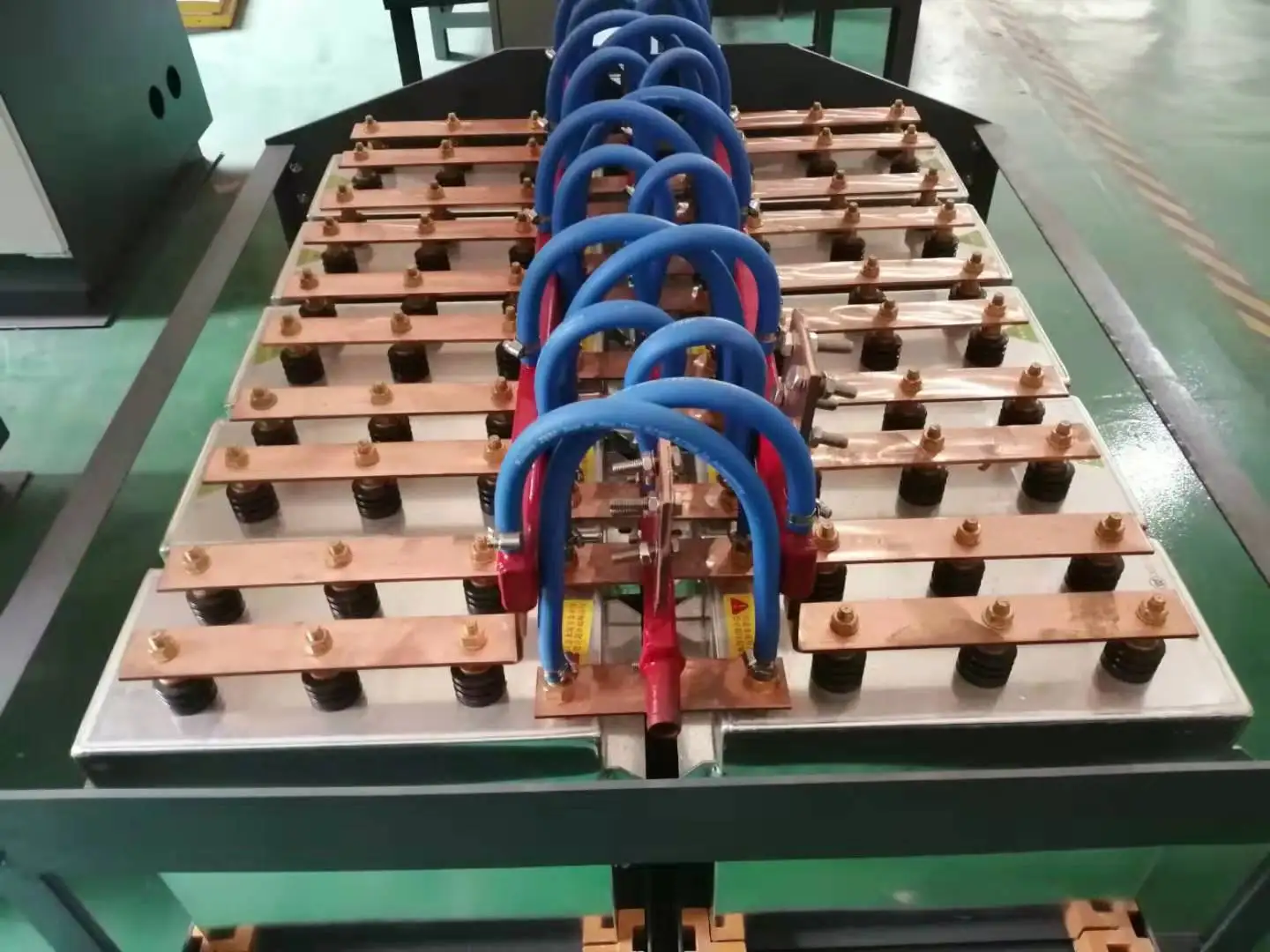

Capacitance ark
Low energy consumption.Save raw materials to ensure quality and capacity easy maintenance, safety and stability

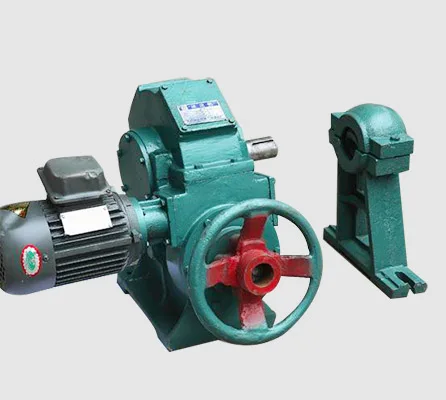

Double tilting way
Reducer is used to control the rotation of the furnace body for pouring.There are two furnace tilting methods, electric tilting
furnace and manual tilting furnace, even if the power is cut off, it will not affect the normal dumping of the furnace.
furnace and manual tilting furnace, even if the power is cut off, it will not affect the normal dumping of the furnace.
2. Pure copper induction coil

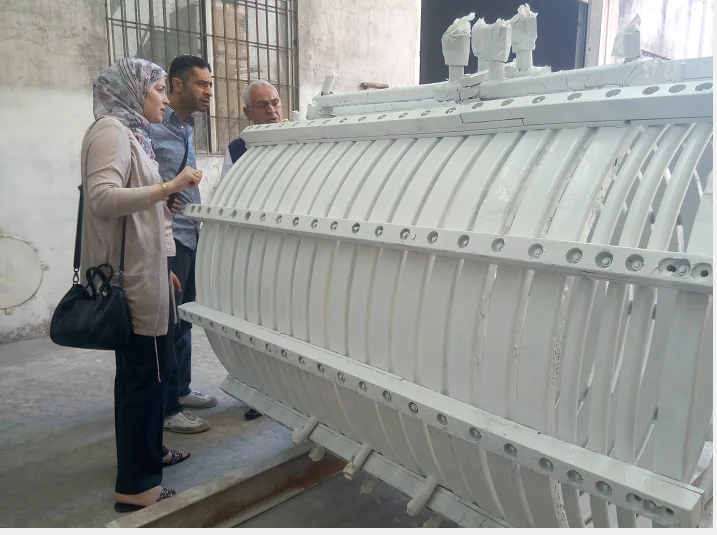

FACTORY VISITING

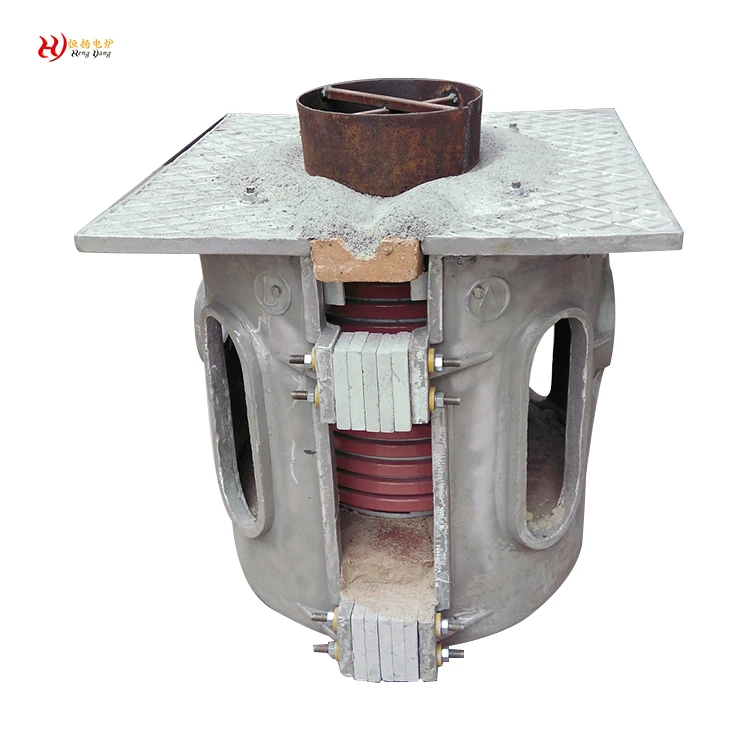

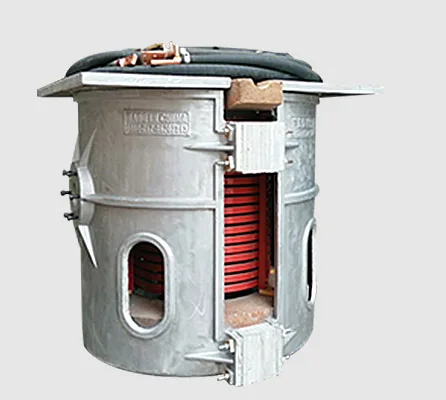

Aluminium shell furnace features
The aluminum shell furnace is made of die-casting alloy aluminum plates. It is easy to operate and maintain and observe. The service life is 8-10 years. Comparing with steel shell furnaces, there is no yoke, lining ejection mechanism and refractory mortar layer. Its maximum capacity is 5 tons.Its hot-sale capacity is less than 2 tons.

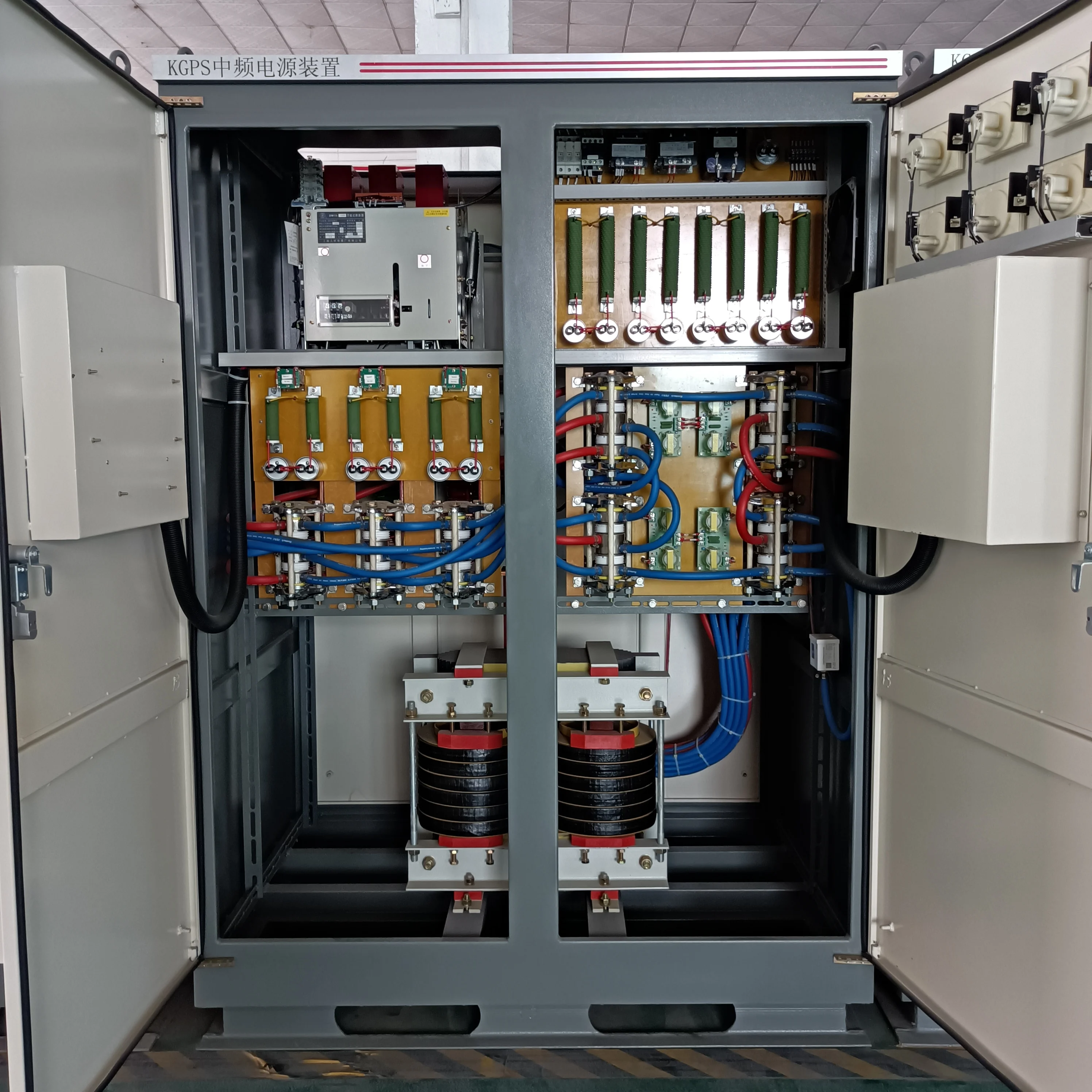

Power supply cabinet
Power supply cabinet is the most important part of melting furnace. The following pictures are about the power supply for 50kg-2000kg metal melting furnace. You will be benifit by our high quality products and good after-sale service.
1. All the thyristors and diodes are purchased from brand-name Chinese company-TECHSEM Group.
2. The copper bar is sandblased, passivated, being in line with standard.
3. The frame of the power supply cabinet is made of high strength cold rooled steel plate, being safe and strongth.
3. The frame of the power supply cabinet is made of high strength cold rooled steel plate, being safe and strongth.

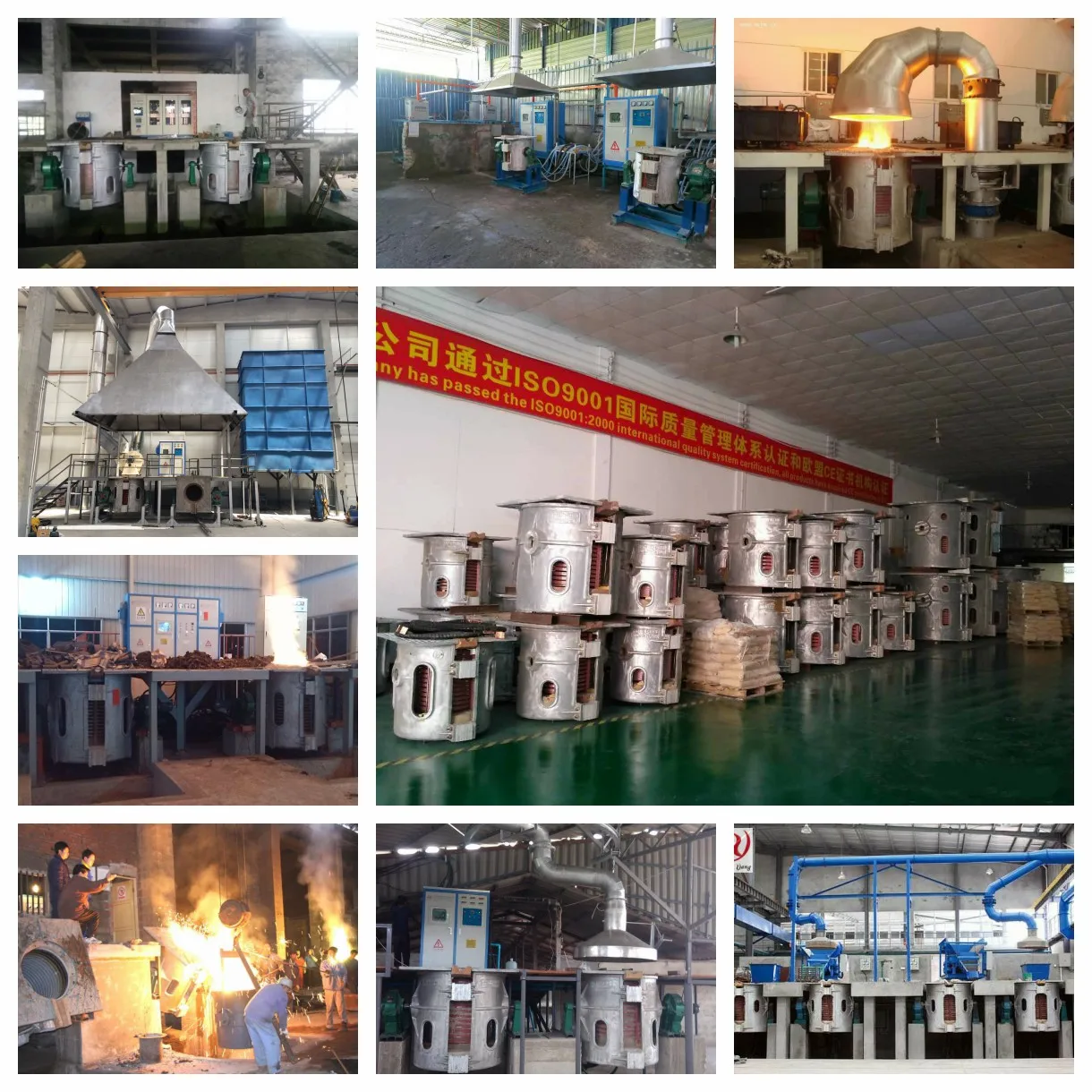

OPERATIONAL CASES
We have exported to more than 40 countries. Our main market are most countries from Africa and Asia ,and some countries from Europe and South America.
Contact us to see parts of our transaction record
COMPANY PROFILE
Company introduction
-------------------------------
Foshan Hengyang Furnace Manufacturing Co., Ltd is one of the leading manufacturer of medium frequency induction
furnace in China. Its headquarter is located in Foshan city, Guangdong province, China, where is only 20 km away
from Guangzhou Baiyun International airport, so it is very convenient for you to visit. It has sub-factory located in
Cairo, Egypt, and have after-sale office in Zimbabwe and Russia. Up to new, more than thousands sets of melting furnaces. Turnkey project is our commitment. We promise not only to provide high quality and reliable equipment, but also to and
heating equipment have been exported to more than 70 countries. Online service to give direct solutions to your actual production problems. Offer perfect after-sale service. There is a group of experienced after-sale team of 20 personnel, offering 24 hours.
