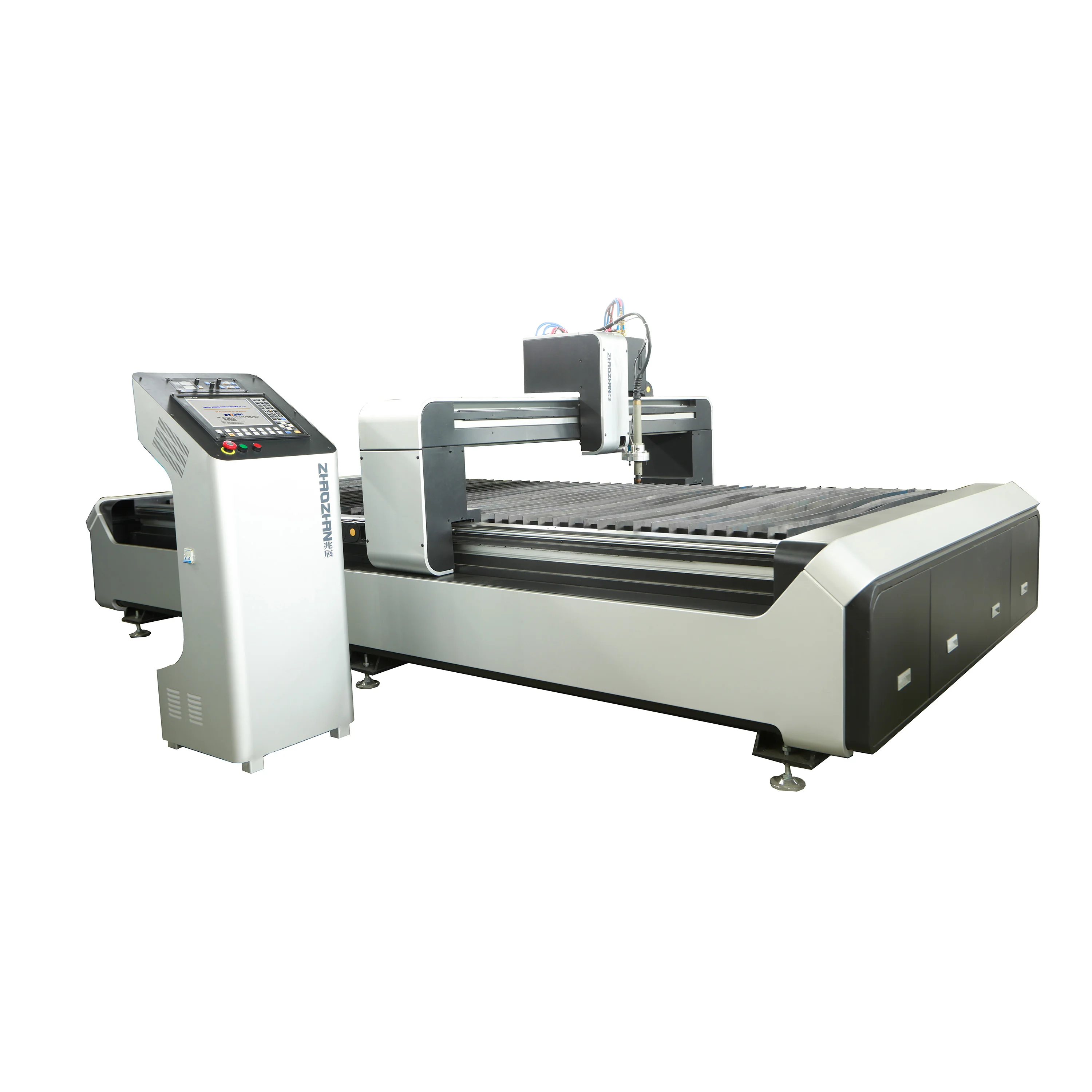

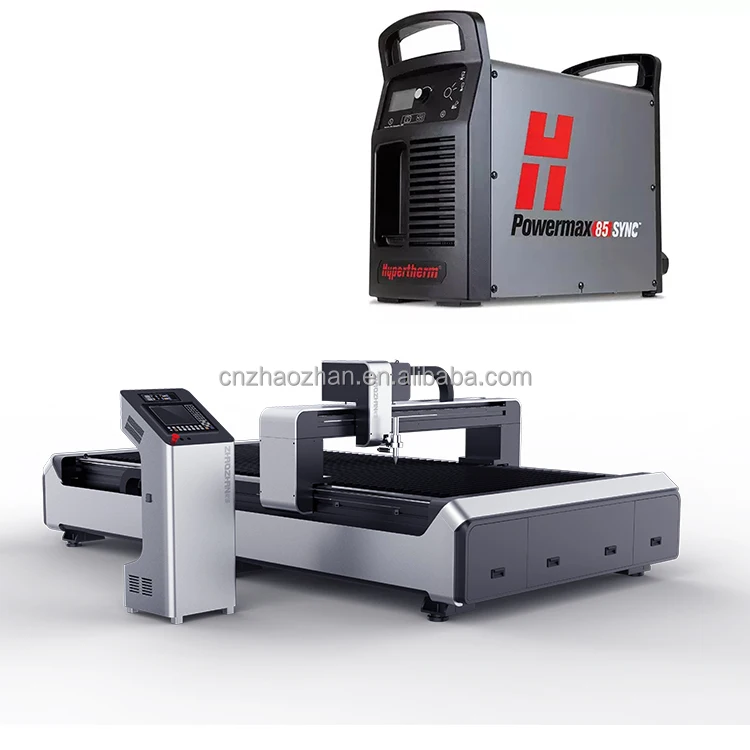

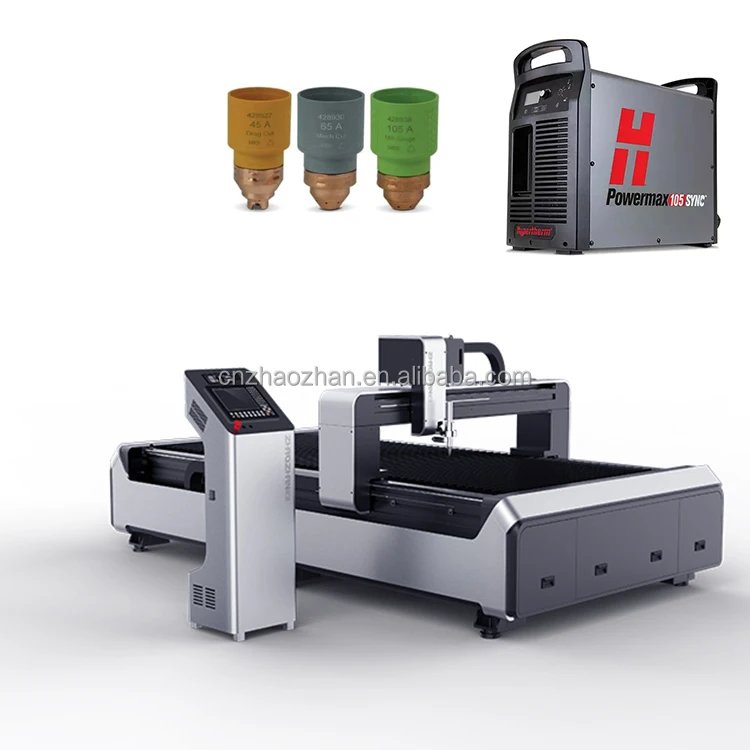

Chinese desktop style cnc plasma cutter King series metal plate plasma cutting machine

Name

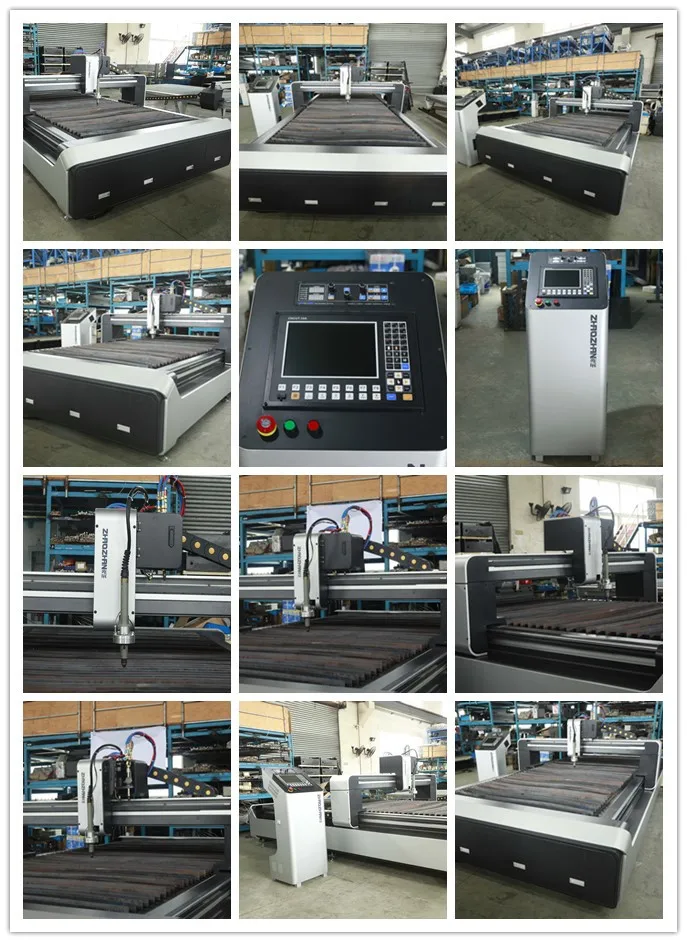

KING TABLE CNC FLAME PLASMA CUTTING MACHINE

Model No.

KING-1530T-BT

KING-1530T-ST

KING-1530T-SE

Effective Cutting Rangge X*Y

1500*3000mm

Customized Information

Availabel to customize water table or ventilation table

Driving Configuration

Dual drive 86 series step motors with dual synchronous belts

Dual drive 86 series step motors with dual planetary reducers

Dual drive A6 Panasonic servo motors with planetary reducers

Tool And Torch Quantity

Single tool with plasma torch

Single tool,and can be both with plasma and flame torch

Torch Height Control

Air cyliner control up and down

Plasma arc voltage auto torch height control or flame capacitive auto torch height control

Max. Working Speed

12000mm/min

6000mm/min

12000mm/min

Input Power

Single phase AC 220V 1200W

Single phase AC 220V 1200W

Single phase AC 220V 1600W

Torch Lifting Distance(Z)

≤100mm

Working precision

± 0.1 mm / m

Flame (Gas) Cutting Capacity

Piercing capacity: 5-60 mm  Edge start cutting: 5-120mm

Plasma Cutting Capacity

Depends on the plasma source's cutting capacity

Controller, Software And Torch Height Control

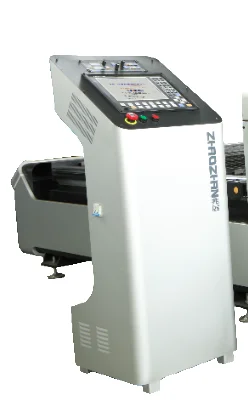

CNCUT-10A 10.4 inch controller,FASTCAM mini pro.software, ZZ-PTHC 2.0V plasma THC

Cutting Table and Base

Standard collection drawers cutting table, which can carry under 2 ton weight

Needed Installation Area

W 2.2m * L 4.2m * H 1.5m

Packing Size

3980*2270*1580mm

This product has been patented, and copying is not permitted
