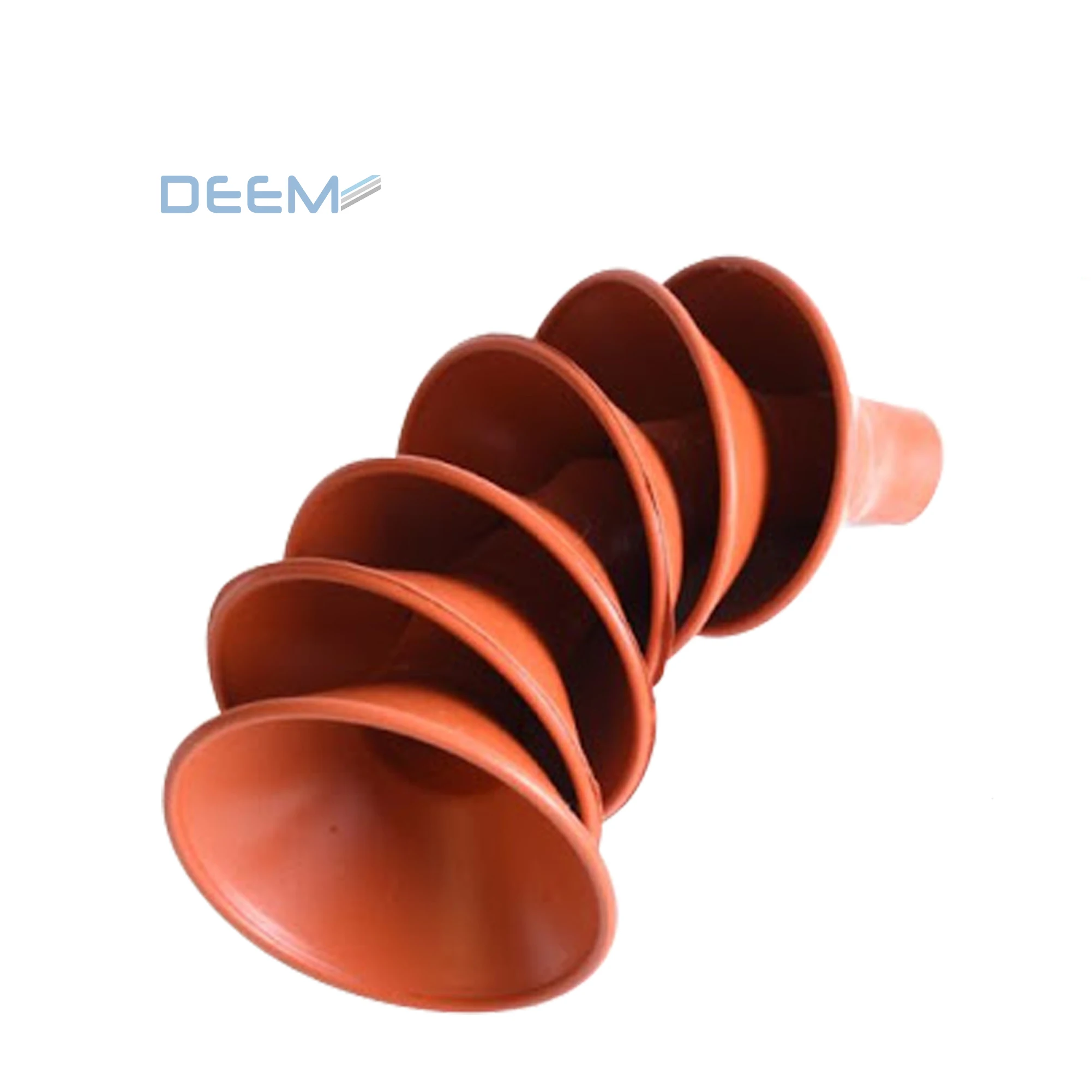

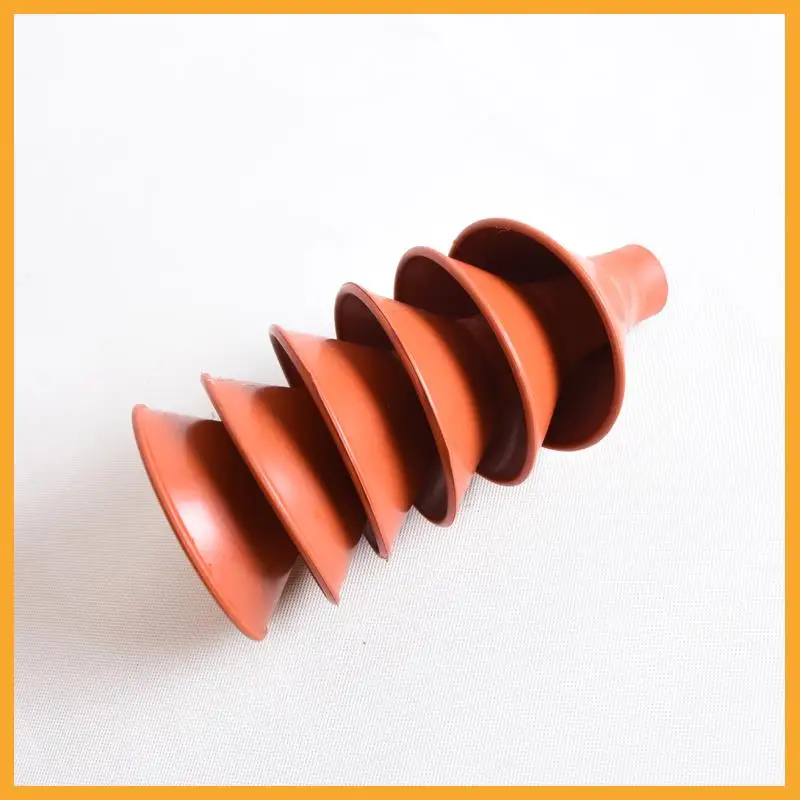

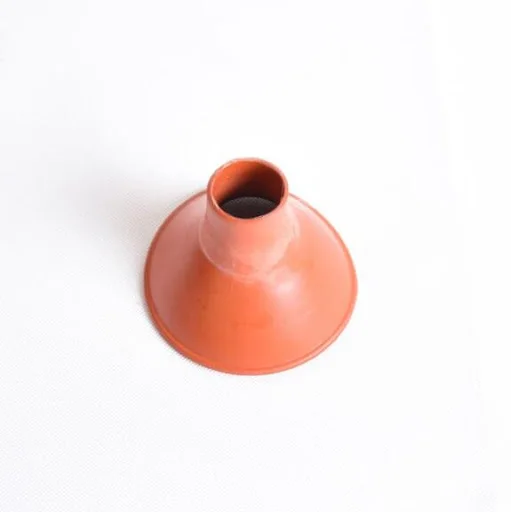

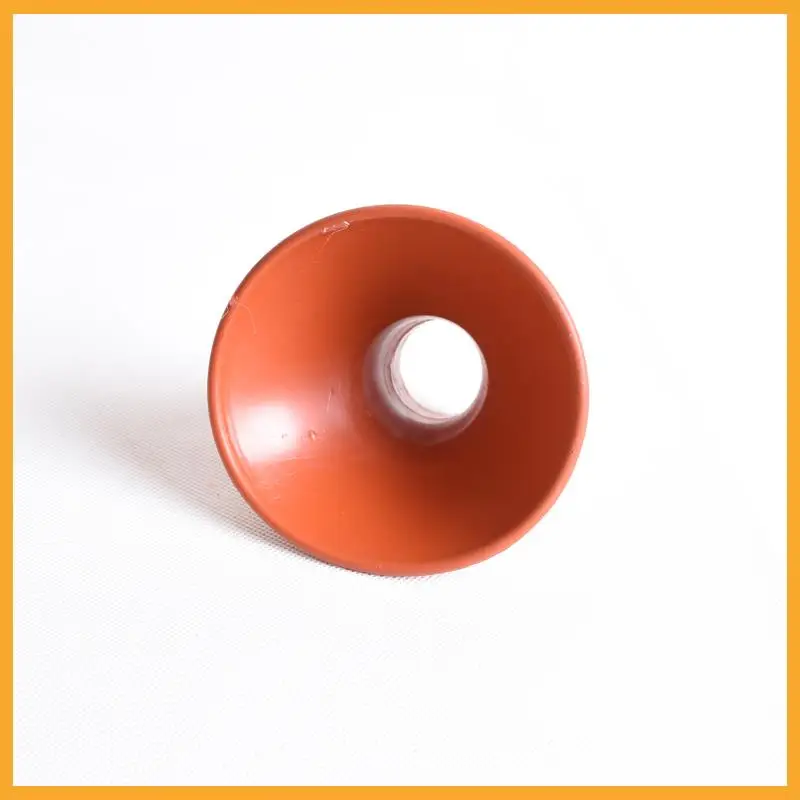

DEEM 10kv anti tracking heat shrinkable rain shed for outdoor cable used
- Category: >>>
- Supplier: Deem Electronic & Electric Material Co. Ltd.
Share on (1600702040144):
Product Overview
Description
Technical data
| Test Items | Method of Test | Test Requirements |
| Tensile strength | ASTM D 2671 | 12MPa min. |
| Ultimate elongation | ASTM D 2671 | 200% min. |
| Volume resistivity | IEC93 | 10 14 Ω.cm min. |
| Dielectric strength | IEC 60243 | 10kV/mm(3mm) min. |
| Water absorption | ISO 62 | 0.5% max. |
| Heat shock at 225℃/4hrs | ASTM D 2671 | No cracking, dropping |
| Density | ASTM D 792 | 1.1~1.3g/cm³ |
Dimensions
| Size | D2(mm) | As Supplied (mm) | After Recovered | |||
| mm | a(Min.) | B(Min.) | H(Min.) | D1(Nom.) | W(+/-10%) | h(Min.) |
| 110 35/12 | 35 | 12 | 20 | 95 | 3 | 18 |
| 120 48/20 | 48 | 20 | 28 | 120 | 3.5 | 20 |
| 130 60/25 | 60 | 25 | 30 | 120 | 3.2 | 20 |
| 140 60/30 | 60 | 30 | 35 | 140 | 3.5 | 30 |
| 150 75/30 | 75 | 30 | 35 | 140 | 3.3 | 30 |
| 160 100/35 | 100 | 35 | 35 | 140 | 3.3 | 30 |
