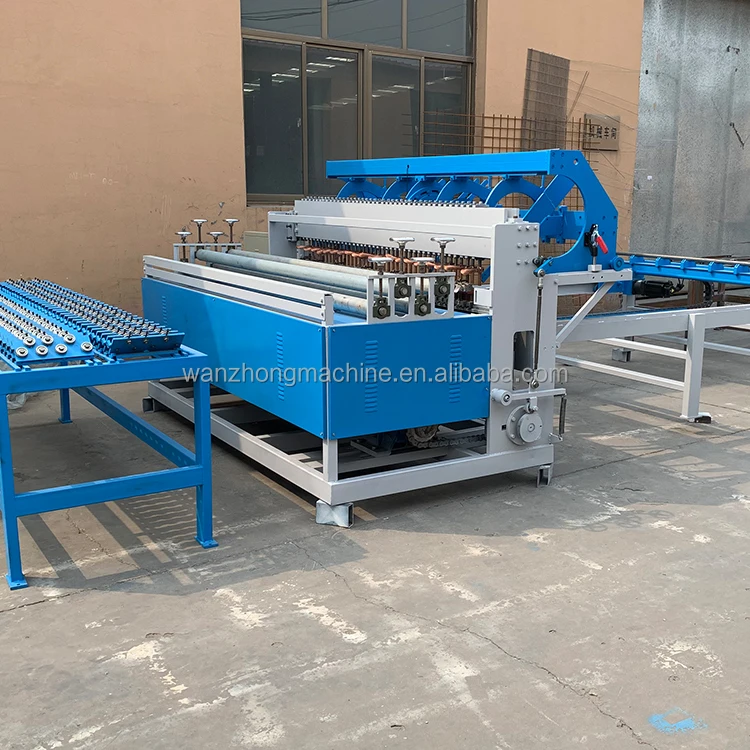

3 6 mm building construction automatic welded roll mesh wire mesh welding machine
3-6 mm building construction automatic welded roll mesh wire mesh welding machine
3-6 mm building construction automatic welded roll mesh wire mesh welding machine
3-6 mm building construction automatic welded roll mesh wire mesh welding machine
3-6 mm building construction automatic welded roll mesh wire mesh welding machine
3-6 mm building construction automatic welded roll mesh wire mesh welding machine
3-6 mm building construction automatic welded roll mesh wire mesh welding machine

3 6 mm building construction automatic welded roll mesh wire mesh welding machine

Share on (1600702547713):


Price:$22,000.00 - $22,600.00

Quantity:


Product Overview

Description


welded mesh machine






Product Description


Main parameter:














































































Item WZ-1200AWZ-1600AWZ-2400BWZ-2500A
Number of Electrodes24324048
Max.Mesh Width1200mm1600mm2400mm2500mm
Wire Diameter2.5-6.0mm2.5-6.0mm3.0-6.0mm3.0-6.0mm
Cross Wire Space50-250mm50-250mm50-250mm50-250mm
Line Wire Space50-250mm50-250mm50-250mm50-250mm
Finished Products WayRoll Mesh/Both Roll Mesh and Plate Mesh
Pulling Mesh WayServo Motor
Electric Capacity125KVA*3125KVA*4125KVA*5125KVA*6
Welding Speed50-80t/min50-80t/min50-80t/min50-80t/min
Control SystemPLC & Touch Screen

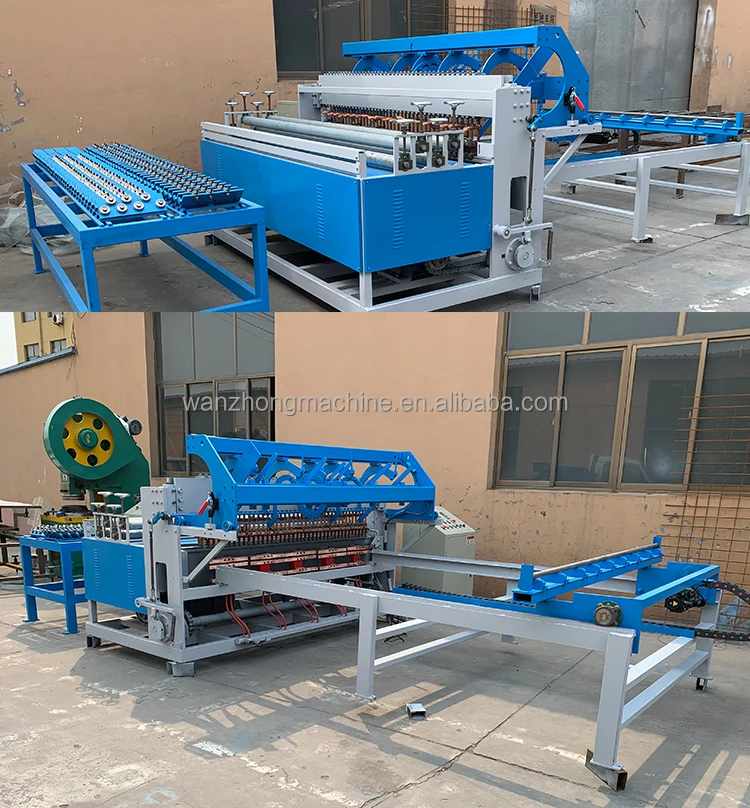

 welded wire mesh machine





Products & Application :





welded wire mesh machine


welding mesh machinewelded mesh machine



Packaging & Shipping


 1





Related Products


 steel wire mesh welding machine









































































Item WZ-1000AWZ-1500AWZ-2000AWZ-2500A
Number of Electrodes10152024
Max.Mesh Width1000mm1500mm2000mm2500mm
Wire Diameter2.5-6.0mm2.5-6.0mm3.0-6.0mm3.0-6.0mm
Cross Wire Space50-250mm50-200mm50-200mm50-250mm
Line Wire Space100-250mm100-250mm100-250mm100-250mm
Finished Products Way Plate Mesh
Pulling Mesh WayServo Motor
Electric Capacity125KVA*2125KVA*2125KVA*3125KVA*4
Welding Speed50-80t/min50-80t/min50-80t/min50-80t/min
Control SystemPLC and Touch Screen

 rebar machine 2


































































Item WZ-2500AWZ-3000AWZ-3300A
Number of Electrodes243032
Max.Mesh Width2500mm3000mm3300mm
Wire Diameter5.0-12.0mm5.0-12.0mm5.0-12.0mm
Mesh Length3-12m3-12m3-12m
Cross Wire Space100-300mm100-300mm100-300mm
Line Wire Space100-300mm100-300mm100-300mm
Electric Capacity200KVA*12200KVA*15200KVA*16
Welding Speed30-60t/min30-60t/min30-60t/min
Control SystemPLC control and Touch Screen



fence machine































































ItemWZ-2000AWZ-2500AWZ-3000A
Number of Electrodes404860
Max.Mesh Width2100mm2500mm3000mm
Welding Wire Diameter3.0-6.0mm/5.0-8.0mm3.0-6.0mm/5.0-8.0mm3.0-6.0mm/5.0-8.0mm
Mesh Length500-3000mm500-3000mm500-3000mm
Cross Wire Space50-250mm50-250mm50-250mm
Line Wire Space50-250mm50-250mm50-250mm
Electric Capacity125KVA*5125KVA*6125KVA*8
Welding Speed50-70t/min50-70t/min50-70t/min
Control SystemPLC control and Touch Screen

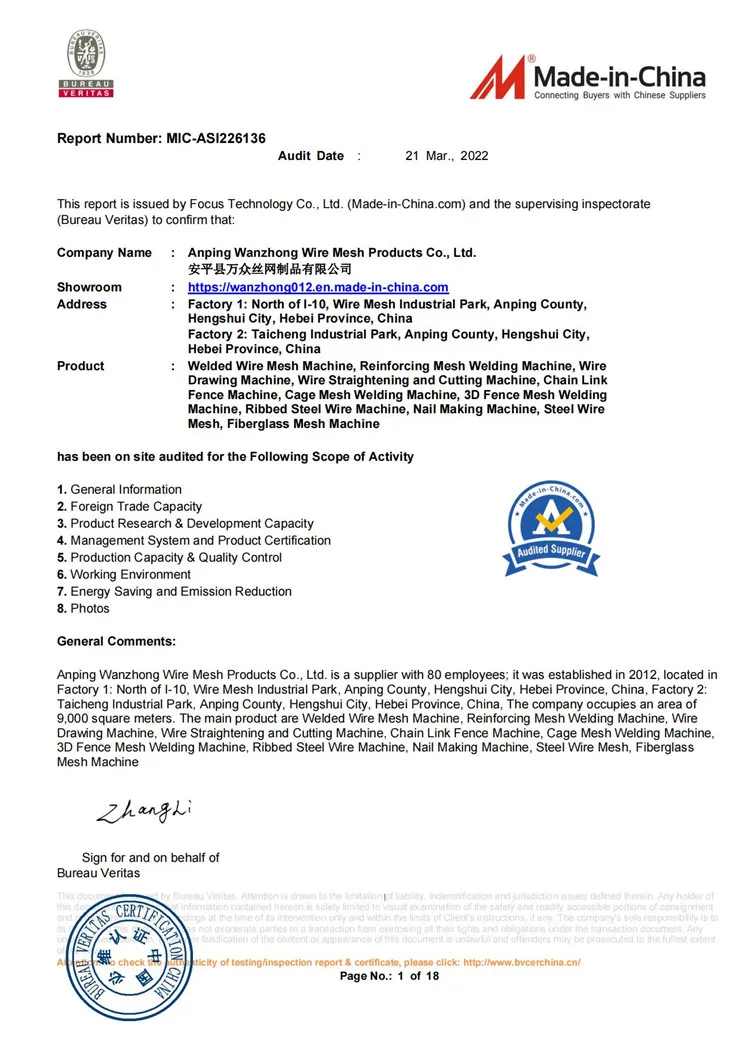

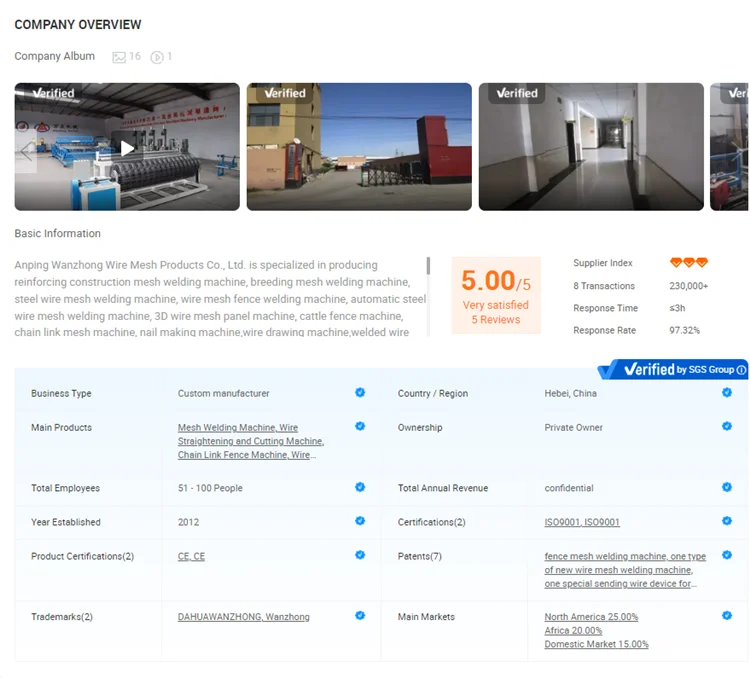

Company Information
