2022 poultry farm 3 ton~11 ton small steel silo used for chicken farm pig farm animal & poultry husbandry equipment
- Category: Silos >>>
- Supplier: Qingzhou,Gongle,Electric,Fan,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
2022 poultry farm 3 ton~11 ton small steel silo used for chicken farm pig farm animal & poultry husbandry equipment
▶Gongle feed silo is made of 275g/ sqm hot dip galvanized sheet and all screws are made of 8.8 grade high-strength hot-dip galvanized bolts, which are corrosion resistant, anti-oxidation, high temperature resistance, high strength, long service life, and can withstand strong storm.

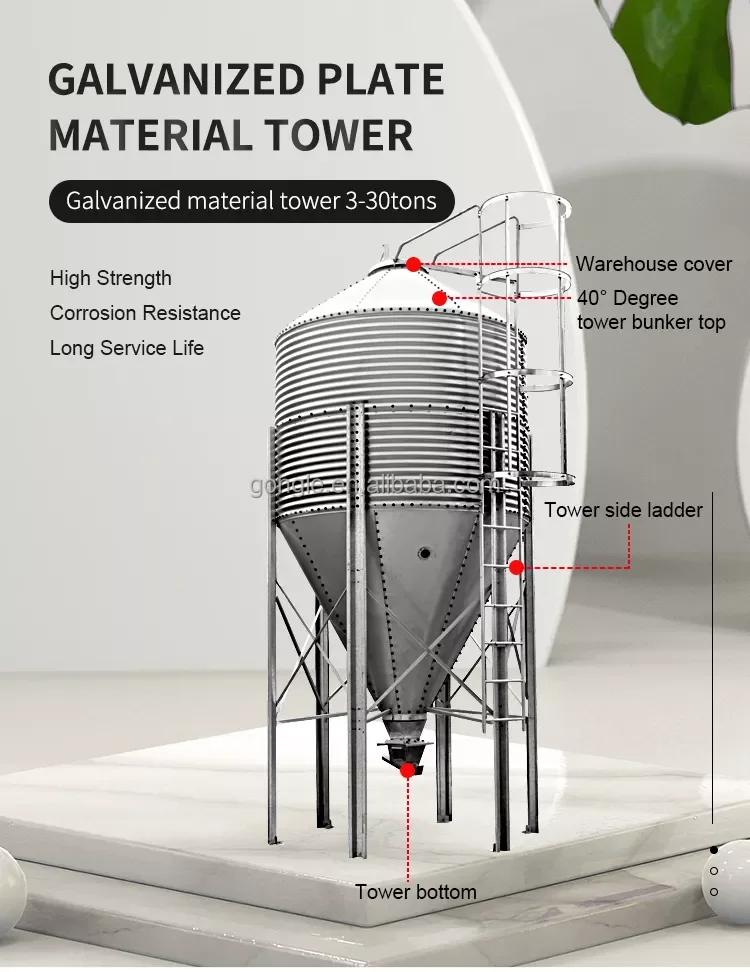

▶The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict accordance with drawing design by the advanced laser machine and precision molds, and then undergo strict quality inspections to
make each component more standard,more precise and more convenient to install to ensure easy assembly and use.
▶The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict accordance with drawing design by the advanced laser machine and precision molds, and then undergo strict quality inspections to
make each component more standard,more precise and more convenient to install to ensure easy assembly and use.
Specification
Capacity (T) | Capacity (CBM) | Diameter(mm) | Height (mm) | legs qty | legs height | layers |
3 | 4.7 | 1860 | 4087 | 4 | 3370 | 1 |
4.5 | 7.3 | 1860 | 4977 | 4 | 3370 | 2 |
6.1 | 9.4 | 1860 | 5867 | 4 | 3370 | 3 |
7.7 | 11.9 | 1860 | 6757 | 4 | 3370 | 4 |
7.2 | 11.1 | 2750 | 4985 | 6 | 4000 | 1 |
11 | 16.9 | 2750 | 5875 | 6 | 4000 | 2 |
14.1 | 21.7 | 2750 | 6765 | 6 | 4000 | 3 |
17.5 | 27 | 2750 | 7655 | 6 | 4000 | 4 |
15.5 | 23.9 | 3660 | 6046 | 8 | 4800 | 1 |
21.5 | 33.1 | 3660 | 6936 | 8 | 4800 | 2 |
27.5 | 42.4 | 3660 | 7526 | 8 | 4800 | 3 |
33.8 | 52 | 3660 | 8716 | 8 | 4800 | 4 |
1- Roof Top:
The roof is designed to stand up even in the harshest environment of extreme snow disaster with the echo of top and down part strong structure and connecting radial ribs which is Z interconnected again itself. Roof panels incorporate with ribs with over
and under lap profiles ensuring a precise fit.

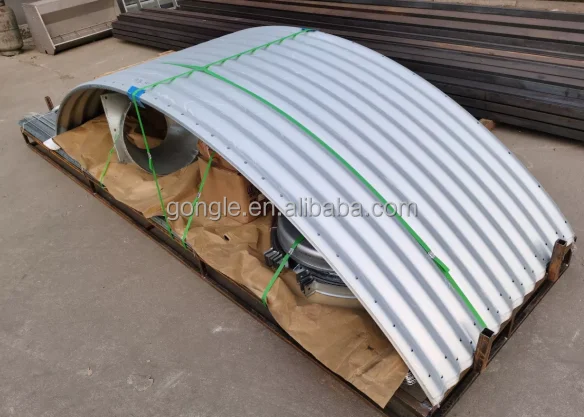

2-Roof panel & cone plate
1)Special designed 40 degree root panel,with high efficiency and easy to full of feed.
2)Special designed cone plate panel can reduce feed piled up.
3- Body Steel Plate:
A commercial 275g/m2 double galvanized steel coating increases life and durability.450g/m2 and 600g/m2 coating available for customized orders. Each sidewall sheet is manufactured from high-tensile steel that has the ability to overcome extreme power,pressure.
4-High strength bolts and screws:
Famtun’s high strength bolts paired with sealing washers, coated hardware provides added protection from rust to ensure your grain
bin stands the test of time.
5- Wide Flange H Beam Support Structure:
Wide flange H-Beam support structure has the strength and durability to support the heavy hopper silo loads long time, and with consideration of wind and seismic requirements.
The tape to avoid the leakage

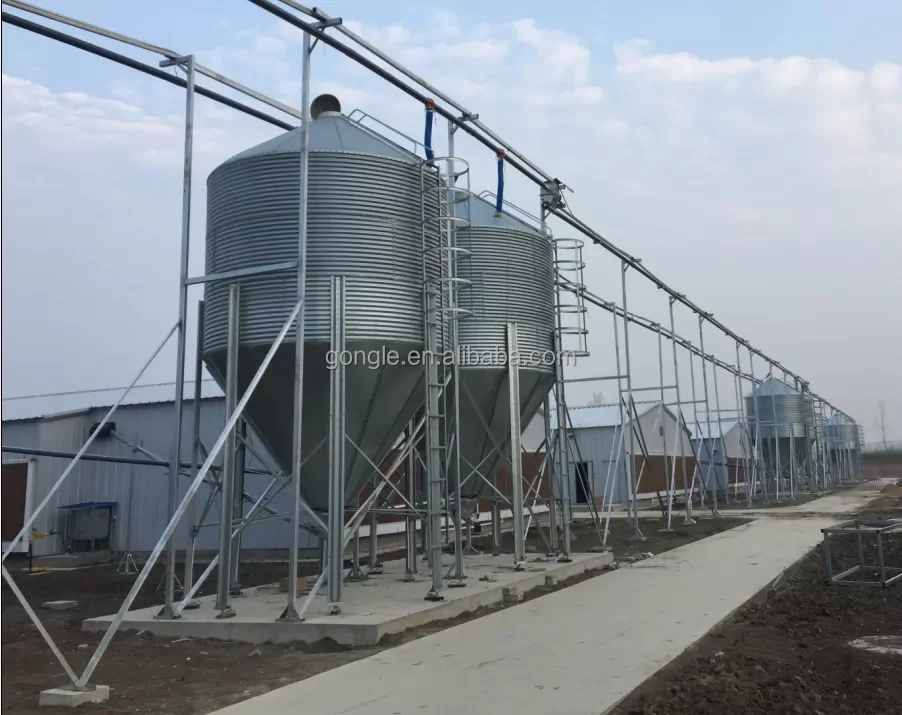

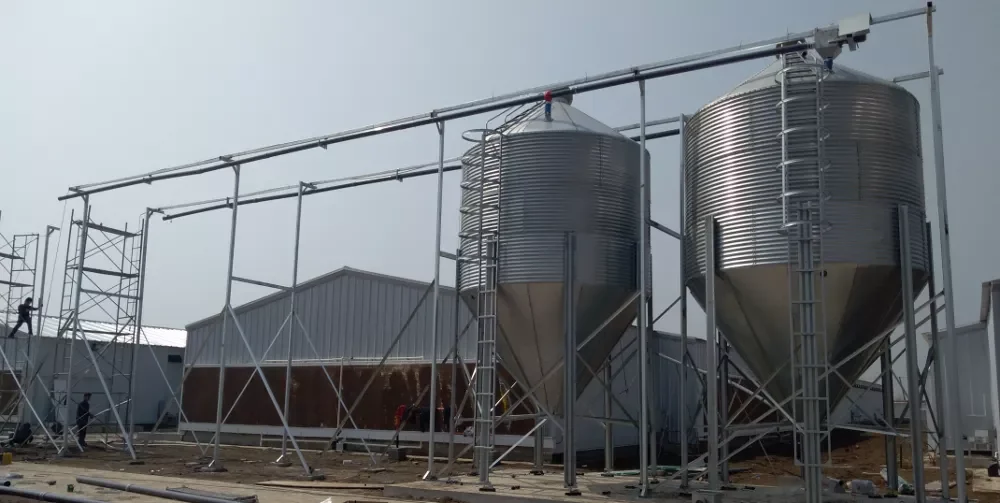

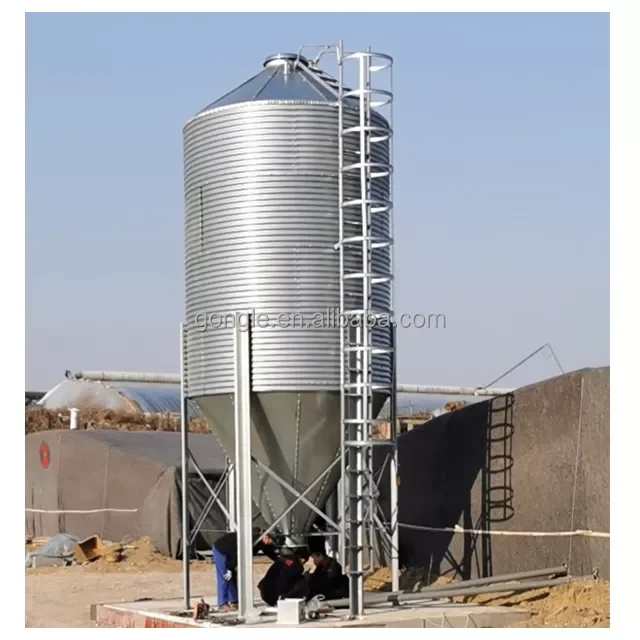

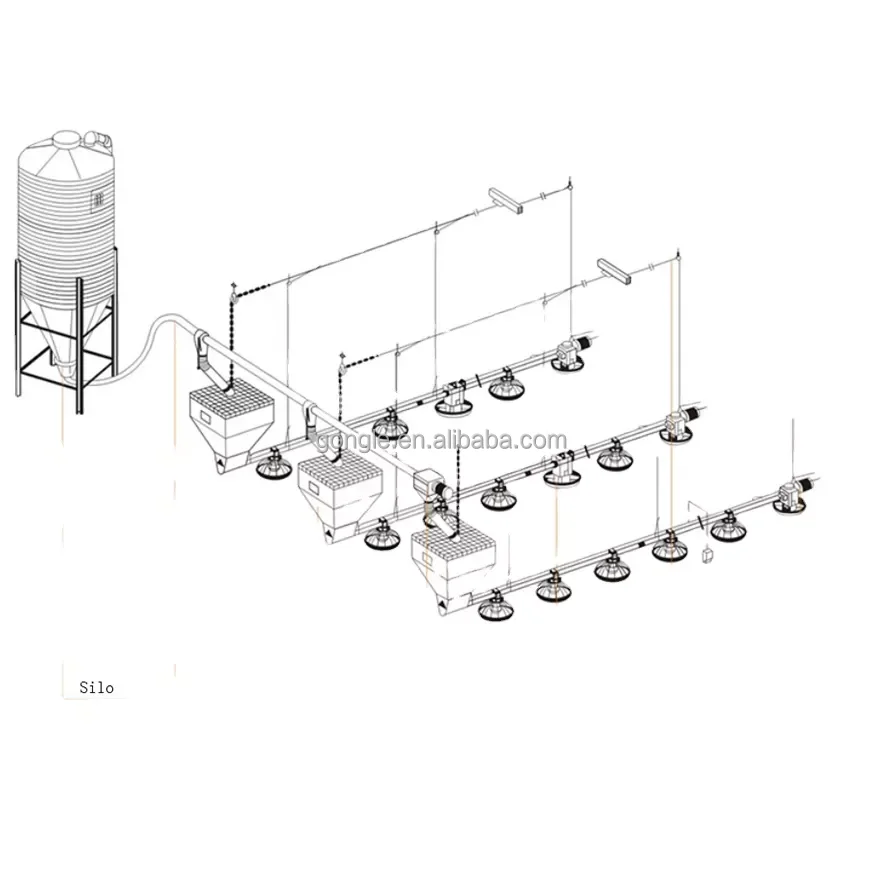

Application
Packing & Delivery
1. Inner package is stretch film;
2. Outer package is corrugated paper cartons,Reinforced with strips.
3.Pallets
2. Outer package is corrugated paper cartons,Reinforced with strips.
3.Pallets

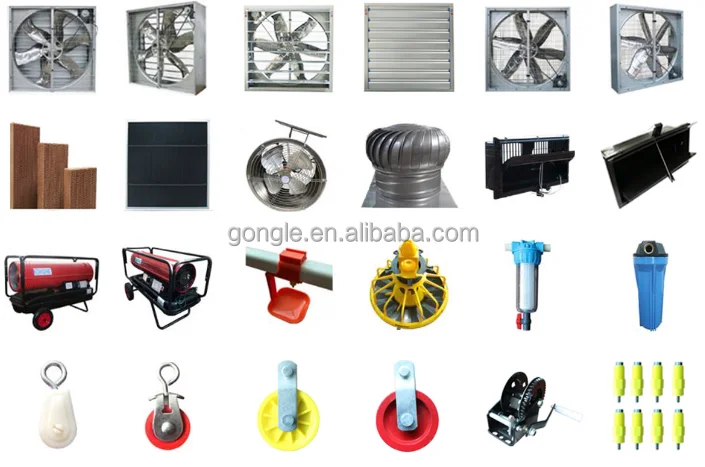

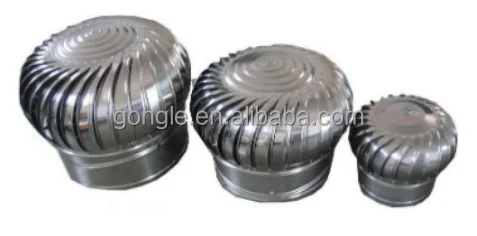

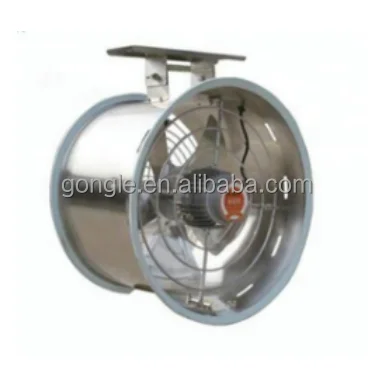

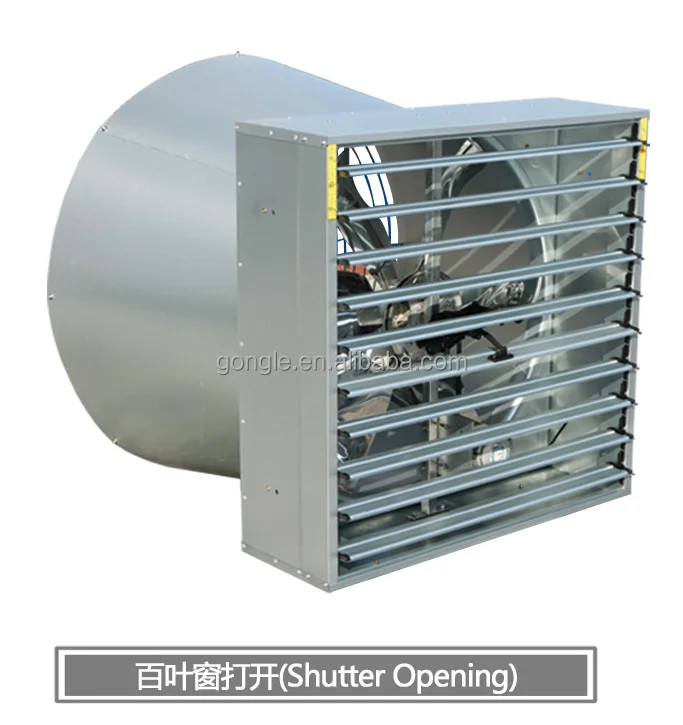

Relevant products

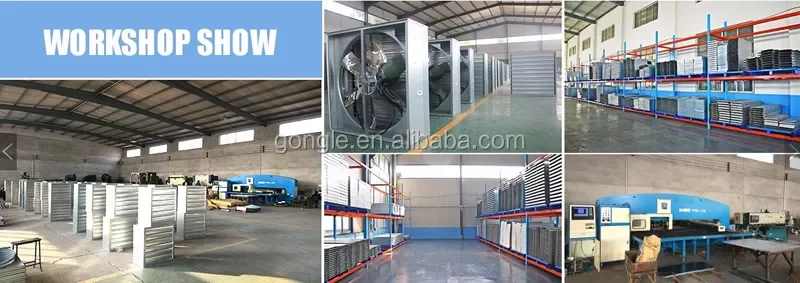

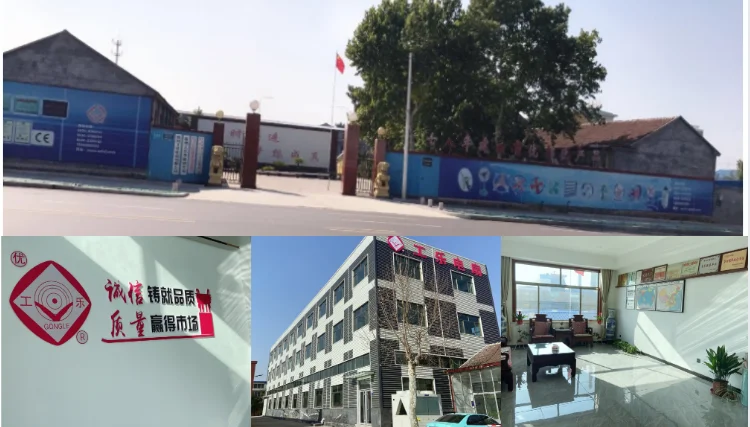

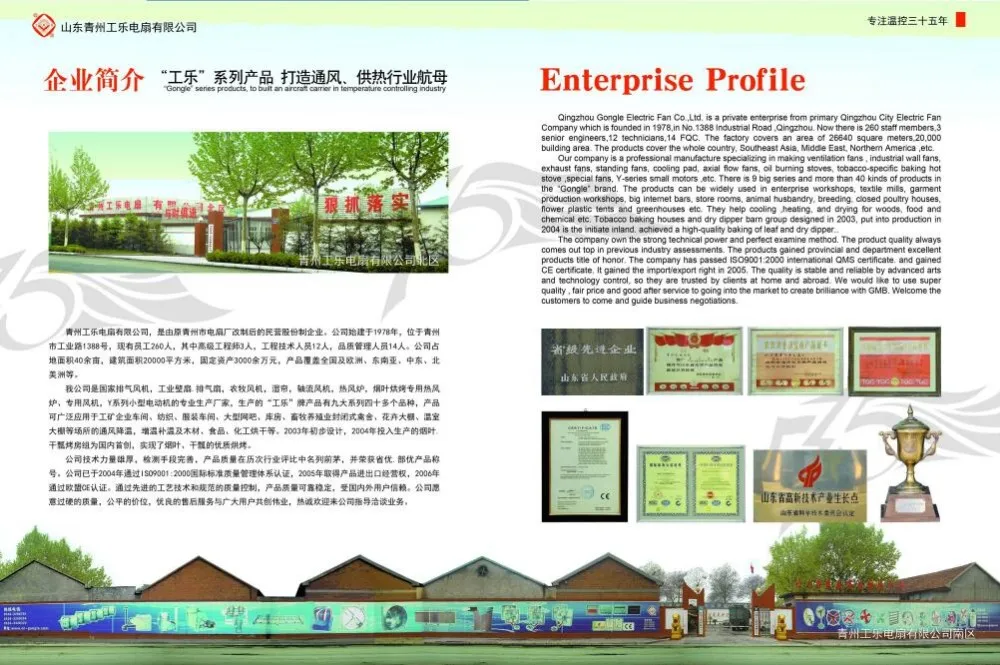

Company Profile
★ Qingzhou Gongle Electric Fan Co., Ltd. founded in 1978, is a private enterprise from primary Qingzhou City Electric Fan Company in No.1388 Industrial Road, Qingzhou City, Shandong Province, China.
★ Our company is a professional manufacturer that specializes in making ventilation fans, axial exhaust fans, industrial wall fans,standing fans,and so on.
★ They are widely used in many fields such as enterprise workshops, textile mills, garment production workshops, animal husbandry, closed poultry houses, and greenhouses, etc
★ The company possesses the strong technical power and the perfect test method. The quality of product always comes out top in previous assessments.
★ Our company is a professional manufacturer that specializes in making ventilation fans, axial exhaust fans, industrial wall fans,standing fans,and so on.
★ They are widely used in many fields such as enterprise workshops, textile mills, garment production workshops, animal husbandry, closed poultry houses, and greenhouses, etc
★ The company possesses the strong technical power and the perfect test method. The quality of product always comes out top in previous assessments.
FAQ
1. who are we?
We are based in Shandong, China, start from 2000,sell to Mid East(25.00%),Africa(25.00%),Southeast Asia(15.00%),South America(10.00%),Oceania(8.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),North America(5.00%),Western Europe(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

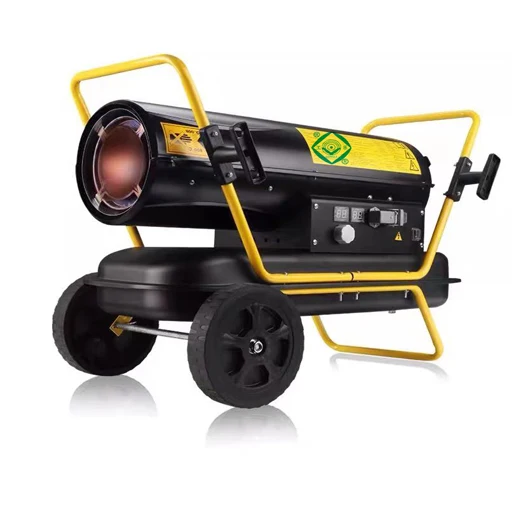

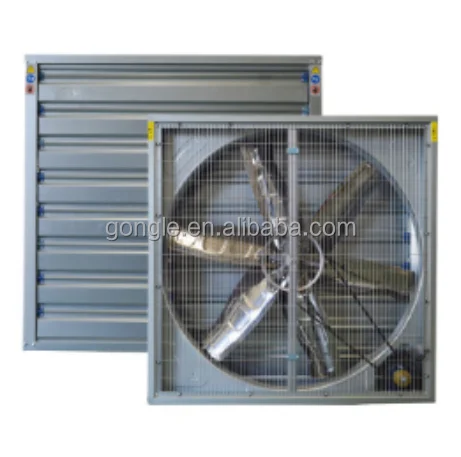

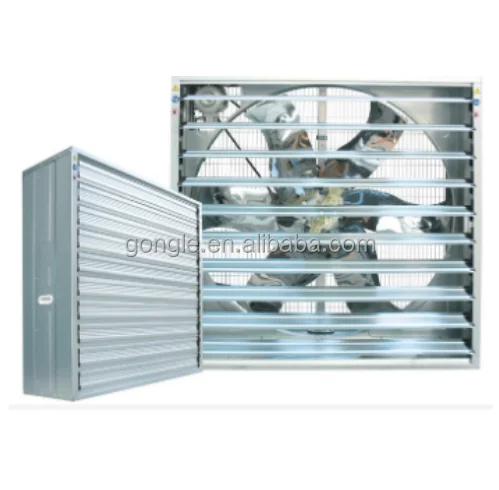

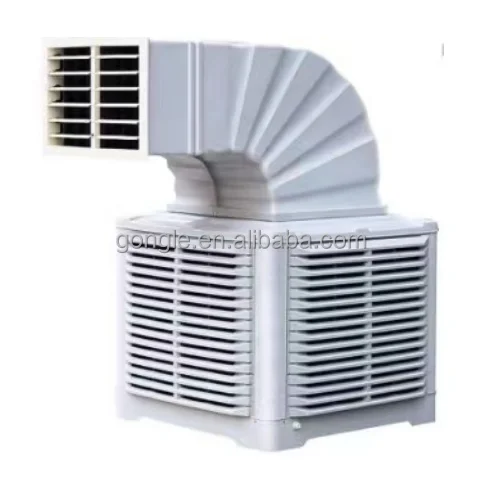

cooling pad,heater stove,9FJ-1250B exhaust fan,9FJ-1000B exhaust fan
