Product Overview
Description

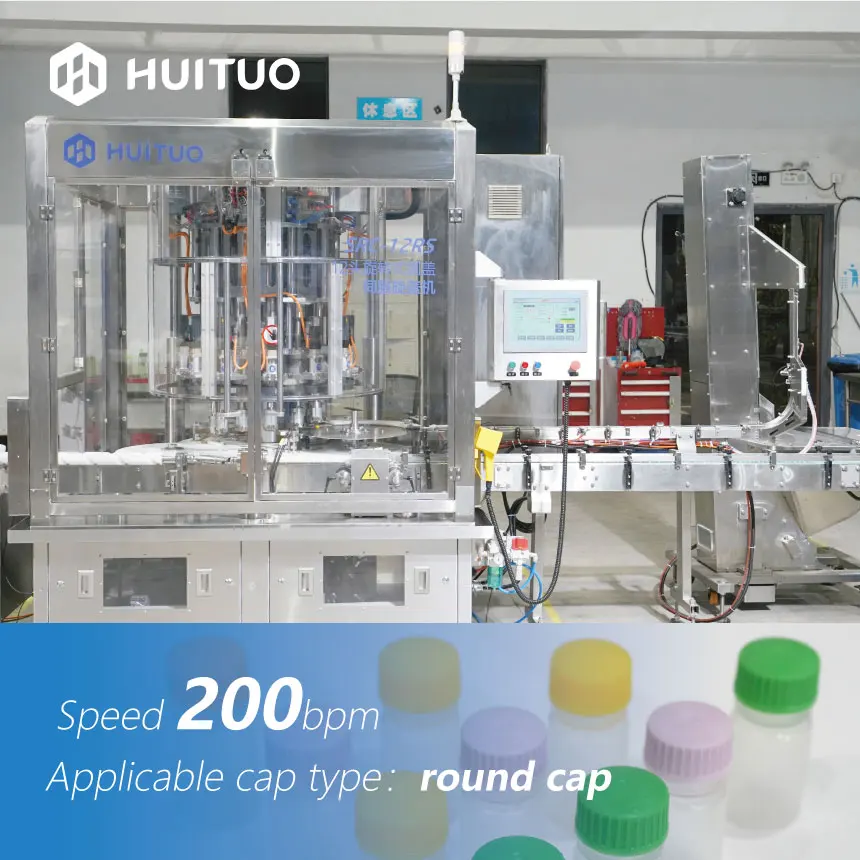

Rotary capping machine
Highlight:
Able to deal with press-on or screw-on caps and suitable for different types of bottles, whether cylinder, flat or irregular.
Able to deal with press-on or screw-on caps and suitable for different types of bottles, whether cylinder, flat or irregular.
FEATURES AT A GLANCE
1. Working principle: continuous rotary
2. Speed: 200bpm for pumps and 300bpm for screw-on caps
3. Torque control: two types are available; by servo, modify via touch screen or by permanent magnet clutch
4. Changeover parts in modular design, within15min
5. Capping efficiency 98%, and pass rate 99.9%;
2. Speed: 200bpm for pumps and 300bpm for screw-on caps
3. Torque control: two types are available; by servo, modify via touch screen or by permanent magnet clutch
4. Changeover parts in modular design, within15min
5. Capping efficiency 98%, and pass rate 99.9%;
Main components

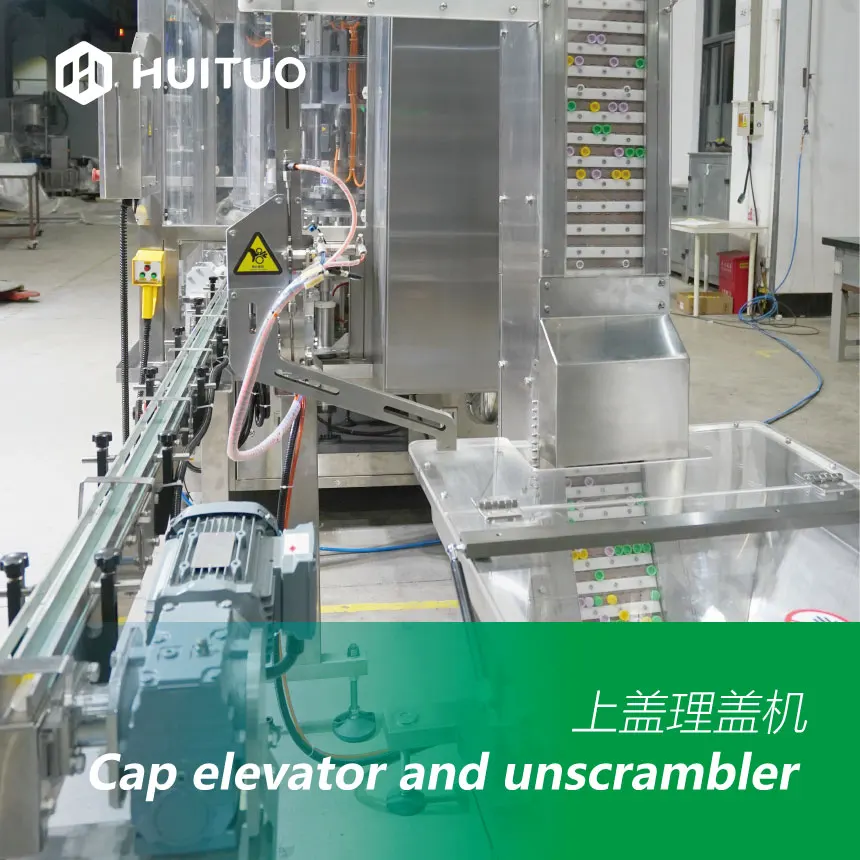

Bottle feeder + automatic cap elevator and unscrambler + inlet and outlet bottle template + capping mechanism + rejection mechanism + electrical control (Siemens System) etc.

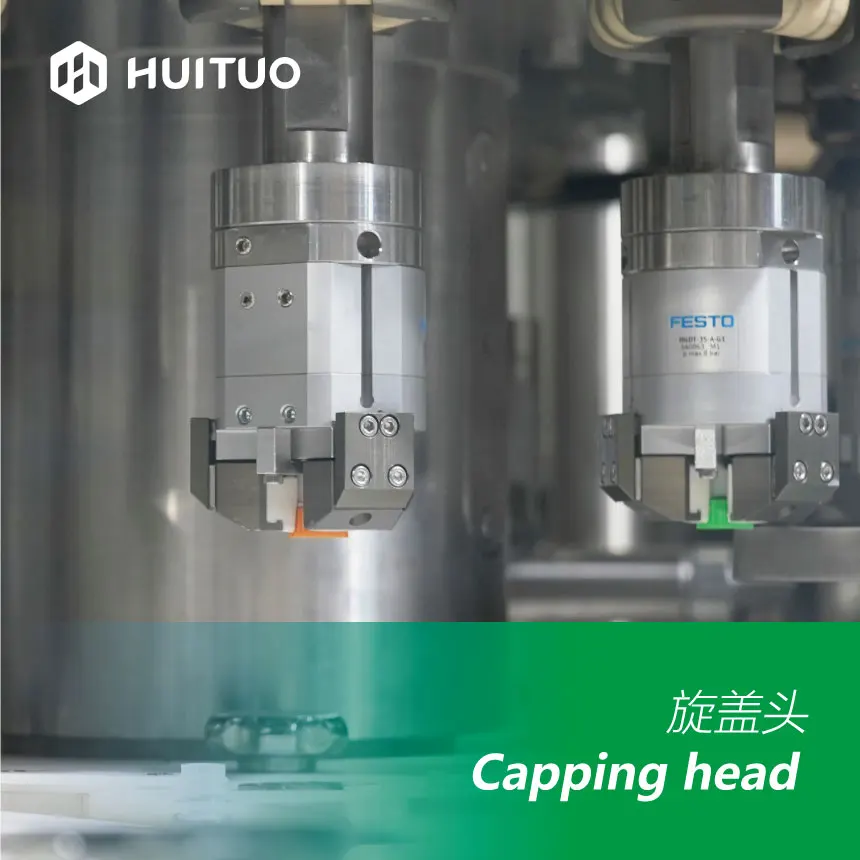

Servo capping head
Quick-release capping head will be designed for diversified production. The capping head is specially customized for more stable operation.
Cap divider
The cap divider is customized by the cap shape and different diameters would require changeover, but only the white part in the following pic needs to be changed.
Bottle fixer
It’s easy to slip for the cylinder bottle when capping, and the bottle is soft and easy to scratch.Therefore, the bottle holder mechanism is adopted. The bottle holder is made of silica gel to prevent the bottle form from slipping and scratching.

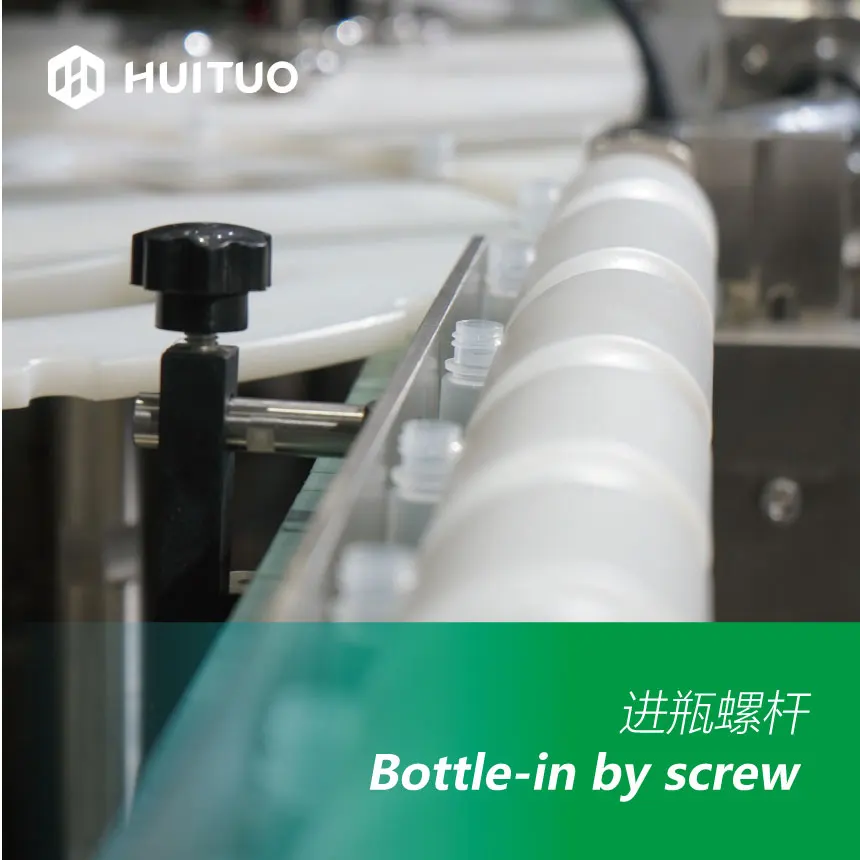

Bottle-feeding by screw rod
Huituo capping machine can realize synchronous connection with the filling machine. If the filling machine stops, the capping machine will stop. So does the acceleration. After filling, the bottle directly enters the capping machine by screw rod. There is a sensor at the bottle-in screw, no bottle, no capping and alarm when bottle-stuck.
Different products changing
The templates are made of polymer polyethylene(PP), fully fitted to the bottle shape with smooth surface. It can not only stabilize the positioning, prevent the bottle from being scratched; and features fast changeover, with module structure.

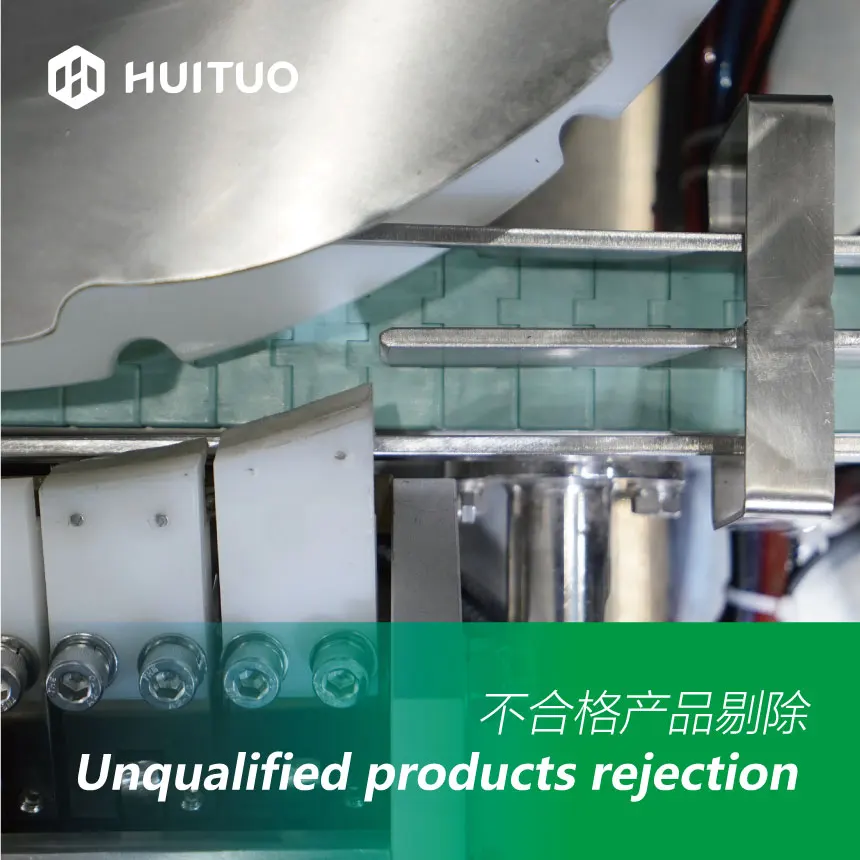

Rejecting of unqualified products
The qualified products are normally transported, and the unqualified ones (no cap, tilted cap-higher than normal 2mm) will be automatically split to another conveyor by swing cylinder.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Dimension | 2000mm*1600mm*2600mm |
2 | Stand-alone pass rate | 99% |
3 | Capping | Servo or permanent magnet clutch |
4 | Speed | Customized based on requirement, 20-300bpm |
5 | Voltage | 220VAC~380VAC, 50Hz-60Hz |
6 | Air source | 0.4-0.6Mpa clean and stable air source |
7 | Noise | ≦80 decibels |
8 | Machine material | Frame: carbon steel outsourcing stainless steel frame; Capping head contacting with cap: polyurethane (PU) ; Screen door: stainless steel edging, plexiglass; Electrical box: stainless steel, designed in IEC standard Connection and fixing mechanical parts: carbon steel, stainless steel, etc.; Seal: rubber |
