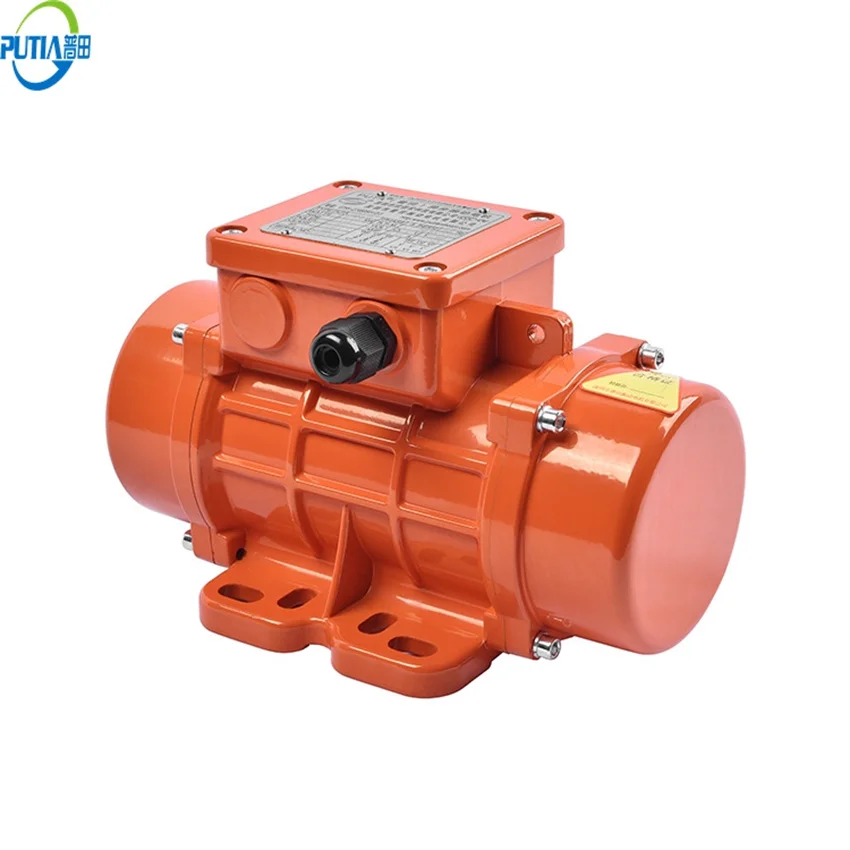

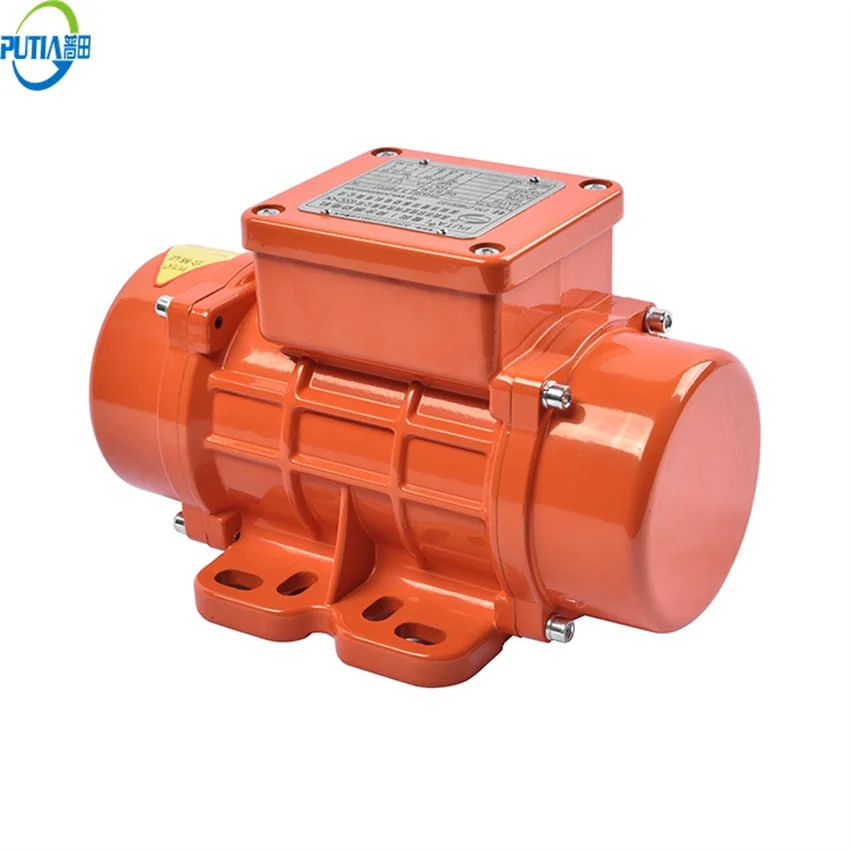

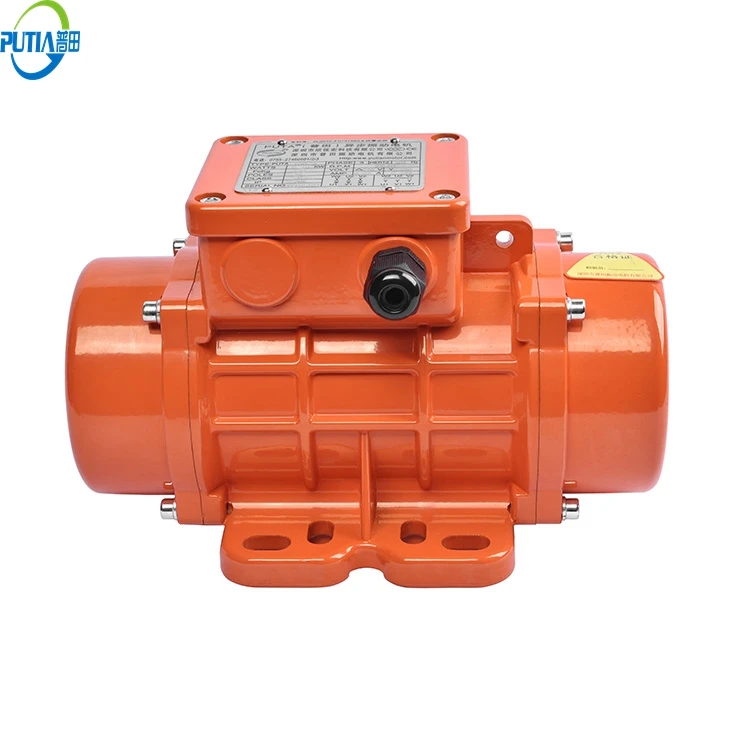

Vertical flange vibration motor for vibrating screen machine
- Category: >>>
- Supplier: Shenzhen Putian Vibration Motor Co. Ltd.
Share on (1600703117669):
Product Overview
Description
Product Description
1. putian external vibration motor can be used to assist flow, installed in silos or hoppers to speed up material cutting, or installed in various industrial fields as a driving device to provide transport, screening, grading or compaction.
2. When the vibration motor is turned on, the centrifugal force is produced by the high-speed rotation of the eccentric block. If only one vibration motor is installed on the vibration equipment, the circular motion will be generated. If two reverse rotating vibration motors are installed, the linear motion will be generated. Customers follow up different applications and choose circular or linear motion.
3.Used for vibration screen and vibrating sieve with high-quality
power class | 0.12KW,0.15KW,0.18KW,0.20KW,0.25KW,0.27KW,0.37KW |
excitation force grade | 1.2KN,1.5KN,1.8KN,2.5KN,3KN,4.3KN,5KN |
lnsulation grade | F |
duty of motor | S1 |
cooling mode | IC410 |
Shell material | Aluminium alloy |
Voltage | AC |
frequency | 50Hz/60Hz |
putian series parameter table | ||||||

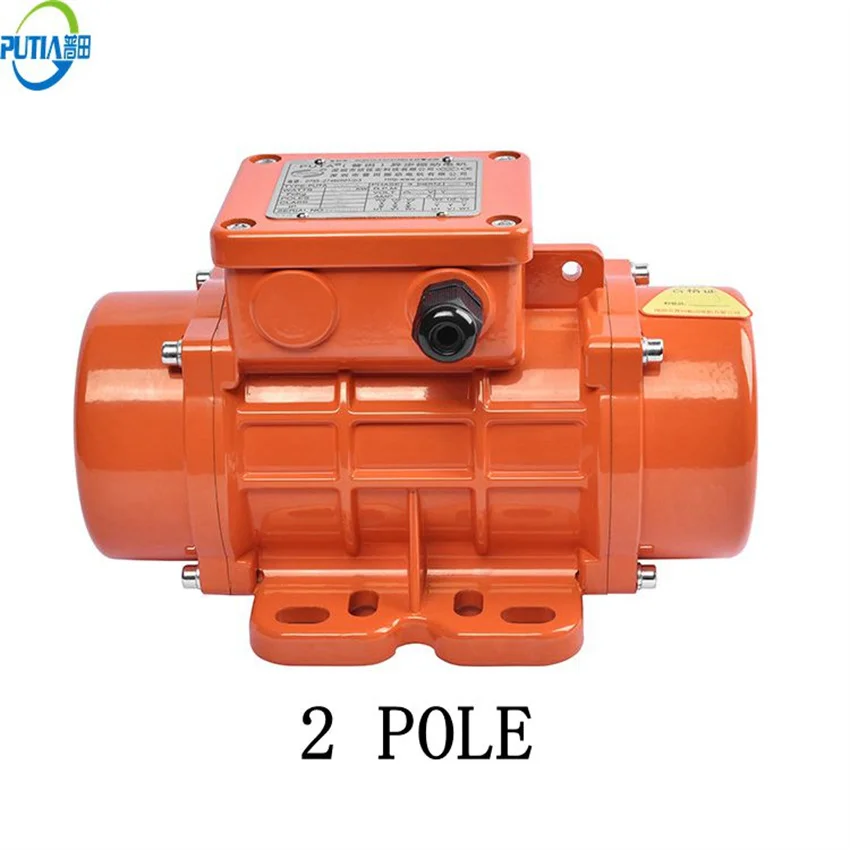

Single-phase (220V/110V) (2 poles) | ||||||
Model number | Voltage (V) | Current A | Power KW | Speed(rpm) 50Hz/60Hz | Force (KN) | Cable Gland | G.W.KG | Fig | ||
120/2S-12 | 220V/110V | 0.371/0.582 | 0.12 | 3000 | 3600 | 1.2 | M16×1.5 | 4.5 | 12 | |
150/2S-12 | 220V/110V | 0.350/0.660 | 0.15 | 3000 | 3600 | 1.5 | M16×1.5 | 4.7 | 12 | |
180/2S-13 | 220V | 0.65/0.80 | 0.18 | 3000 | 3600 | 1.8 | M20×1.5 | 6.3 | 13 | |
200/2S-13 | 220V | 0.70/0.90 | 0.20 | 3000 | 3600 | 2 | M20×1.5 | 6.4 | 13 | |
290/2S-21A | 220V | 1.58/3.48 | 0.29 | 3000 | 3600 | 2.9 | M20×1.5 | 10 | 21A | |
310/2S-21A | 220V | 1.68/4.30 | 0.31 | 3000 | 3600 | 3.1 | M20×1.5 | 10.2 | 21A | |
30/4S-12 | 220V | 0.27 | 0.03 | 1500 | 1800 | 3 | M16×1.5 | 4.5 | 12 | |
Three-phase (380V/220V) (2 poles) | ||||||
Products Show
Our Service
After-sale service
Professional pre-sales and after-sales team, timely answer customer's difficult questions, complete pleasant transactions
Team of Engineers
Strong technical R&D team, timely response to customer customization requirements for special vibration motors
Factory inspection
Strict inspection before each motor leaves the factory to ensure the quality of the product and to assure your use.
Our Company
Factory
4-storey large factory building in industrial zone
Workshop
High Speed Operation of Pipeline in Some Workshops
Warehouse
Inventory Adequate, Export Global Multinational Countries
Team
Gold Medal Service, Professional Sales Team
Packing & Delivery
Packing Details : Independent packaging of small vibration motor cartons
Delivery Details : Specifically based on the quantity ordered
1. Suitable carton with bubble film
2. Port Logistics Terminal
3. Transportation Safety and Fast
Our Certifications
Multiple certifications
Shenzhen xin jia hong Technology Co.,Ltd.(Shenzhen PUTIAN Vibrating Motors Co.,Ltd.)The company has 45 patents of independent research and development property rights, and the products have passed the national 3C and EU CE certification.
Customer Photo
Favorable Comment
PUTIAN Vibration motor has been installed and used for a period of time, with sufficient power, improved production speed and overall satisfaction.
Favorable Comment
PUTIAN Vibration motor specifications are complete, suitable for American insert 110V, Europe 220V, good operation effect, it is worth recommending!
Favorable Comment
PUTIAN vibration motor has a wide range of applications. It solves the problem of material classification in our company and is very useful.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: es, we can provide samples, but there is a charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
