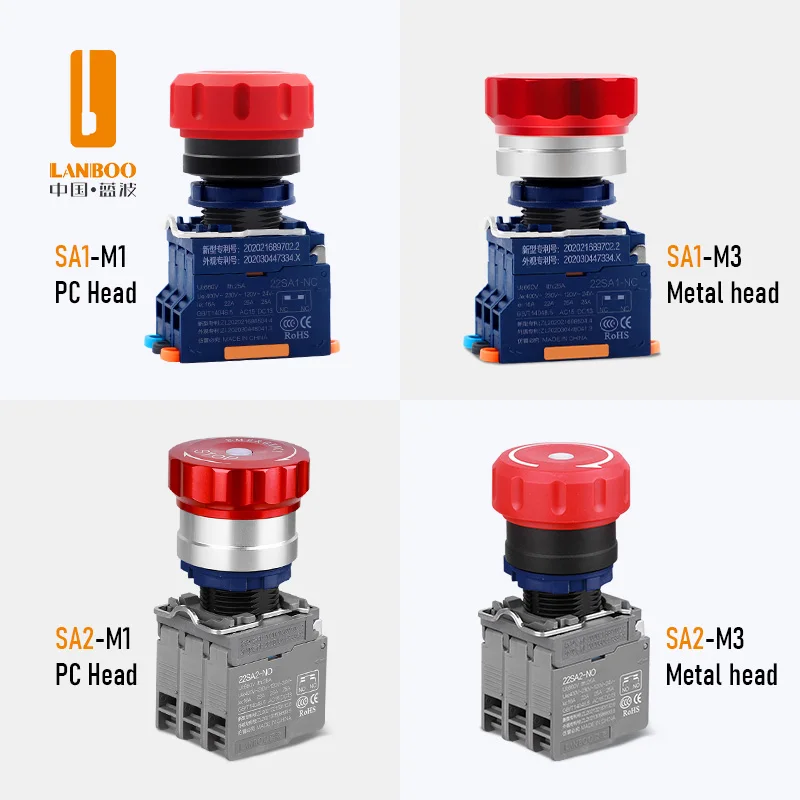

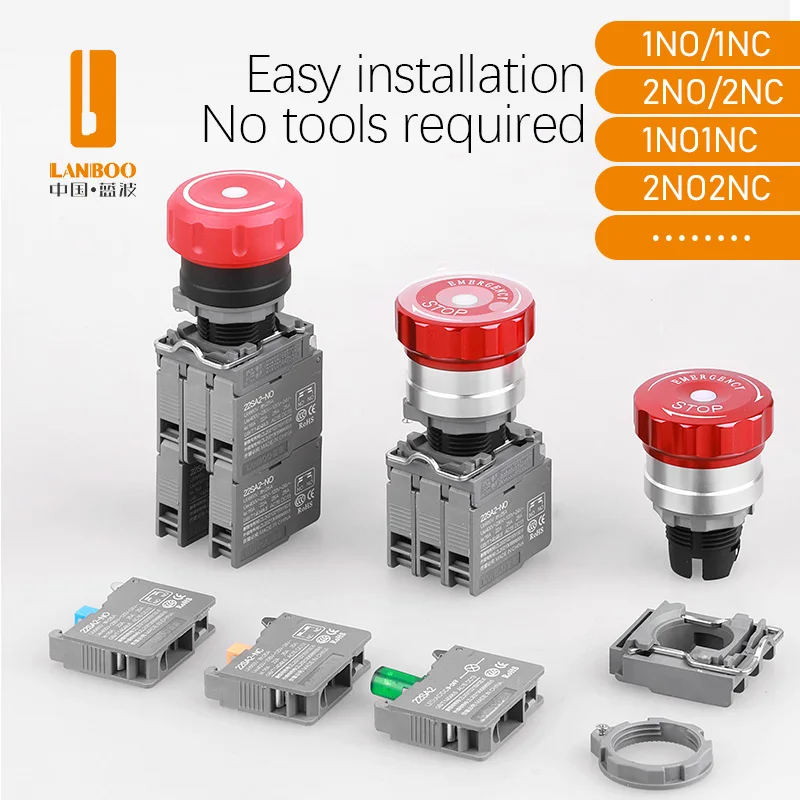

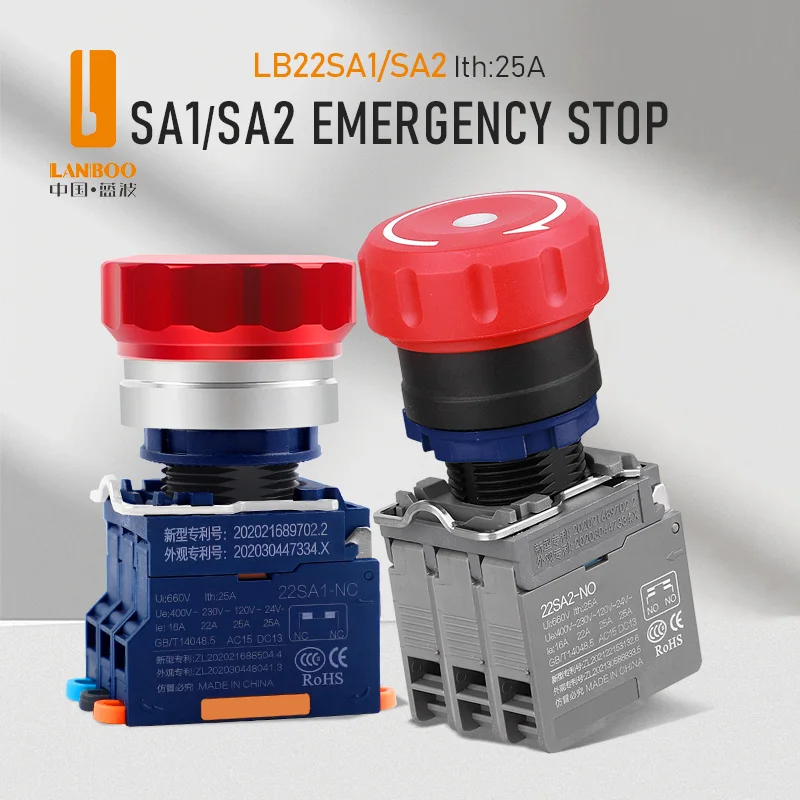

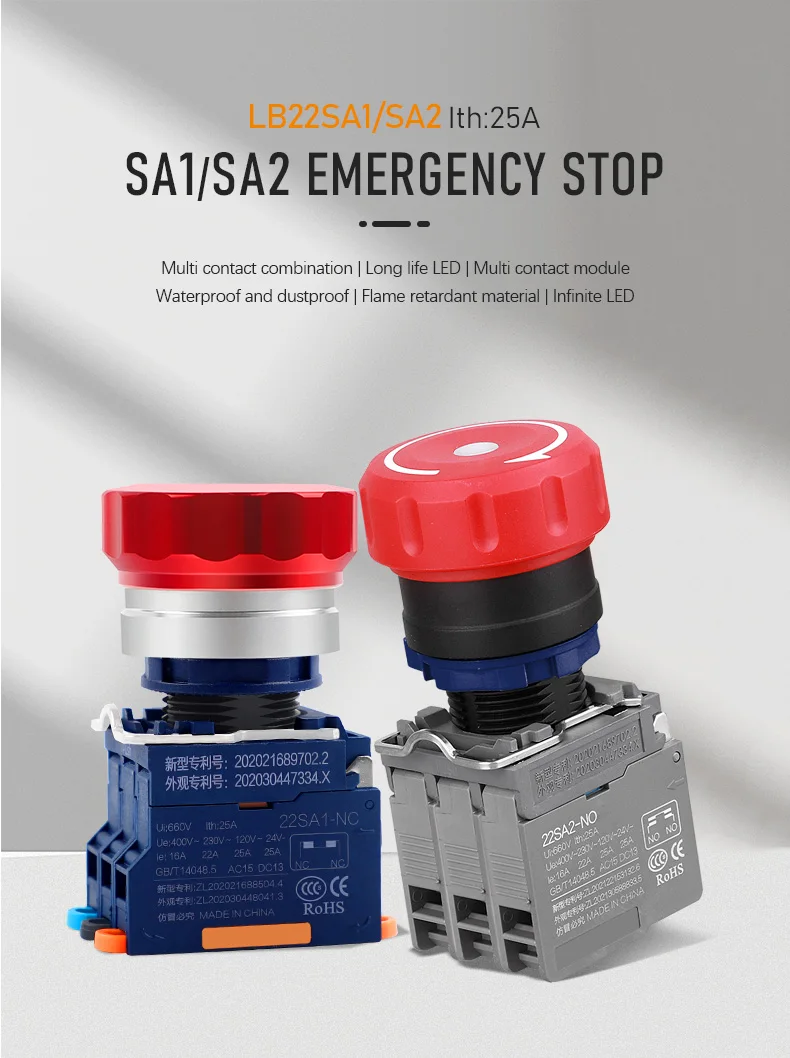

LANBOO SA1/SA2 Plastic Holding Type Emergency Stop Button Switch With Red And Green LED
- Category: >>>
- Supplier: Lanboo Intelligent Technology Co. Ltd.
Share on (1600703152585):
Product Overview
Description
| Mounting Aperture | 22mm |

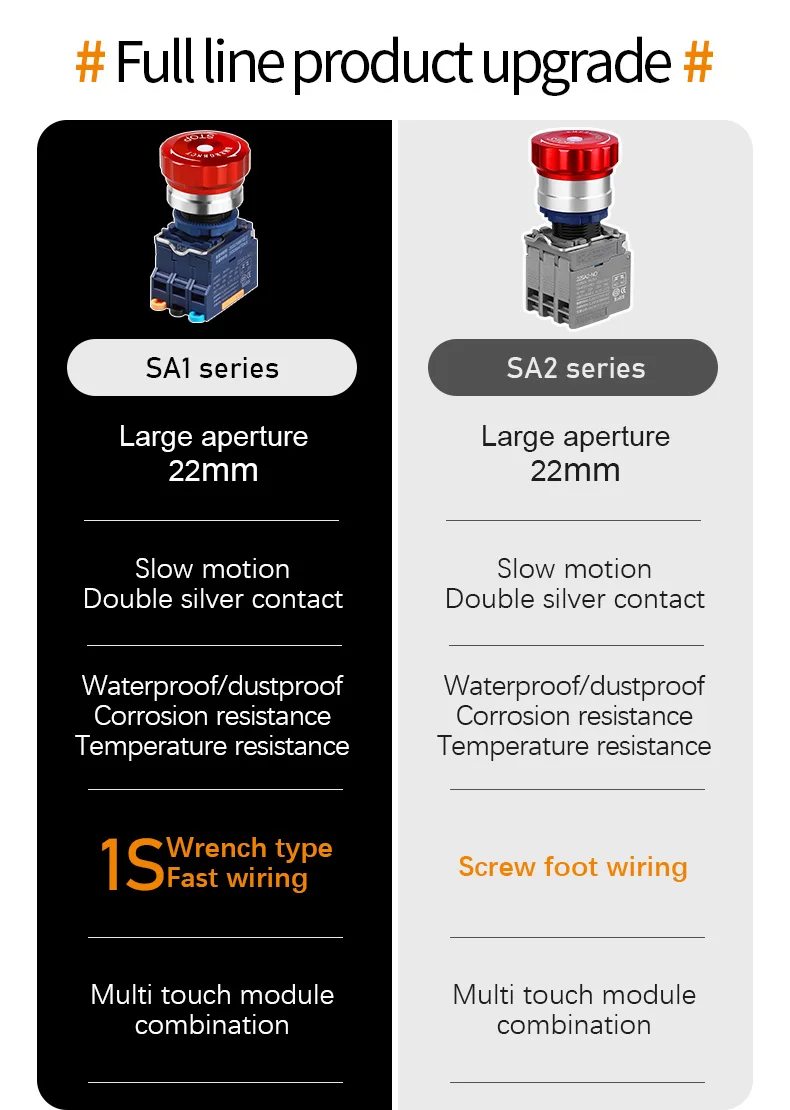

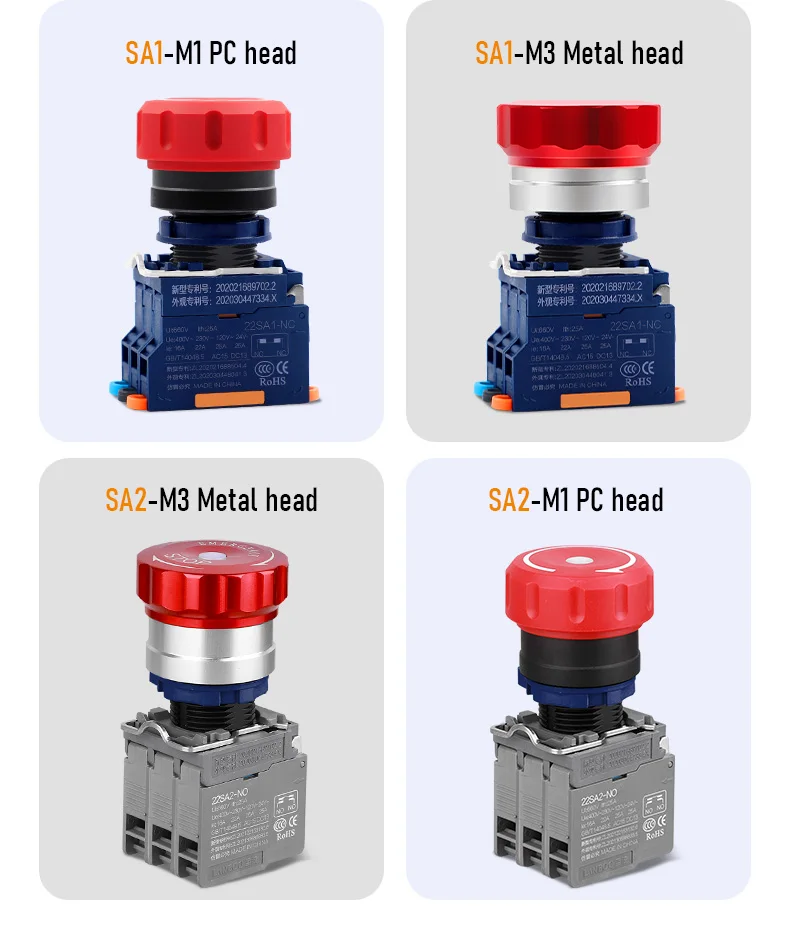

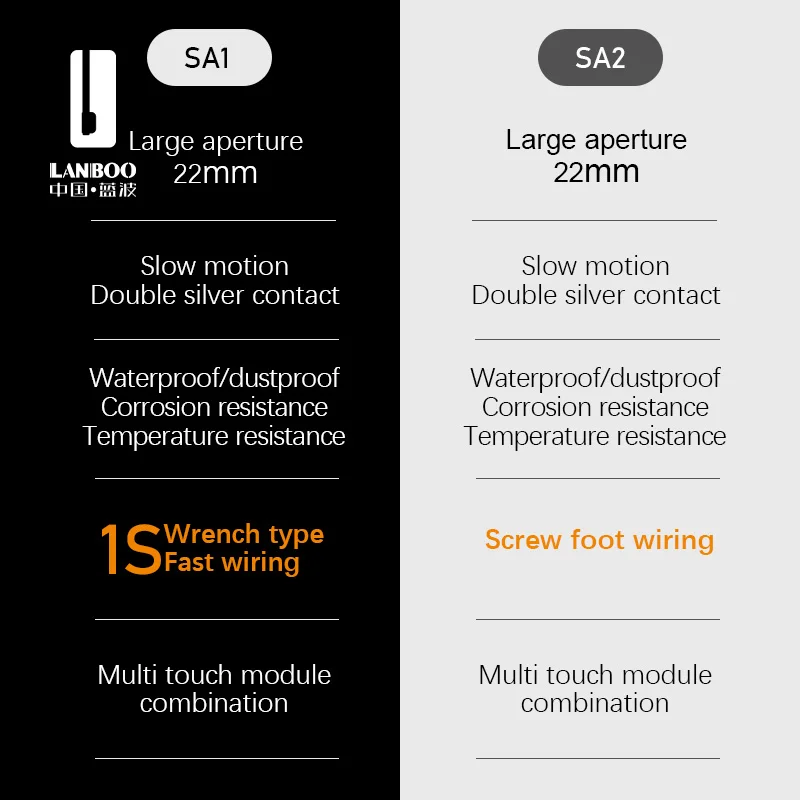

| Serial Number | SA1-Metal/ Plastic Waterproof Belt Lamp Emergency Stop High Current Series SA2-Metal/ Plastic Waterproof Belt Lamp Emergency Stop High Current Series |

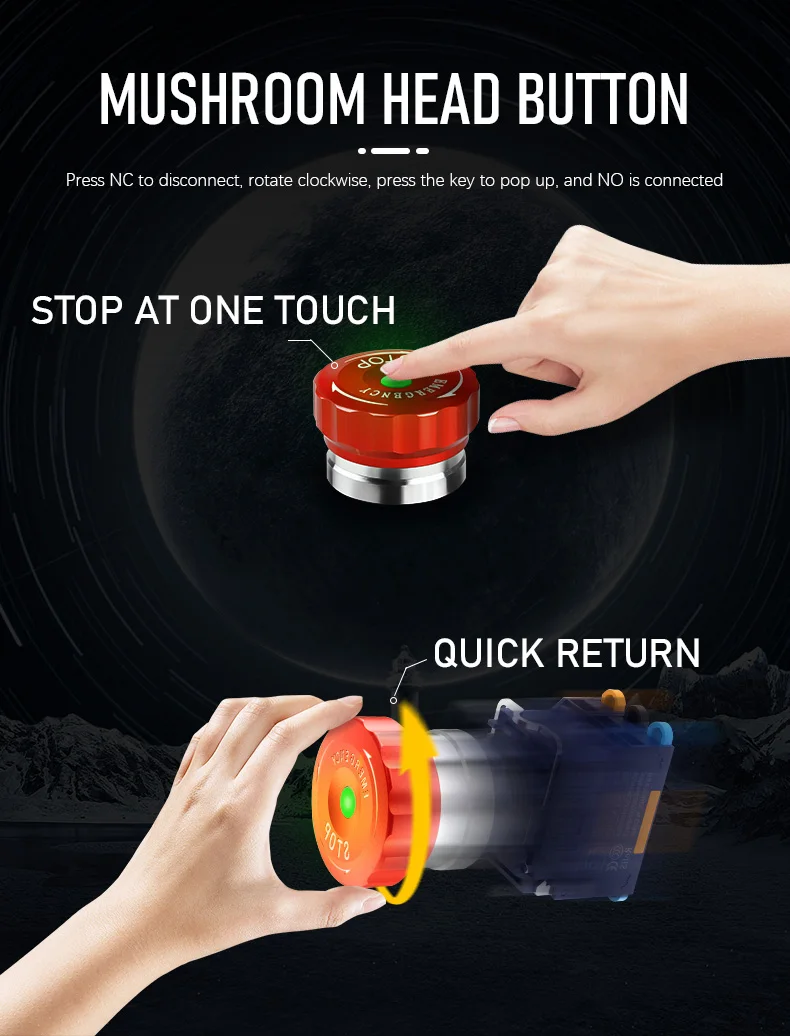

| Head shape | Mushroom Head |
| Switch combination | Self-locking (default) / Self-recovering (custom) |

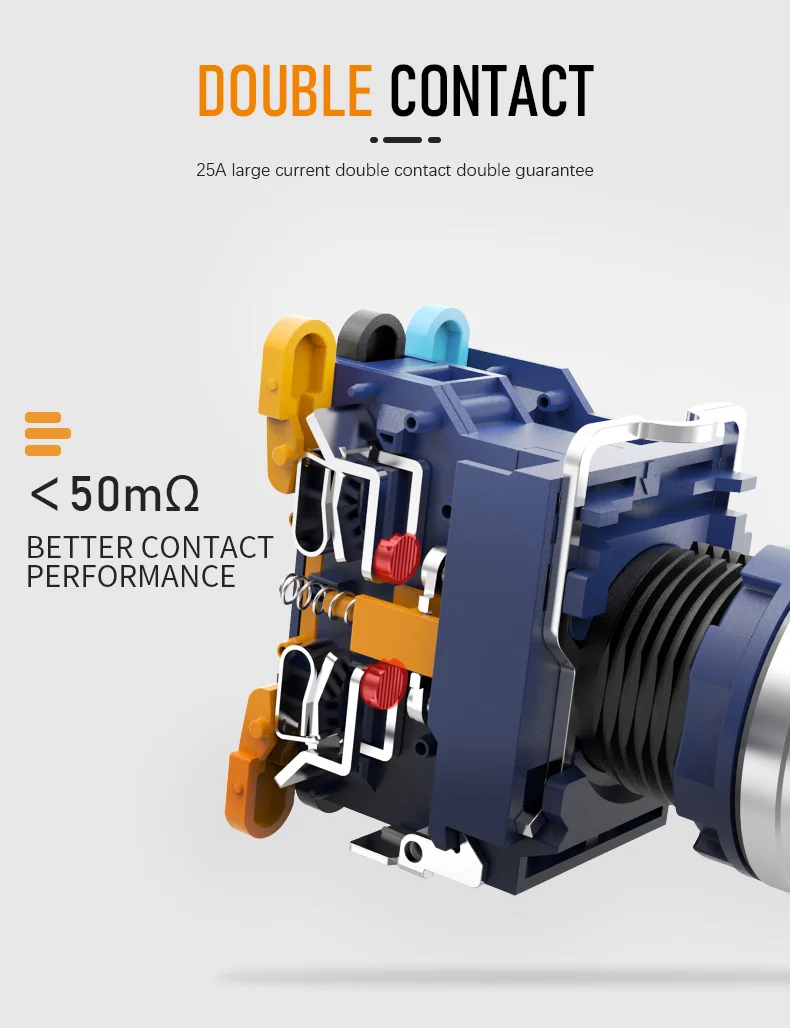

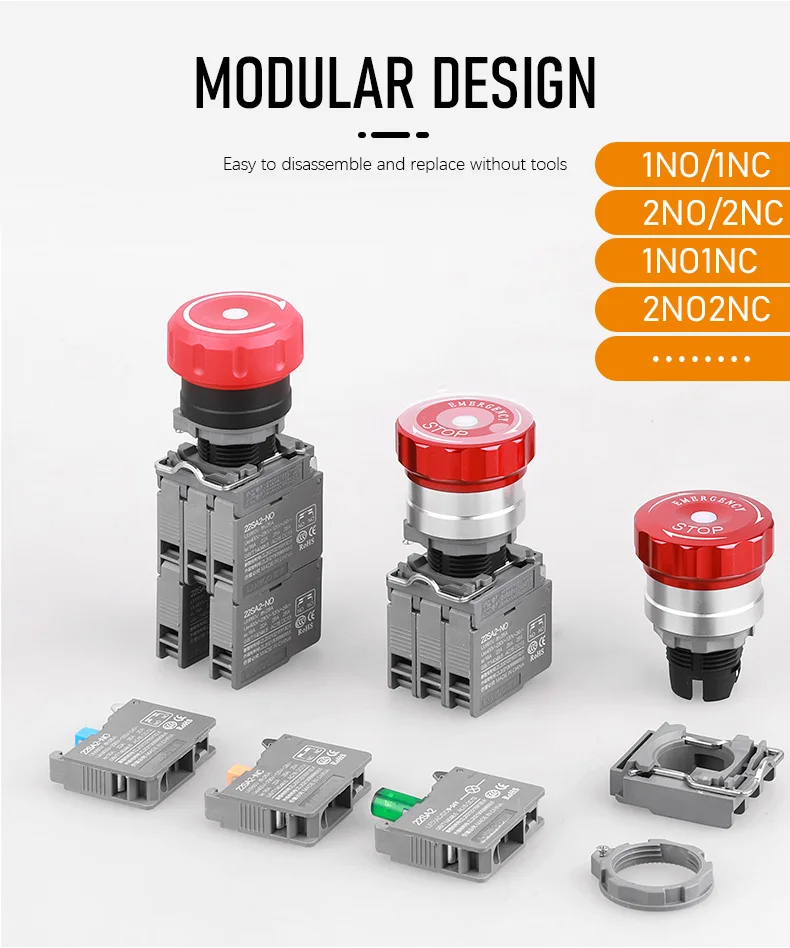

| Action form | 1NO-Normally Open Contact, Slow Acting Double Contact 1NC-Normally Closed Contact, Slow Acting Double Contact 2NO-Normally Open Contact, Slow Acting Double Contact 2NC-Normally Closed Contact, Slow Acting Double Contact 1NO1NC-Normally Open - Normally Closed Contact, Slow Acting Double Contact |
| Waterproof level | IP65, Anti-collision IK10 (Refer to GB/T 20138) |

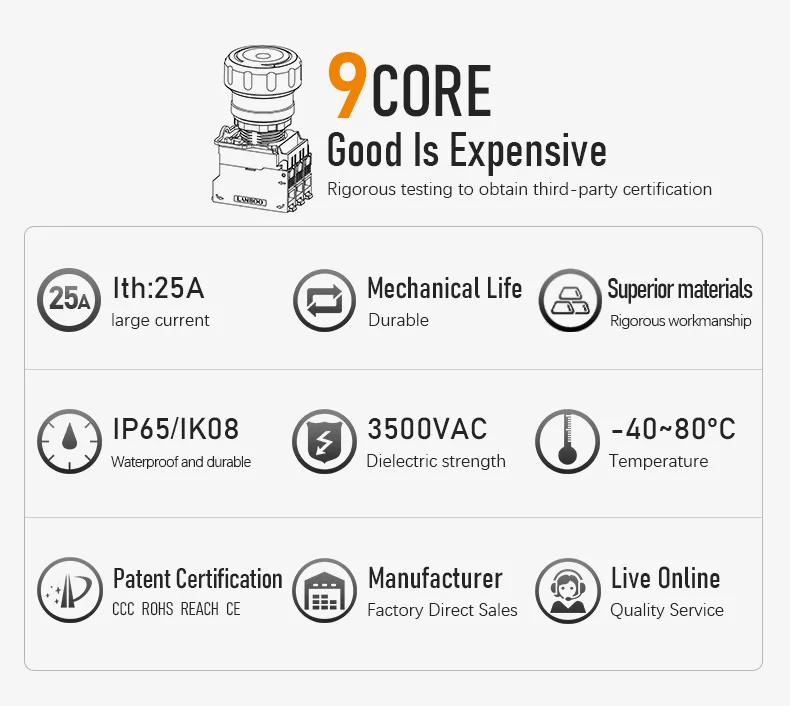

| Heating current | Ith: 25A(Ui660VAC,Ue:400VAC) |
| Working environment | -40°C~+80°C (non-vacuum state, without freezing) |
| Insulation resistance | ≥1000MΩ |
| Contact resistance | ≤50mΩ |

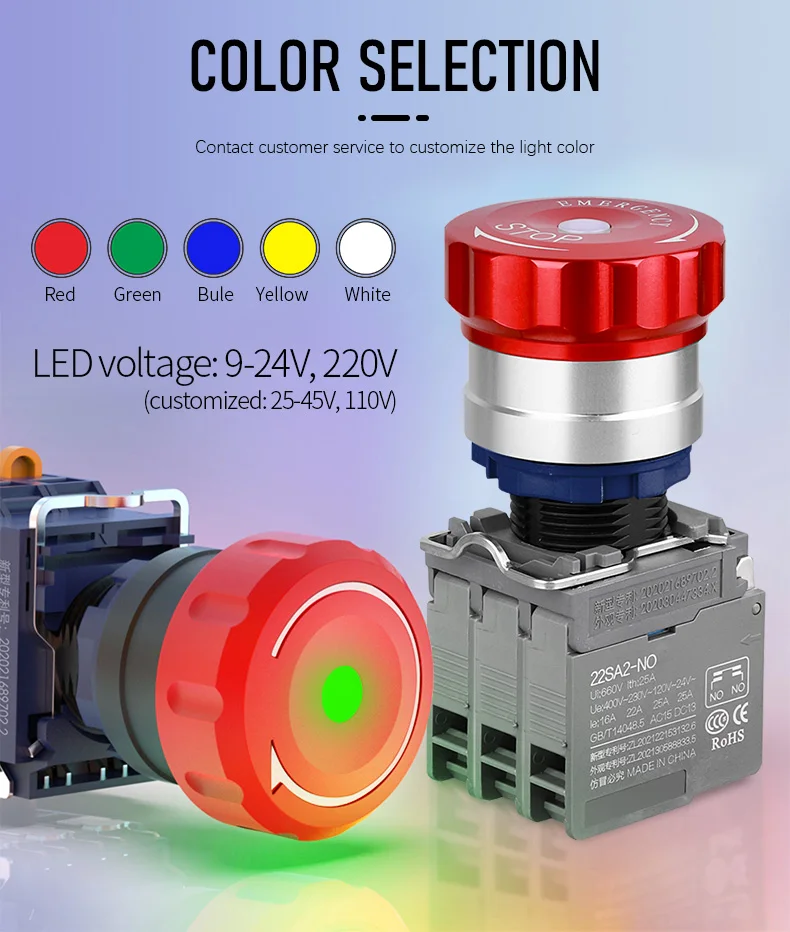

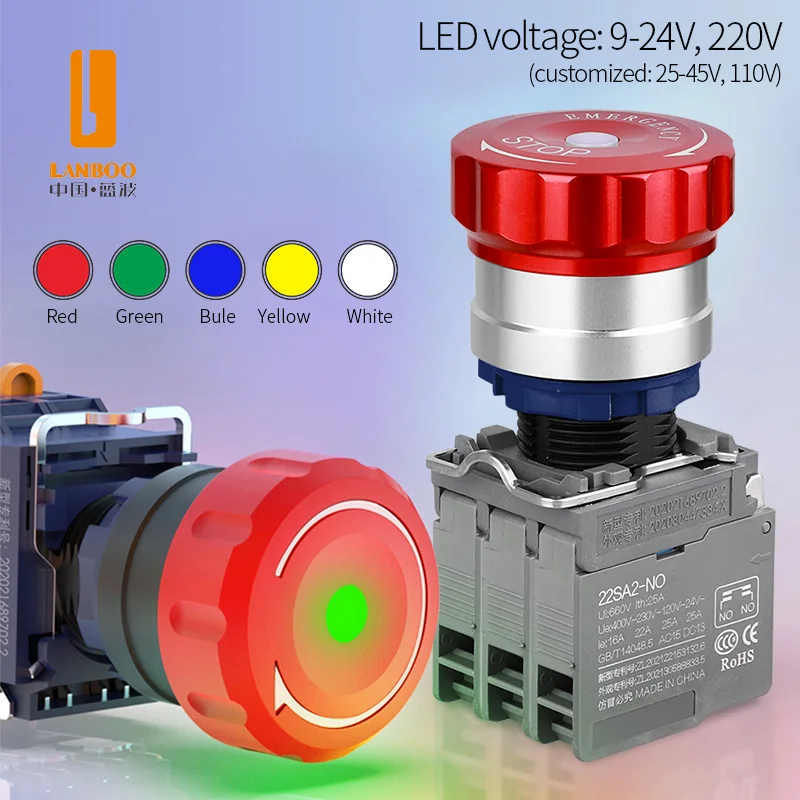

| LED voltage | 9-24V, 220V / Customized:25-48V, 110V(AC/DC General) |
| Rated curren | AC-15: 400V:16A,230V:22A,120V:25A DC-13:24V:25A |
| Inductive load | AC-15: 400V:2A,230V/120V:5A DC-13: 24V:6A |
| Glowing shape | Point Source |
| Glow color | Red, Green, Blue / Customized: Yellow, White |
