High quality nanocrystalline magnetic core T56*28*28 ring ferrite core is used as high precision current transformer core
- Category: >>>
- Supplier: Wuxi Weibang Transformer Manufacture Co. Ltd.
Share on (1600703192987):
Product Overview
Description
Product Description
Nanocrystalline is invented with nano crystal grains to considerably improve its magnetic characteristics..
High saturation flux density, high permeability, low core loss, low magnetostriction, good temperature stability.
Replace electrical steel,permalloy and ferrite in application as high frequency power transformer,inductor,common mode chock
Product Presentation

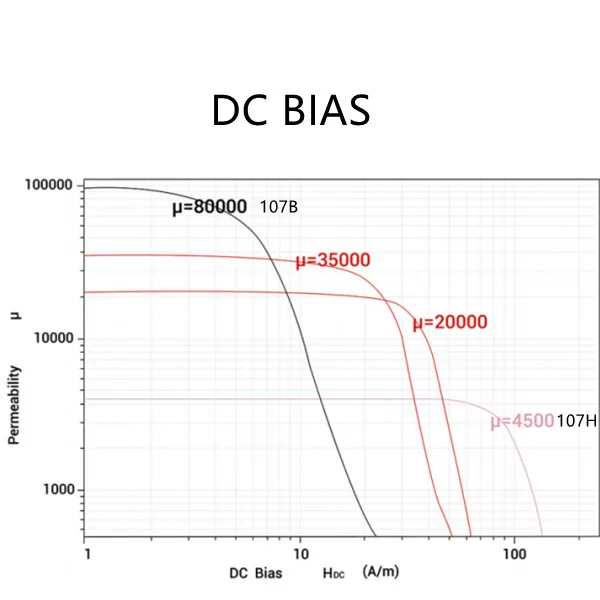

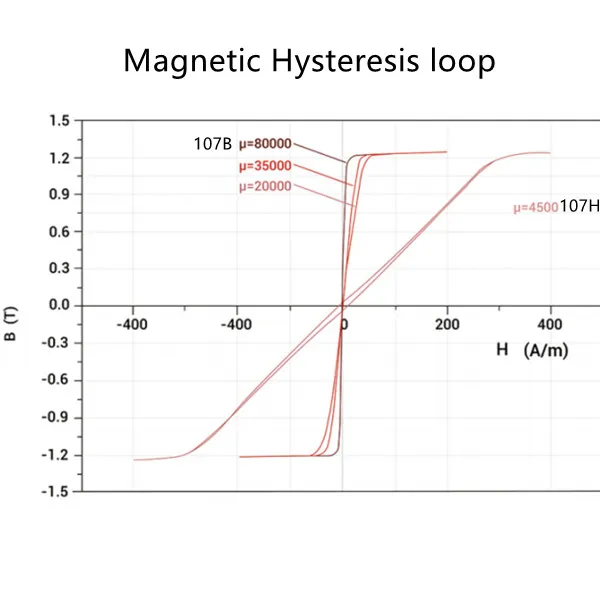

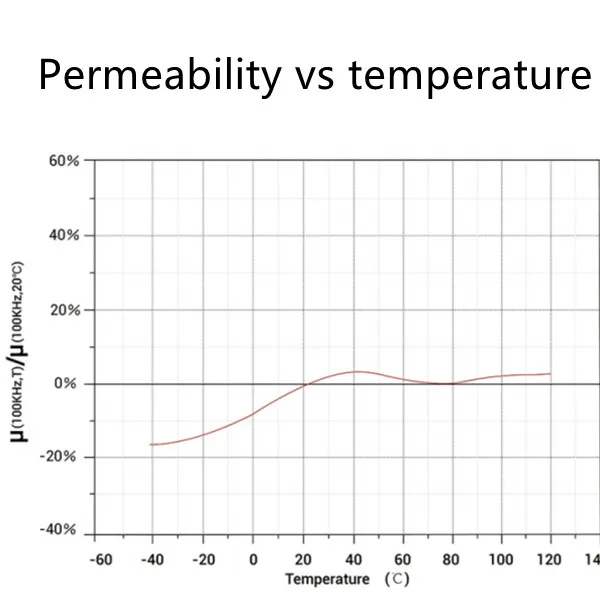

1K 107B Specifications | Bs | 1.25T | Curie Temperature | 570℃ |

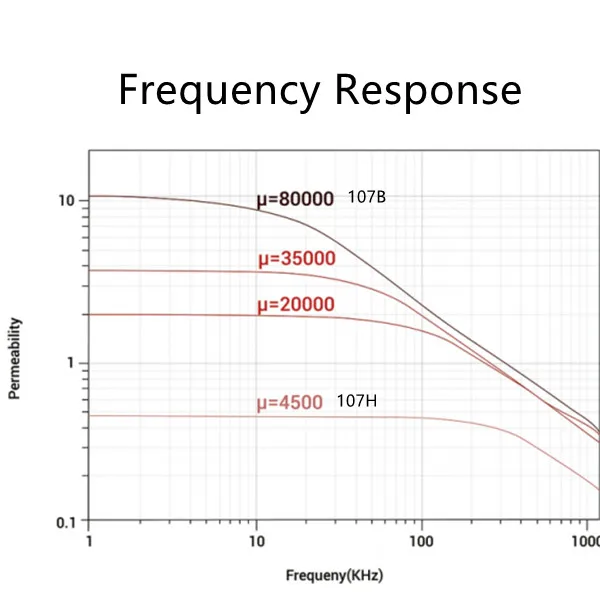

Permeability@1K Hz | 80000+ | Loss | 25W/Kg @20KHz 0.5T | |
Permeability@10K Hz | 60000+ | Hc | ≤1.6 | |
permeability@100K Hz | 10000+ | Magnetostriction/λs | 2.0*10-6 |

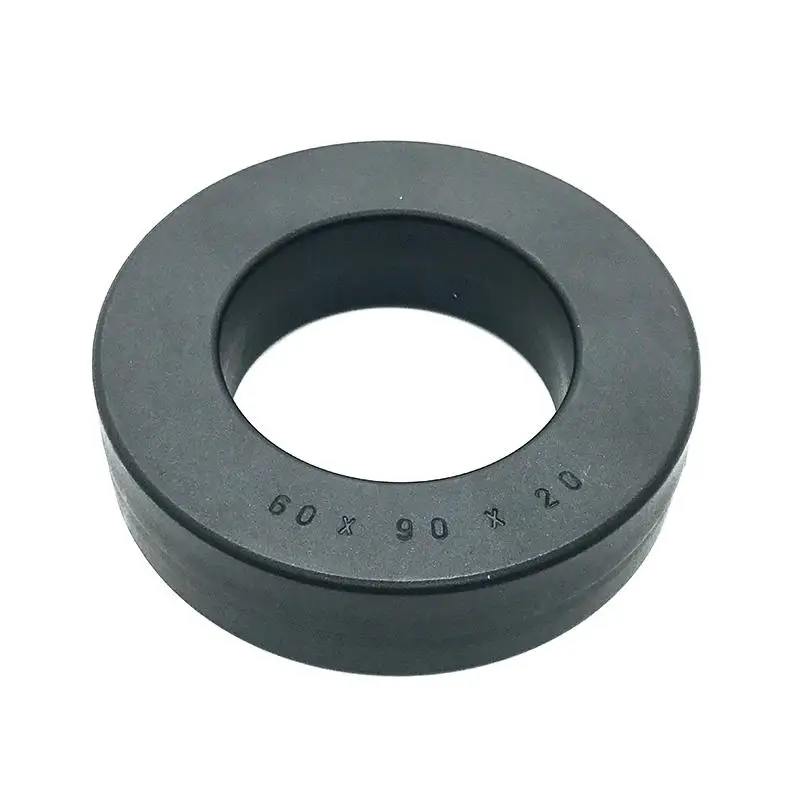

Nanocystalline Wound Toroidal Core 1K107B

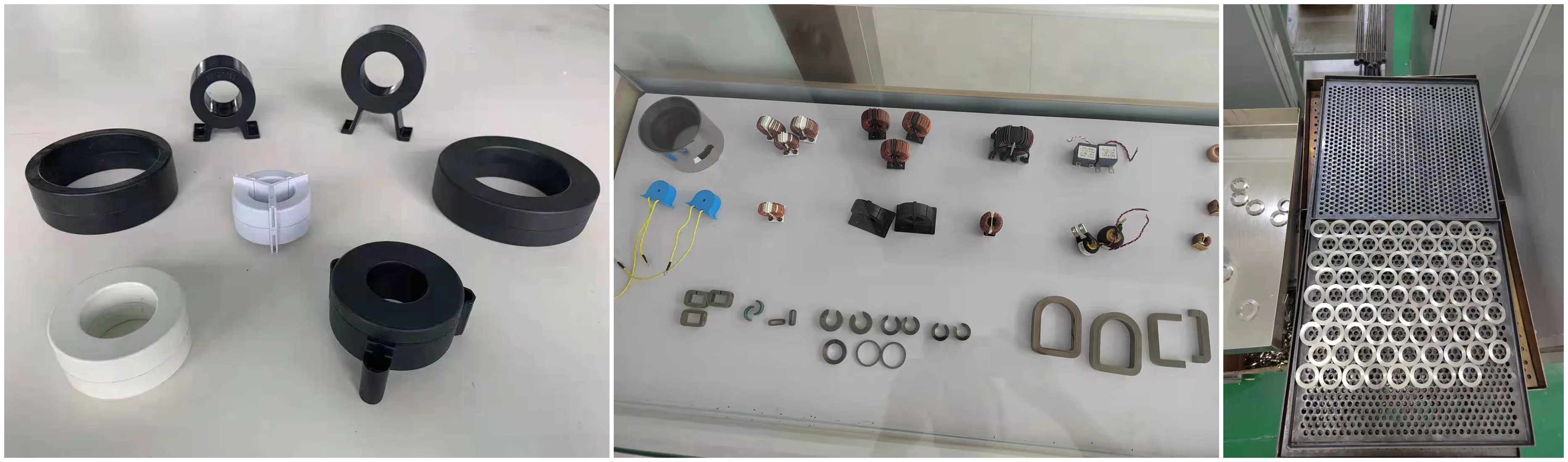

To cater for the demands of the electronic and electrical industries in the manufacture of transformers, chokes, filters,and inverters, Wuxi Weibang manufactures a wide range of nanocrystalline ribbon wound toroidal cores/ring cores

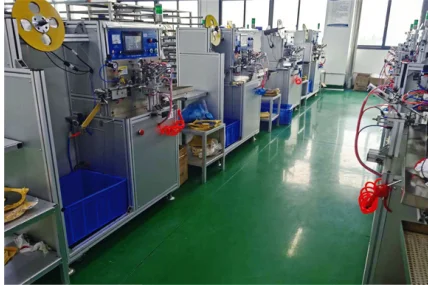

The production of Toroidal Cores(Ring Cores) is finished by auto winding machines,there are four main lines of auto winding machines in our company to produce nano cores in diffrerent dimensions

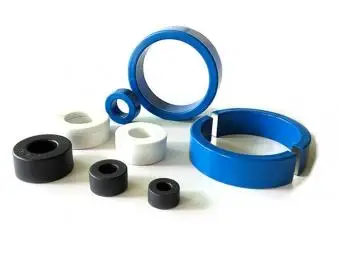

Because nano cores are much soft,we have to choose methods to sealing them,we now provide epoxy coating(core height less than 30MM) and plastic boxes or metal boxes.
Application Information
Strip Wound Toroidal Core or Ring Core is widely used in transformers,audio amplifiers,sensors and inductors as the soft magnetic cores.Electrical Silicon Steel has high saturated flux desity over 2T and is quite suitble low grade and high burden split transformers while nanocrystalline is more suitable for higher grade applications.
Magnet Amplifier
107B Nanocrystalline is low loss,low Hc,high permeability,high square ratio.Mag-Amp made of 107B is excellebt economical for switching power.
Common Mode Filter Choke
Compared with ferrite,107B has higher Bs and permeability and loeer Hc and loss,it can help gain higher inductance with less wires.
Solar Inverter
Excellent High Frequency Performance to deal with the unbalance current.
Current Transformer
Nanocrystalline is more suitable than ferrite and electrical steel in accurate current transfomer,0.5S,0.2,0.2S，0.1
High Frequency Power Transformer
Nano core can help HFPT fulfil stable working under -40~150℃
Technology
Company Introduction
Wuxi Weibang Transformer Manufacture Co.,Ltd is a leading soft magnetic core manufacturer in China focused on producing and developing top quality strip wound magnetic cores and punching lamination cores for voltage transformers,current transformers,instrument transformers, common modal choke , etc. Wuxi Weibang delivers high quality soft magntic iron cores to customers from over 30 countries.

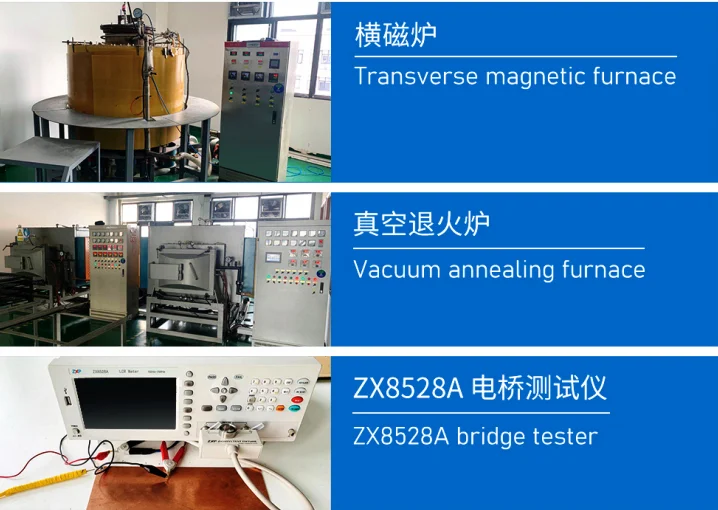

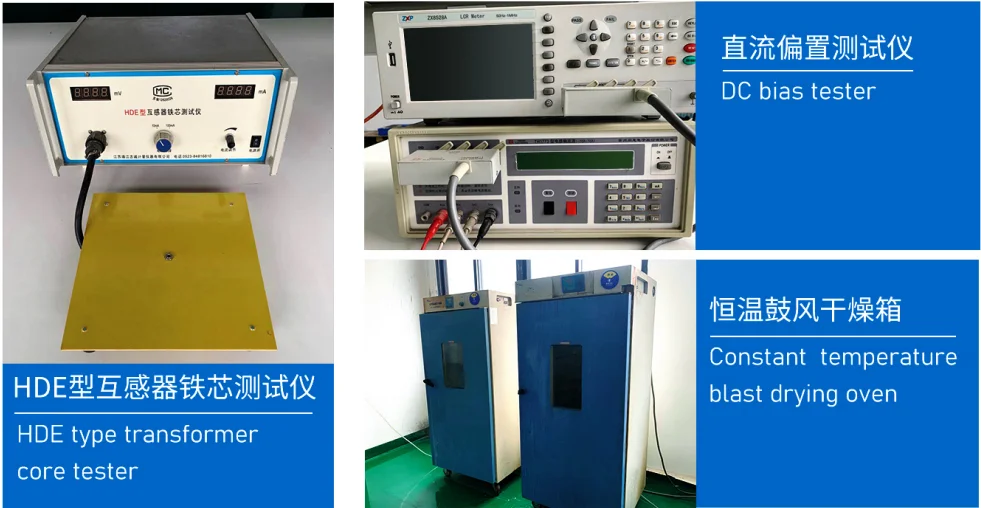

Wuxi Weibang have been dedicated to manufacture soft magnetic cores under NGV ISO 9001 standard with 3000㎡ modern facilities and 100+ experienced employees.There're are many advanced facilities to improve automatic production ratio.Every piece of the product goes through strict raw material inspectin,automatic wingding or punching,immersion paint,CNC cutting, online inspection,afterfinish,packaging and final inspection.
The WBCORE® are made of eletrical steel(CRGO and CRGNO),amorphous or nanocrystalline to meet different frequency requirment and class grade.Our products are widely used in electronic instruments, transportation, telecommunication, renewable energy and other associated industries.
Wuxi Weibang have been dedicated to manufacture soft magnetic cores under NGV ISO 9001 standard with 3000㎡ modern facilities and 100+ experienced employees.There're are many advanced facilities to improve automatic production ratio.Every piece of the product goes through strict raw material inspectin,automatic wingding or punching,immersion paint,CNC cutting, online inspection,afterfinish,packaging and final inspection.
Certificate
NGV Certification
Wuxi weibang transformer manufacture Co.,Ltd is a professional manufacturer of high quality transformer cores and chokes, supplying soft magnetic materials, soft magnetic cores, electrical and electronic components as well as other materials for transformers and associated industries.Our company have developed in the fileds for years and been certificated by ISO9001:2008
ROHS
The purpose of this standard is to eliminate harmful substances in electrical and electronic product, such as
Pb\\Cd\\Hg\\Cr\\PBBs\\PBDEs.
As we know, there are harmful heavy metals in the process of producing electrical and electronic products.
Today, people all over the world are particularly concerned about environmental protection.
In order to adapt to this trend, Wuxi Weibang Transformer ensure all wound corea and lamination cores meet the RoHS standards, besides all raw materials including electrial steel(cold rolled grain oriented silicon steel and cold rolled grain non-oriented silicon steel),amorphous and nanocrystalline.
Pb\\Cd\\Hg\\Cr\\PBBs\\PBDEs.
As we know, there are harmful heavy metals in the process of producing electrical and electronic products.
Today, people all over the world are particularly concerned about environmental protection.
In order to adapt to this trend, Wuxi Weibang Transformer ensure all wound corea and lamination cores meet the RoHS standards, besides all raw materials including electrial steel(cold rolled grain oriented silicon steel and cold rolled grain non-oriented silicon steel),amorphous and nanocrystalline.
Packing&Shipping
FAQ
Q1. What is your terms of packing?
A: Generally, we pack soft magnetic iron cores with standard carton(unit weight less than 30kg) and wooden box(unit weight over 30 kg).
Q2. What is your terms of payment?
A: Total amount ≤ USD1000, 100% pay in advance. 1000<Total amount <USD10000, 50% T/T in advance and the rest will be finished before shipping ,Total Amout>USD 10000,50% T/T in advance and the rest will be finished before shipping by T/T or LC.
Q3. What is your terms of delivery?
A: EXW,FOB, CIF From Shanghai Port
Q4. How about your delivery time?
A: Generally, it will take 7 to 40 days after receiving your advance payment. The specific delivery time depends
on standar soft magnetic iron cores or not.
Q5. Can you provide customized samples?
A: Yes, we can do it.We can professional technical team to help customers to develop new transformer iron cores or inductor cores.
Q6. What is your sample policy?
A: We actually don't provide free samples unless the basis cost is tiny, and the customers have to provide freight accournt to choose freight collection or pay the express cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
A: Generally, we pack soft magnetic iron cores with standard carton(unit weight less than 30kg) and wooden box(unit weight over 30 kg).
Q2. What is your terms of payment?
A: Total amount ≤ USD1000, 100% pay in advance. 1000<Total amount <USD10000, 50% T/T in advance and the rest will be finished before shipping ,Total Amout>USD 10000,50% T/T in advance and the rest will be finished before shipping by T/T or LC.
Q3. What is your terms of delivery?
A: EXW,FOB, CIF From Shanghai Port
Q4. How about your delivery time?
A: Generally, it will take 7 to 40 days after receiving your advance payment. The specific delivery time depends
on standar soft magnetic iron cores or not.
Q5. Can you provide customized samples?
A: Yes, we can do it.We can professional technical team to help customers to develop new transformer iron cores or inductor cores.
Q6. What is your sample policy?
A: We actually don't provide free samples unless the basis cost is tiny, and the customers have to provide freight accournt to choose freight collection or pay the express cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
