Stitch Trasfer, independent suspension,pointelle,intarsia,jacquard,apparent or hide shaping and other regular or inregular patterns. However, the front needle plate can be used for hanging the eyes, and the back needle plate can be used for knitting. It is not allowed to hang the eyes on one needle plate at the same time.
Controlled by servo motor with 32 sections optional, Max 1.2M/S.The serve motor combines precise feedback control system with high-speed digital signal processor(DSP)to control IGBT to achieve accurate electric current output.
Controlled by AC servo-motor,racking within 2 inches an with fine adjusting function.
Controlled by stepping motor, 32 sections stitch selectable adjustable scopesupported by subdivision technology: 0-650, the length of the knitwear can be accurately controlled.
Triangular integrated designing enables independent or simultaneous stitch transfer to realize more efficient production.
Infrared alarm,Computer programs instruction, stepper motor control,32-stagetension selection with an adjustable range between 0-100.

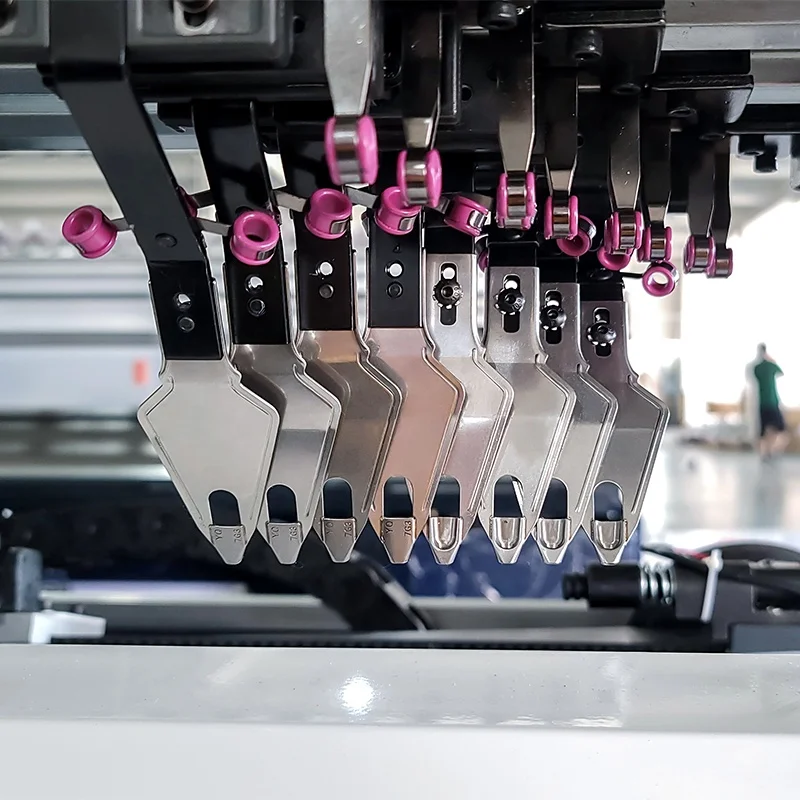

3 guide rails and 6 nozzles,shiftable at any postion of the needle bed.
The machine alarm system will set off when yarn-breaking, knots, floating yarn,rewinding, end of knitting, racking failure, needle breakage or Program error, also set up the safety auto-lock protect device.
1.LCD touch screen, graphical interface.USB and network compatible,with expanded memory of up to 2G.A great amount of patterns can
bestores and mobilized for use at any time as perproduction requirements.
2.Monitoring display:Various operating parameters can be displayed and can be adjusted anytime when the machine is running,making
operations as convenient and time-saving as possible.
3.Design system and control system(software)are easy to update for free. 4.Multi-language operating system:There are
Chinese,English,Spanish andArabic Versions.Languages can be switched according to customer requirements.
High speed network can coordinate up to 250 machines；the knitting data can be uploaded downloaded and shared.
Single-phase 110V/220V/three-phase 380V,adopt advanced CMOS technology,having memorizing function at power shock stop.(Optional British plug)
52inch:2480*800*1700mm(bare pager)/2580*900*1800mm(wooden case)
