china price Inclinometer Casing Tube
- Category: >>>
- Supplier: Dongying Jintan Petroleum Technology Equipment Co. Ltd.
Share on (1600703246124):
Product Overview
Description
Products Description

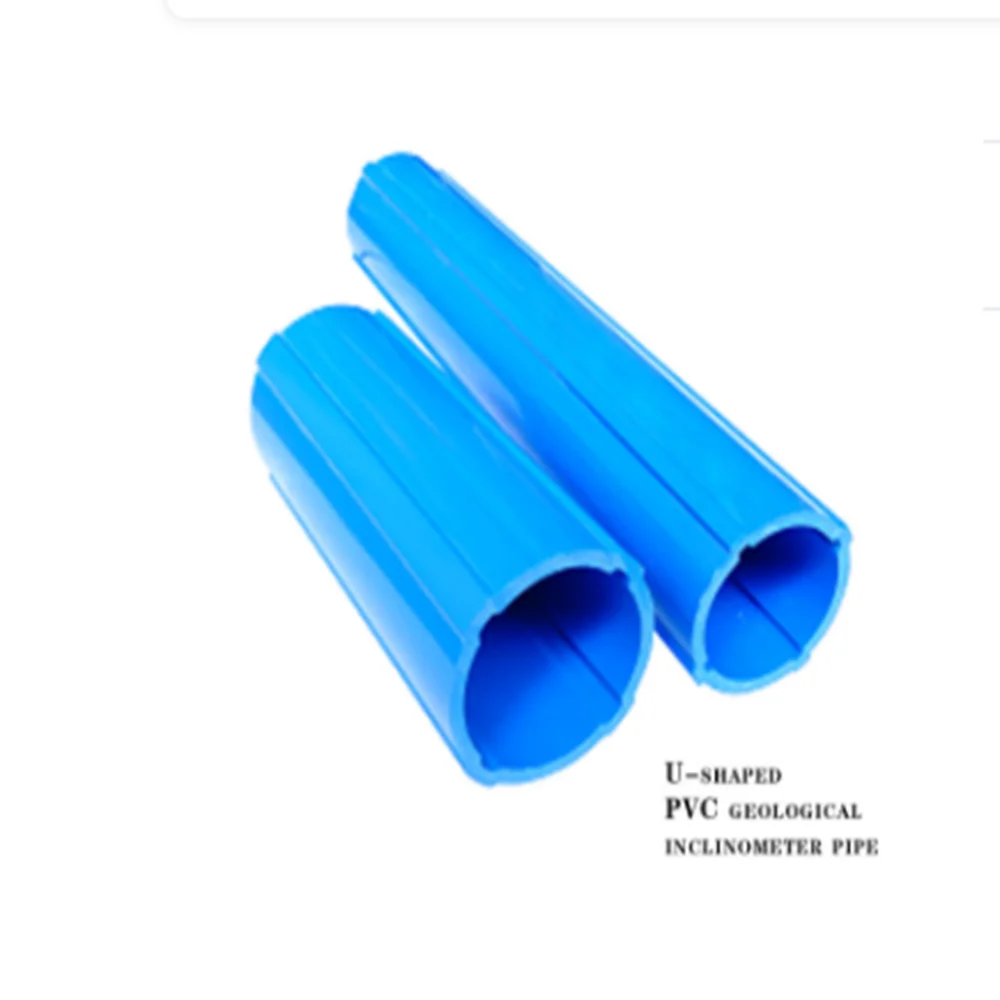

70MM Hard geology inclinometer casing
What is Features of our Low Cost 70MM Hard geology inclinometer casing ?
The inclinometer casing is used in conjunction with all available inclinometer probe to measure ground movement.
The ABS inclinometer casing is used in conjunction with all available inclinometer probes to monitor the stability of slope areas,
excavation walls and so on.
Casings are manufactured from high quality ABS material to exacting quality control standards.
The lenght of each casing is 2-4meters.
The inclinometer casing is used in conjunction with all available inclinometer probe to measure ground movement.
The ABS inclinometer casing is used in conjunction with all available inclinometer probes to monitor the stability of slope areas,
excavation walls and so on.
Casings are manufactured from high quality ABS material to exacting quality control standards.
The lenght of each casing is 2-4meters.
70MM Hard geology inclinometer casing
Out Diameterφ70mm
In Diameterφ60mm
guide slot width4-5mm
guide slot
depth 2mm
length2-4m
thickness deviation≤14%
torsional angle of guide slot≤0.2 °/m
Company Profile
Dongying Jintan Petroleum Technology Equipment Co., Ltd. is located in Dongying City, where Shengli Oilfield is located. We mainly produce drilling rigs and their accessories, workover rigs, mud pumps and their accessories, top drives and their accessories,drill rods, sucker rods, water well rigs and their petrochemical additives. The company's products have been sold to more than 80 countries and regions around the world, and the quality and service of our products have been well received by overseas buyers. We have established multiple currency settlement methods. We have established overseas offices in Russia, Dubai, Kazakhstan, Nigeria and other countries. Our company has established long-term cooperation with Sinopec and CNOOC. We always adhere to integrity first and gain customer trust with quality. We believe that we will be stronger in the future.
Product packaging

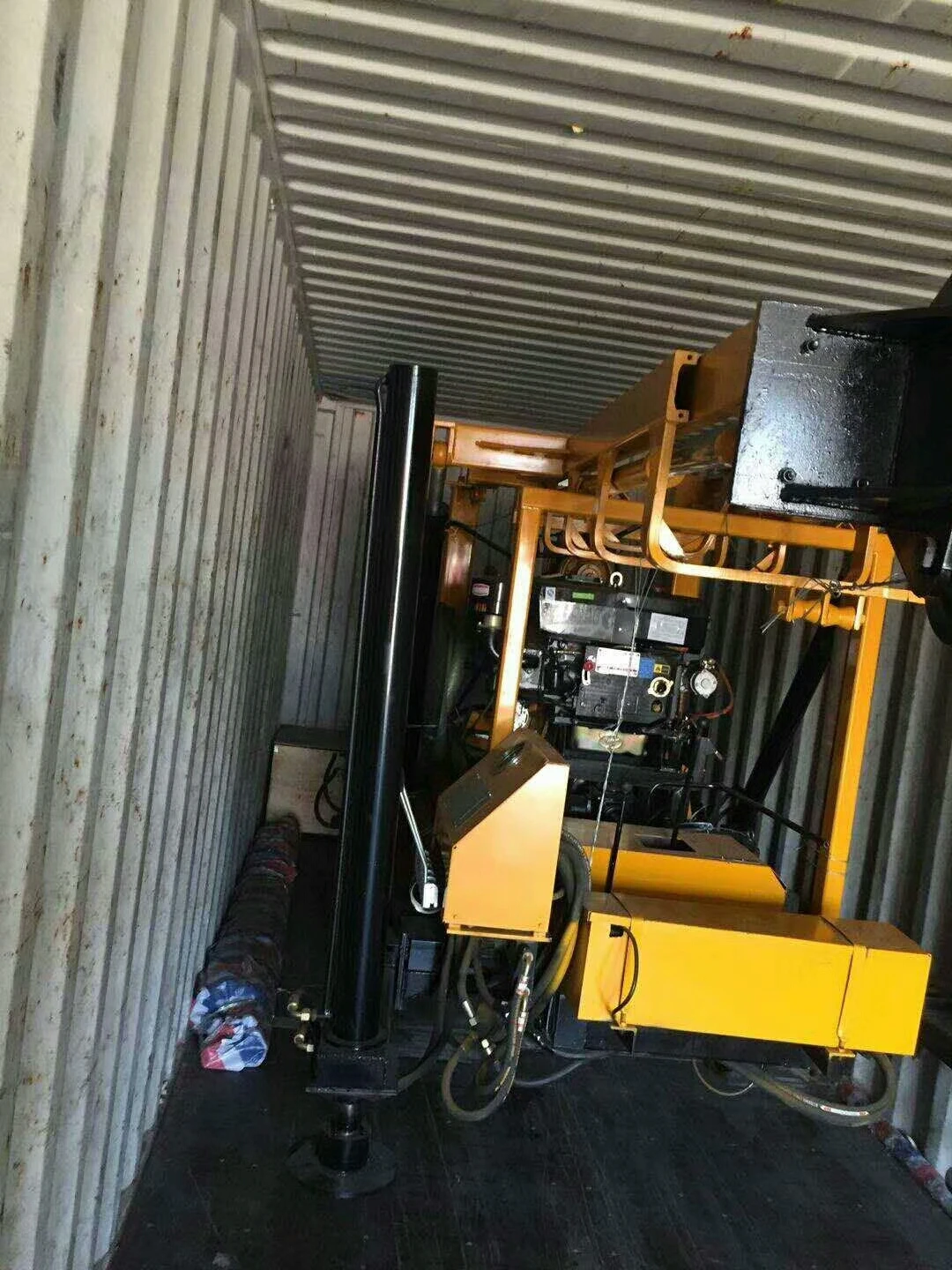

Shipping
Products Description
260m deep core sample drilling rig for sales QD260
The rig adopts the new hydraulic technology, supporting the rotation of the large torque hydraulic motor and the propulsion of the large-diameter hydraulic cylinder. The engine of the famous factory provides the power for the
hydraulic system, the two-stage air filter and the intake air leading the compressed air to prolong the service life of the diesel engine. Unique pump design easy maintenance, reduce maintenance costs. Centralized control of the hydraulic console for easy operation. This series of rigs using excavator crawler chassis, off-road performance. Independent module design allows the rig to be conveniently mounted on a truck to increase mobility. Two-stage rotation and propulsion speed to meet the needs of different wear and tear in the soil and rock formations. Combined locator, according to different types of drill pipe and impactor to adjust the replacement of the positioning plate to ensure accurate and reliable positioning centering. Hoisting mechanism to facilitate the lifting of the drill pipe and the impactor, reducing labor intensity.
hydraulic system, the two-stage air filter and the intake air leading the compressed air to prolong the service life of the diesel engine. Unique pump design easy maintenance, reduce maintenance costs. Centralized control of the hydraulic console for easy operation. This series of rigs using excavator crawler chassis, off-road performance. Independent module design allows the rig to be conveniently mounted on a truck to increase mobility. Two-stage rotation and propulsion speed to meet the needs of different wear and tear in the soil and rock formations. Combined locator, according to different types of drill pipe and impactor to adjust the replacement of the positioning plate to ensure accurate and reliable positioning centering. Hoisting mechanism to facilitate the lifting of the drill pipe and the impactor, reducing labor intensity.
Total Weight (kg) | 6000 | ||
Overall size (mm) | 5300*2100*2500 | ||
Walking speed (km/h) | 0～2 | ||
Equipped with power model | 4102GBZ | ||
Dynamic parameters | 76kW/2400rpm | ||
Ground clearance (mm) | 250 | ||
Impactor | DHD360 | ||
Grade ability (°) | 20 | ||
Drilling depth (m) | 260 | ||
Working Pressure(MPa) | 1.05～2.46 | ||
Total gas consumption (m3/min) | 16～30 | ||
Drill rod diameter (mm) | Ø76/Ø89/ Ø102 | ||
Drill rod length (mm) | 3000 | ||
Drilling (drill) diameter (mm) | Ø115～Ø254 | ||
Propulsion (kN) | 35 | ||
Lift force (kN) | 75 | ||
Rotor speed (rpm) | Slow | 22 | |
Fast | 177 | ||
Rotating torque (N·m) | 5500 | ||
