DAH full screen mono half cell solar panel 9BB half cut 410w 415w 420w solar pv panel (1600703357745)

Share on:


Price:$0.20 - $0.24
Price in USD:Details

Quantity:


Product Overview

Description



Products Description




Maximum Power (Pmax)
400W
405W
410W
415W
420W
Open-circuit Voltage (Voc)
36.8V
37.0V
37.2V
37.4V
37.6V
Maximum Power Voltage (Vmp)
31.3
31.5
31.7
31.9
32.1
Short-circuit Current (Isc)
13.48A
13.54A
13.60A
13.66A
13.72A
Maximum Power Current (Imp)
12.77A
12.85A
12.92A
13.00A
13.07A
Module Efficiency
20.48%
20.74%
21.00%
21.25%
21.51%
Power Tolerance
0~+5W
Standard Test Environment
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5




Certifications




Product Packaging

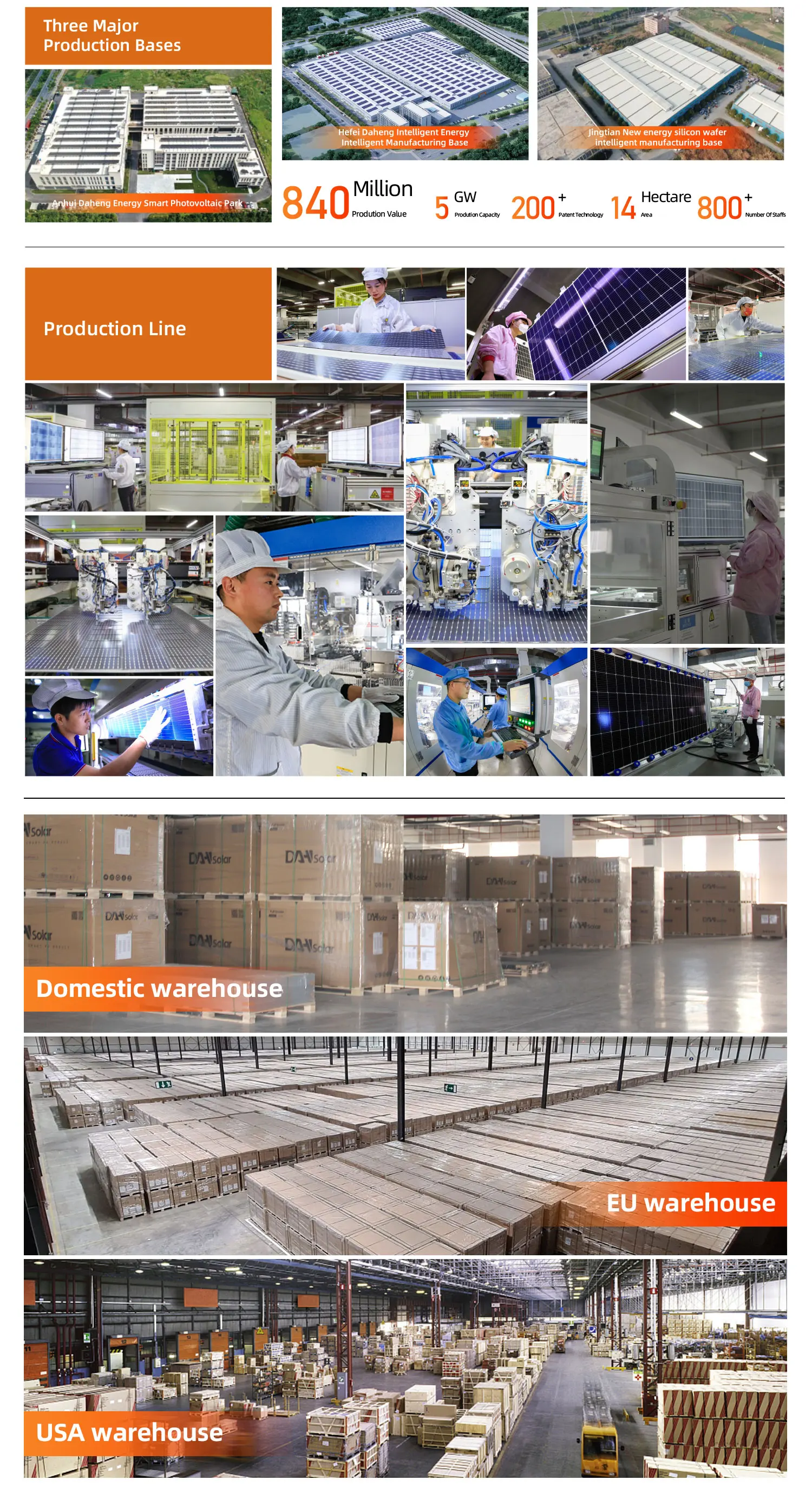

DAH Factory&Oversea Warehouses

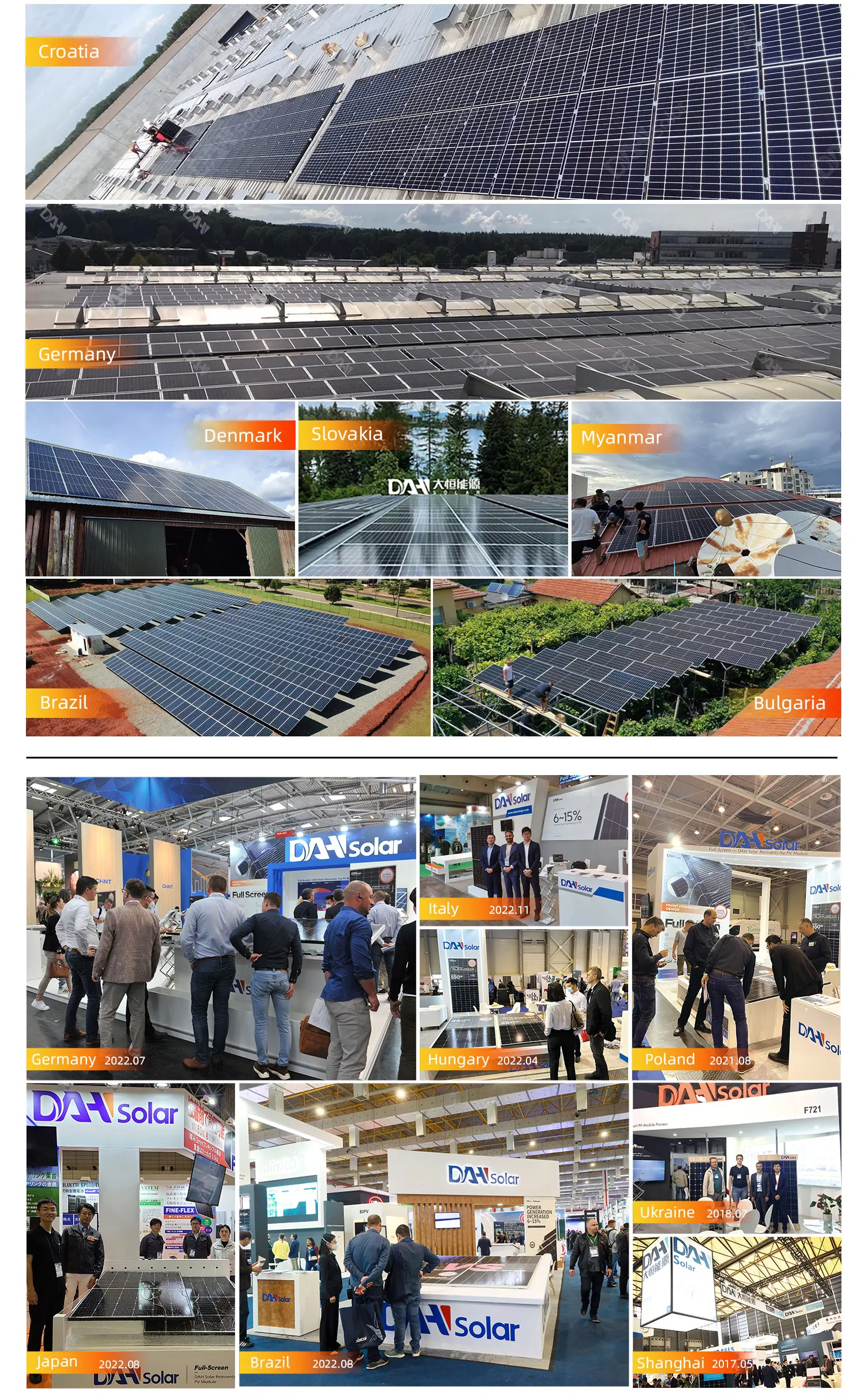

Projects&Exhibitions
