Intelligent Sorting Conveyor System Conveyor Belt Sorting Machine Dws System
- Category: >>>
- Supplier: Senad Robot(Shanghai) Co. Ltd.
Share on (1600703399213):
Product Overview
Description
Product Description

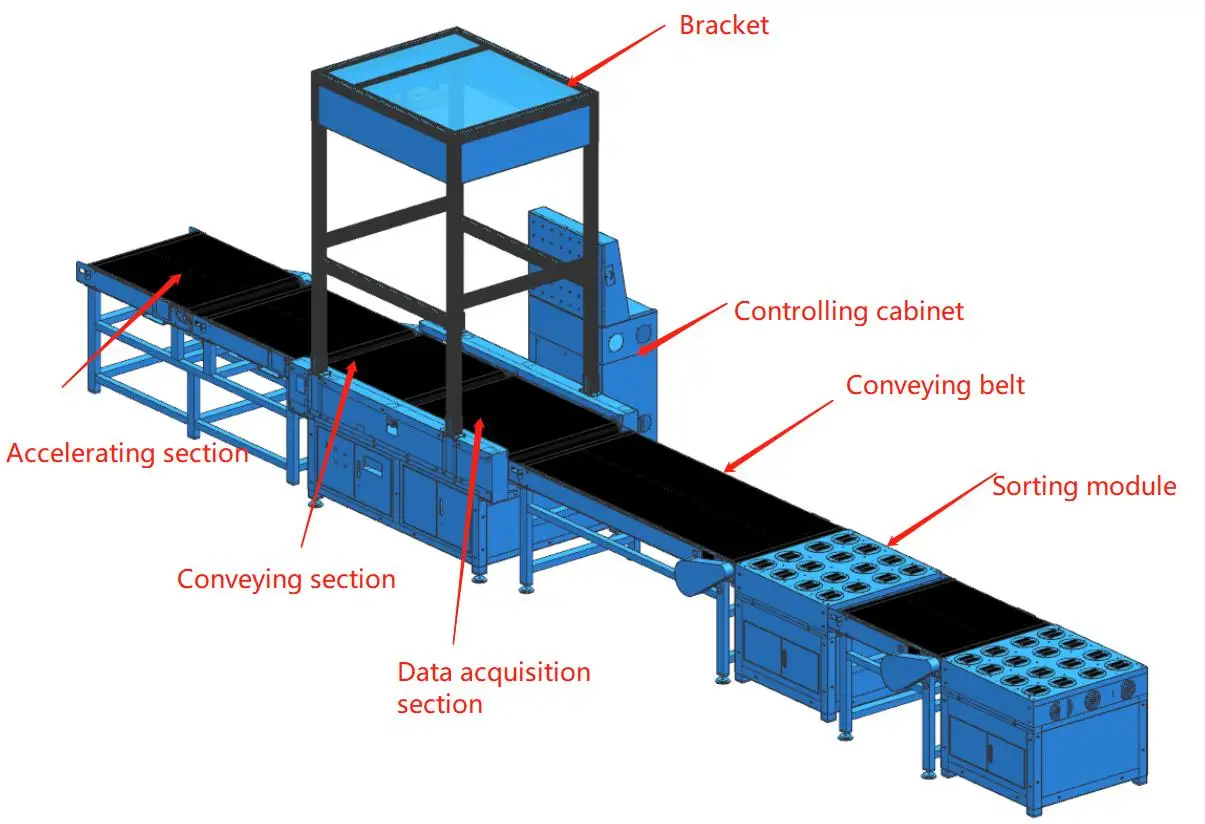

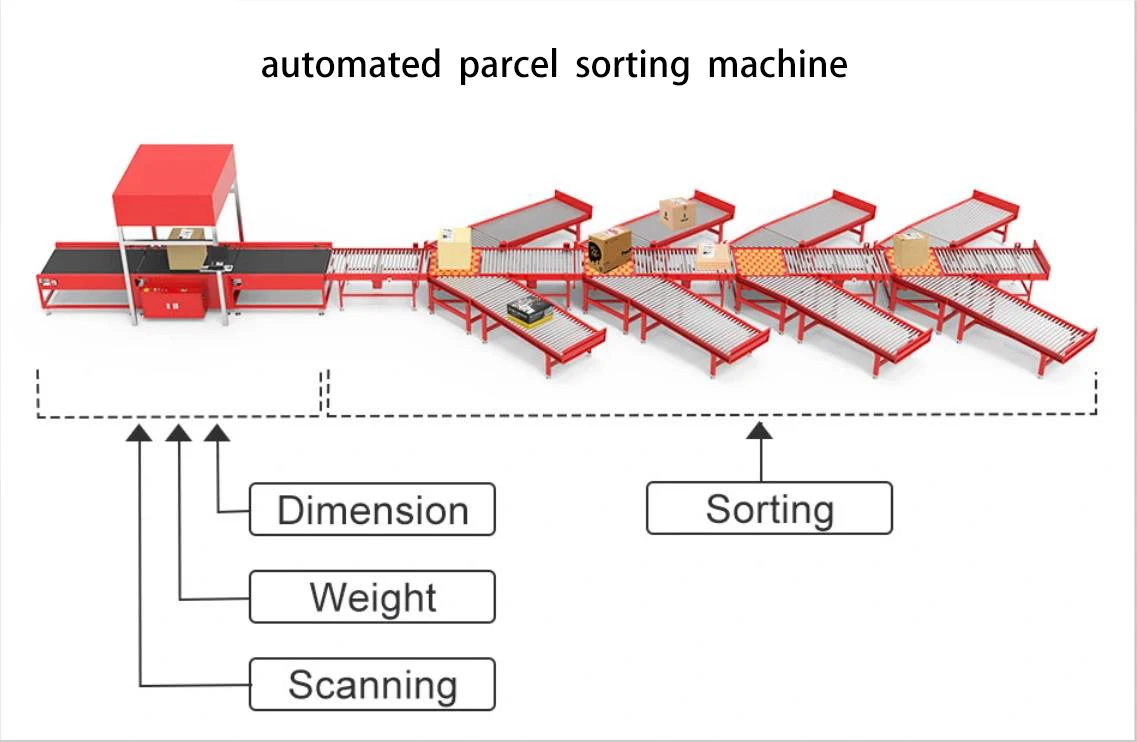

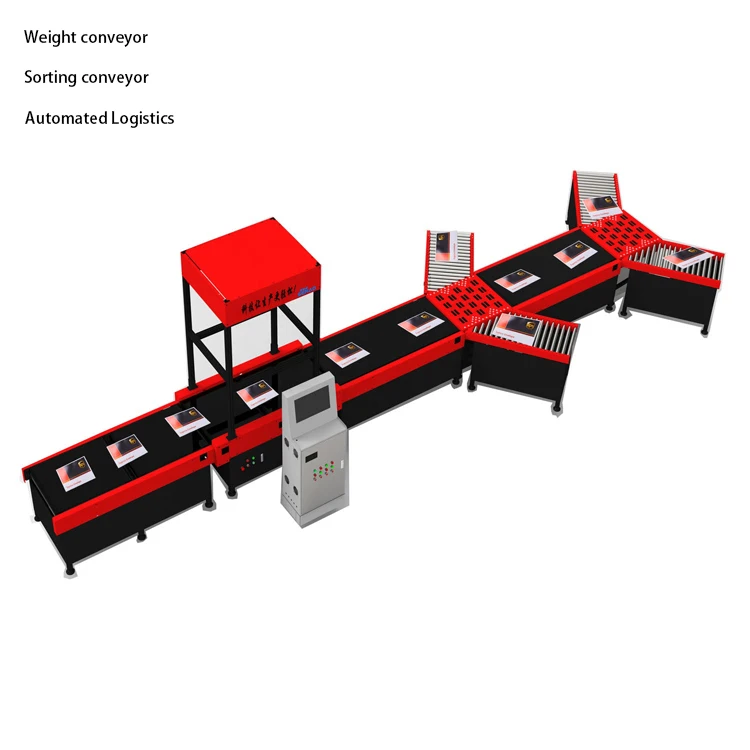

This equipment is consist of dws equipment and two wheel sorters.It integrate the function of code scanning, dimensioning, weighing and sorting. Parcels can be sorted to five directions.Sorting modules can be added or reduced according to individual needs. The data of parcels can be saved in local disk and uploaded to Customers' system in real time.
Main features:
* Collect data automatically with accuracy
-Data are collected in one pass without operator's intervention, ensuring its accuracy
* Exception alarm
- The equipment will alarm when Packages' weight and dimention are beyond limit or the code can not be read
*Highly flexible with expandability
- The equipment can be equipped with cameras with different resolution
- It can be connected to telescopic conveyor and conveyor belt
Main features:
* Collect data automatically with accuracy
-Data are collected in one pass without operator's intervention, ensuring its accuracy
* Exception alarm
- The equipment will alarm when Packages' weight and dimention are beyond limit or the code can not be read
*Highly flexible with expandability
- The equipment can be equipped with cameras with different resolution
- It can be connected to telescopic conveyor and conveyor belt
Product Details
Parameters
Parts | Configuration | ||||||
Industrial computer | Intel I5 | ||||||
Display | 19.5inches LCD | ||||||
Camera | Hikvision 20 million pixel Industrial camera | ||||||
Keyboard/mouse | Logitech | ||||||
Load cell | 100kg | ||||||
Bracket | Senad customized | ||||||
Index | Parameter | ||||||
Weighing range | 30g~60kg | ||||||
Dimensioning range | 50*50*50~1200*1000*800mm | ||||||
Capacity | 2500~3600pcs/hour | ||||||
Recognition rate(Normal package) | 99% | ||||||
Dimensioning accuracy | ±5~15mm | ||||||
Weighing accuracy | ±20~40g | ||||||
Scanning accuracy | 99% | ||||||
Software Interface | HTTP, TCP, 485 | ||||||
Weighing mode | Dynamic weighing | ||||||
Remote diagnosis | yes | ||||||
Product Details
__________
The rolling wheel sorter can be automatically sorted into 3 directions to realize automatic sorting of parcels
__________
__________
__________

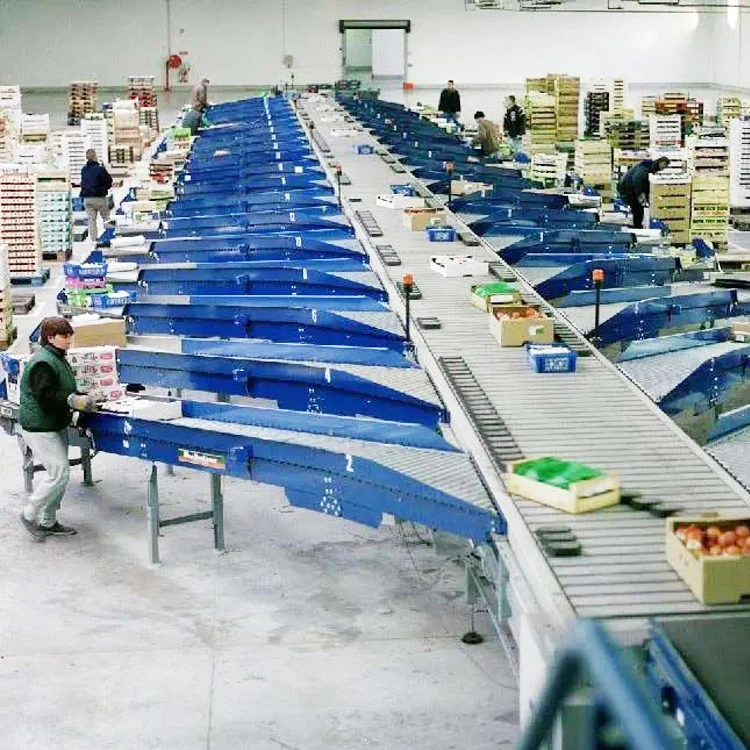

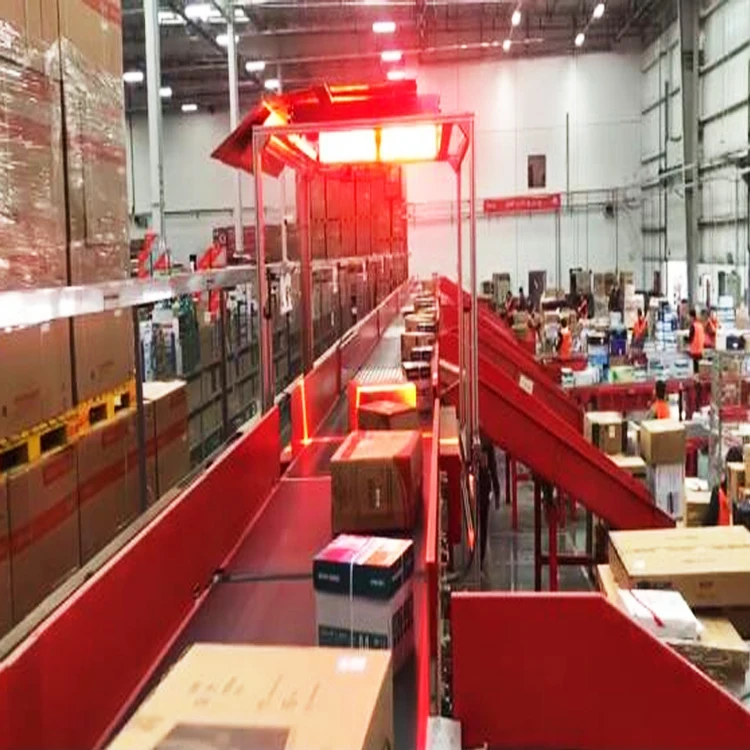

Application
Recommend Products
OUR Service
Our services
__________
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
Why Choose Senad
◆ High-tech manufacturer with research anddesign capacity
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
About Us
welcome to visit us
Senad Robot(Shanghai)Co.,LTD.
Founded in 2012,sanad is a national high-tech enterprise,with machine vision technology as the core,through deep learning algorithm,image processing algorithm,pattern recognition algorithm,video analysis algorithm,arm/FPGA/DSP embedded software and hardware development .industrial visual positioning .visual tracking,visual detection,multi-sensor information fusion and other technical means,in the field of smart logistics,we have found a suitable application scenario of machine vision to realize “machine generation”reduce costs and increase efficiency for enterprises ,and empower the smart logistics industry.Continue R&D and innovation in the fields of smart factory and smart storage,so that the logistics industry and manufacturing industry all over the world can enjoy the achievements of Chinese science and technology!
Our Factory
Development history
Our Certifications
Partners
Exhibition
Packaging & Delivery
FAQ
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
Q3. What is the services?
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
We support OEM and ODM services.
Device color support customization.
Q3. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
