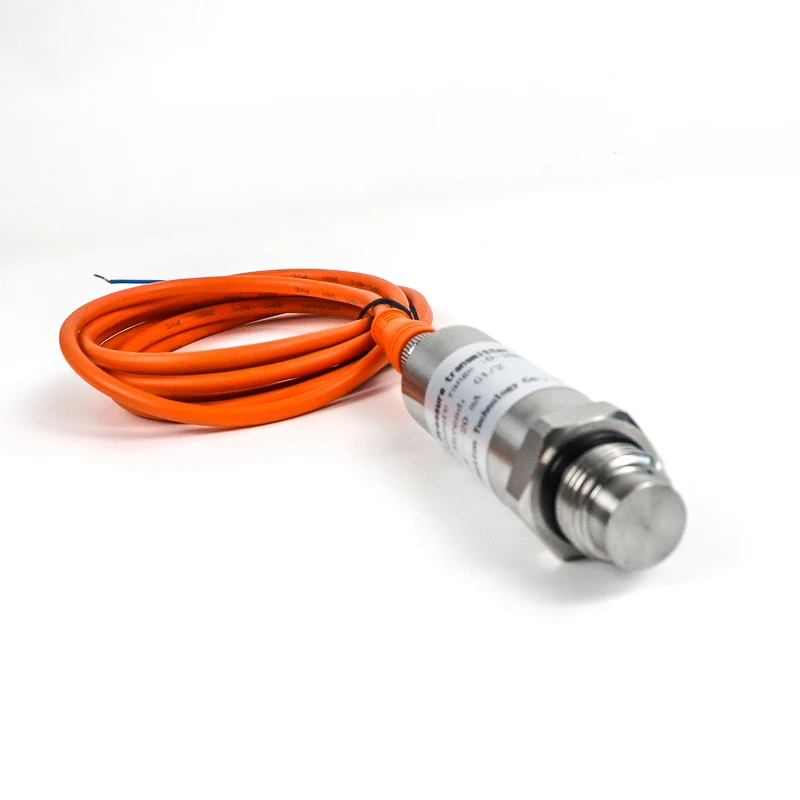

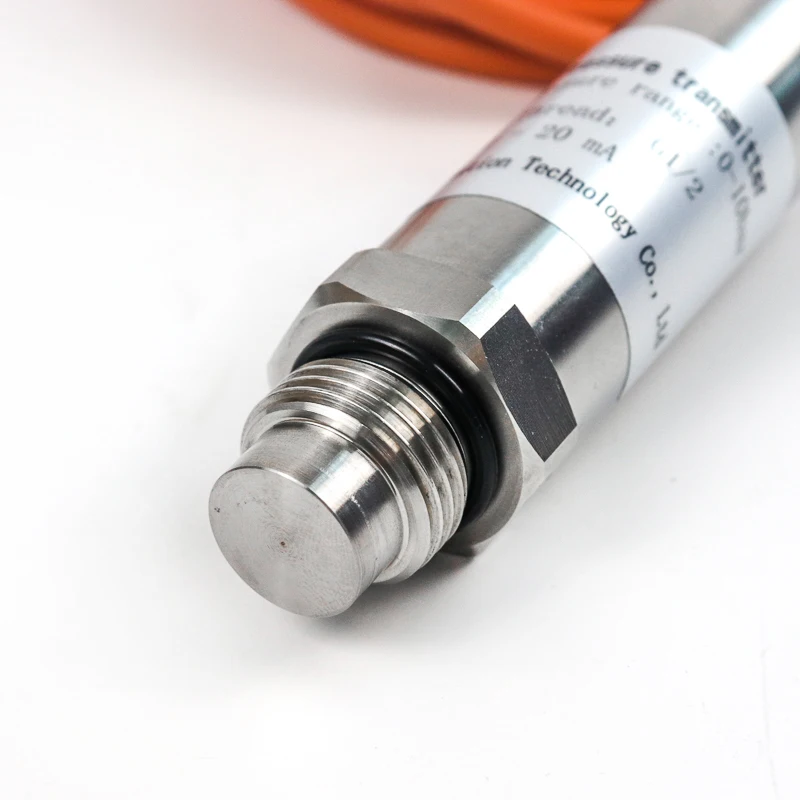

High Precision 0 16bar Sanitary Grade Absolute Flush Diaphragm Pressure Transmitter For Juice Milk Industry
- Category: >>>
- Supplier: Hefei Siko Instruments Co. Ltd.
Share on (1600703483573):
Product Overview
Description

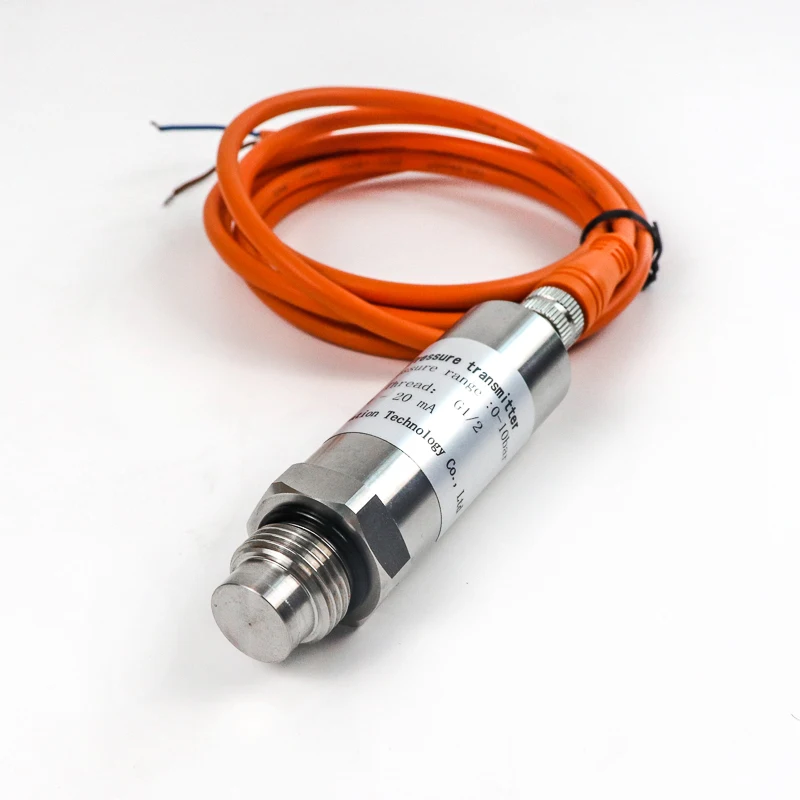

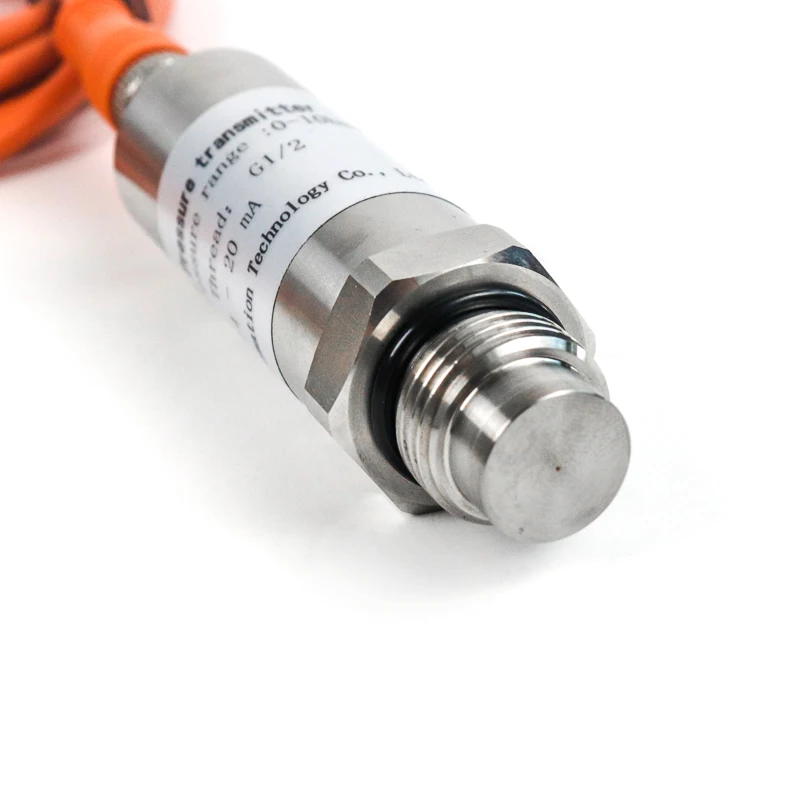

High Precision 0-16bar Sanitary Grade Absolute Flush Diaphragm Pressure Transmitter For Juice Milk Industry

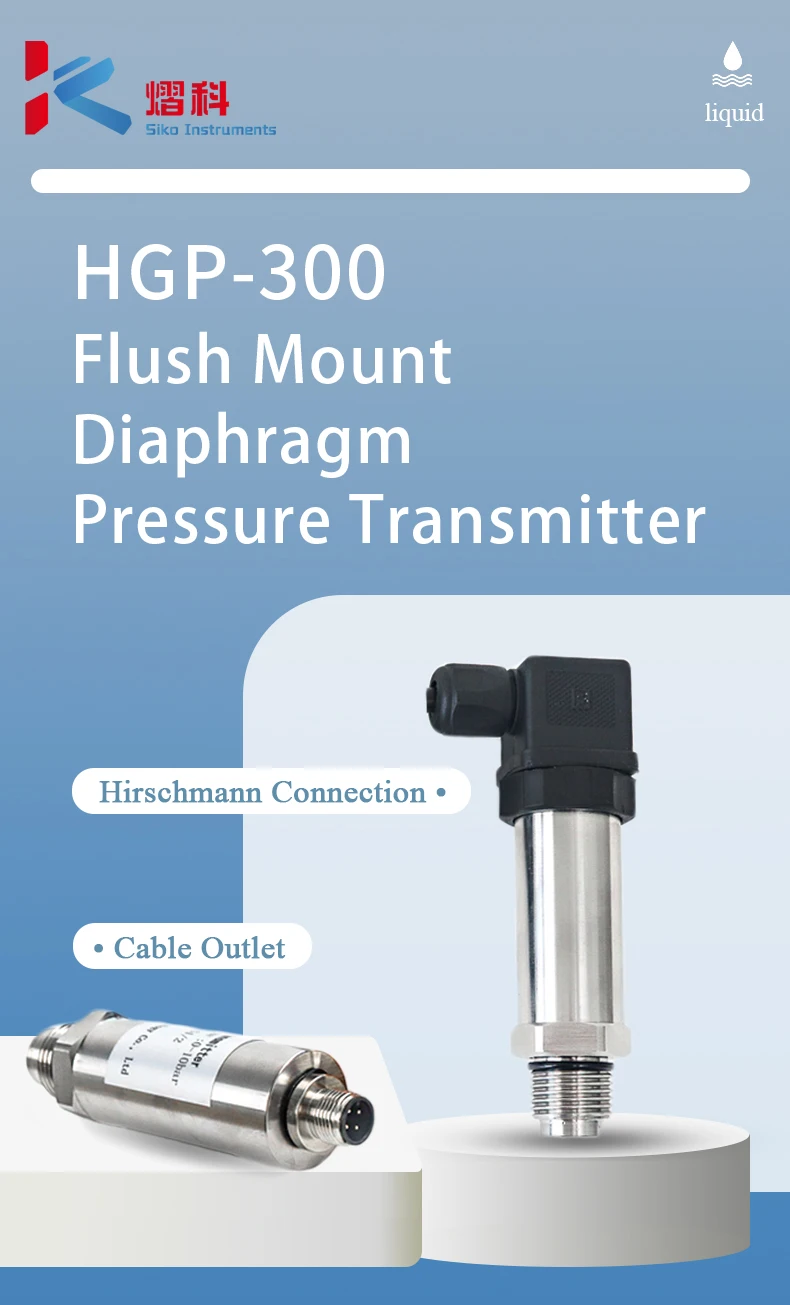

HGP-300 Series Flush Mount Diaphragm Pressure Transmitter adopts diffused silicon pressure oil-filled core as the sensitive element, and the built-in ASIC processing circuit converts the sensor millivolt signal into standard voltage, current or RS485 signal with high photoelectric isolation to ensure the stable output signal, which can be connected with computers, control instruments, panel instruments or PLC.

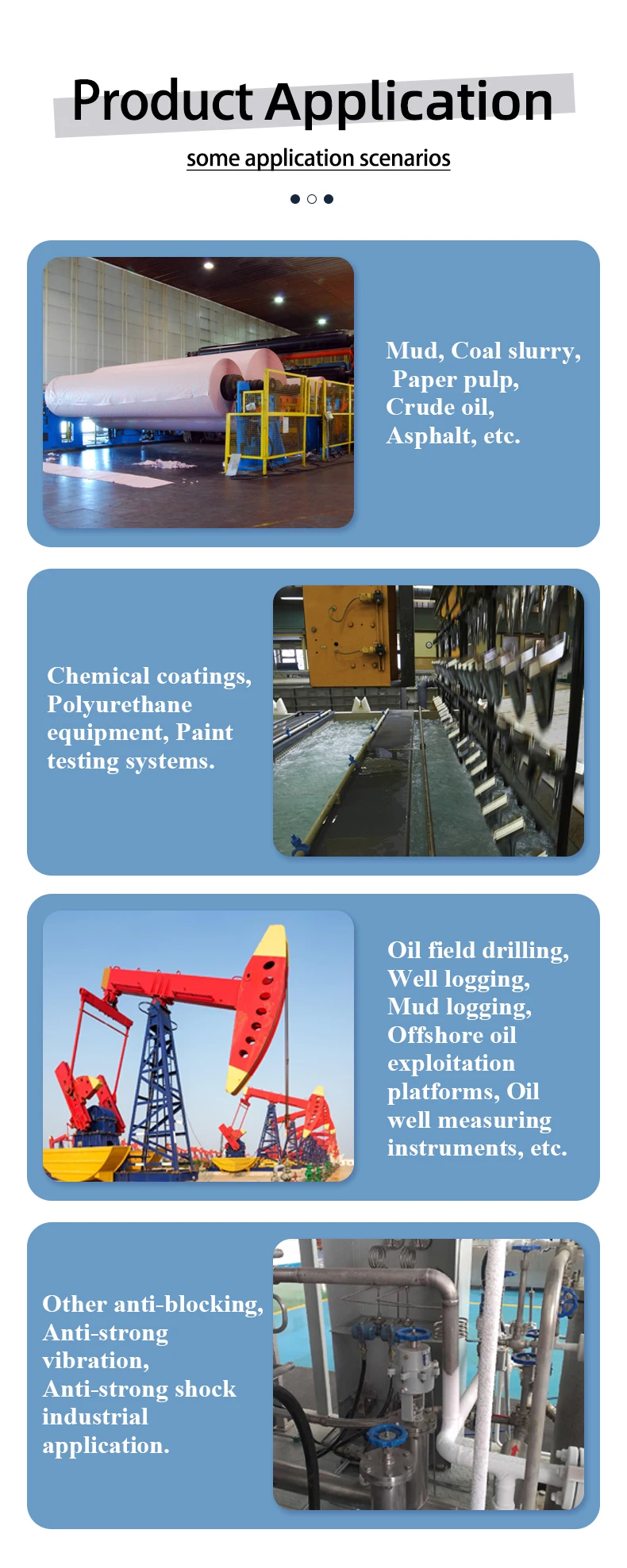

It features of rugged compact stainless steel flush diaphragm, fully sealed welding structure make sure the hard particles from the measured medium will not damage the sensors diaphragm. It's specially used for application with high viscosity or particles such as mud, coal, slurry, paper pulp, crude oil, polyurethane, chemical coatings, asphalt, and solid-liquid mixture etc.
It features of rugged compact stainless steel flush diaphragm, fully sealed welding structure make sure the hard particles from the measured medium will not damage the sensors diaphragm. It's specially used for application with high viscosity or particles such as mud, coal, slurry, paper pulp, crude oil, polyurethane, chemical coatings, asphalt, and solid-liquid mixture etc.

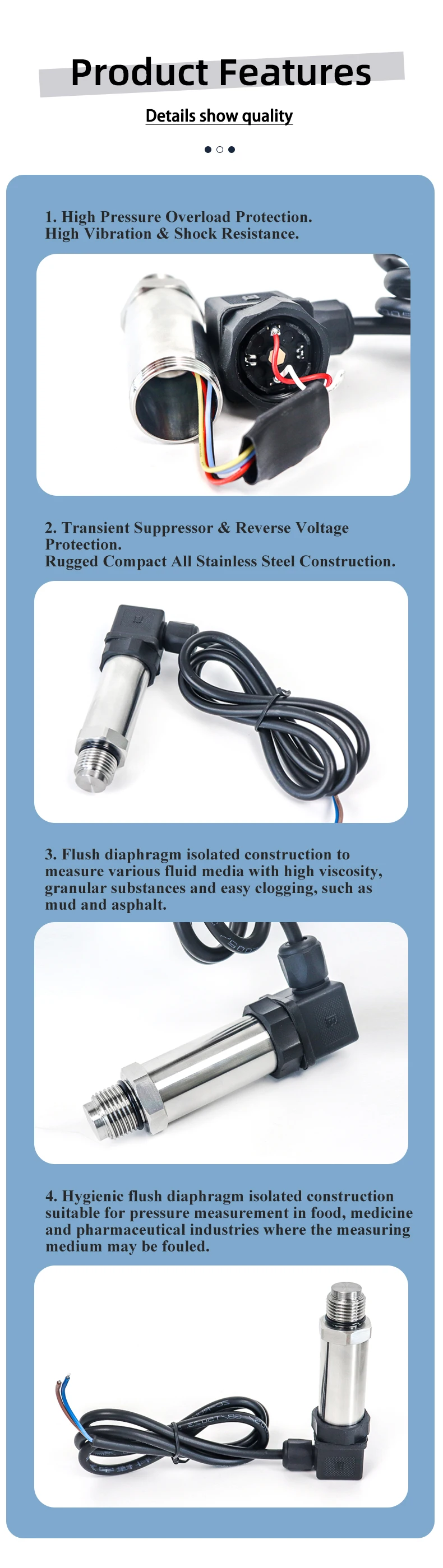

Features
01. | High Pressure Overload Protection. |
02. | Pressure Reference Gauge & Absolute & Sealed Gauge. |
03. | Transient Suppressor & Reverse Voltage Protection. |
04. | Rugged Compact All Stainless Steel Construction. |
05. | Wide Measurements Ranges -100KPa-0...100KPa...60MPa. |
06. | 4-20mA, 0-10V, RS 485 Outputs Available. |
07. | Flush Diaphragm Isolated Construction To Measure Various Fluid Media With High Viscosity, Granular Substances And Easy Clogging, Such As Mud And Asphalt... |
08. | Hygienic Flush Diaphragm Isolated Construction Suitable For Pressure Measurement In Food, Medicine And Pharmaceutical Industries Where The Measuring Medium May Be Fouled.. |

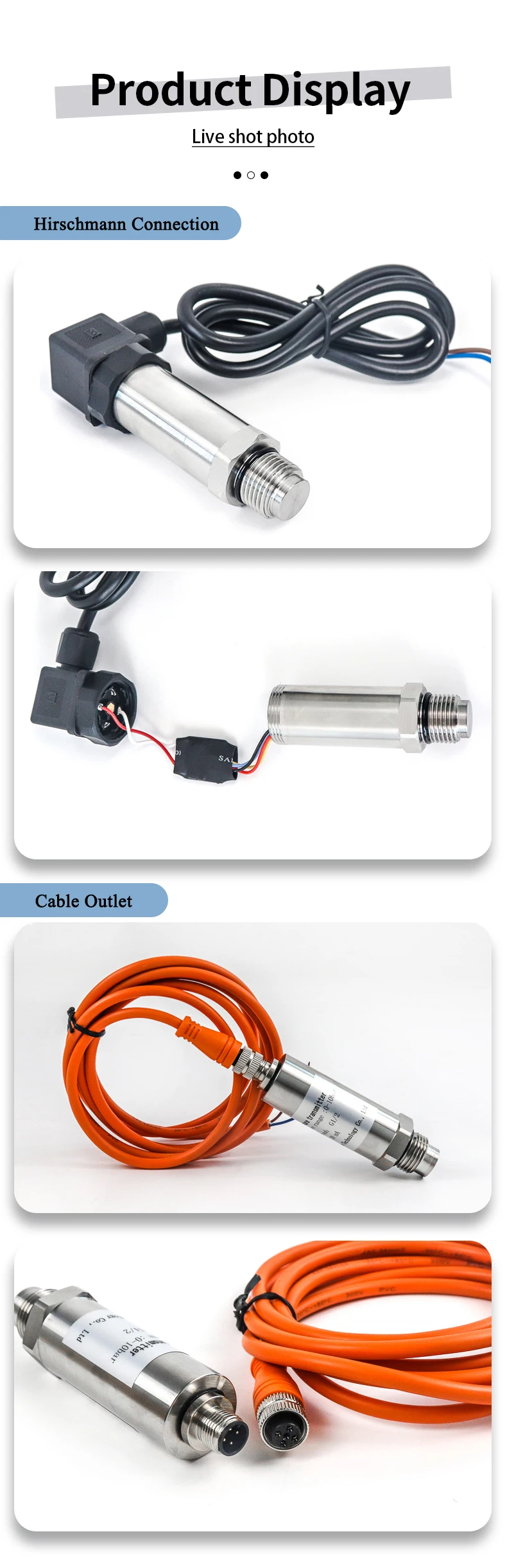

Product Description

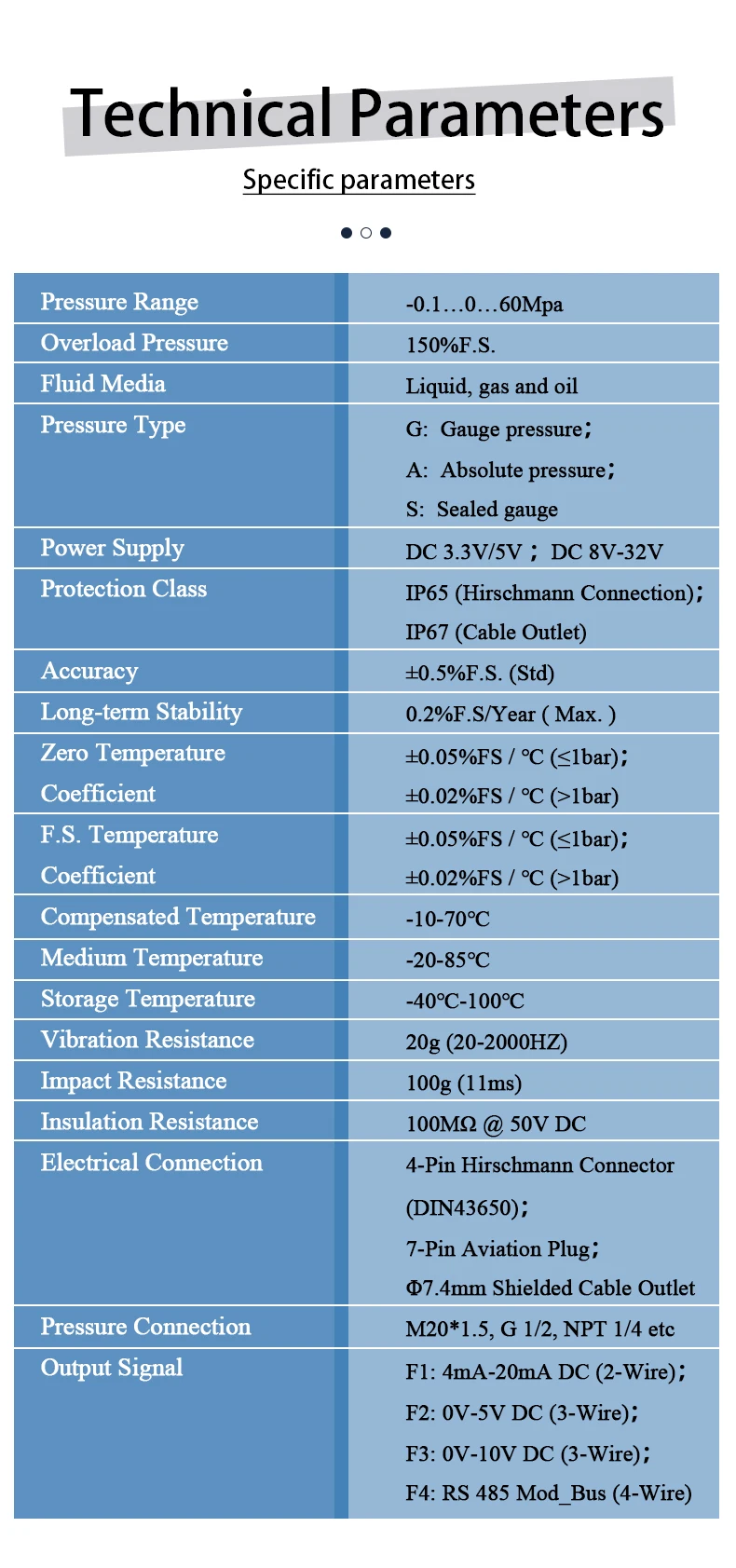

Technical Parameters

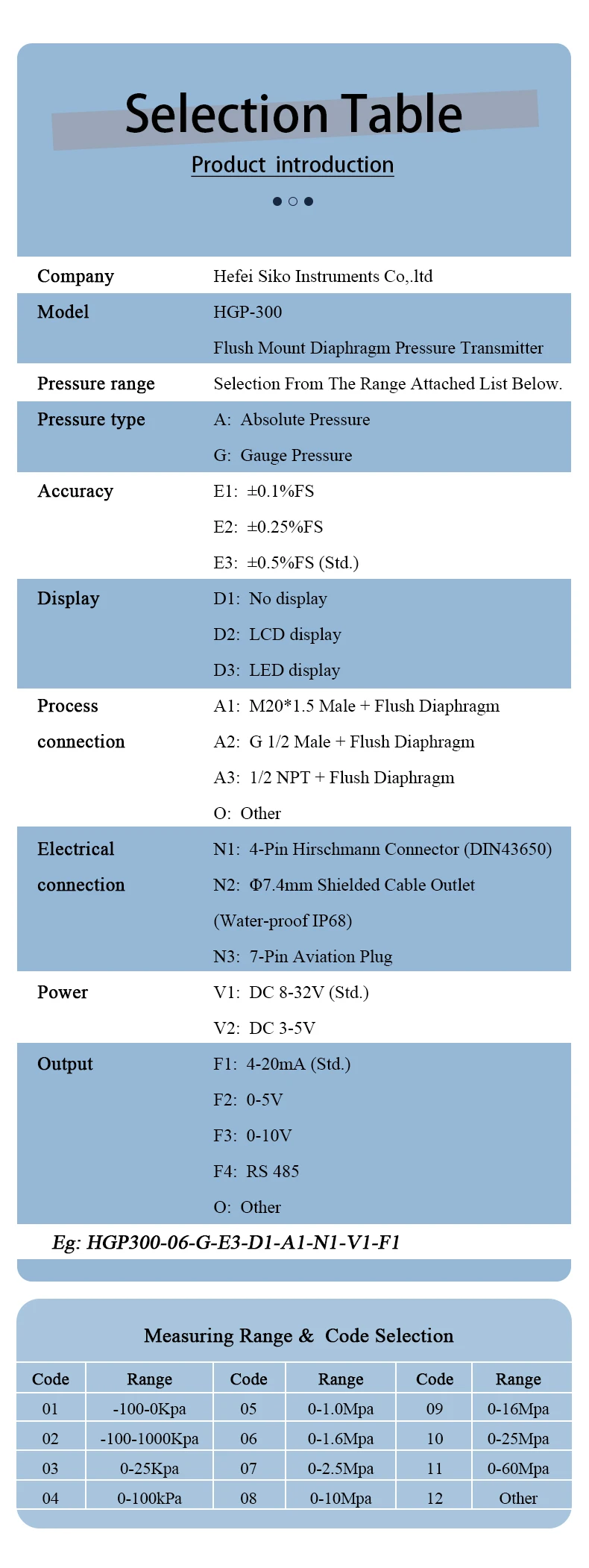

Selection Table

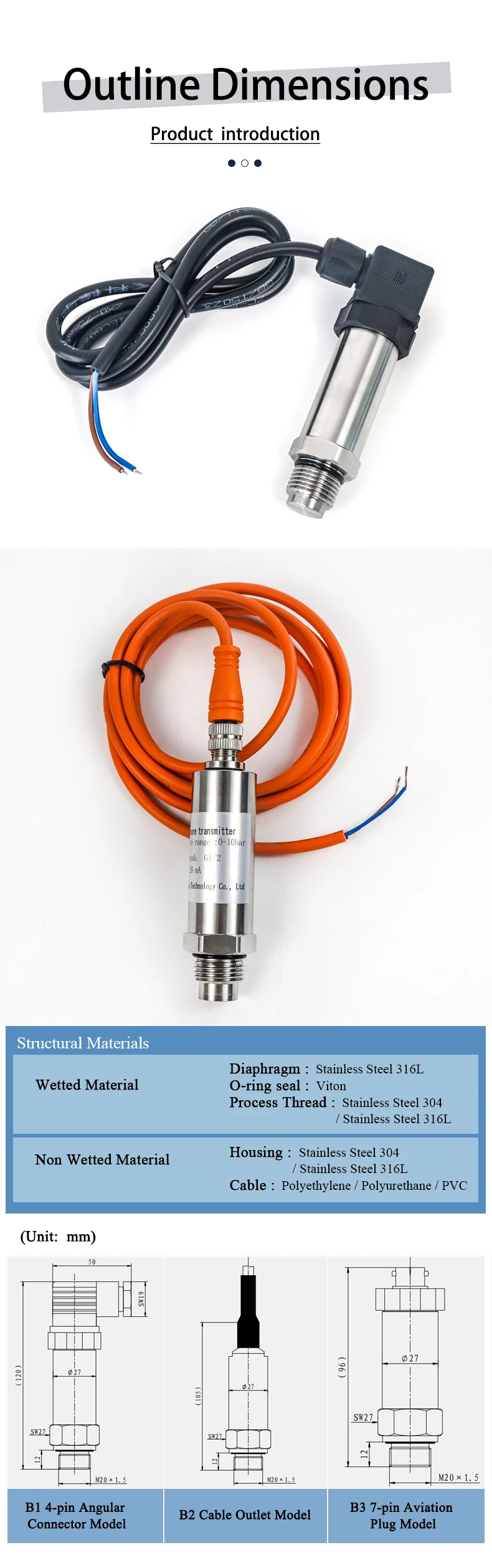

Outline Dimension

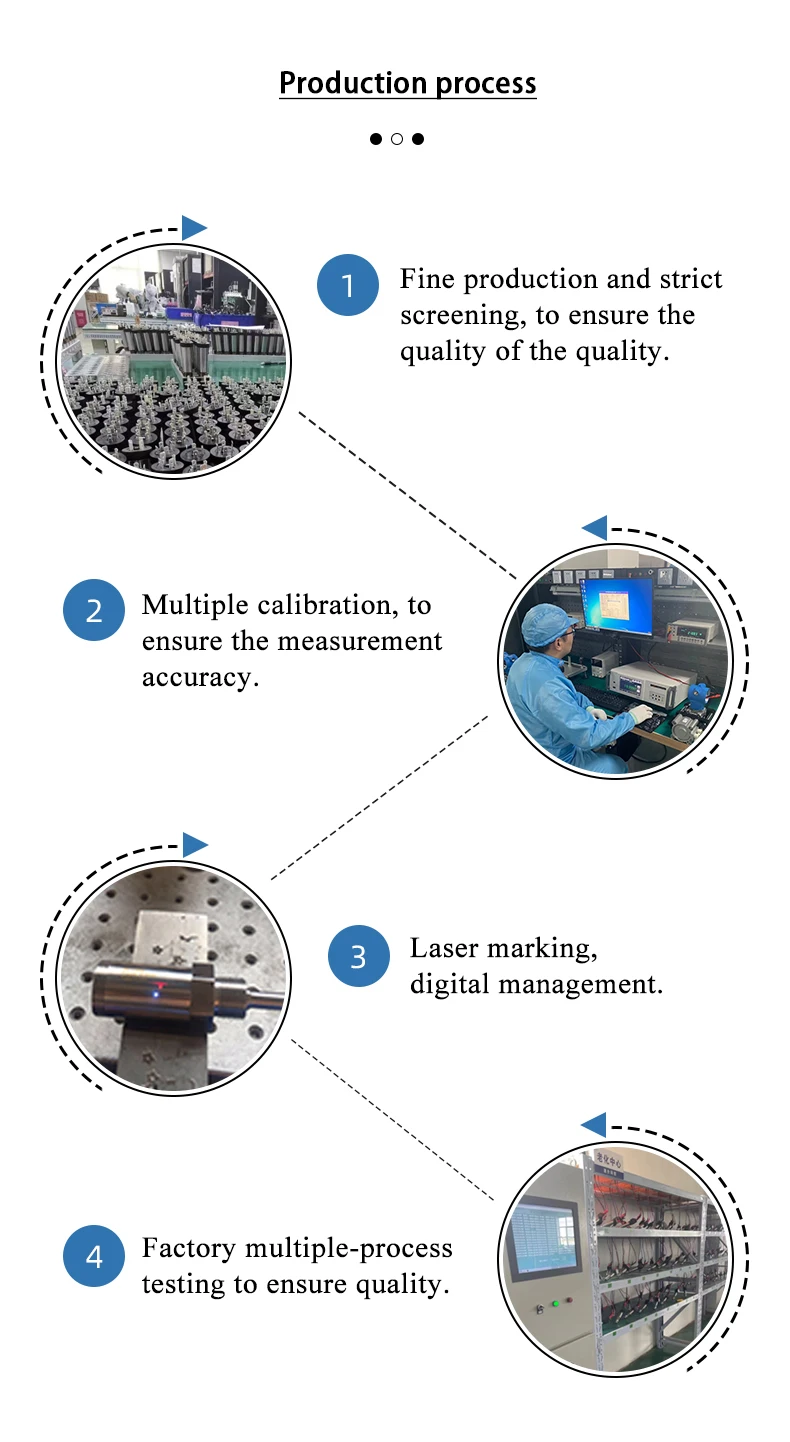

Manufacturing Technique
