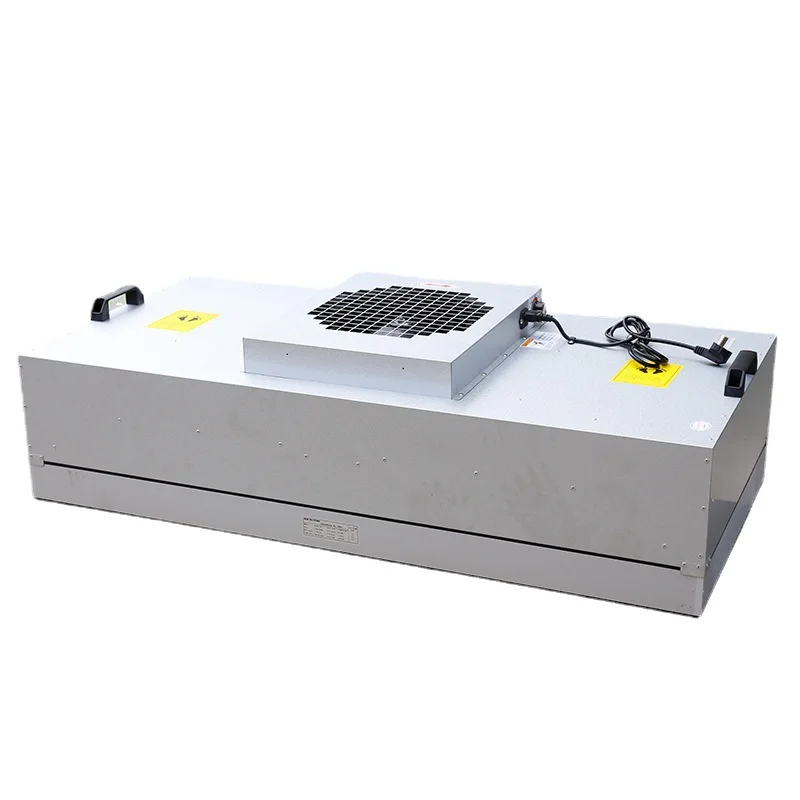

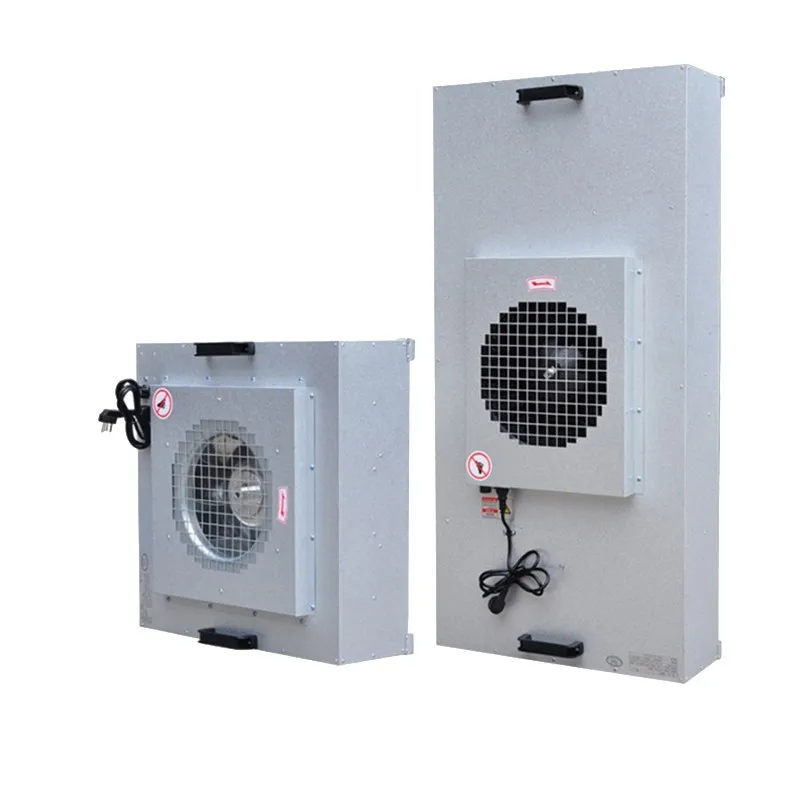

Mushroom Laboratory H14 Hepa filter FFU fan filter unit
- Category: >>>
- Supplier: Henan Aklly Filter Engineering Co. Ltd.
Share on (1600703909548):
Product Overview
Description
Product Description
Main function
Separator-free high-efficiency filters are the most commonly-used filters in purifying engineering nowadays and they have replaced traditional separator filters in most of the projects.Clean room Glass fiber HEPA Panel Filter Hepa filter China Hepa filter can satisfy demanding purifying projects because the seasoned producer uses quality filtering media and has strict quality control system and clean production environment.
Main characteristics
Filtering efficiency (MPPS) 99.95%,99.995%(HEPA) 99.9995%, (ULPA) 9.9995%, or higher (ULPA)
Filtering media Fiber glass
Frame Aluminum alloy
Separators Thermosol ,Sealant,
Working temperature ≤ 70℃ thermosol Humidity ≤ 100%
Technical Data
Model | Dimensions mm | Net media m2 | Airflow m3 /h |
AWB | 305×305×70 | 2.8 | 100～250 |
AWB | 305×610×70 | 5.6 | 300～500 |
AWB | 475×475×70 | 5.2 | 400~500 |
AWB | 610×610×70 | 11.2 | 600～1000 |
AWB | 762×610×70 | 13.9 | 750～1250 |
AWB | 915×610×70 | 16.8 | 900～1500 |
AWB | 1219×610×70 | 22.4 | 1200～2000 |
AWB/2 | 305×305×90 | 3.5 | 100～250 |
AWB/2 | 305×610×90 | 7.0 | 300～500 |
AWB/2 | 610×610×90 | 14.1 | 600～1000 |
AWB/2 | 762×610×90 | 17.7 | 750～1250 |
AWB/2 | 915×610×90 | 21.3 | 900～1500 |
All FFU high-efficiency filters are tested before delivery in Ankelin. Under general conditions, the company uses MPPS of Europe or 0.1~0.2mm scanning method of the United States to conduct the tests.

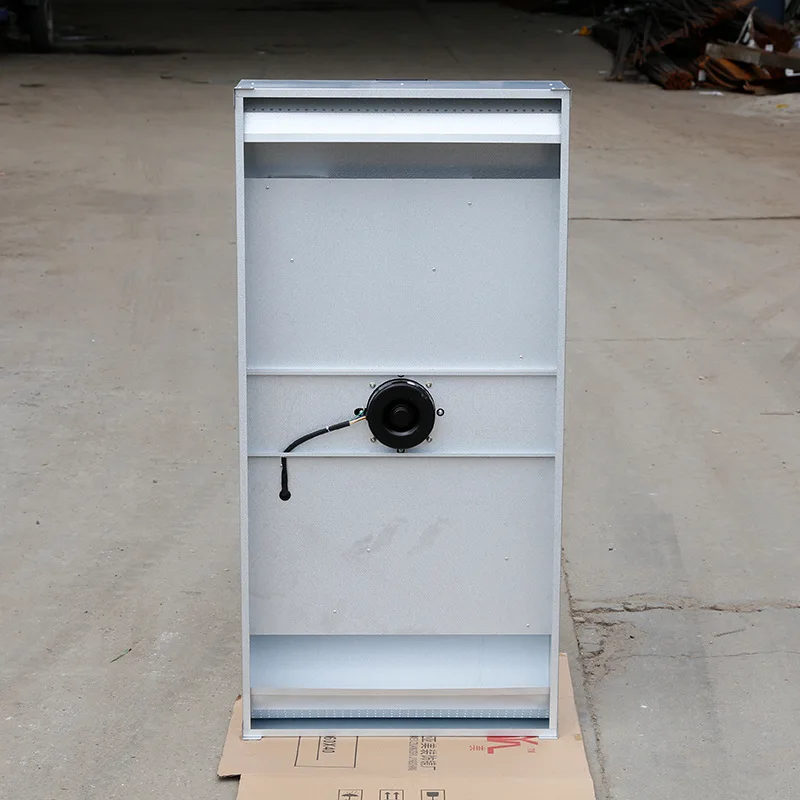

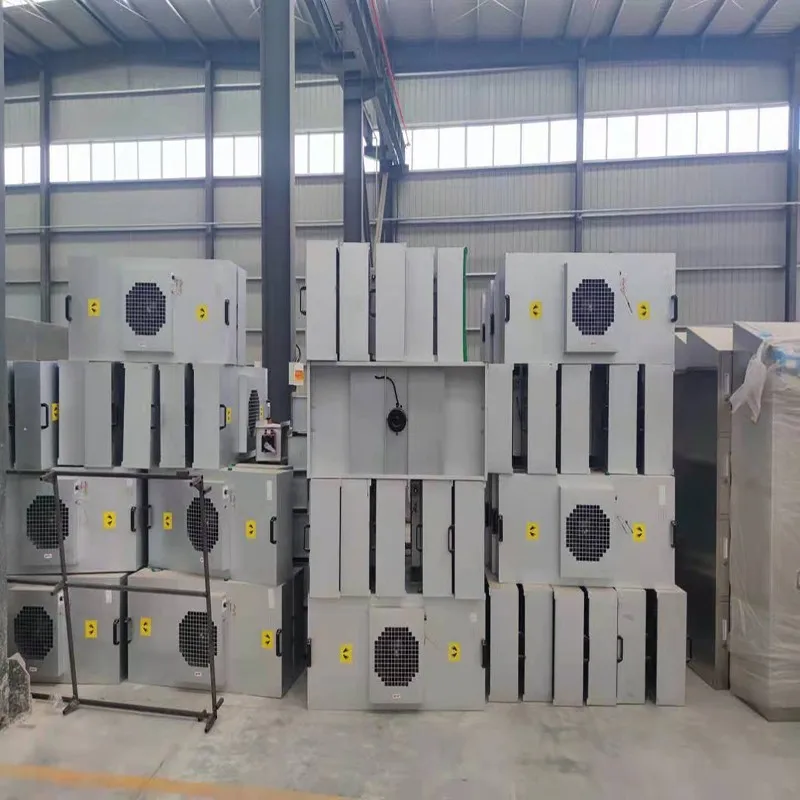

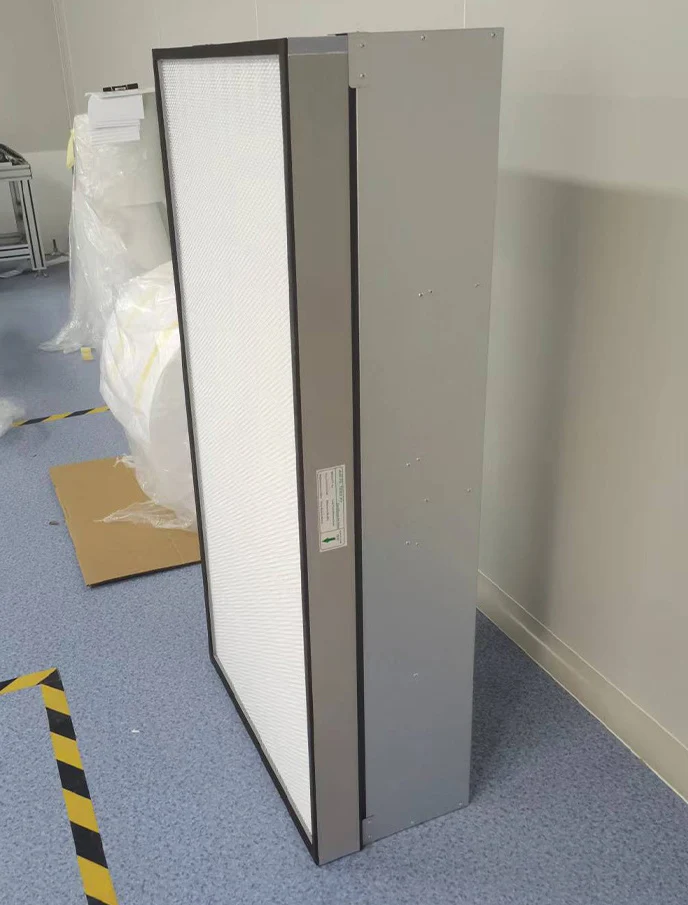

Details Images

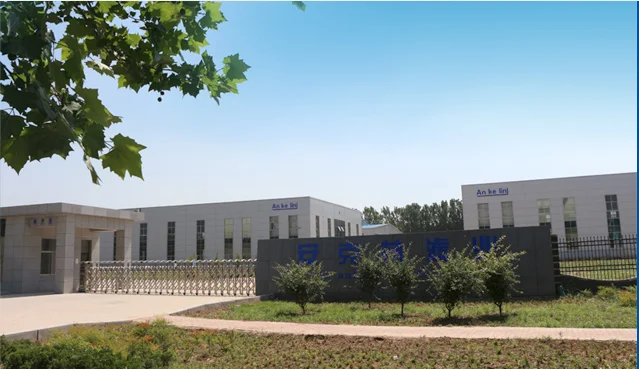

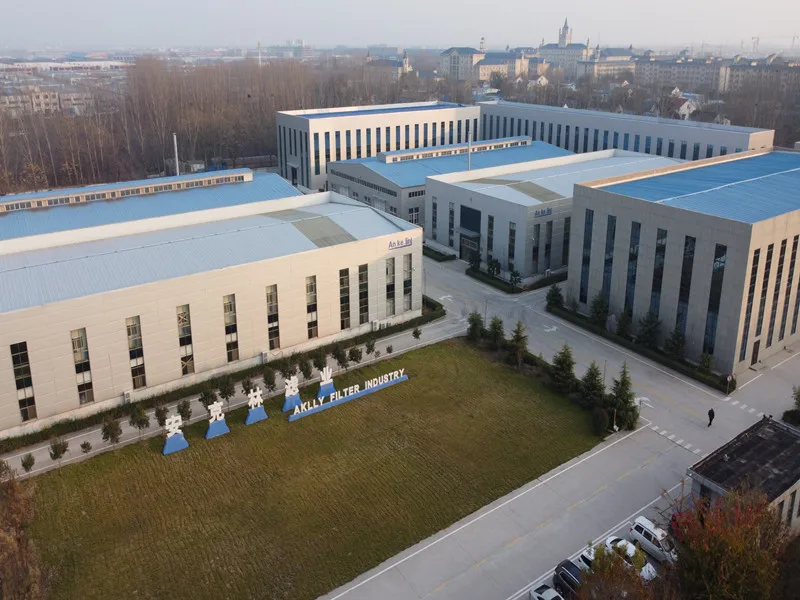

Company Introduction
Certificate
Environmental certification
Quality Certification
Occupational Health Certification

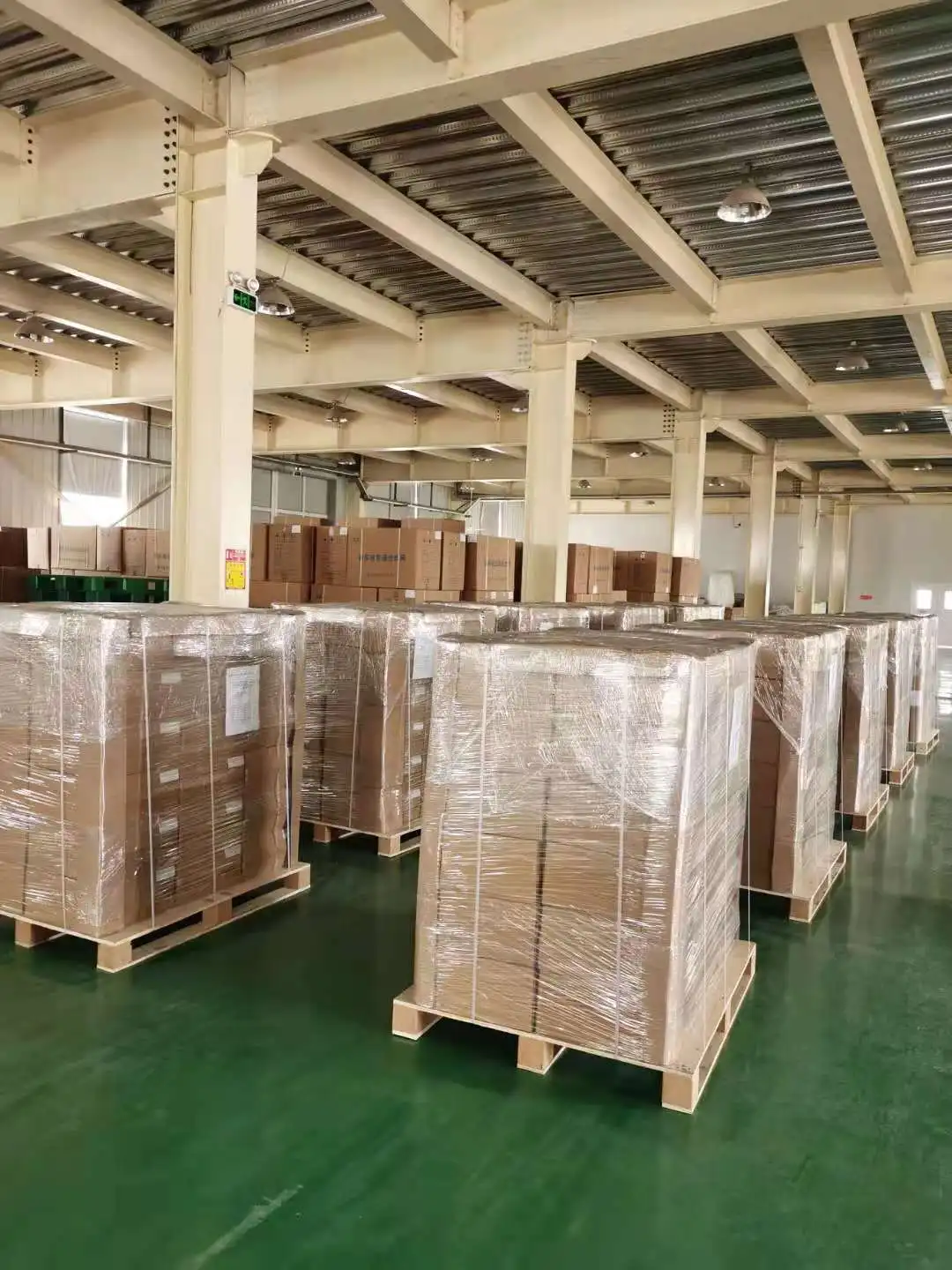

Packing&Shipping
FAQ
