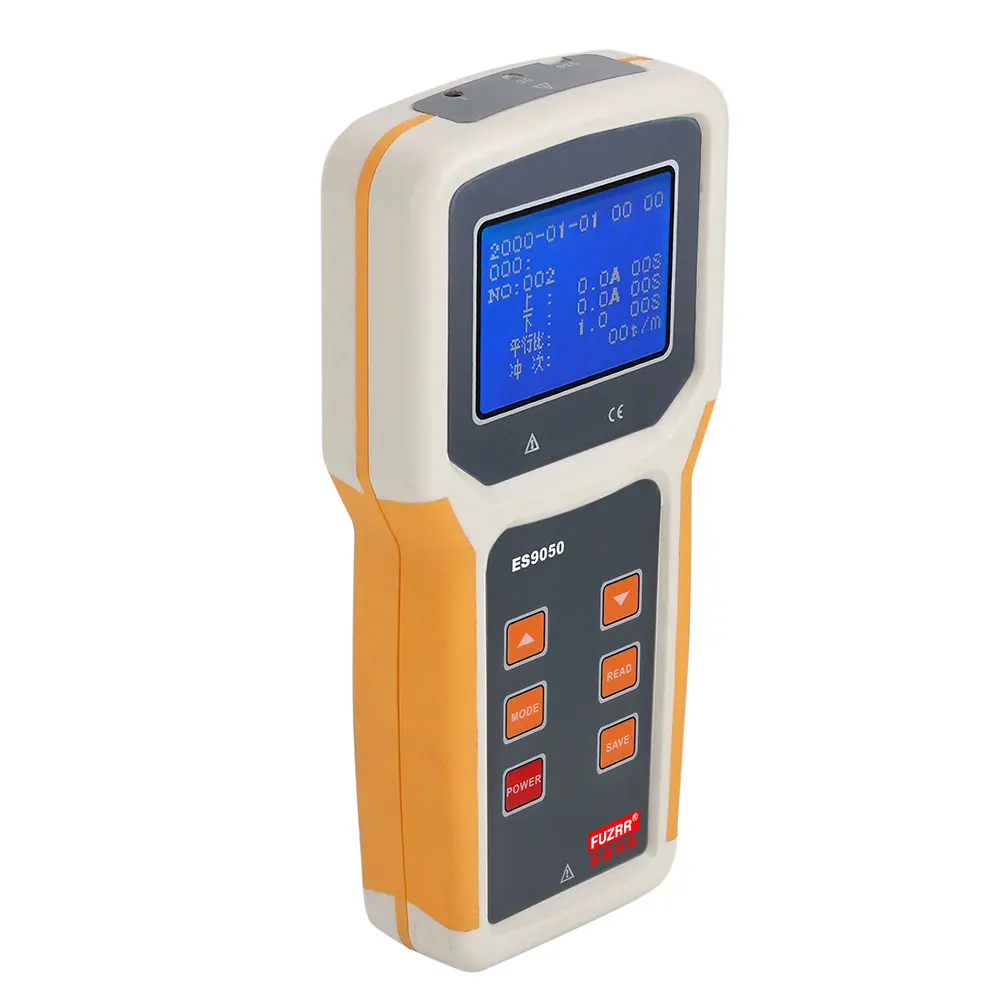

FUZRR ES9050 Oilfield multi function high precision AC voltage current frequency meter Current voltage phase meter
- Category: >>>
- Supplier: Guangzhou Zhengneng Electronic Technology Co. Ltd.
Share on (1600703972545):
Product Overview
Description
Function | Leakage protector action time measurement, leakage protector action current measurement, voltage measurement. |
Voltage range | 1.0V～1000V |
Current range | 1mA～1200mA |
Leakage action time | 0～999mS |
Test mode | Manual or automatic |
Electrical source | DC12.6V 2500mAh large capacity lithium battery |
Charging function | Yes |
Back light | Yes, it is suitable for use in dark places |
Display mode | Full color LCD display |
Touch screen operation | Yes |
The LCD size | Length and width: 108 mm x 65mm |
Size of instrument | Length, width and height: 240 mm×188 mm×85mm |
The test line length | One red and one black |
The USB interface | USB interface |
Communication line | One USB communication cable |
Data storage | 500 groups |
Data access | Data access function |
The battery voltage | The battery level is displayed in real time, indicating that the battery needs to be charged in time when the battery is low |
Automatic shutdown | The meter will be powered off after about 15 minutes |
Working Temperature and humidity | - 10 ℃ to 40 ℃; Below 80% Rh |
Storage temperature and humidity | - 10 ℃ ~ 60 ℃;Below 70% Rh |
Insulation | ≥100M ω between meter circuit and housing |
Pressure resistance | Withstand 1000V/50Hz sinusoidal AC voltage between instrument circuit and housing for 1 minute |
Power consumption | DC12.6V,Standby: about 110mA (20% brightness) Measurement: approx. 480mA (100% brightness) |
Instrument quality | Main engine: 1100g (with battery) |
Test line: 190g | |
Suitable for safety | Iec61010-1 CAT III 600V, IEC61010-031, IEC61326, pollution level 2 |
