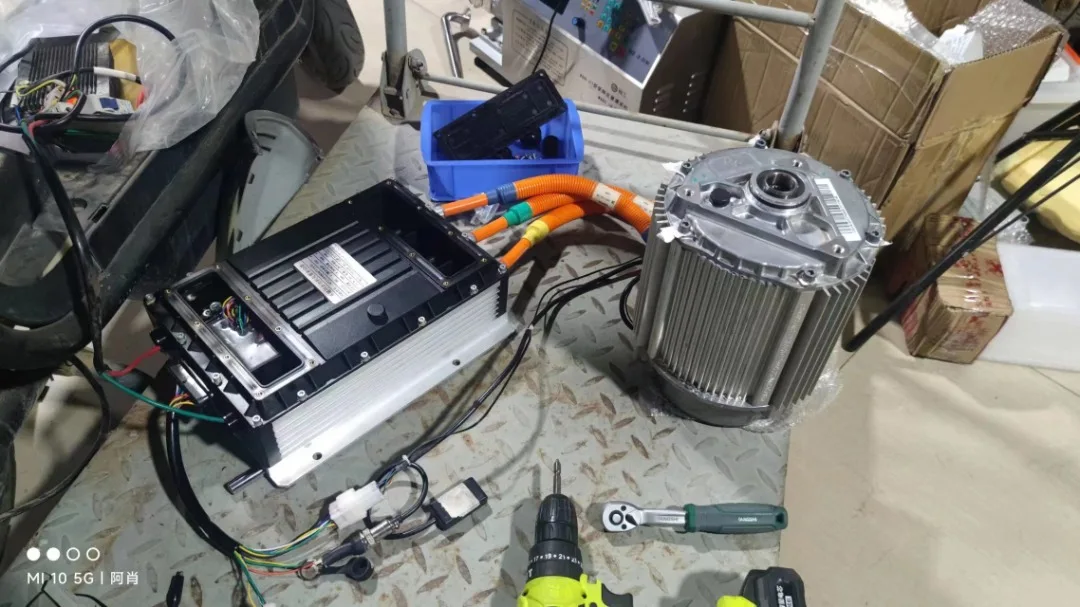

Wuling Hongguang Mini EV electric motor 20KW with control unit electric drive full ev conversion kit

Product Overview

Description





Wuling MINI EV covert Kit Spec-Sheet

Product Description and Specifications

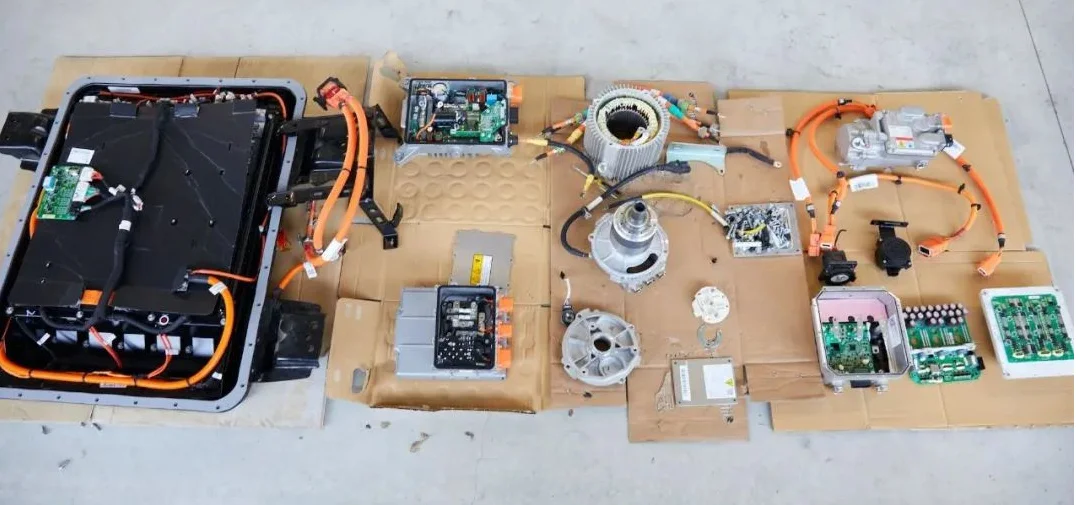

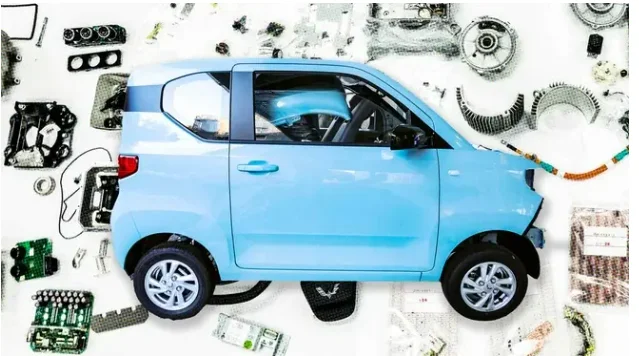

The figure below , From the right

The lower right : Three phase inverter motor drive ,

The upper right : Air-conditioning compressor

Right two : Three phase motor

Right 3 On : Battery charger ,

Right 3 Next :DC-DC

Left :LiB





2020 Wuling Mini EV is available in 2-seat and 3-seat versions. In terms of body size, the Length: 2625 Width: 1647 Height: 1588 mm, and the wheelbase has reached 1750 mm. Curb weight from 920 to 940 kg. Tire size 145/70 R12

 Electric motor serie is TZ154X140 power 20 Kw (35 Ps) / 150 Nm manufactured by Zhejiang Founder Motor Co., Ltd, maximum speed 100 km/h









Technical Specs
Model	TZ154X140
Powertrain size	251*255*250 mm
Peak torque/speed (Nm/rpm)	150@0-7500rpm
Peak power (kW)	20KW@
Working voltage/rated voltage (V)	96V
Rated power (kW)	13
Rated torque (Nm)	40
Maximum speed (rpm)	7500 rpm
Protection class	IP67
Combined Efficiency	89 % /  93% peak
Cooling type	natural air cooling
Weight	25 kg
