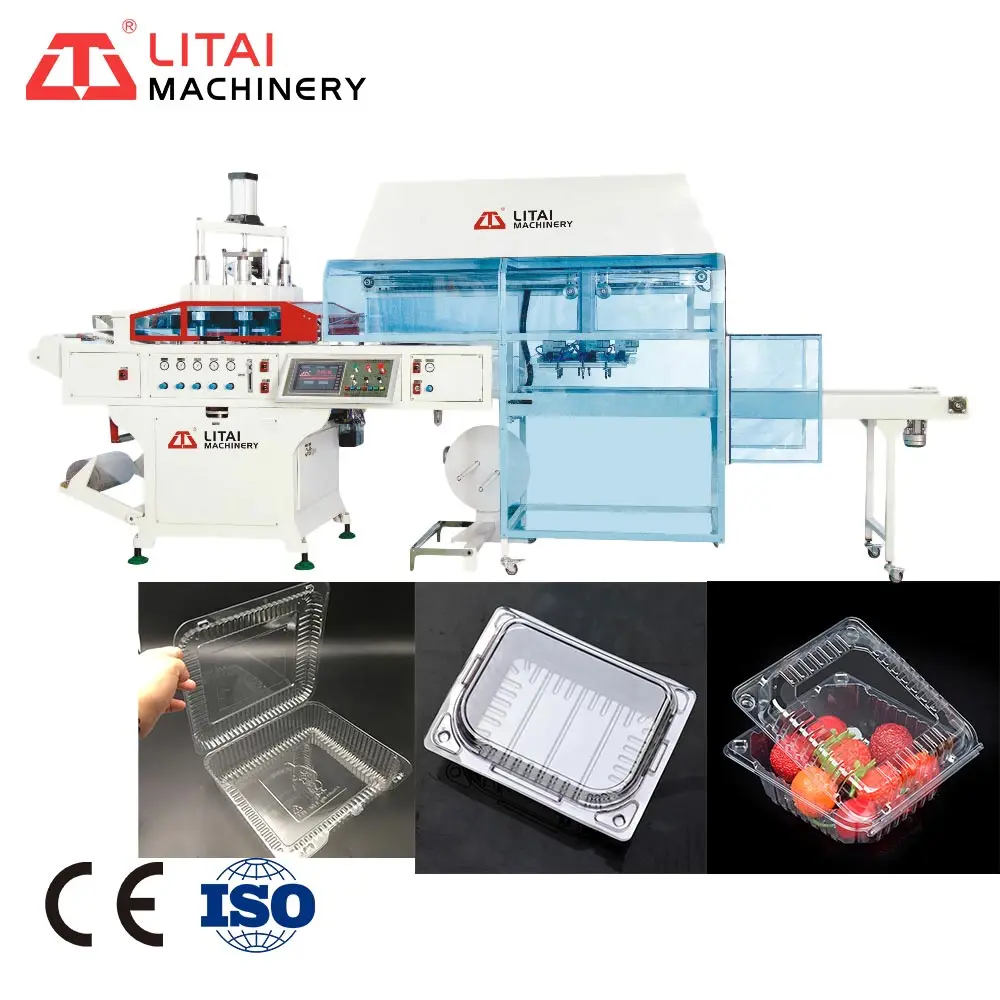

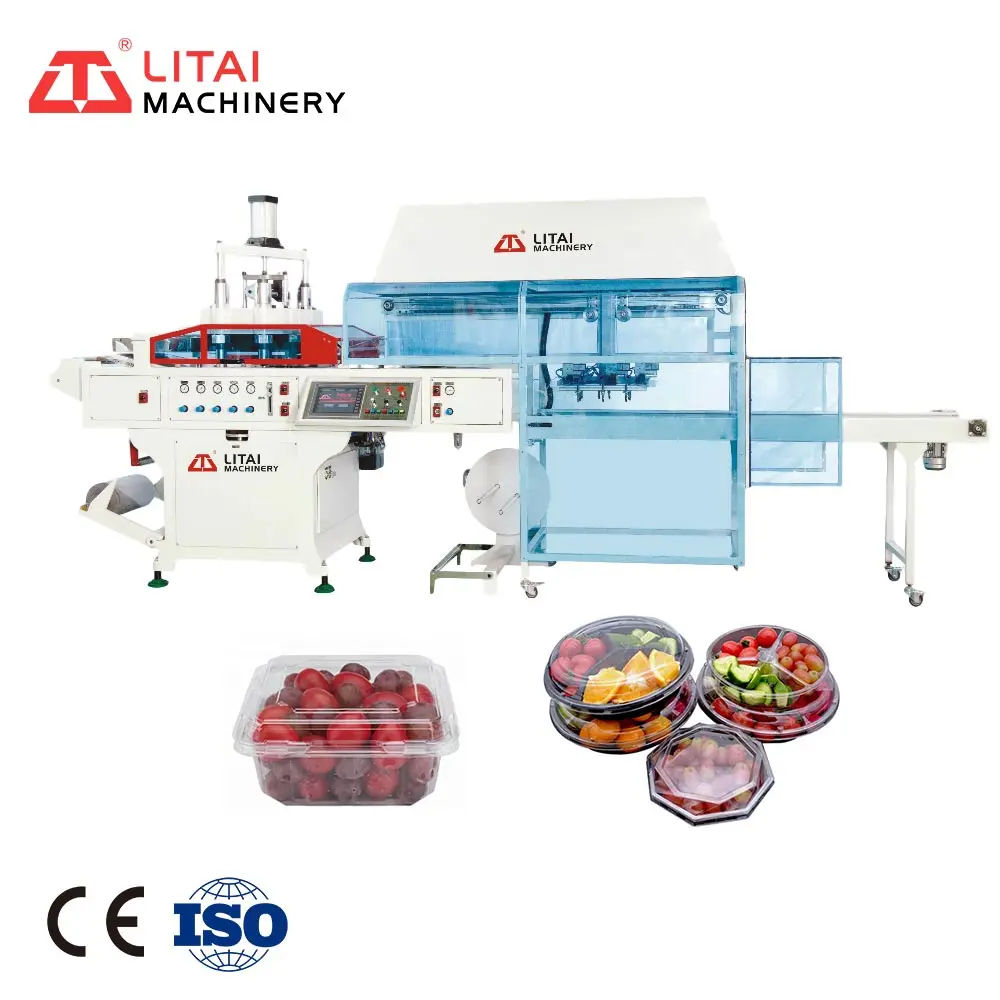

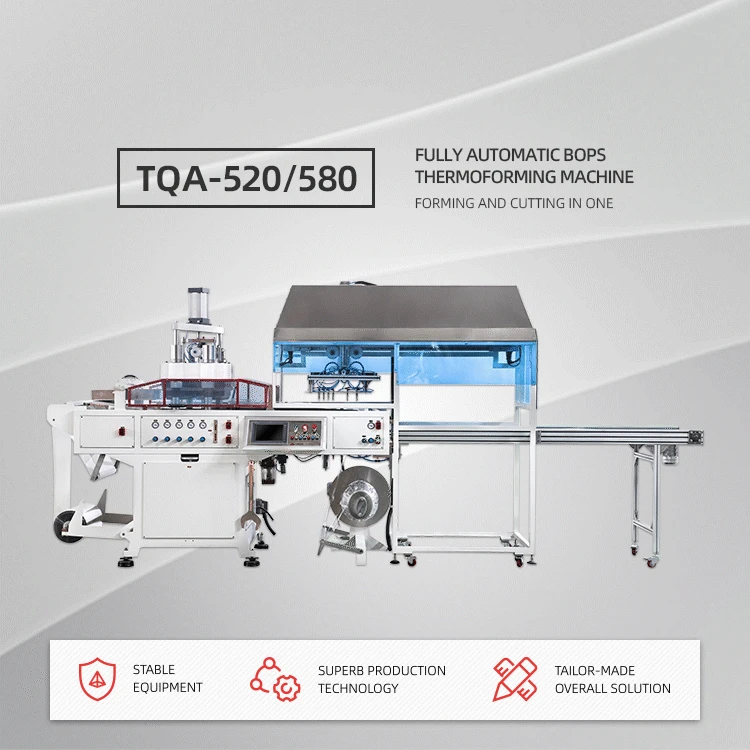

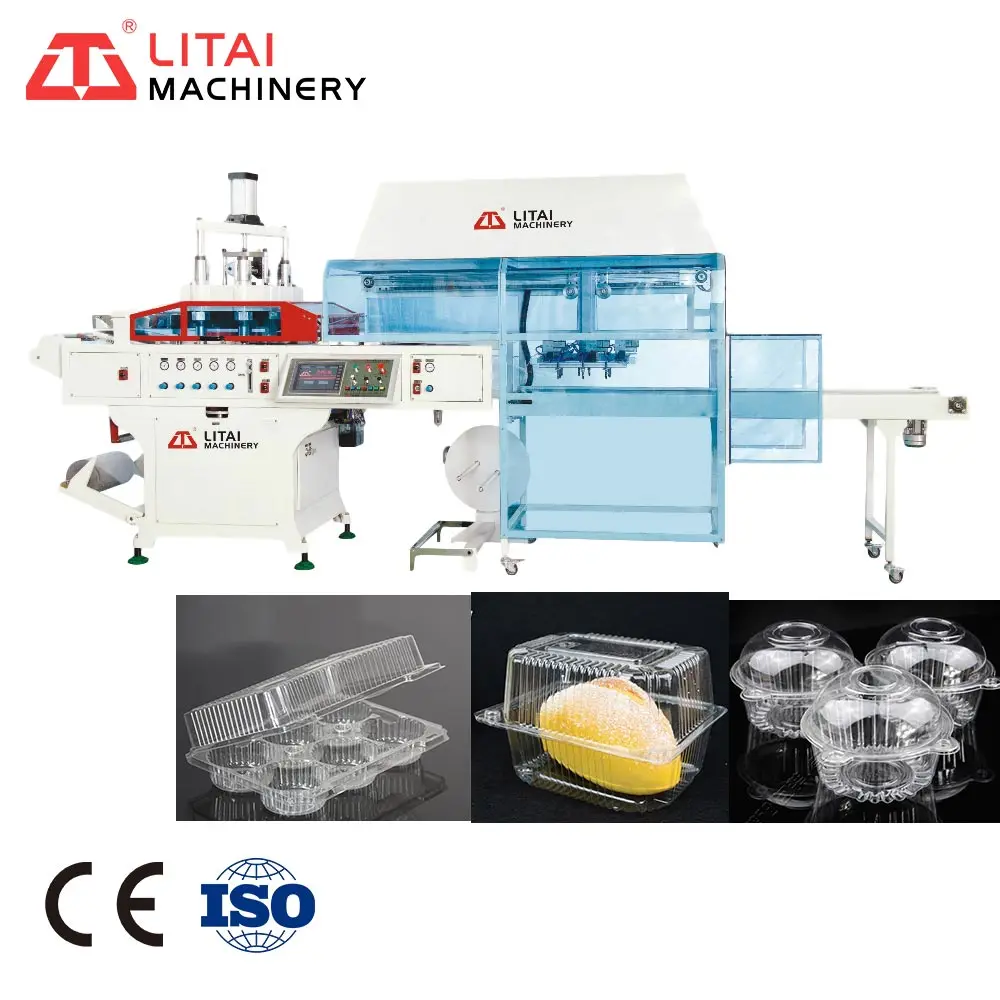

Vacuum Plastic Thermoforming Machine For Fruit Tray
- Category: >>>
- Supplier: Ruian Litai Machinery Co. Ltd.
Share on (1600704181770):
Product Overview
Description
*Pictures and related technical parameters of products will be updated continuously without prior notice.The right of final interpretation of this information belongs to our company.
Product Paramenters
Model | TQA-520/580 |
Material | BOPS/OPS/PVC/HIPS/PET/PS |
Max. Forming Area | 520mm x 580mm |
Max. Forming Depth | 100mm |
Sheet Thickness Range | 0.12-0.6mm |
Max. Forming Speed | 10-20times/min |
Air Pressure | 0.6-0.8mpa |
Air Consumption | 3.0 m³/min |
Rated Power | 21kw |
Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
Dimension | L5200*W1500*H2350mm |
Weight | About 2.5T |
MACHINE MAIN PARTS | TQA-520/580 | |
Emergency Switch、Knob Switch、Button Switch With Light | Schneider, France | |
Mini-Type Control Button | Onpow, Taiwan | |
Proximity Switch | Rockwell, USA | |
PLC | Siemens, Germany | |
TEMPERATURE MOUDLE | Delta, Taiwan | |
Man-Machine Interface | Hitech, Japan | |
Servo Motor | Delta, Taiwan | |
Safety Valve, Filtrate Reducing Valve, Reducing Valve, Solenoid Valve | FESTO, Germany | |
Panel Setting Pressure, One-Way Throttle Valve, Filtrate muffler | AC 380V, 50Hz, Three-phase, Four-wire | |
Vacuum generator, Air-Controlled One-Way Valve, Logic Element | L5200*W1500*H2350mm | |
Rapid Escape Valve、Solenoid Valve Coil、Air-Controlled Valve | About 2.5T | |
Products Description
APPLICATION

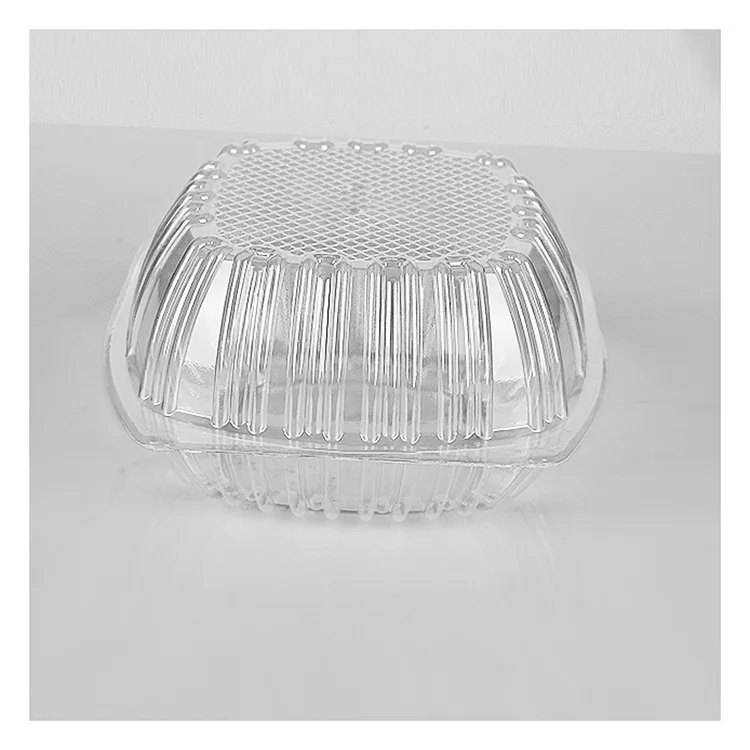

Full automatic BOPS thermoforming machine TQA-520/580 is a high tech manual equipment integrated electromechanic pneumatic integration design, suitable for producing different kinds of disposable plastic products, such as fast food containers, dishes, trays, bowls, lids, boxes for preserved fruits, pickles, candies, cakes, chocolates, snacks, fast food, package for vegetables, fruits, freezed products, toys, hardware, etc.
Main Function
1. Positive and negative pressure forming device.2.vacuum forming device.
3. Touch screen computer temperature module point to point control function.
4. Air control device.
5. Cooling device.
6. Die, mold temperature control function.
7. Automatic punching and cutting function.
8. Automatic stack counting function.
9. Edge automatic rewinding function.
10. Safety protection device.
3. Touch screen computer temperature module point to point control function.
4. Air control device.
5. Cooling device.
6. Die, mold temperature control function.
7. Automatic punching and cutting function.
8. Automatic stack counting function.
9. Edge automatic rewinding function.
10. Safety protection device.

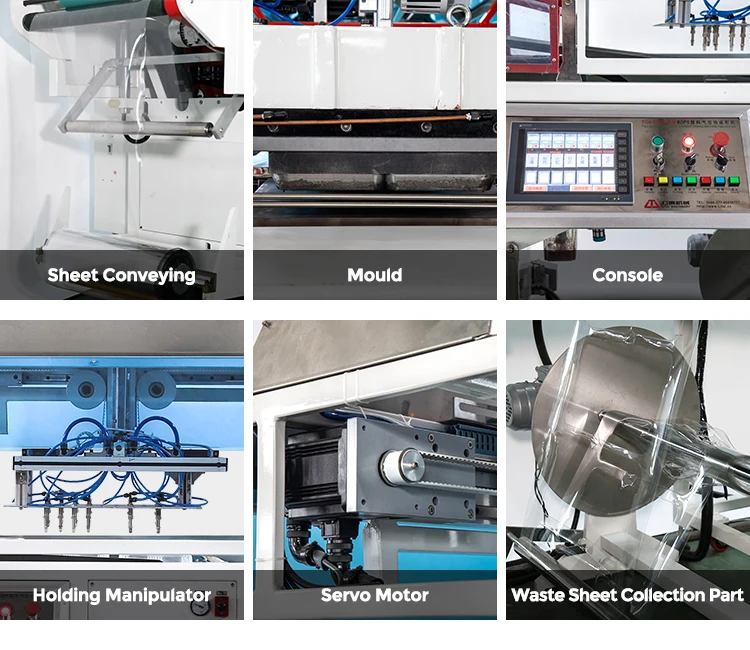

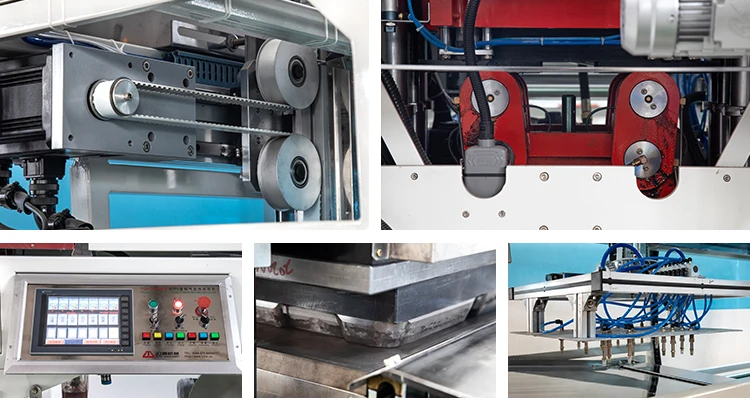

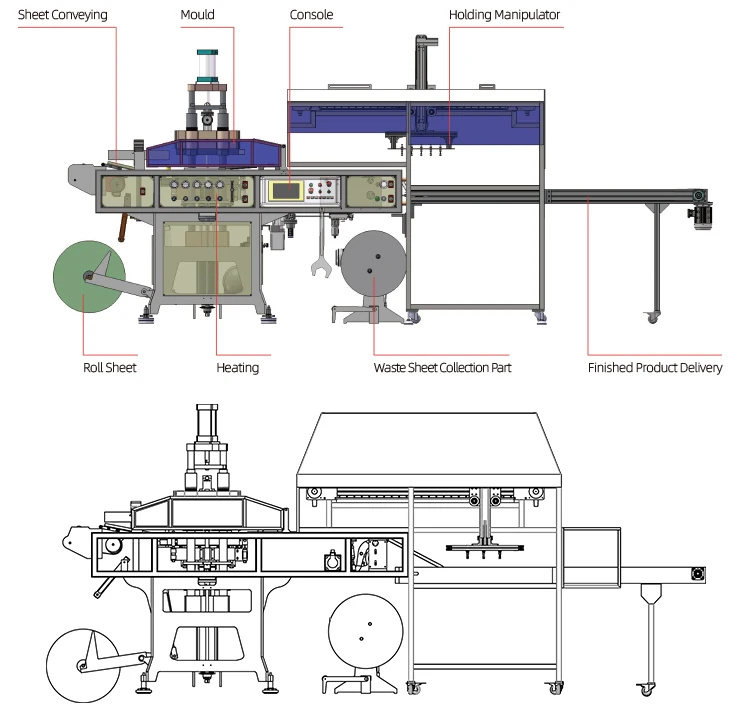

SUMMARY OF MACHINE
Touch Screen
1. Touch Screen for operation, HITECH brand, made in Taiwan.It is easy for operating.
Double servo motors
2. Double servo motors (Delta, Taiwan brand) control the transport of grippers.
Stacking
3. Pneumatic adsorb products and transmission, the manipulator can adjust height and position.
Heating
4. Heating Plate uses 38 CrMoAlA with high hardness
It can be used with machine for whole life.
It can be used with machine for whole life.
Sheet Feeding
5. Sheet feeding part is controlled by servo motor (Japan·YASKAWA). The height can be adjusted, it is easy for changing the sheet rollers.
Rewinding
6. Waste sheet receiving, driven by motor.
Waste material rewinder part is under the machine, saving space.
Waste material rewinder part is under the machine, saving space.
Hydraulic oil
7. Machine can be lubricated by oil automatically at certain time.
Servo motor
8. Holding manipulator, controlled by servo motor (4.7Kw), which made in Japan · Yaskawa.
Company Profile
Long-term Cooperation Brand
Product packaging
FAQ
Q: Are you a factory or trading company?
A：We are a factory, and we export our machines to more than 80 countries since 2001.
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long is the warranty period?
A: 13 months calculated from the date of shipment from our factory.During warranty period,
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in Ruian city, near to Wenzhou airport, about 40minutes to our factory by car. We will provide transporation service during your visit at our factory.
