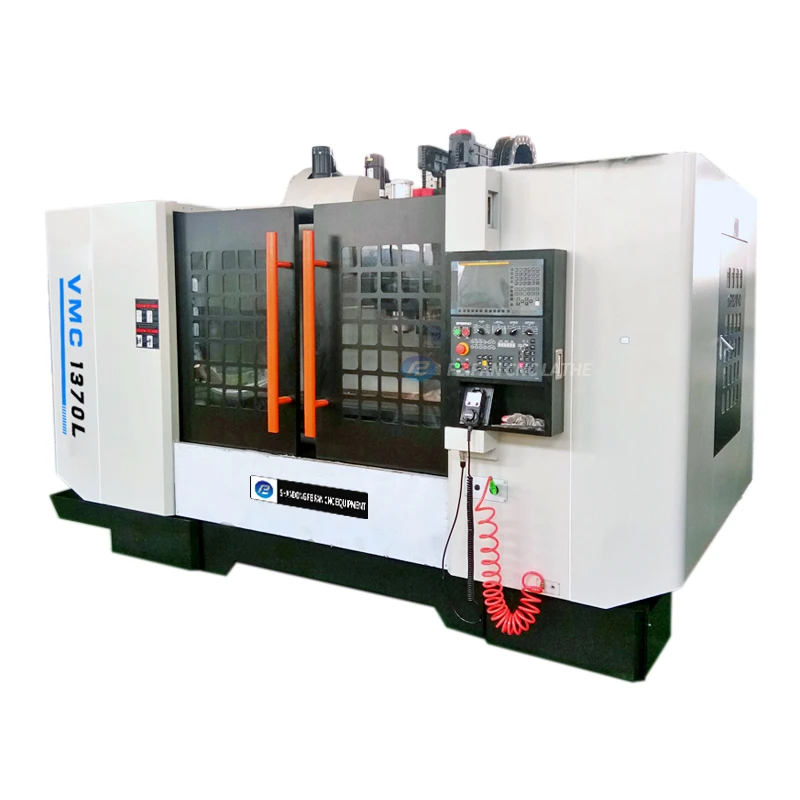

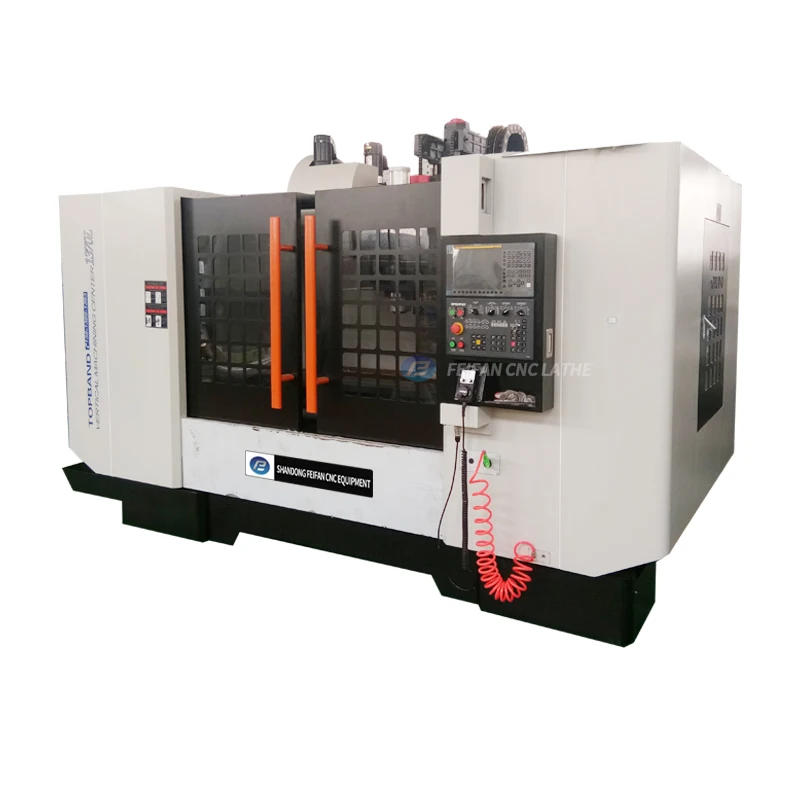

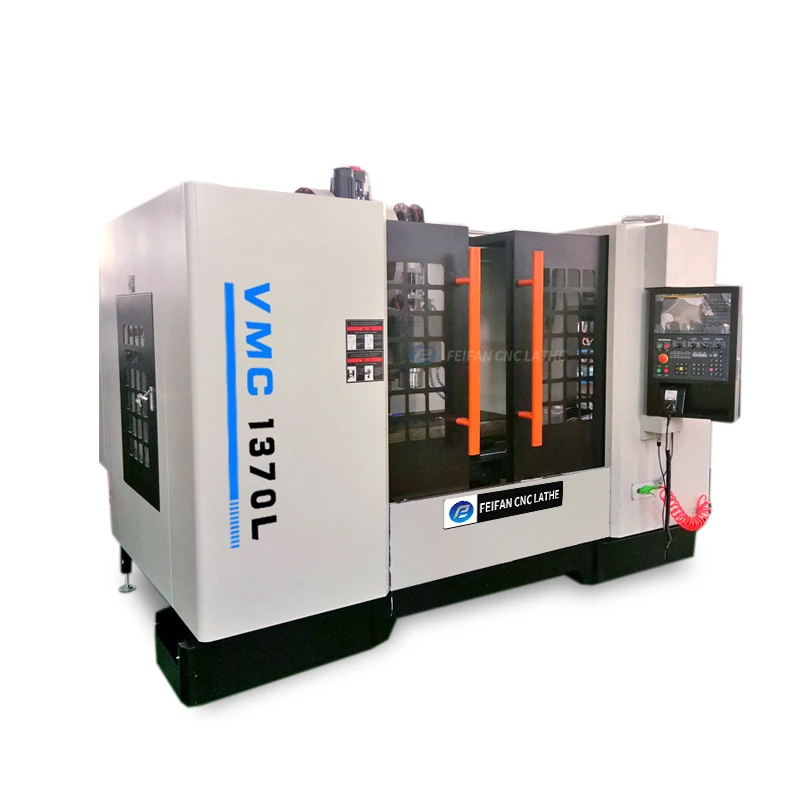

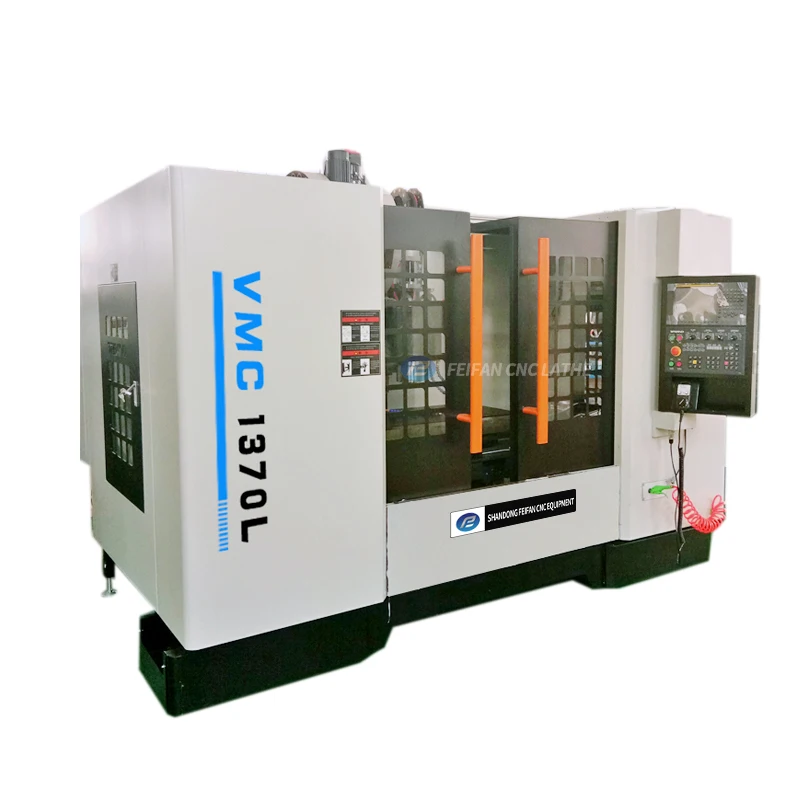

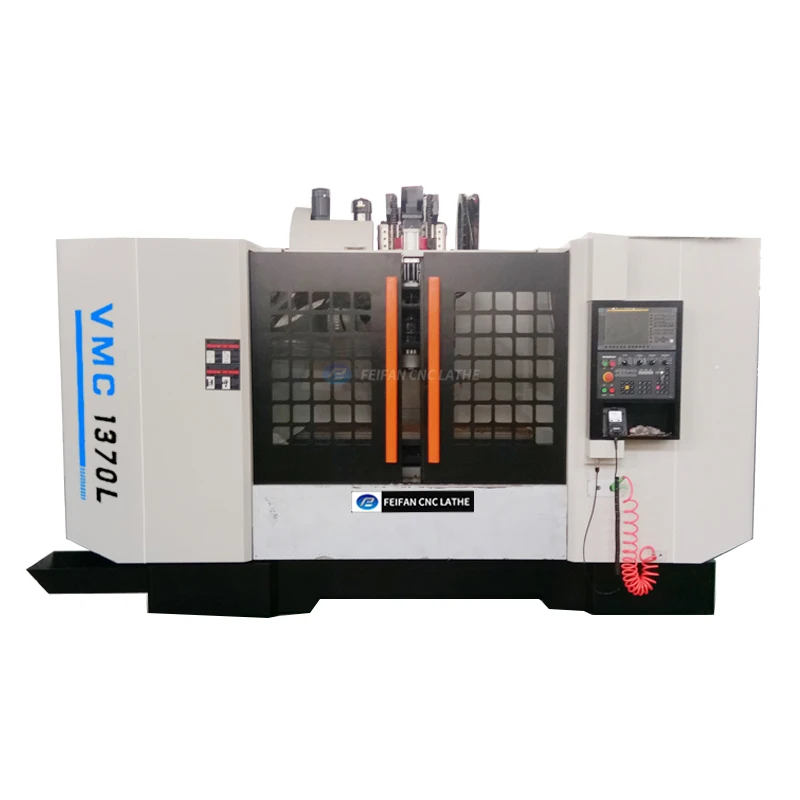

Automatic Milling Machine VMC1370 China Cnc Milling Machine Price
- Category: >>>
- Supplier: Shandong Feifan CNC Equipment Co. Ltd.
Share on (1600704228802):
Product Overview
Description
Product Overview
vmc1370
.High quality resin sand cast ironJapan NSK bearing;
Germany R+W couplingTaiwan ball screw and locking nut;
Taiwan spindleTaiwan pressure cylinder

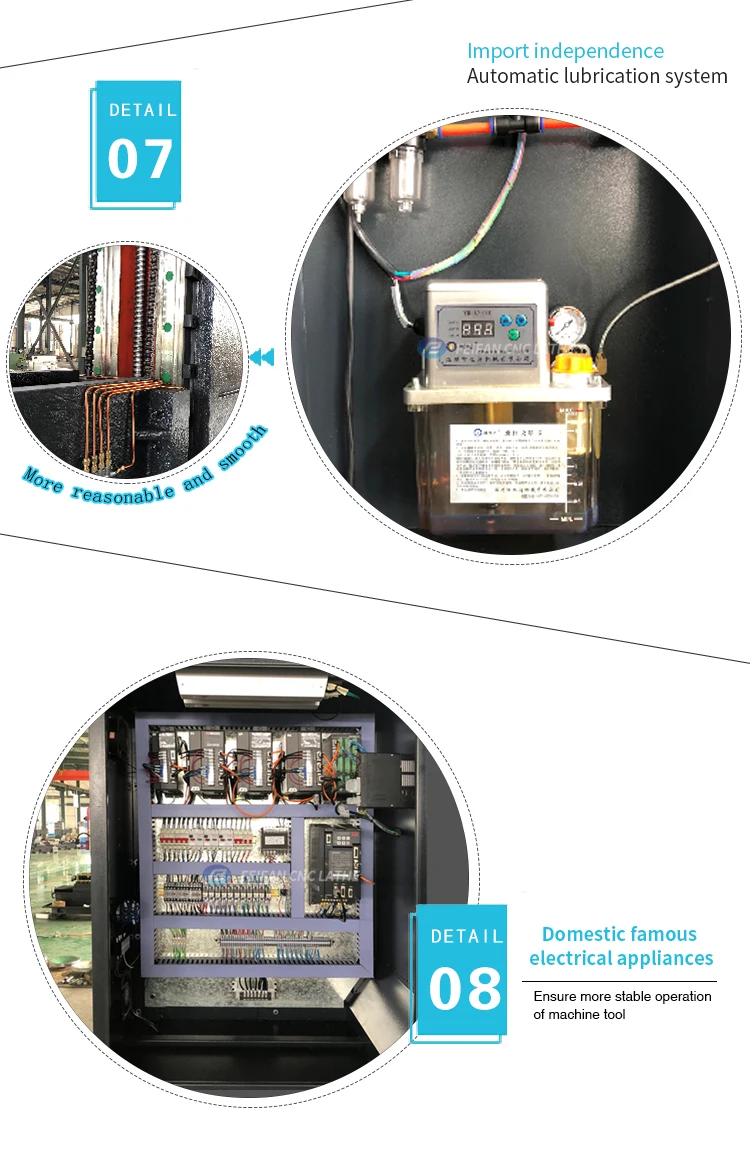

Automatic lubrication system;
Clip conveyor at optional
Germany R+W couplingTaiwan ball screw and locking nut;
Taiwan spindleTaiwan pressure cylinder
Automatic lubrication system;
Clip conveyor at optional

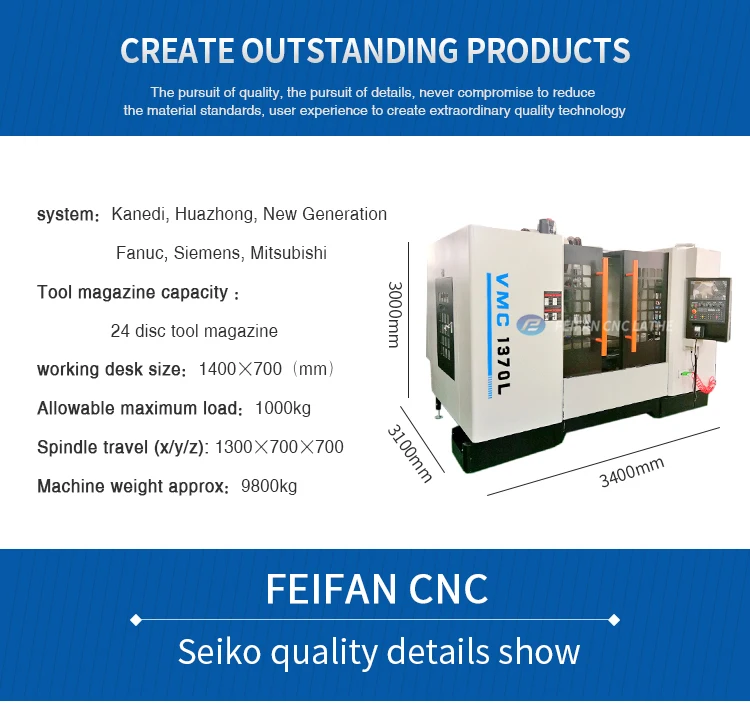

PRODUCT SPECIFICATIONS
type | VMC 1270 | |
Travel | ||
X | 1200mm | |
Y | 700mm | |
Z | 700mm | |
Distance from spindle end to table | 150-850mm | |
Spindle center to column guide | 780mm | |
feed | ||
X rapid speed | 24m/min | |
Y rapid speed | 24m/min | |
Z rapid speed | 18m/min | |
Cutting feeding | 1-10000mm/min | |
Table | ||
Table size | 1300×700mm | |
Max loading | 1000kg | |
T-slot | 5-18-135mm | |
Spindle | ||
Spindle speed | 50-6000rpm | |
Spindle taper | Φ150 mm | |
Spindle nose | BT50 | |
Spindle motor | 11/15kW | |
Tool magazine | ||
type | disc | |
qty | 24T | |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
Packaging and Shipping

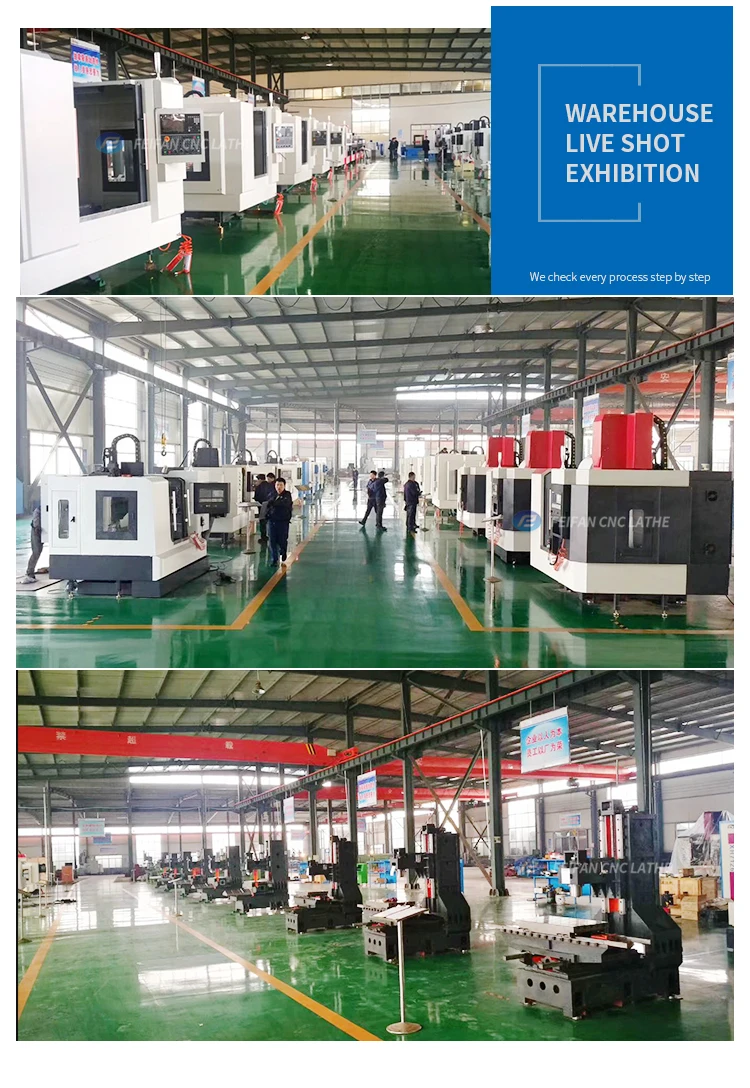

Company Information

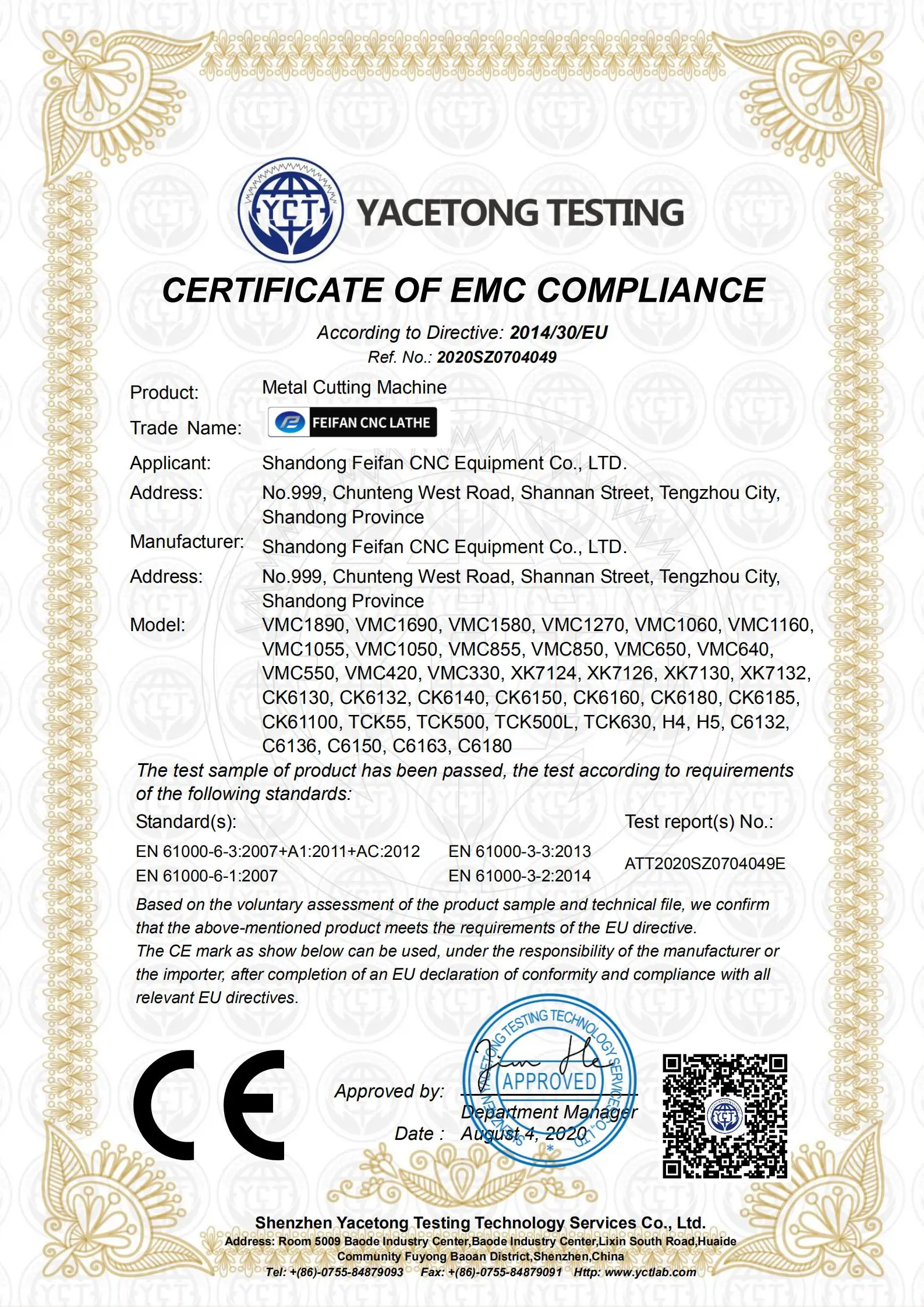

Certificate
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also
send us the products drawing ,we will choose the most suitable machines for you . 2:What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine and so on . 3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. Whatis your trade terms? A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: Your products can be customized?
A: of course, we accept the OEM and ODM orders
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also
send us the products drawing ,we will choose the most suitable machines for you . 2:What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine and so on . 3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. Whatis your trade terms? A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: Your products can be customized?
A: of course, we accept the OEM and ODM orders
