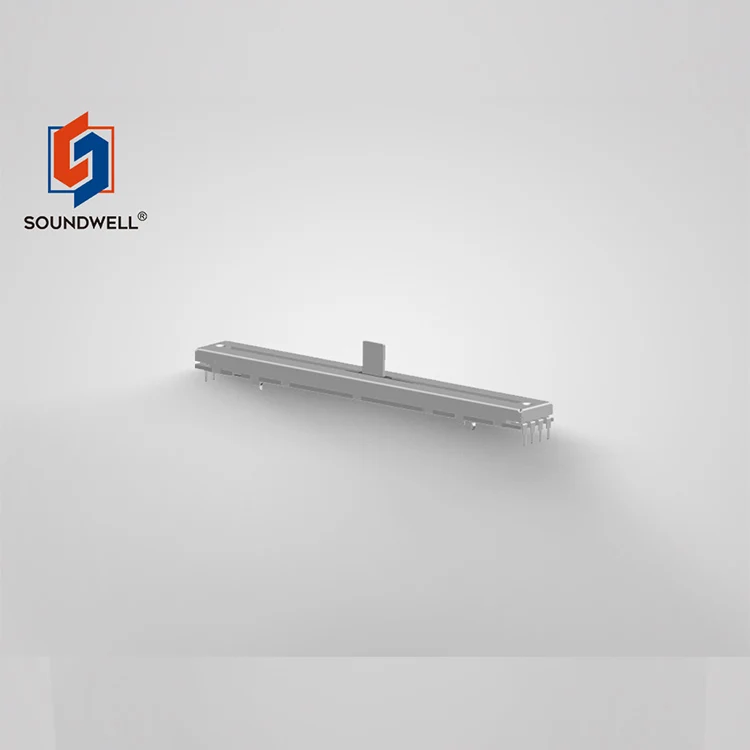

Slide Potentiometers 100mm Travel Audio Volume 128mm 100k 6 Pin Slide Potentiometer Linear Dual Potentiometer potentimeterSlider
Slide Potentiometers 100mm Travel Audio Volume 128mm 100k 6 Pin Slide Potentiometer Linear Dual Potentiometer potentimeterSlider
Slide Potentiometers 100mm Travel Audio Volume 128mm 100k 6 Pin Slide Potentiometer Linear Dual Potentiometer potentimeterSlider
Slide Potentiometers 100mm Travel Audio Volume 128mm 100k 6 Pin Slide Potentiometer Linear Dual Potentiometer potentimeterSlider
Slide Potentiometers 100mm Travel Audio Volume 128mm 100k 6 Pin Slide Potentiometer Linear Dual Potentiometer potentimeterSlider
Slide Potentiometers 100mm Travel Audio Volume 128mm 100k 6 Pin Slide Potentiometer Linear Dual Potentiometer potentimeterSlider
Slide Potentiometers 100mm Travel Audio Volume 128mm 100k 6 Pin Slide Potentiometer Linear Dual Potentiometer potentimeterSlider

Slide Potentiometers 100mm Travel Audio Volume 128mm 100k 6 Pin Slide Potentiometer Linear Dual Potentiometer potentimeterSlider

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Slide Potentiometer Model
SA1003/SCA1003/SA10005/SCA1005/SKA191/SK10093
Click force
80~330gf.cm
Operating Force
15~150gf.cm
Working temperature
-10℃ ~70℃
Resistance Taper
B
Operating life
10,000 Min



100mm Travel Slide Potentiometer Main Specifications



Travel
100mm
Rated power
0.2W
Maximum operating voltage
AC 100V
Operating temperature
-10℃ ~70℃
Operating life
10,000 Min
Applications
Professional audio like mixing consoles, electronic pianos, guitars and other related electronic devices.
Product features
Smooth operation with reliable performance;
Available in both mono and stereo types;
Available with center click;
Wide options for different applications;
Functions
Mainly used to adjust the volume, adjust the channel, adjust the balance, etc.



100mm Travel Slide Potentiometer Specifications



One、MECHANICAL CHARACTERISTIC

1. Operating Force: 15~150gf.cm
2. Click Force: 80~330gf.cm
3. Slide Travel: 100 mm
4. Lever Stop Strength: ≥3.0Kgf.cm
5. Lever Wobble (mm p-p): 1.6mm Max


Two、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ<R<1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: B
3. Rated Power: 0.2W
4. Maximum Operating Voltage: AC 100V
5. Residual Resistance: R1,2≤10Ω; R2,3≤20Ω
6. Insulation Resistance: 100MΩ 1 Minute at DC 250V
7. Dielectric Voltage: 1 Minute at AC 250V

Three、ENDURANCE CHARACTERISTIC

1. Rotational life: 10,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
