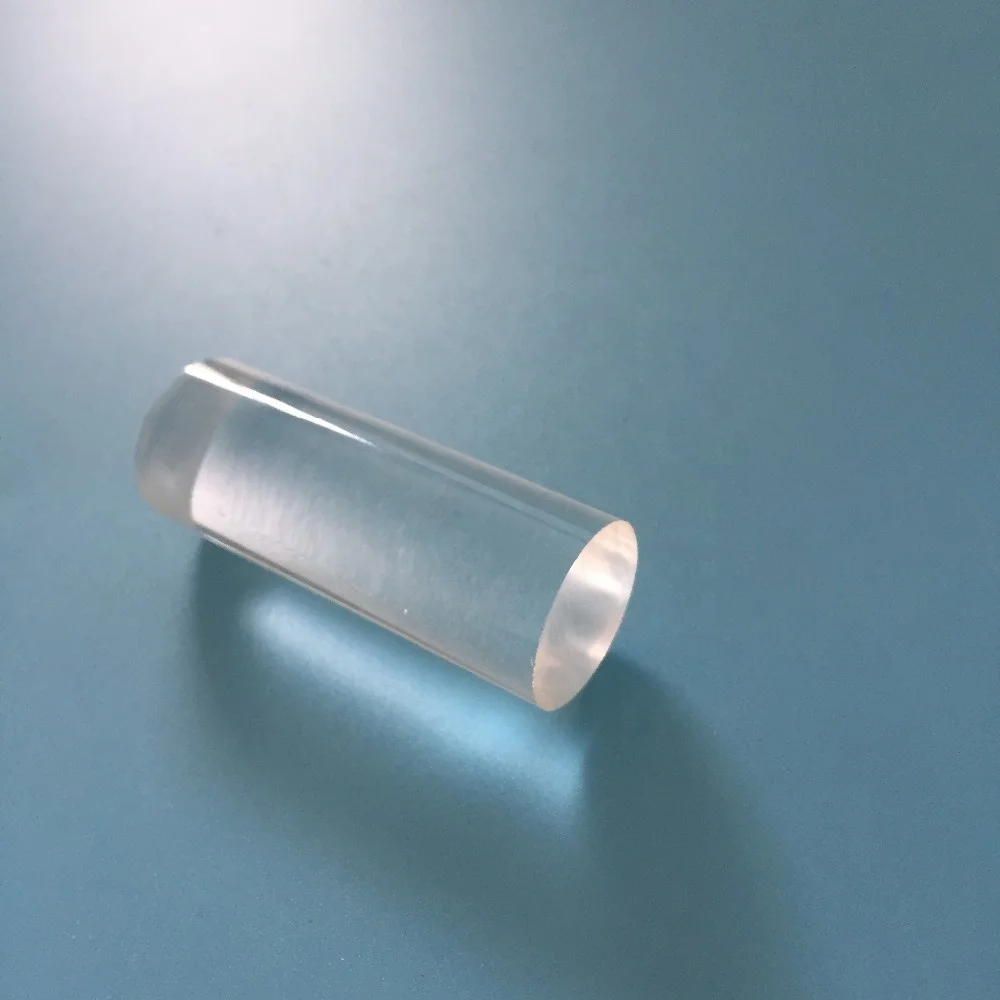

High Purity High Light Transmittance Quartz Glass Rod Transparent Light Guide Rod

High Purity High Light Transmittance Quartz Glass Rod Transparent Light Guide Rod

Category: Quartz Rods >>>
Supplier: Lianyungang,Liaison,Quartz,Co.,Ltd.

Price:$4.00 - $5.00

Price in USD:Details

Quantity:

Product Overview

Description

clear fused optical fiber quartz glass rod for lighting

Product Description

SiO2	99.99%
Density	2.2g/cm3
Degree of hardness Moh's Scale	6.6
Melting Point	1732C
Working Temperature	1100C
Acid tolerance	30 times than Ceramics , 150 times than Stainless steel
Visible light transmittance	Above 93%
Resistance value	10000 times than ordinary glass
Strain point	1100C
Annealing point	1180C
softening point	1680C

Dimension Specification(mm)

Diameter and Tolerance	Max. out of Round
2.0+/-0.1	0.1
2.5+/-0.1	0.1
3.0+/-0.1	0.1
4+/-0.15	0.15
5+/-0.15	0.15
8+/-0.2	0.2
10+/-0.2	0.2
15+/-0.2	0.2
19+/-0.3	0.3

Chemmical Composition(Unit:PPM)

Al	Fe	K	Na	Li	Ca	Mg	Cu	Mn	Cr	B	Ti
5~12	0.19~1.5	0.71~1.6	0.12~1.76	0.38~0.76	0.17~1.23	0.05~0.5	0.05	0.05	<0.05	<0.1	<1.0

Application of quartz rod : Linear light source products, light guide stick, light pipe, Fiber Lighting, Quartz fiber manufacturing,semiconductor silicon wafer, hollow half round.

Application of standard clear quartz tube: halogen lamp, mercury lamp, single end lamp,automobile lamp,stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing,quartz ware and pipe.

Application of Ultraviolet quartz tube : Single-ended metal halide lamp,automobile metal halide lamp,G12 metal halide lamp, anti-explosion metal halide lamp, High power stage light and so on.

Application of free ozone quartz tube : Kill germs free ozone light,the material of hospital ,family,and public place Ultraviolet kill germs,and water treatment.

Application of film coated quartz heater tube: Instant Hot water heater, Alkaline water purifier, Electrothermal heater, Oven heating, Aquarium heater,Screen Printing, Drying, Sealing, Food Warming, Plastic Forming, Laminating.

Application of quartz plate: military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, firehole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.
