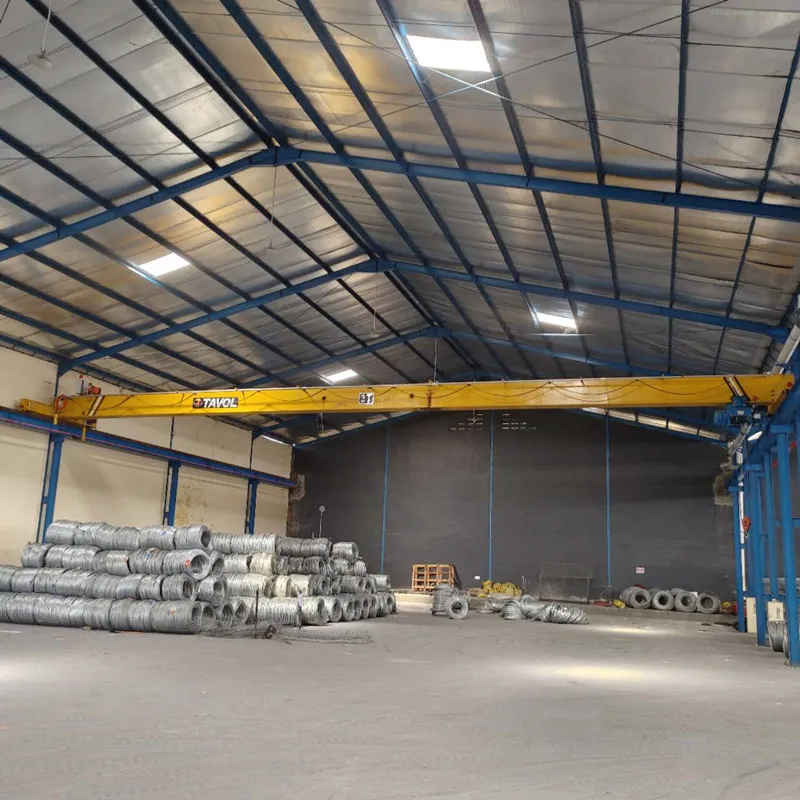

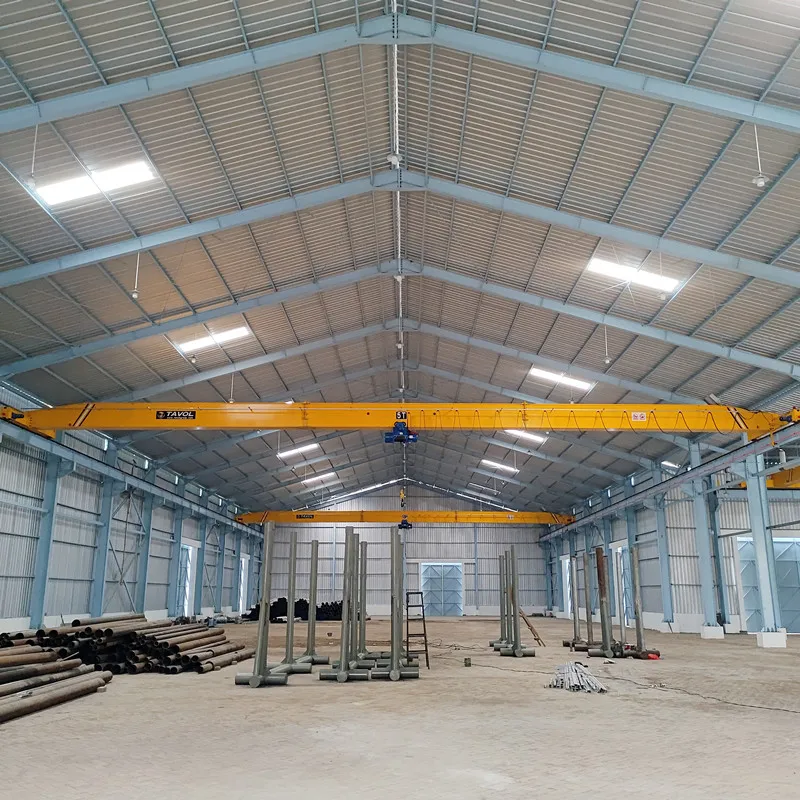

Buy 3 ton 5 ton 10 ton 16 ton Single Girder Hoist Overhead Crane in Indonesia Jakarta Hoist overhead crane consists of one girder beam supported on each side by an end truck. The electric hoist is under hung--meaning they run on the bottom flange of the single girder. Hoist overhead crane is suitable for the workshop where there are column beams and runway beams. Euro overhead crane gets six directions of movement including forward and backward, left and right, up and down. Hoist overhead crane is not only suitable for steel structure workshop, but also concrete workshop.This overhead crane is for our Indonesia client. And they deal with steel coils and steel plates by this overhead crane. | ||||||||
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
No | Item | Data | ||||
1 | Lift capacity | 5T | ||||
2 | Span | 27M | ||||
3 | Lift height | 6M | ||||
4 | Work duty | A4 | ||||
5 | Control method | Wireless remote | ||||
6 | Electrical parts | CHINT brand | ||||
7 | Lift motor | 7.5KW, lift speed 0-7M/Min | ||||
8 | Cross travel motor | 0.8KW, travel speed 0-20M/Min | ||||
9 | Long travel motor | 0.8KW X 2, travel speed 0-20M/Min | ||||
10 | Bus bar with accessories | 4P X 14MM2 | ||||
11 | Runway with accessories | P24 | ||||
12 | Control voltage | AC 36V | ||||
13 | Power supply | 380V/50Hz/3P | ||||
PRODUCT CONFIGURATION
Main Girder
End Truck
Euro Electric Hoist
C Steel Trolley System
Bus Bar & Runway
Bracket of Current Collector
Control Panel
Long Travel Motor
Container Packing
Company Introduction
Shandong Tavol Machinery Co., Ltd has been specialized in delivering one stop overhead crane solutions to worldwide customers for 30 years. Our high quality products include single girder overhead crane, double girder overhead crane, single girder gantry crane, double girder gantry crane, etc. Product innovation, quality assurance and customer satisfaction are our long term commitment to all of our partners. All of our products passed ISO9001, CE and PVC. | ||||||||
Office Building
Outside of Workshop
Line of Shot Blasting
Inside of Workshop
Successful Project
Project in Colombia
Project in USA
Project in Bangladesh
FAQ
If you want to get a price of Hoist Overhead Crane, please help to confirm the details as below:
1. What kind of materials will this overhead crane equipment deal with?
2. Lift capacity? 3 ton, 5 ton, 10 ton or 16 ton?
3. Span? Or your can tell us width of your workshop, then we will design?
4. Lift height? 6 meters, 9 meters or 12 meters?
5. Travel length? Or you can tell us length of your workshop, then we will design?
6. Power supply in your local? Is 380V/50Hz/3P?
7. Nearest sea port? We will quote you a CFR price for your reference.
