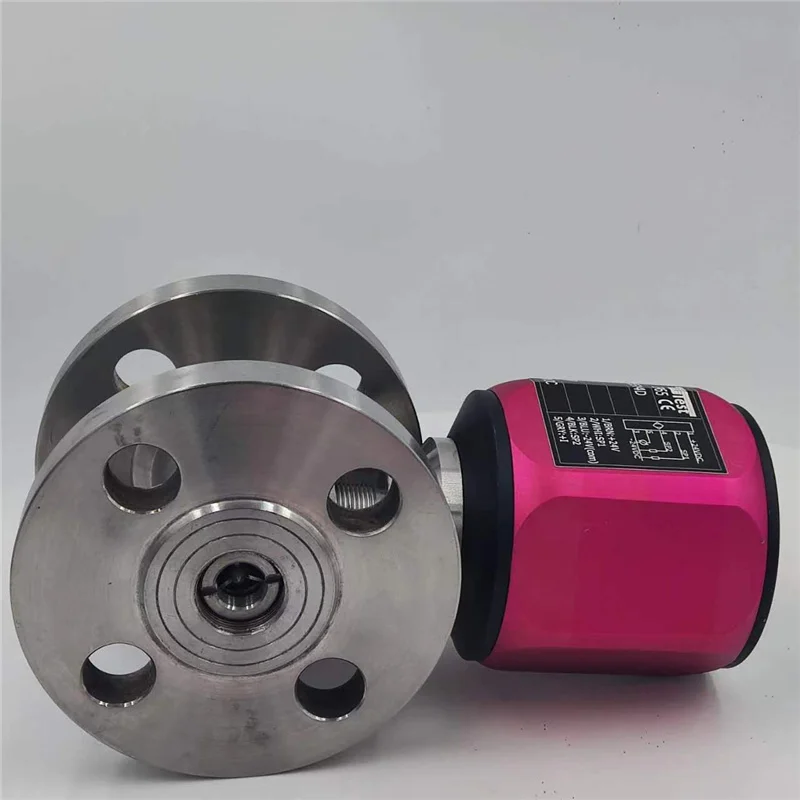

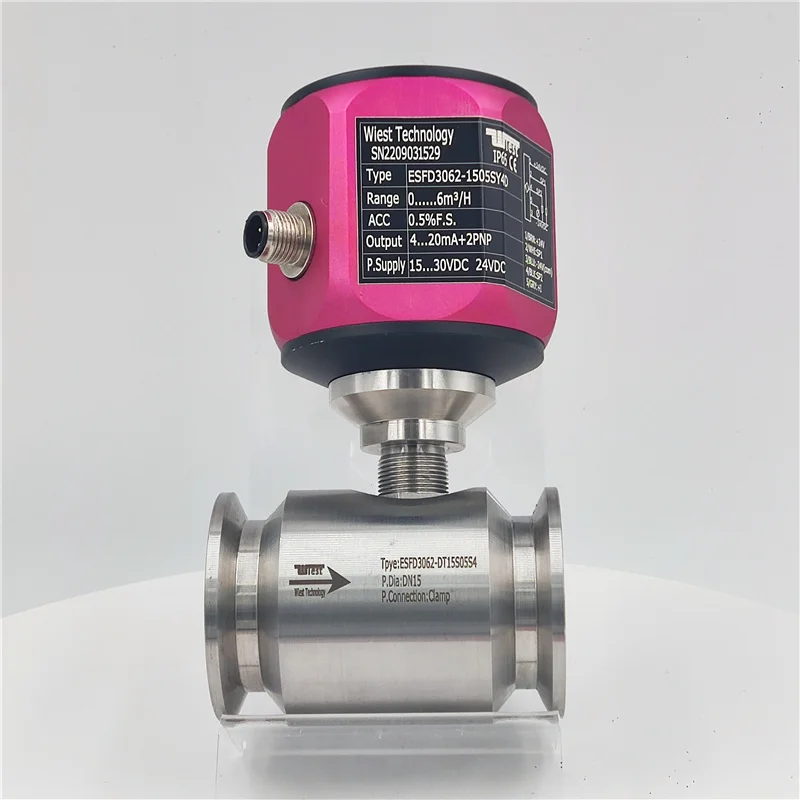

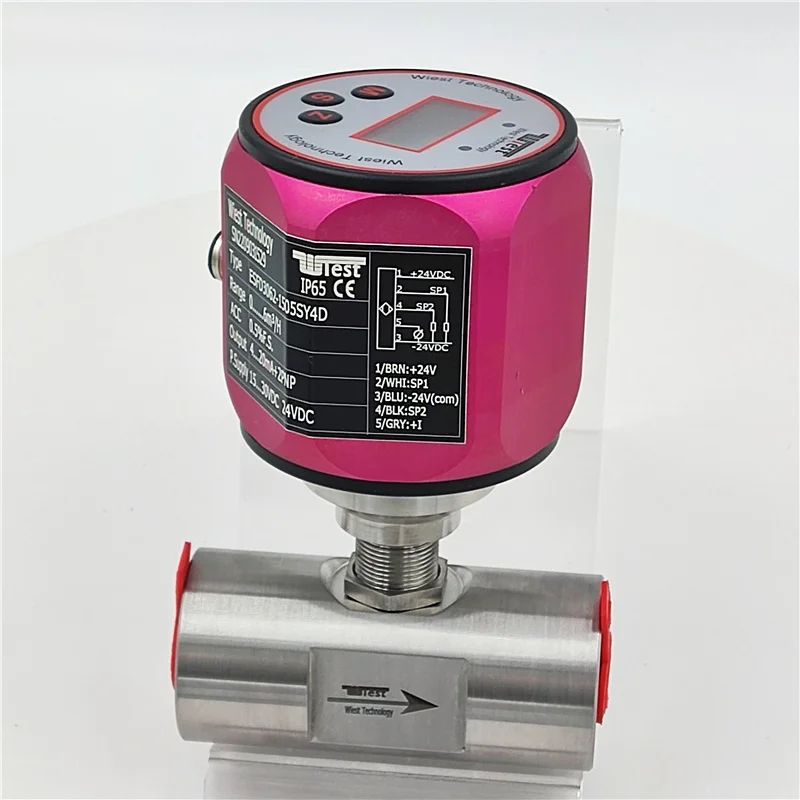

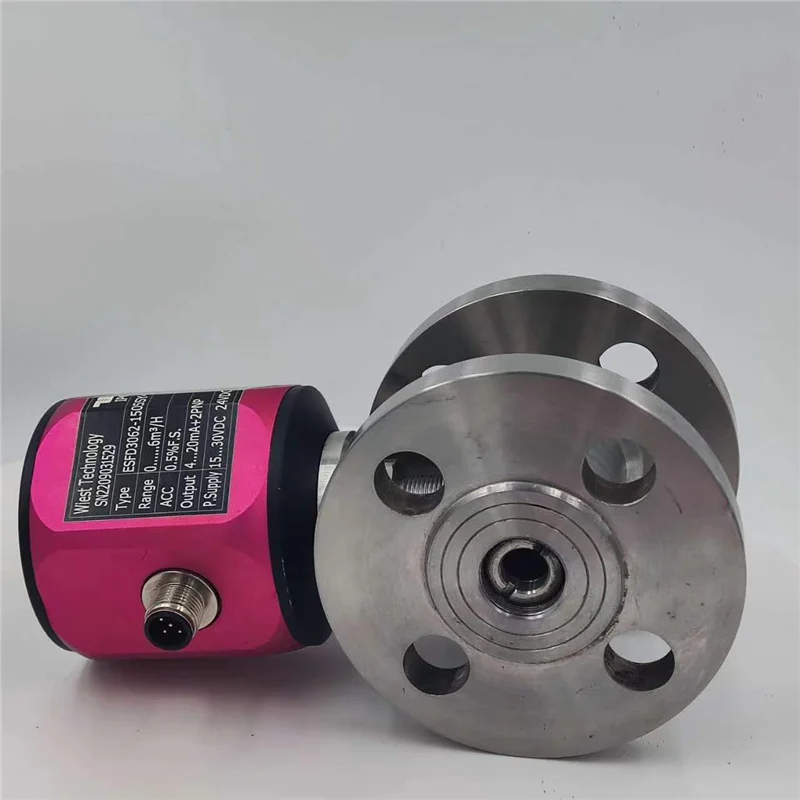

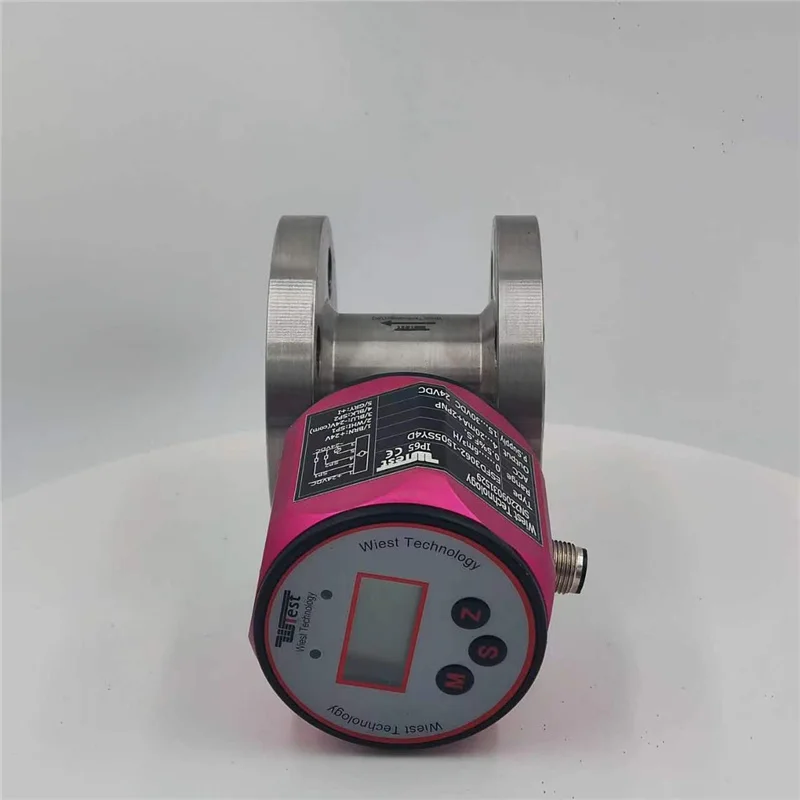

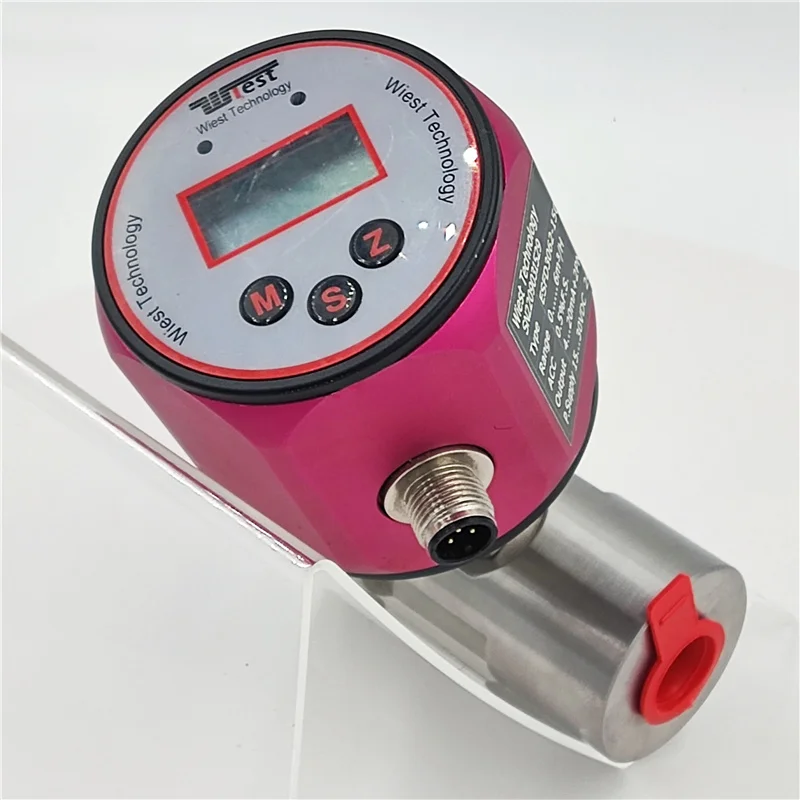

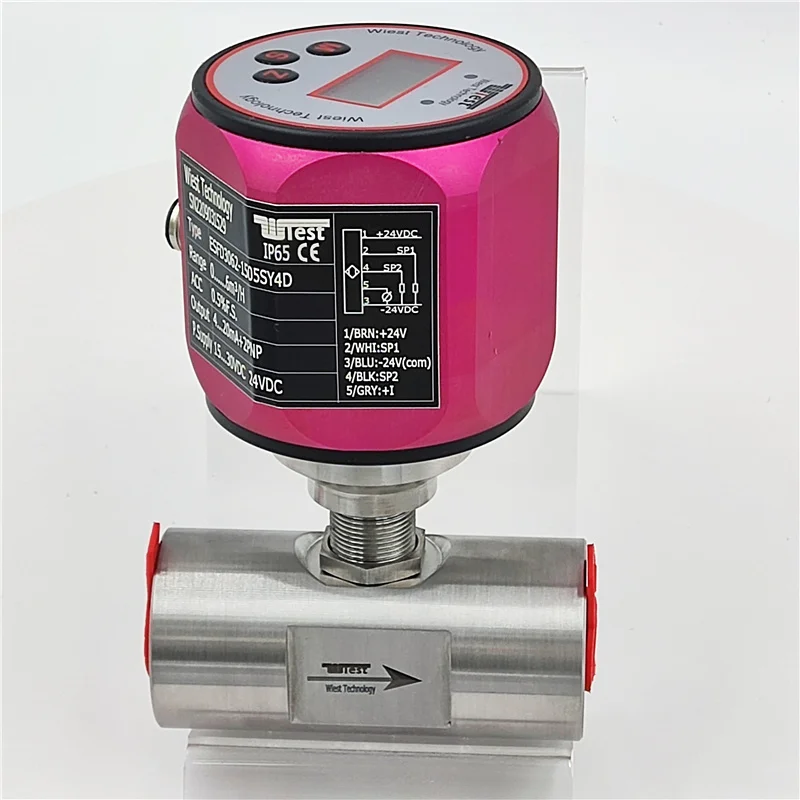

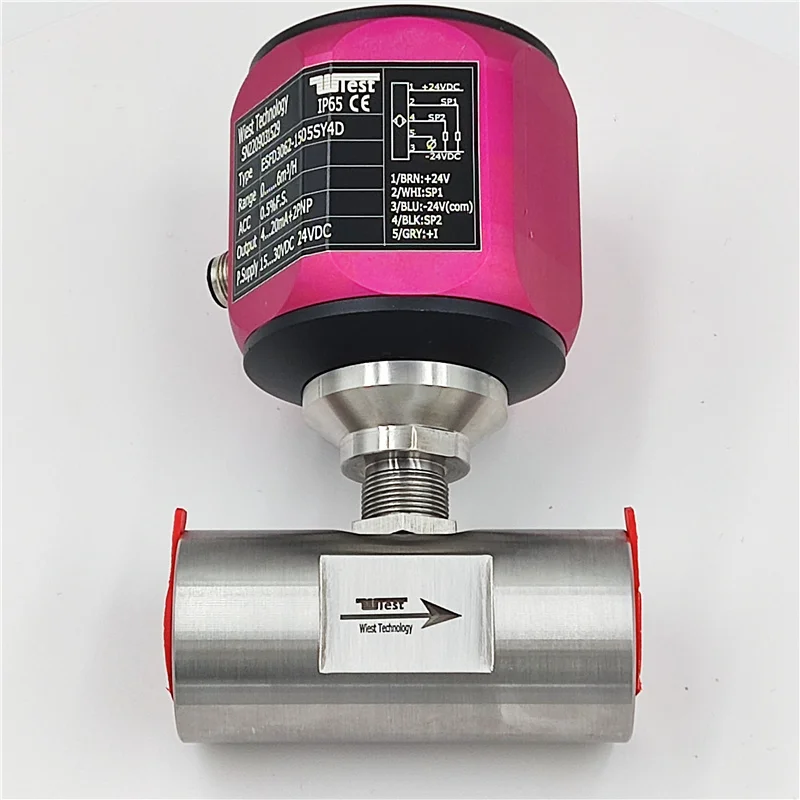

Flange and thread turbine flowmeter for Industrial Argon Regulator
- Category: >>>
- Supplier: Yiwu Hanstar Sci-Tech Co. Ltd.
Share on (1600704347443):
Product Overview
Description
Product Description
Product Name | Flowmeter Flange turbine flowmeter For Chemical Or Wastewater |
Product Code | ESFD9062 Intelligent Turbine Flowmeter |
Main Material | SS304 / SS316 |
Pipe Diameter | DN4....DN300 |
Measuring Medium | liquid , water , oil, etc. |
Accuracy Class | 0.2%/0.5%/1.0%/ |
Protection Grade | integrated IP65/separated IP68 |
Output Signal | 4-20mA+2PNP (1 pulse+1 PNP) |
Display Parameters | instantaneous flow, cumulative flow |
Power Supply | 24VDC |
Optional Pipe | diameter and process connection |
Applicable Industries | tap water supply, water-based solution without impurities or a little impurities, environmental protection engineering |
Product performance description
Turbine flowmeter
-Light weight
-High reliability
-Small size, hexagonal, 350 degree rotation
-Intuitive display reading
-Intuitive display reading
-Not affected by external power supply
-Obvious advantages such as low cost of complete set
-On site, the measuring range can be modified online according to the actual needs of users
-This product has superior performance, reaching the leading level of similar products in the world
-Imported chip, stable and reliable
-Imported chip, stable and reliable
Product Paramenters
The fluid flows through the sensor housing. Because the blade of the impeller has a certain angle with the flow direction, the impulse of the fluid makes the blade have a rotating torque. After overcoming the friction torque and fluid resistance, the blade rotates. After the torque is balanced, the speed is stable. Under certain conditions, the speed is proportional to the flow rate. Because the blade has magnetic conductivity, it is in the magnetic field of the signal detector (composed of permanent magnetic steel and coils). The rotating blade cuts the magnetic line of force, Periodically changes the magnetic flux of the coil, so that the two ends of the coil can sense the electric pulse signal. This signal is amplified and shaped by the amplifier to form a continuous rectangular pulse wave with a certain amplitude, which can be transmitted to the display instrument to display the instantaneous flow or total amount of fluid.
Product Usage
Product usage introduction
-Within the measuring range, the pulse frequency signal output by the sensor is proportional to the volume flow of the fluid, which is a positive ratio to the instrument coefficient K
- It is recommended that the viscosity of the oil be less than or equal to 200cst
- Installation position: When installing the vertical pipeline, the medium flow must be from the bottom to the upper, so as to test the error caused by the pipeline is not satisfied with the pipe
Table of Parameters
DN (mm） | D(mm) | K(mm） | d(mm） | nXφ(mm） | L(mm） | H(mm） | Range of flow （m3/h) |
15 | 95 | 65 | 46 | 4*14 | 75 | 247 | 0.6-6 |
20 | 105 | 75 | 56 | 4*14 | 100 | 255 | 0.7-7 |
25 | 115 | 85 | 65 | 4*14 | 100 | 263 | 1-10 |
32 | 140 | 100 | 76 | 4*18 | 100 | 278 | 1.5-15 |
40 | 150 | 110 | 84 | 4*18 | 140 | 287 | 2-20 |
50 | 165 | 125 | 99 | 4*18 | 150 | 300 | 4-40 |
65 | 185 | 145 | 118 | 4*18 | 175 | 317 | 7-70 |
80 | 200 | 160 | 132 | 8*18 | 200 | 332 | 10-100 |
100 | 220 | 180 | 156 | 8*18 | 220 | 352 | 20-200 |
125 | 250 | 210 | 184 | 8*18 | 240 | 380 | 25-250 |
150 | 285 | 240 | 211 | 8*22 | 300 | 410 | 30-300 |
200 | 340 | 295 | 266 | 12*22 | 360 | 462 | 80-800 |
Selection Code
1. Series code ESFD9062 intelligent turbine flowmeter
2. Pipe diameter : DN10, DN15......DN200
3. Accuracy : 0.25% F.S , 0.5% F.S , 1.0% F.S
4. Pressure : S - STANDARD , H - HIGH STANDARD
5. Display, Y: with display; N: None is displayed
6. The output , 4 : (4...20) m A; 4H : (4....20) mA + Hart ; P : Output of pulse ; N : No output
7. Power supply D: 24VDC; A : 220VAC
8. Attachments
We can provide all kinds of flowmeters and pressure gauges :
Turbine flowmeter Flow Meters Flow Sensors Machining Services Pressure Transmitters venturi flowmeter Petrolum Flowmeters water flow meter area flow mete Metal Tube Rotameter Doppler Flowmeter Open Channel Flow Meter Ultrasonic Open Channel Flow Meter gas flow controller mass flow controller Air & Gas Flowmeters underwater pressure sensor scrape-board flow meter smith flowmeter water digital rotameter plastic flow meter air rota flow meter air rotameter Glass tube Water Flowmeter Gas Pressure Regulator rotameters Pulse output flowmeter oxygen flow meter oil flow meters mass flowmeter Configurable Flowmeter Industrial Argon Regulator Flowmeter Gauges oval gear flow meter
liquid rotameter orifice plate flow meter device Gravity Flow Meter diesel flow meter Water Sensor diesel fuel calculator instrument boat instrument pressure sensor water Not Full Pipe Flowmeter Ultrasonic flow Flow totalizers Water Acid Flow Meter Electromagnetic Flow Meter Wall oxygen flowmeter medical flowmeter Oxygen Pressure Flowmeter water-proof flowmeter digital water flow meter Magnetic Flowmeters differential pressure Transmitter vortex flowmeter for gas air steam probe sensor Kracht flowmeter water level gauge temperature pressure sensor
Warm Reminder
Precautions
- DN10-DN40 caliber sensors are standard threaded or flanged with standard operating pressure of 10Mpa
- DN50-DN200 caliber sensors are flanged with a labeled working pressure of 2.5Mpa
- High temperature and high pressure flowmeters can be customized
- If the test range and technical parameters do not meet the customer's requirements, please explain when ordering
- Standard S pressure is less than 100 kg, high pressure H is less than 300 kg
- DN10 G3/8 DN15 G1/2 DN20 G3/4 DN25 G1 DN32 G1-1/4 DN40 G -1/2
- Default flange connection, threaded connection needs to add/" accessories".
- DN50-DN200 caliber sensors are flanged with a labeled working pressure of 2.5Mpa
- High temperature and high pressure flowmeters can be customized
- If the test range and technical parameters do not meet the customer's requirements, please explain when ordering
- Standard S pressure is less than 100 kg, high pressure H is less than 300 kg
- DN10 G3/8 DN15 G1/2 DN20 G3/4 DN25 G1 DN32 G1-1/4 DN40 G -1/2
- Default flange connection, threaded connection needs to add/" accessories".
