Price:$302.00 - $369.00

Quantity:


Product Overview

Description



Function
Insulation resistance test, voltage test, DC current test, capacitance test
Basic condition
23℃±5℃，below 75%rh

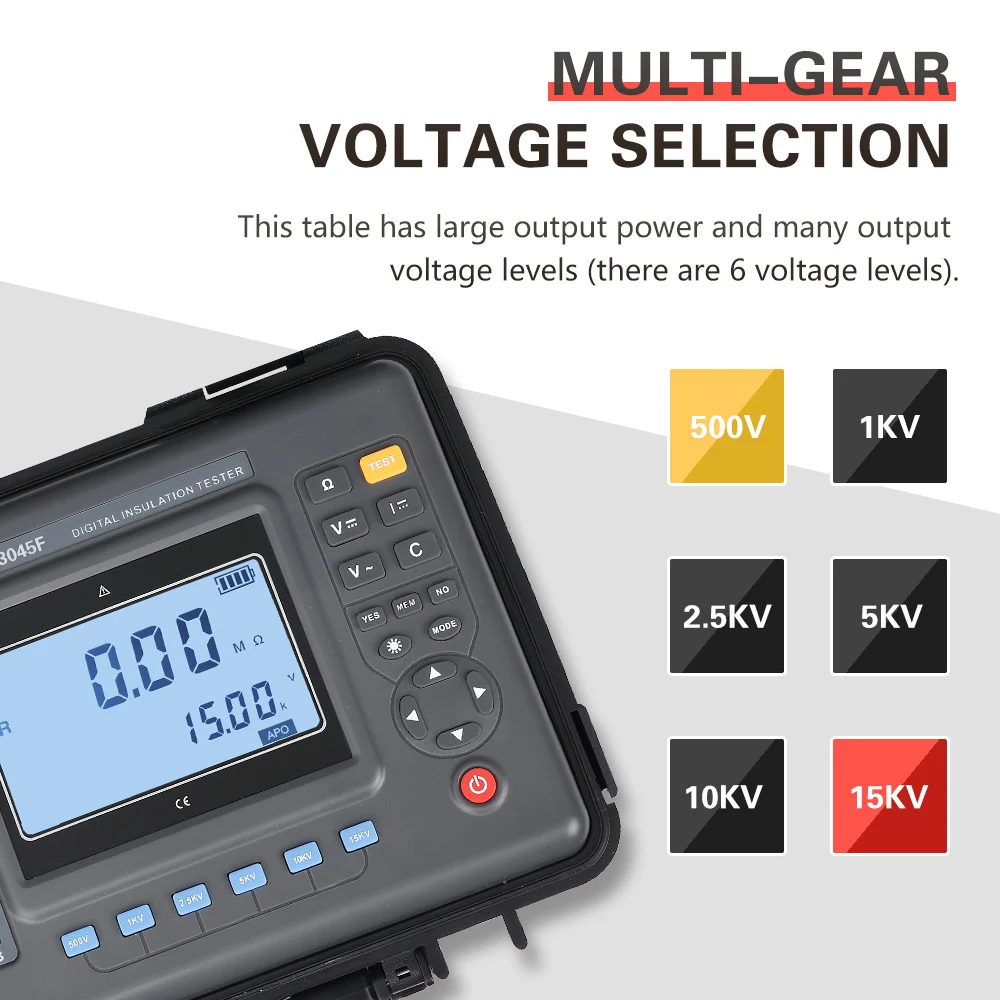

ES3045
Rated voltage
100V、250V、500V、1000V、2500V、5000V
Insulation resistance range
0.01MΩ～10TΩ
resolution：0.01MΩ
ES3045E
Rated voltage
250V、500V、1000V、2500V、5000V、10KV
Insulation resistance range
0.01MΩ～35TΩ
resolution：0.01MΩ
ES3045F
Rated voltage
500V、1000V、2500V、5000V、10KV、15KV
Insulation resistance range
0.01MΩ～50TΩ
resolution：0.01MΩ
Test Voltage(V)
rated voltage×（1±10%）
DC Voltage Range
0～1000V
Resolution: 0.1V
AC Voltage Range
0～750V
Resolution: 0.1V
DC Current
0.1nA～6mA
Resolution: 0.1nA
Capacitance
10nF～50uF
Resolution: 10nF
Output short-circuit Current
≥6mA@15KV
Absorption Ratio and Polarization Index Measurement
Have
Power Supply
12.6V rechargeable battery
Backlight
Controllable gray screen backlight, suitable for use in dim places
Dispaly mode
4-bit large LCD display, gray screen backlight
LCD display size
108mm×65mm
Instrument size
L/W/H：240mm×188mm×85mm
USB interface
With USB interface, software monitoring, storage data can be uploaded to the computer, save and print

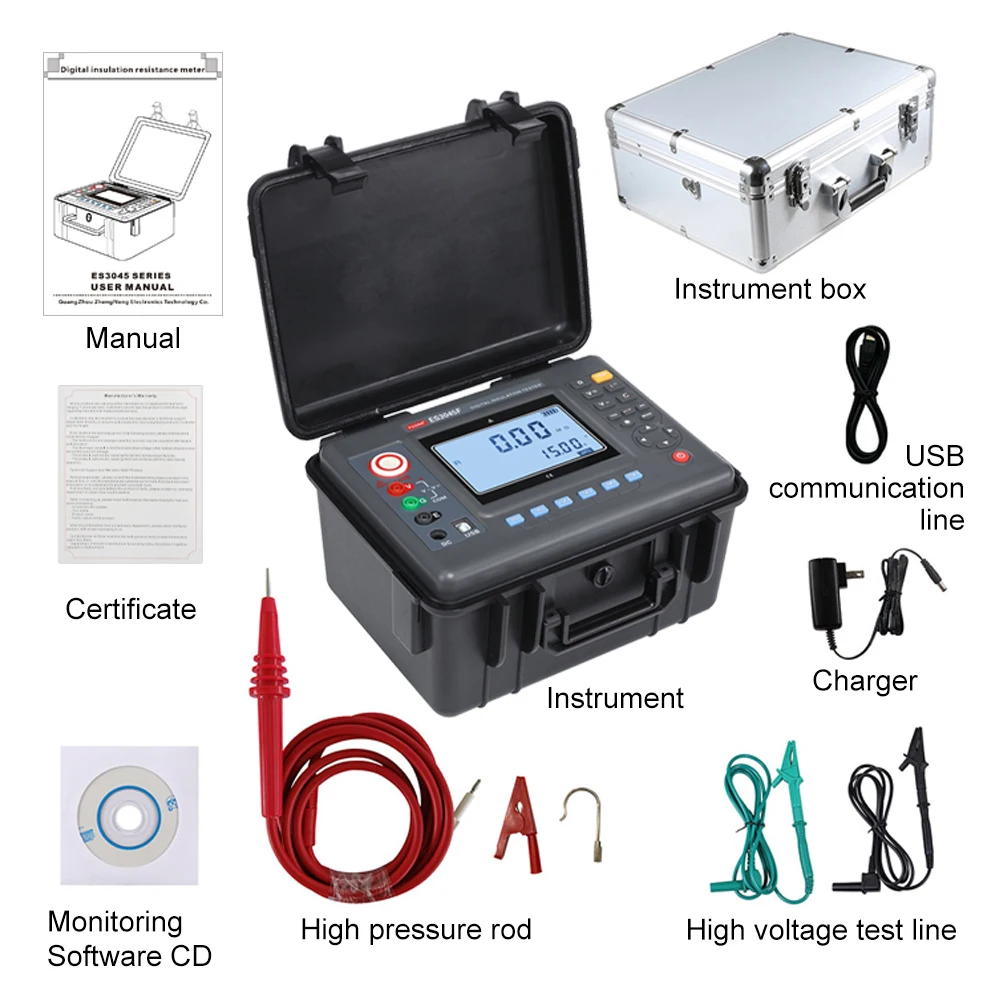

Communication Line
USB communication line 1PC
Test Line
High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter
Data Storage
500 groups, "FULL" symbol indicates that storage is full
Data Review
Data review function: "MR" symbol display
Overflow Display
Exceed measurement range overflow function: “> ” symbol display
Alarm Function
Alarm when the measured value larger or smaller than the alarm setting value
Power Consumption
Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max
Measure：200mA Max(backlight off)
Instrument weight
2750g(including battery)
Battery voltage
When the battery voltage is low, low battery symbol “ ”will display
Automatic shut-down
automatic shutdown after 15 minutes boot
Insulation Resistance
≥50MΩ(between Measuring line and housing)
Pressure Resistance
AC3kV/50Hz 1min
Working Temperature and Humidity
－10℃～+50℃＜85%RH
Storage Temperature and Humidity
－15℃～+55℃＜90%RH
Suitable for Safety Regulations
IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54)、pollution grade 2、CAT Ⅲ 300V
