0.5% High Accuracy Micro Oval Gear Hydraulic lubricating transformer Oil Fuel glue Water liquid Flow meter Mini Flow Sensor
- Category: >>>
- Supplier: Yiwu Hanstar Sci-Tech Co. Ltd.
Share on (1600705061985):
Product Overview
Description
Product Description

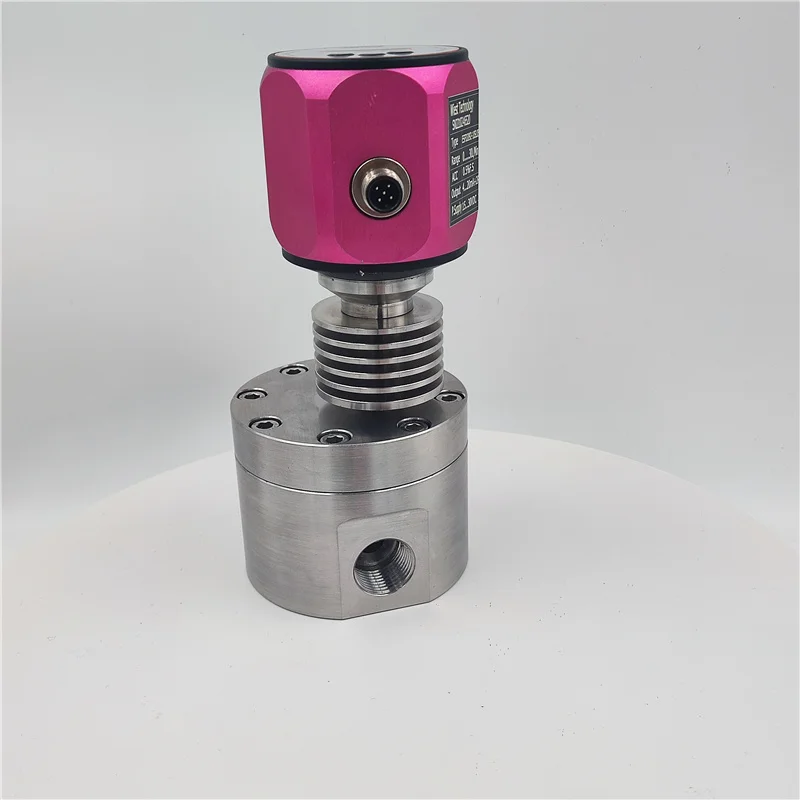

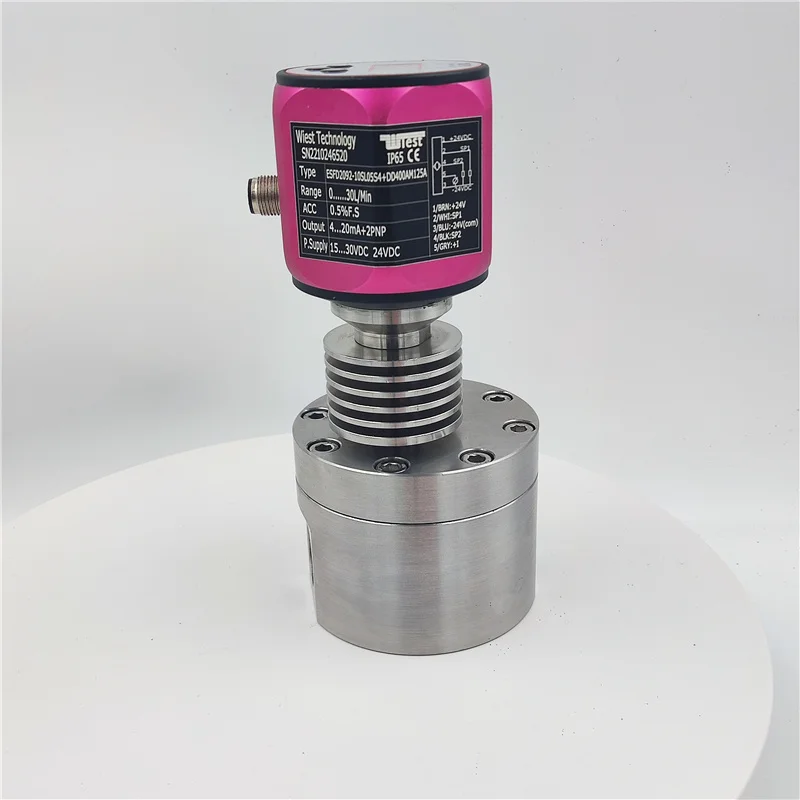

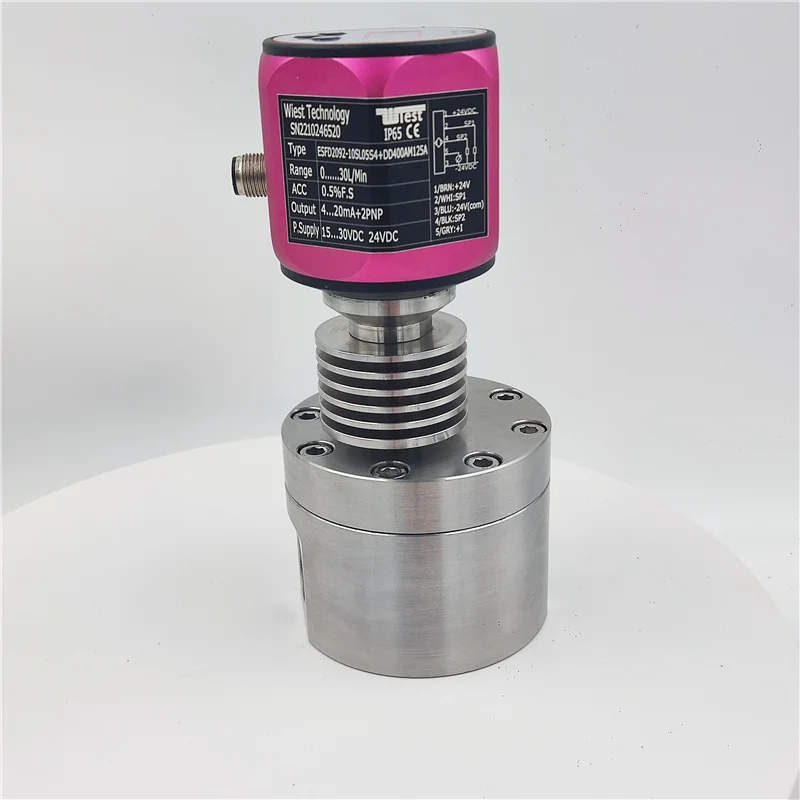

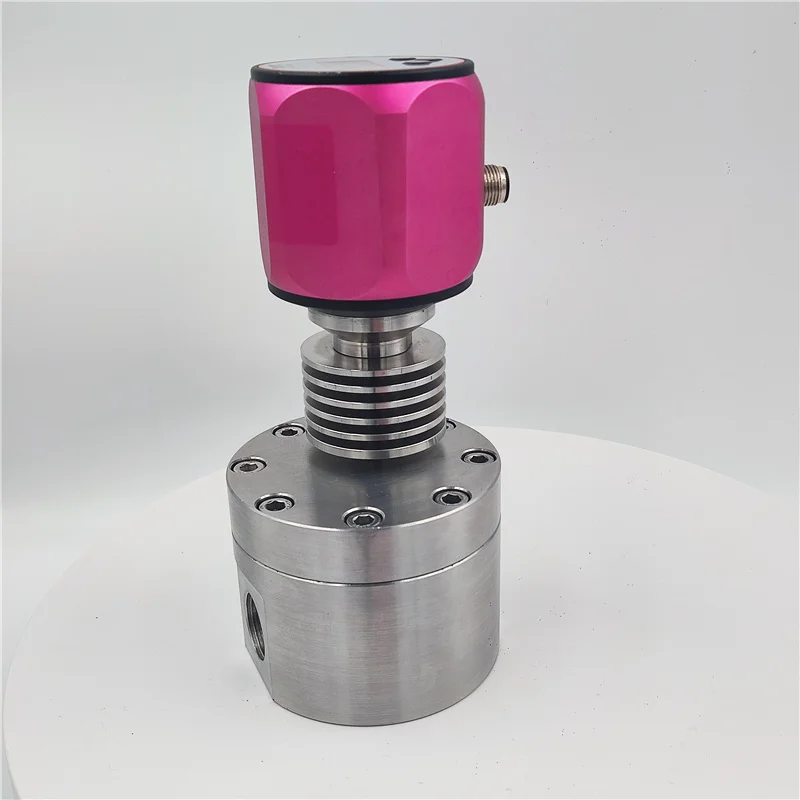

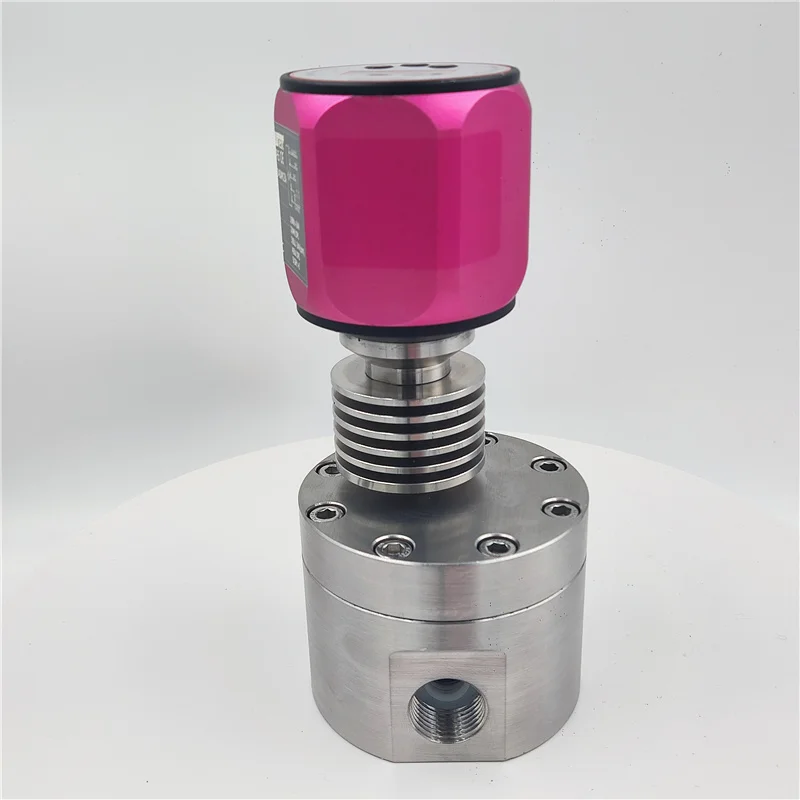

Product Name | Fuel diesel oil OGM meter mechanical oval gear flow meter with pulser high flow rate |
Product Code | ESFD9092 oval gear flow meter |
Main Material | SS304 / SS316 |
Pipe Diameter | DN10....DN200 |
Measuring Medium | liquid , water , oil, etc. |
Accuracy Class | 0.2%/0.5%/1.0%/ |
Protection Grade | integrated IP65/separated IP67 |
Output Signal | 4-20mA+2PNP (1 pulse+1 PNP) |

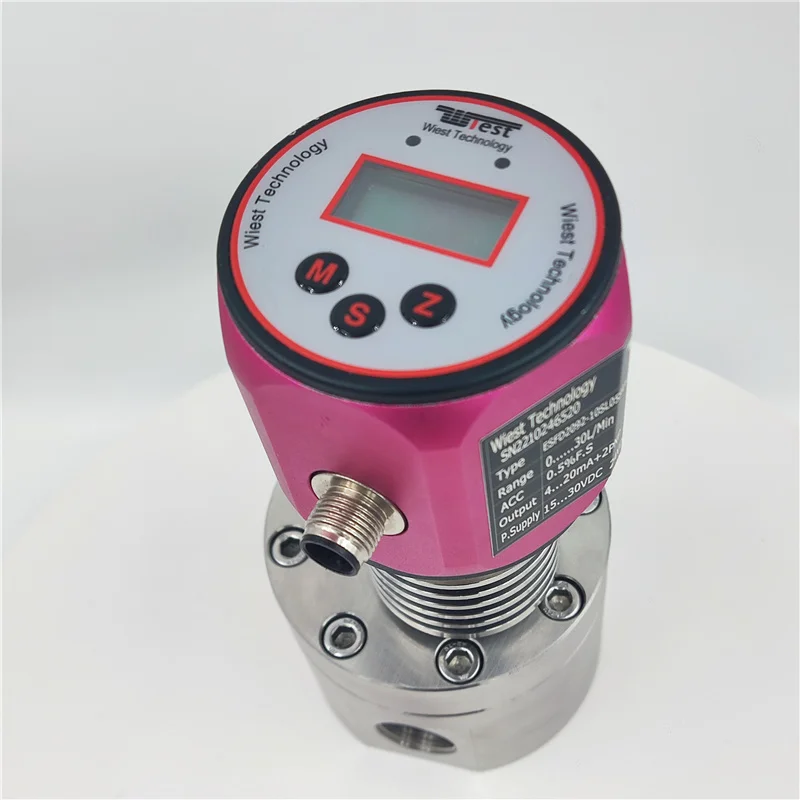

Display Parameters | instantaneous flow, cumulative flow |
Power Supply | 24VDC |
Optional Pipe | diameter and process connection |
Applicable Industries | Tap water supply, laboratory, hydraulic lubrication system, cooling system, dispensing system, ink system |
Product performance description
Circular gear flowmeter
-Light weight
-High reliability
-Small size, hexagonal, 350 degree rotation
-Intuitive display reading
-Intuitive display reading
-Not affected by external power supply
-Obvious advantages such as low cost of complete set
-On site, the measuring range can be modified online according to the actual needs of users
-This product has superior performance, reaching the leading level of similar products in the world
-Imported chip, stable and reliable
-Imported chip, stable and reliable
Product Paramenters
-Independent product design structure
-The measuring pipe is completely isolated from the electronic cavity-High precision
-Field display of flow
-It is resistant to harsh environment and the shell is firm
-Applicable medium: oil, resin, glue, etc
-Pay attention to the medium temperature and viscosity when selecting the type
-Viscosity of measured liquid: (2-4000) mPa. s
Product Usage
Product usage introduction
The principle of gear transmission: that is, a pair of gears with the same module (tooth shape) mesh with each other to transmit power from shaft A to shaft B to complete power transmission.
Gear transmission refers to the device that transmits motion and power by gear pair. It is the most widely used mechanical transmission mode in modern equipment. Gear transmission works by the meshing of teeth, and the gear teeth are the part of the gear directly involved in the work, so the failure of the gear mainly occurs on the gear teeth. The main failure forms are gear tooth fracture, tooth surface pitting, tooth surface wear, tooth surface gluing and plastic deformation.
Gear transmission refers to the device that transmits motion and power by gear pair. It is the most widely used mechanical transmission mode in modern equipment. Gear transmission works by the meshing of teeth, and the gear teeth are the part of the gear directly involved in the work, so the failure of the gear mainly occurs on the gear teeth. The main failure forms are gear tooth fracture, tooth surface pitting, tooth surface wear, tooth surface gluing and plastic deformation.
Selection Code
1. Series code : ESFD9092 oval gear flow meter
2. Pipe diameter : DN10, DN15......DN200
3. Accuracy : 0.1% F.S 0.2% F.S , 0.5% F.S , 1.0% F.S
4. Withstand voltage L: under low voltage (32Bar) M: Medium pressure (32Bar-100Bar) H: High voltage (above 100Bar)
5. Material : S : SS304 , L : Aluminum
6. The output , 4 : (4...20) m A; P : Output of pulse ;
7. Power supply D: 24VDC; A : 220VAC
8. Test Range : 150 : 0.5-150ml/min ; 300 : 1-300ml/min ; 1000 : 5-1000ml/min ; 1666: 8.5-1666ml/min ; 10 : 0.1-10ml/min ; 30 : 0.3-30ml/min ; 110 : 0.5-110ml/min ;
